Paishun - Petrol Pump Hoses acc. EN 1360 / EN 13483 for Gasoline and Diesel Gasoline Fuel Oil Hose

Relying on professional technicians,Hangzhou Paishun Rubber & Plastic Co., Ltd has rich experience in researching and developing products, one of which is our Petrol Pump Hoses acc. EN 1360 / EN 13483 for Gasoline and Diesel. It is developed based on the latest industry trend and customers' needs. After the Petrol Pump Hoses acc. EN 1360 / EN 13483 for Gasoline and Diesel was launched, we received good feedback, and our customers believed that this type of product could meet their own needs. Next, Hangzhou Paishun Rubber & Plastic Co., Ltd will continue to uphold the spirit of'advance with the times, outstanding innovation', and improve its own innovation capabilities by cultivating more outstanding talents and investing more scientific research funds.

Petrol Pump Hoses acc. EN 1360 / EN 13483 for Gasoline and Diesel

Construction -

Tube: Synthetic rubber resistant to gasoline, diesel, fuel oil.

 Reinforcement: Single High-strength wire braided.

 Cover: Synthetic rubber-Fire Resistant, wear resistant, ozone resistant, weather resistant.

Temperature: -40℃ to +80℃

Color: Black, Blue, Red and Green etc

Application: For fuel dispensing pump applications, including gasoline, diesel, oxygenated fuels (up to a maximum of 15% oxygenated compounds), lubricating oil, and other mineral oil etc.

Standard length: 50m/roll or 4m/pce or 5m/pce or other customized length.

Specification:

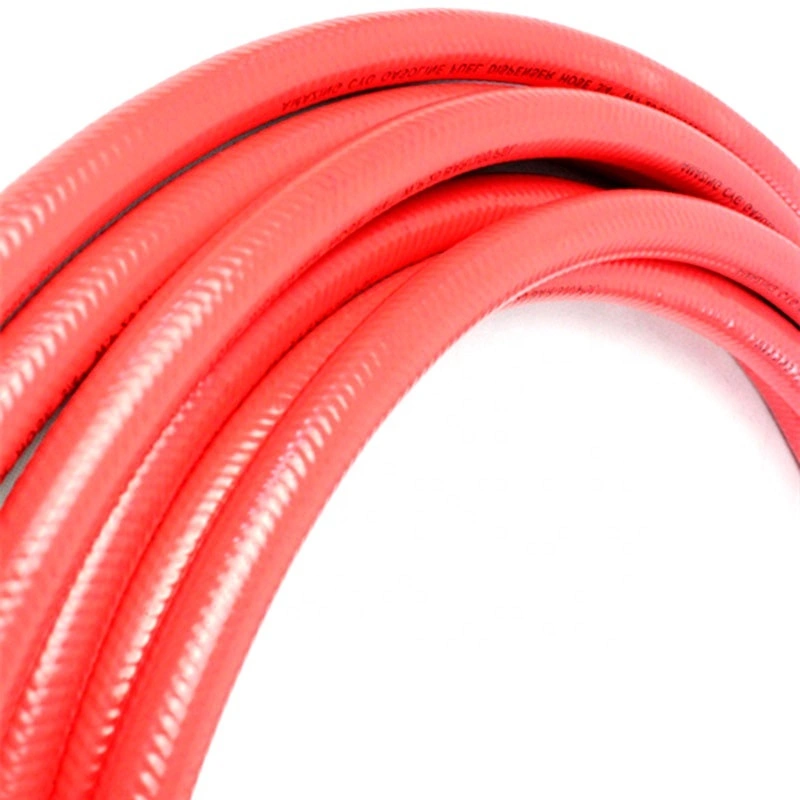

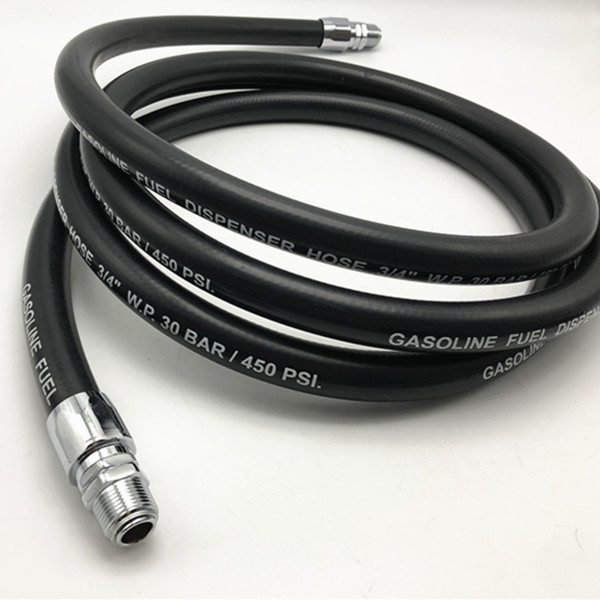

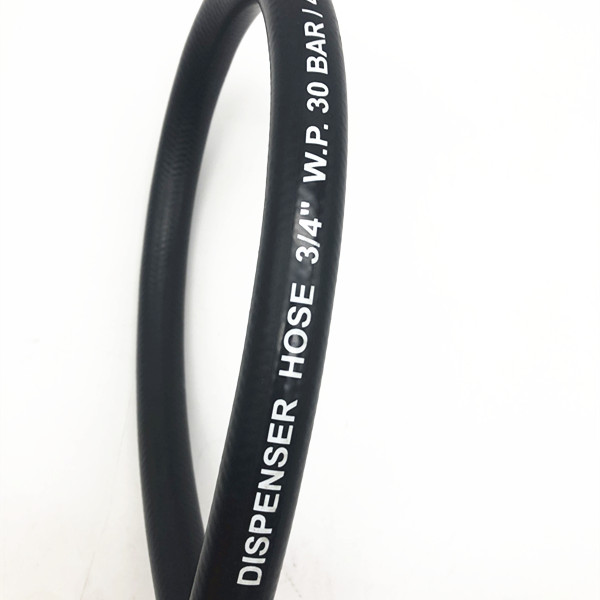

 Pictures:

Why the petrol hose for service station can't be replaced by normal SAE 100R1 hydraulic hose?

High NBR content, thicker inner tube and special formular make fuel dispenser hose strongly resist gasoline / alcohol blends gasoline;

Normal SAE 100R1  hydraulic hose is for petroleum base hydraulic fluids, it is not suitable for gasoline / alcohol blends gasoline.

If clients use normal hydraulic hose to replace fuel dispenser hose and use them in service station, the life time will be largely shortened.

Technical Information:

Rubber Content of "Paishun's Hose": The NBR Content of Hose Inner Tube is 42% and 40% in Hose Outer Tube.
The High NBR Material Content makes the Hose has excellent "permeability", so the Hose is able to not " bulge" even being immersed in High grade gasoline after 72 hours.

The Electrical Conductivity of Hose Assembly: When our workers do the assembling, we'll make sure that the Connectors to be well connected to Hose Wire, to make sure the Hose has "stable conducting electrostatic

property", we test the " Hose Electrical Conductivity" with Ammeter.

Pressure Test: Every batch Hose will be tested under the Test Pressure (10times higher than the Hose's W.P.) and keeps at least 3 minutes, this is to avoid any invisible holes appear on Hose.

The Wire we use: The tensile strength of Single Wire we use is 2750 Newton high strength wire, the wire diameter is 0.295mm.

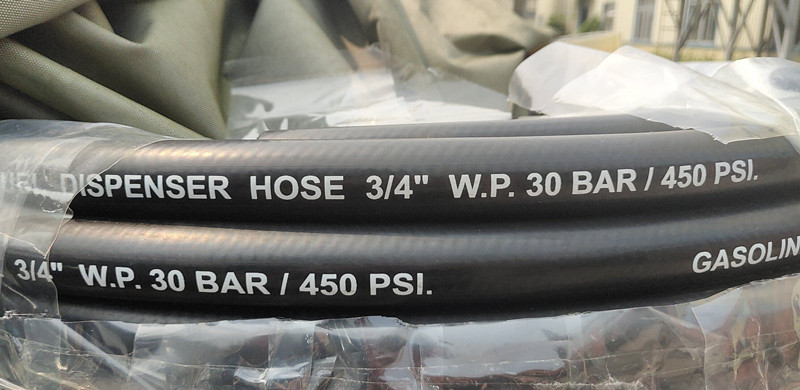

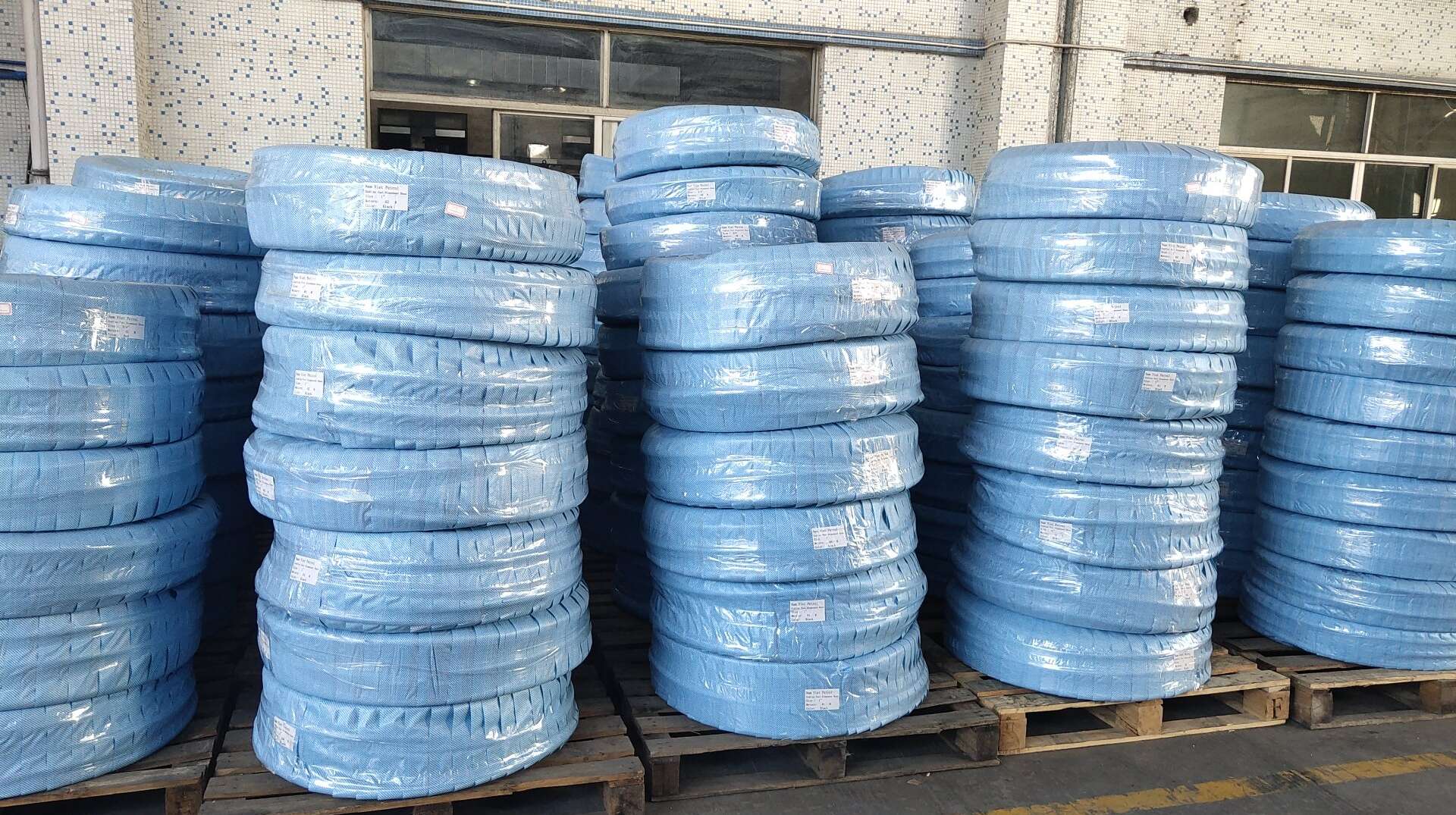

Application Picture:
