A hose manufacturer with over two decades of experience.

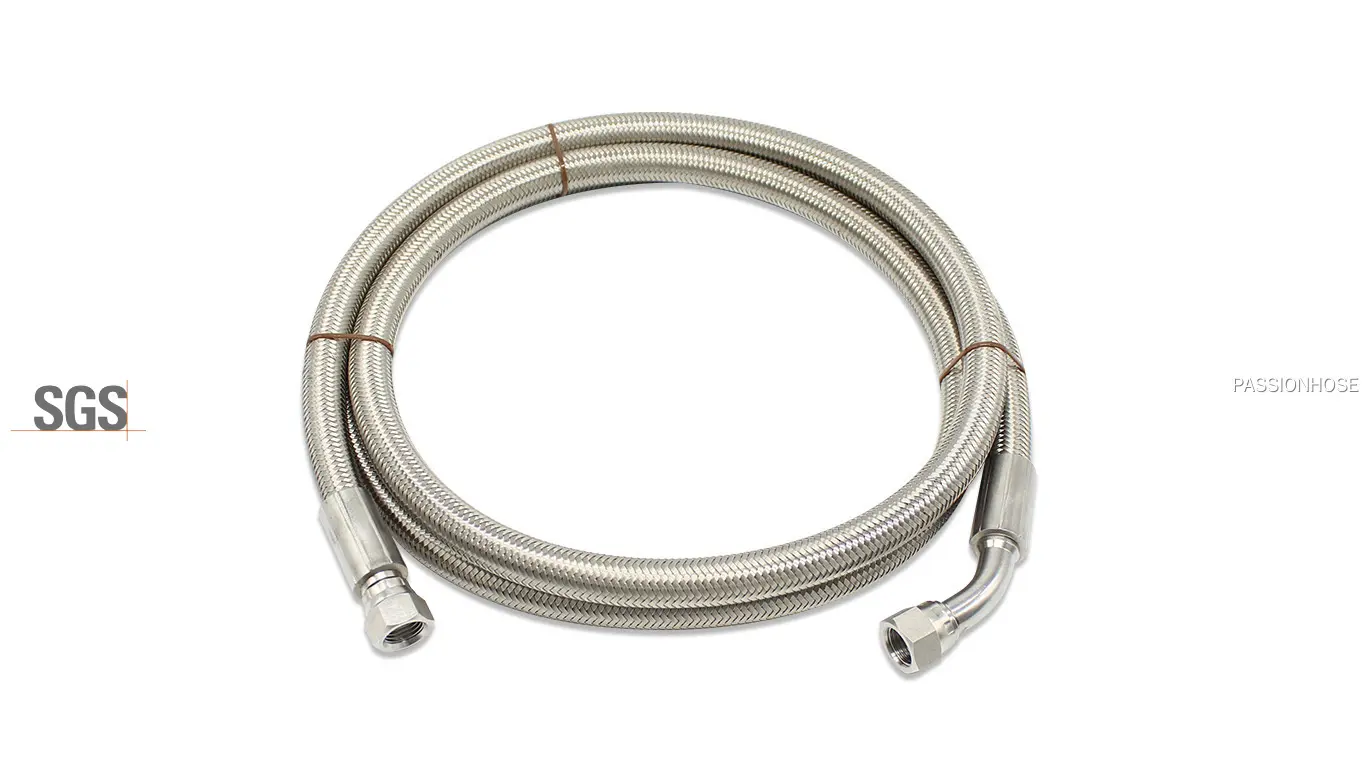

PASSIONHOSE | New hydraulic rubber hose supply 1
PASSIONHOSE | New hydraulic rubber hose supply 1

PASSIONHOSE | New hydraulic rubber hose supply

The hydraulic rubber hose produced by is carefully selected materials, fine workmanship, and high quality. Compared with other similar products, it has a longer service life, better water-stop performance, and better shock absorption and buffer performance, and has a more competitive advantage in the market.
Inquiry

With strong R&D strength and production capabilities, PASSIONHOSE now has become a professional manufacturer and reliable supplier in the industry. All our products including hydraulic rubber hose are manufactured based on the strict quality management system and international standards. hydraulic rubber hose Today, PASSIONHOSE ranks the top as a professional and experienced supplier in the industry. We can design, develop, manufacture, and sell different series of products on our own combining the efforts and wisdom of all our staff. Also, we are responsible for offering a wide range of services for customers including technical support and prompt Q&A services. You may discover more about our new product hydraulic rubber hose and our company by directly contacting us.hydraulic rubber hose Selected high-quality PVC material, manufactured by advanced technology and process, has good anti-corrosion and aging resistance, good water-stop performance, and can be applied to tunnels, culverts, diversion aqueducts, dams, liquid storage structures, underground facilities, etc. .

PASSIONHOSE | New hydraulic rubber hose supply 2
Product Features
---Why choose PTFE---
PASSIONHOSE | New hydraulic rubber hose supply 3
PTFE Features
  • ◪ Resistant to strong acid and alkali, resistant to various corrosive chemicals.

  • ◪ Anti-adhesive, anti-moisture and ultraviolet, non-toxic.

  • ◪ Excellent weather resistance, long service life, no brittle fracture and no aging.

  • ◪ With a very low friction coefficient. non-flammable.

  • ◪ With a very low evaporate transpiration rate, cold liquid is not volatile.

  • ◪ With excellent electrical characteristics.

  • ◪ Excellent mechanical properties, shock resistance and flexibility.




PASSIONHOSE | New hydraulic rubber hose supply 4

Product Description
---struction and specification---
Description
  • Structure:

  • Inner tube: corrugated PTFE(The imported F-205 of Japan Daikin PTFE)Outer tube: stainless steel 304 wire braid (SS304 with diameter of 0.2mm and 0.25mm

  • Temperature:

  • Continuous temperature range: -65℃ to +260℃

  • Temporary temperature range: -70℃ to +300℃


PASSIONHOSE | New hydraulic rubber hose supply 5
Specification
SerialI.D.(inch)I.D.(mm)Thickness of tube (mm)O.D.(mm)W.P.(bar)B.P.(bar)Min. Bend Radius   (mm)
11/4"6.50.8013.115040020
25/16"8.00.6513.613036525
33/8"10.00.6515.512535033
41/2"13.00.8518.911033042
55/8"16.3
0.9023.48024550
63/4"19.01.0027.37021563
71"25.41.0033.05015079
81-1/4"32.01.1041.245140125
91-1/2"38.01.4547.943120145
102"50.01.5063.035100180
PASSIONHOSE | New hydraulic rubber hose supply 6
Product Details
---various PTFE hose assemblies---
PASSIONHOSE | New hydraulic rubber hose supply 7
PTFE Hose Assembly

45 deg. JIC female hose end in SS304

PASSIONHOSE | New hydraulic rubber hose supply 8
PTFE Hose Assembly

straight JIC female hose end in SS304

PASSIONHOSE | New hydraulic rubber hose supply 9
PTFE Hose Assembly

2 meters










PASSIONHOSE | New hydraulic rubber hose supply 10
PTFE Hose Assembly

brass fittings with o-rings

PASSIONHOSE | New hydraulic rubber hose supply 11
PTFE Hose Assembly

straight JIC female hose ends in carbon steel with zinc-nickel plated

PASSIONHOSE | New hydraulic rubber hose supply 12
PTFE Hose Assembly

90 deg. elbow JIC female hos ends in carbon steel with zinc-nickel plated



PASSIONHOSE | New hydraulic rubber hose supply 13

Application
---high temperature, resist chemical---

About our product

Stainless steel braided PTFE hoses are widely used in various industries for their unique properties and performance capabilities.

Here are some of the common applications:

1. Chemical industry: Stainless steel braided PTFE hose is used to transfer a wide range of chemicals, acids, and corrosive fluids, including solvents, fuels, and hydraulic fluids.

2. Food and beverage industry: These hoses are used in food and beverage processing plants to transfer food-grade fluids, such as milk, juice, beer, and wine, as well as cleaning solutions.

3. Pharmaceutical industry: Stainless steel braided PTFE hose is used in the pharmaceutical industry to transfer various chemicals and fluids, including solvents, acids, and cleaning solutions.

4. Automotive industry: These hoses are used in the automotive industry for fuel lines, oil lines, and brake lines due to their excellent resistance to high temperatures and corrosive fluids.

5. Aerospace industry: Stainless steel braided PTFE hose is used in the aerospace industry for various applications, including hydraulic lines, fuel lines, and cooling systems, due to their ability to withstand extreme temperatures and pressure conditions.


stainless steel braided PTFE hose is used in a wide range of applications where there is a need to transfer corrosive fluids, chemicals, and high-temperature fluids, especially in industries such as chemical, food and beverage, pharmaceutical, automotive, and aerospace.



PASSIONHOSE | New hydraulic rubber hose supply 14


For Air System

Convey high temperature and high-pressure air


For Fuel Pump

Covey high pressure and low pressure fuel
PASSIONHOSE | New hydraulic rubber hose supply 15




Hello, world!
simple hero unit, a simple jumbotron-style con

PASSIONHOSE | New hydraulic rubber hose supply 16




For Oil Line

Covey fuel for oil line in vehicle




For Brake System

Covey fuel for brake system in vehicle
PASSIONHOSE | New hydraulic rubber hose supply 17




Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
