DIN EN857 2SC Hydraulic Rubber Hose Manufacturers
EN 857 2SC is a high-performance, compact two-wire-braid hydraulic hose engineered for demanding high-pressure circuits where installation space is limited. Its "compact" design provides approximately twice the flexibility and a much smaller bend radius compared to conventional hoses like EN 853 2SN, making it ideal for tight routing and mobile equipment applications. With working pressures up to 400 bar and a 4:1 safety factor, it delivers reliable performance in construction, material handling, and agricultural machinery. Offering comparable performance to SAE 100R16, EN 857 2SC is the European standard for compact two-wire braid hoses that balance high strength, excellent flexibility, and durability in harsh operating environments.
Key specifications at a glance:
| Parameter | Specification |
|---|---|
| Standard | EN 857 2SC |
| Reinforcement | Two high-tensile steel wire braids |
| Inner tube | Oil-resistant synthetic rubber |
| Cover | Oil, abrasion, weather, ozone-resistant synthetic rubber |
| Temperature range | –40°C to +100°C |
| Working pressure | 215 bar (3,120 psi) to 400 bar (5,800 psi), depending on size |
| Safety factor | 4:1 |
| Key advantage | Compact design, small bend radius, highly flexible |
| Applications | Construction, agriculture, material handling, tight-space hydraulic circuits |
Hydraulic Hose FeaturesEngineered for high pressure, extreme temperatures, and durability
-
Flexible, reliable, and built for long service life
-
Meets international standards (e.g., SAE, DIN, EN)
-
One source for all your hydraulic connection needs
-
OEM accepted
-
Customized hose accepted
-
Free hose sample available

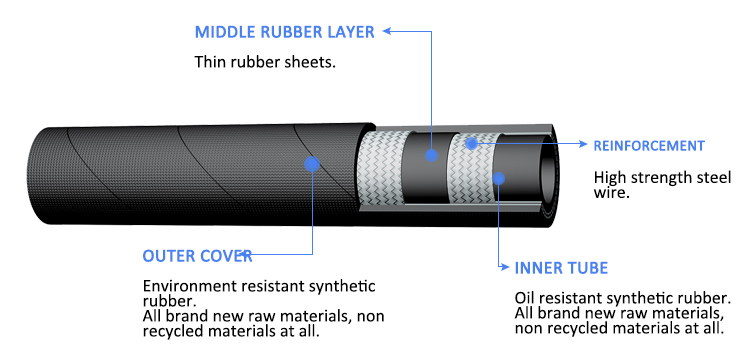

Description
Inner Tube: Oil-Resistant Synthetic Rubber
-
Outer Cover: Abrasion & Ozone Resistant Synthetic Rubber. Note: Various Covers Available
Reinforcement: Two Braids of High Tensile Steel Wire - Temperature: -40 ℃ ~ +100 ℃ / -40 ℃ ~ + 212 ℉
- Standard: DIN EN857 2SC
- Option: Smooth Cover/ Wrapped Cover
Product Specification
| Serial | I.D.(inch) | I.D.(mm) | Braid (mm) | O.D.(mm) | Max. W.P.(Mpa) | Min. B.P.(Mpa) | Min. Bend Radius (mm) |
| P2SC-04 | 1/4" | 6.5 | 11.4 | 13.5 | 40.0 | 160.0 | 75 |
| P2SC-05 | 5/16" | 8.1 | 13.4 | 15.8 | 35.0 | 140.0 | 85 |
| P2SC-06 | 3/8" | 9.8 | 15.2 | 17.8 | 33.0 | 132.0 | 90 |
| P2SC-08 | 1/2" | 12.8 | 18.7 | 20.8 | 27.5 | 110.0 | 130 |
| P2SC-10 | 5/8" | 16.0 | 21.8 | 24.4 | 25.0 | 100.0 | 170 |
| P2SC-12 | 3/4" | 19.0 | 26.2 | 28.4 | 21.5 | 86.0 | 200 |
| P2SC-16 | 1" | 25.4 | 33.4 | 35.8 | 16.5 | 66.0 | 250 |
Product Details
— Various Hydraulic Hose —
About Hydraulic Hoses
Paishun is one of the top manufacturers of hydraulic rubber hoses in East China. We specialize in the production and marketing of these products.
Paishun's hydraulic hoses are particularly suitable for the following areas of application:

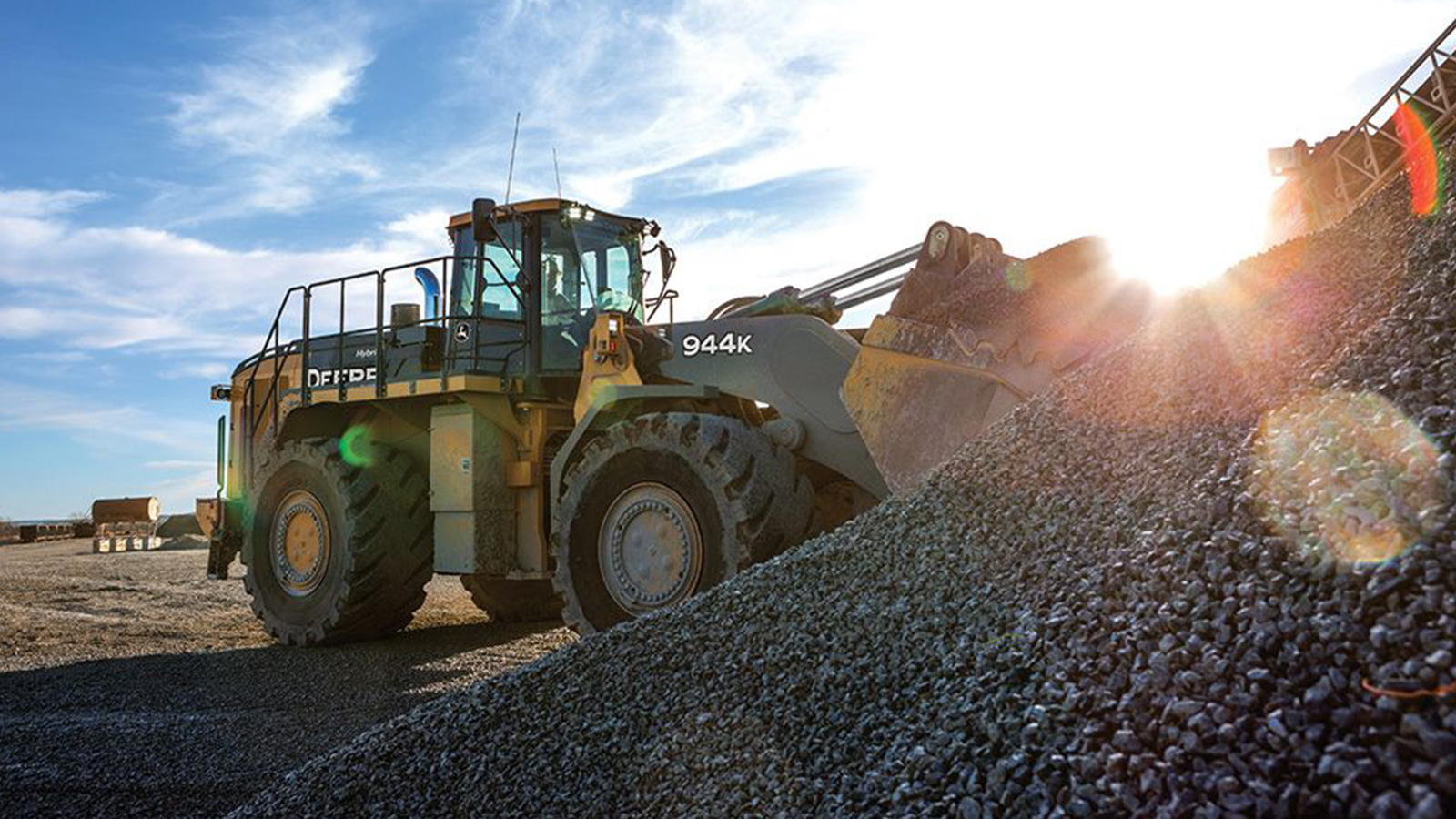

- Heavy equipment and earth-moving machinery at construction sites
-Mining and drilling
-Agricultural machines and equipment
-Working platforms, cranes, and lifting

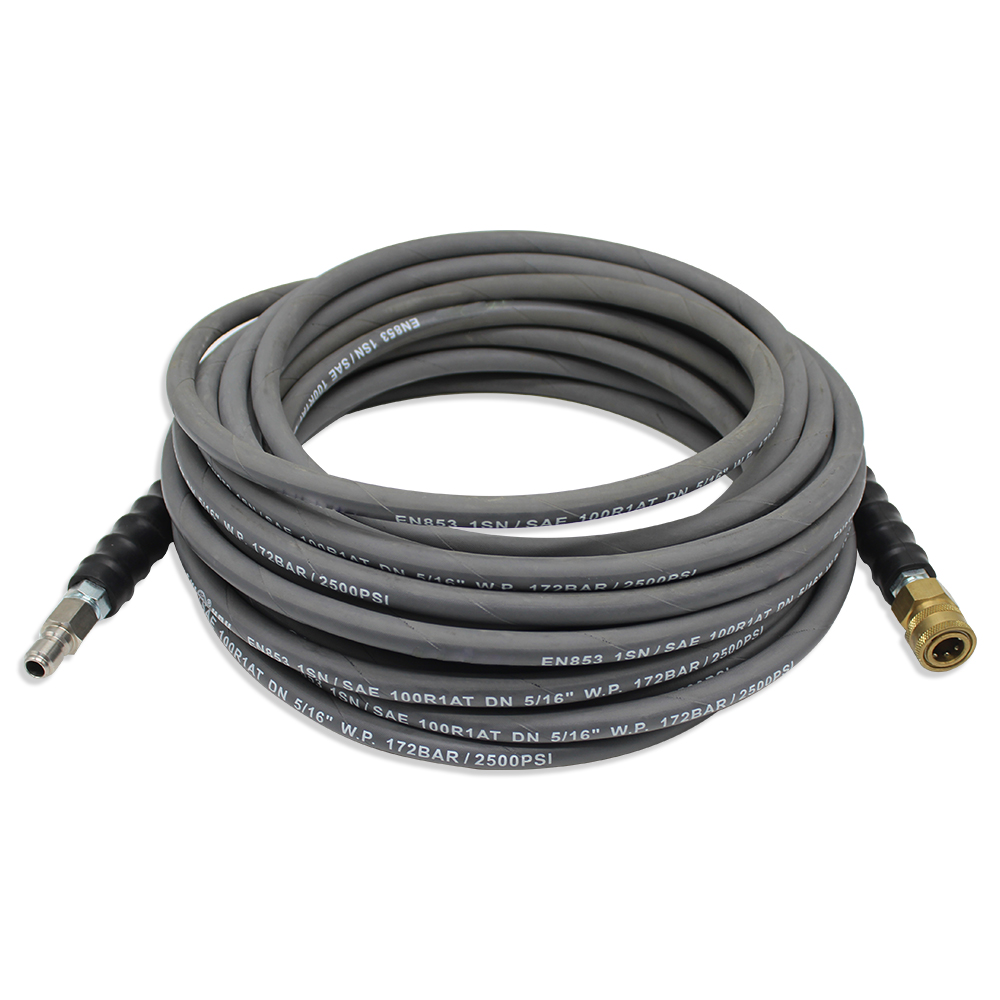

-Pressure washer
