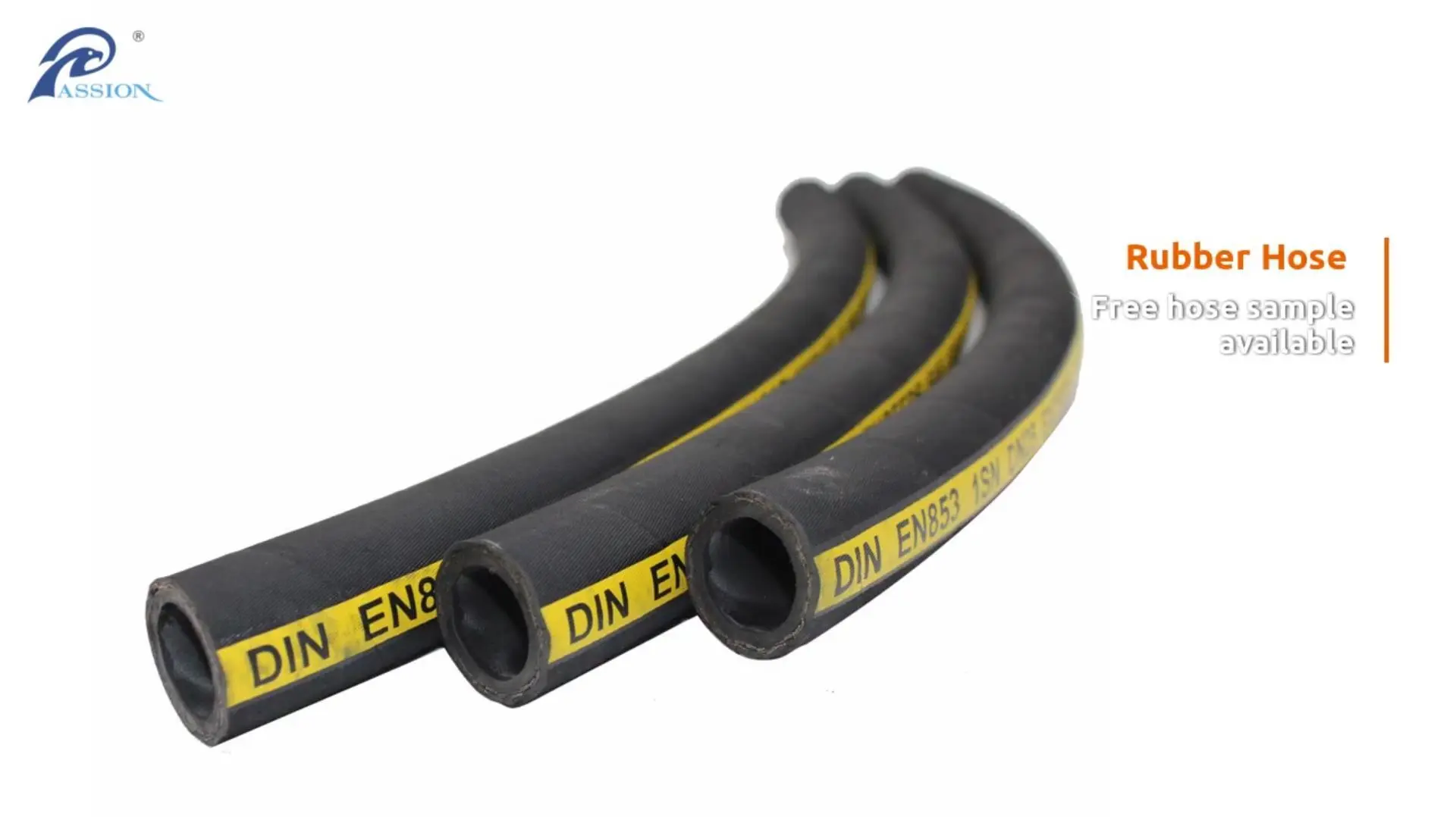

SAE 100R1AT / EN853 1SN High Pressure Hydraulic Rubber Hose
SAE 100R1 is a lightweight, single-wire-braid hydraulic hose built for moderate-pressure applications where extreme strength is not required. Its single-braid construction provides good flexibility and easier handling compared to two-braid hoses, making it a cost-effective and practical choice for return lines, air brake systems, and general-purpose fluid conveyance. Available in two types (R1A – with cover, R1B – with cover and skid-resistant outer layer), it offers reliable service with a 4:1 safety factor in a wide range of industrial and mobile equipment.
Key specs:
| Parameter | Specification |
|---|---|
| Reinforcement | One steel wire braid |
| Temperature | –40°C to +100°C |
| Working pressure | Up to 300 bar (4,350 psi) |
| Applications | Return lines, air brakes, low-to-medium pressure systems |
Hydraulic Hose FeaturesEngineered for high pressure, extreme temperatures, and durability
-
Flexible, reliable, and built for long service life
-
Meets international standards (e.g., SAE, DIN, EN)
-
One source for all your hydraulic connection needs
-
OEM accepted
-
Customized hose accepted
-
Free hose sample available
Description
Inner Tube: Oil-Resistant Synthetic Rubber
-
Outer Cover: Abrasion & Ozone Resistant Synthetic Rubber. Note: Various Covers Available
Reinforcement: One Braid of High Tensile Steel Wire - Temperature: -40 ℃ ~ +100 ℃ / -40 ℃ ~ + 212 ℉
- Standard: SAE 100R1 AT
- Option: Smooth Cover/ Wrapped Cover
Product Specification
| Serial | I.D.(inch) | I.D.(mm) | Braid (mm) | O.D.(mm) | Max. W.P.(Mpa) | Min. B.P.(Mpa) | Min. Bend Radius (mm) |
| PR1-04 | 1/4" | 6.5 | 11.2 | 13.2 | 22.5 | 90.0 | 100 |
| PR1-05 | 5/16" | 8.1 | 12.8 | 14.8 | 21.5 | 86.0 | 115 |
| PR1-06 | 3/8" | 9.8 | 15.1 | 17.1 | 18.0 | 72.0 | 125 |
| PR1-08 | 1/2" | 12.8 | 18.1 | 20.1 | 16.0 | 64.0 | 180 |
| PR1-10 | 5/8" | 16.0 | 21.3 | 23.4 | 13.0 | 52.0 | 205 |
| PR1-12 | 3/4" | 19.0 | 25.3 | 27.3 | 10.5 | 42.0 | 240 |
| PR1-16 | 1" | 25.4 | 32.8 | 35.0 | 8.8 | 35.2 | 300 |
| PR1-20 | 1-1/4" | 31.8 | 40 | 42.8 | 6.3 | 25.2 | 420 |
| PR-24 | 1-1/2" | 38.1 | 46.8 | 50.0 | 5.0 | 20.0 | 500 |
| PR-32 | 2" | 50.8 | 59.4 | 62.6 | 4.0 | 16.0 | 630 |
Product Details
— Various Hydraulic Hose —
About Hydraulic Hoses
Paishun is one of the top manufacturers of hydraulic rubber hoses in East China. We specialize in the production and marketing of these products.
Paishun's hydraulic hoses are particularly suitable for the following areas of application:
- Heavy equipment and earth-moving machinery at construction sites
-Mining and drilling
-Agricultural machines and equipment
-Working platforms, cranes, and lifting
-Pressure washer
