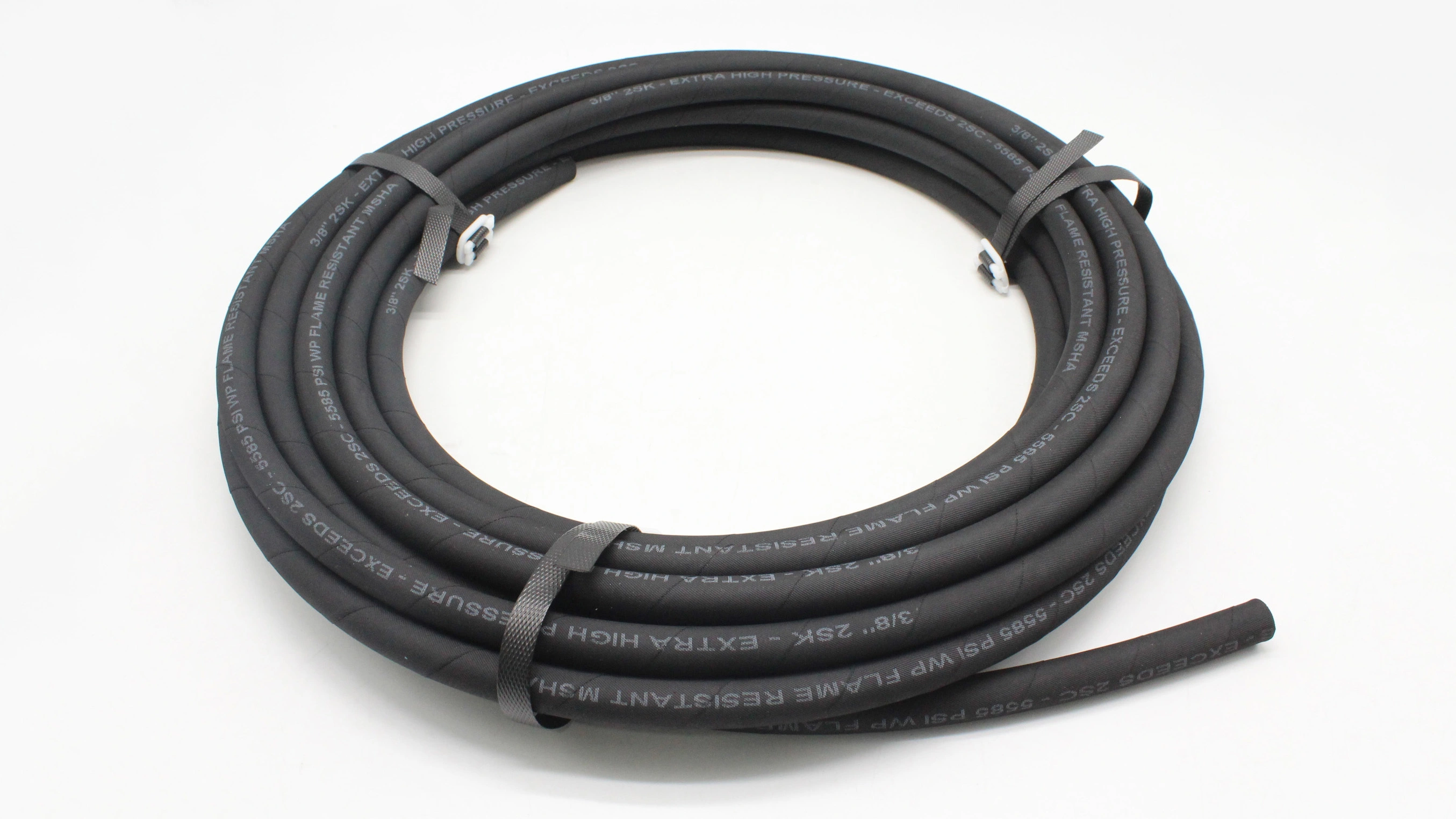

EXCEEDS 2SN/2SC Two Wire Braid 2SK Extreme Pressure Hydraulic Hose | PASSIONHOSE
Extreme Pressure, Tight Bend Radius
Size: 1/4" to 1-1/4"
Cover: Abrasion and Flame Resistant Cover, MSHA approved
Reinforcement: Two Wire Braids
Temperature: -40F to +212F (-40C to +100C)
Application: High Pressure Hydraulic Industrial or Agricultural
Size: 1/2"
W.P.: 5000psi
B.P.: 20000psi
Min. Bend Radius: 3.6"
Length: 50ft

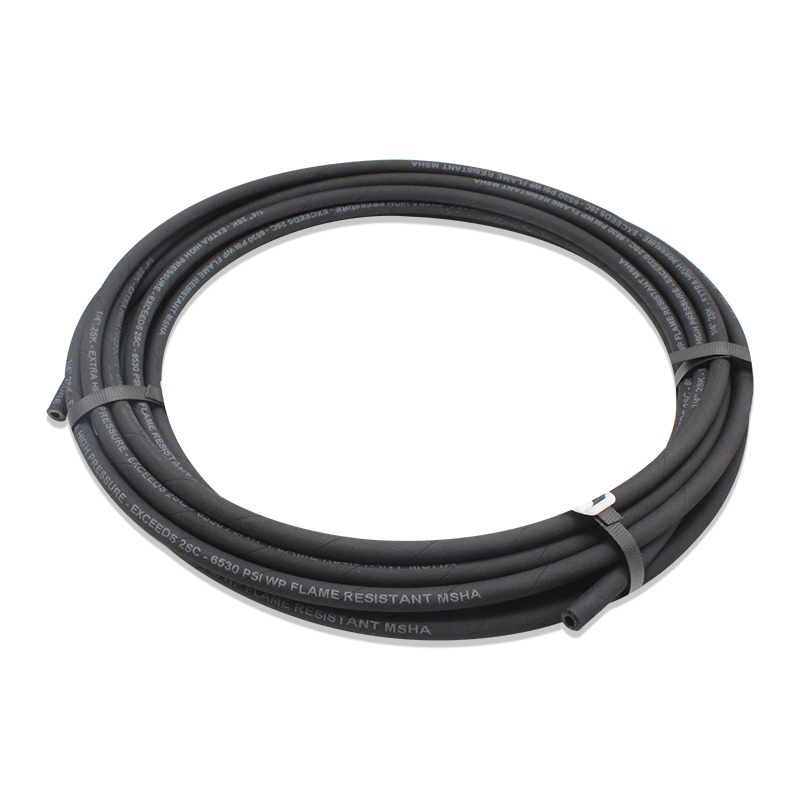

EXCEEDS 2SN/2SC Two Wire Braid 2SK Hydraulic Hose
Extreme Pressure, Tight Bend Radius
Size: 1/4" to 1-1/4"
Cover: Abrasion and Flame Resistant Cover, MSHA approved
Reinforcement: Two Wire Braids
Temperature: -40F to +212F (-40C to +100C)
Application: High Pressure Hydraulic Industrial or Agricultural
Specification:
Hose I.D. | Hose. O.D. | Working Pressure | Min. Burst Pressure | Min. Bend Radius | Weight per Hundred Feet |
inch | inch | psi | psi | inch | ibs |
| 1/4" | 0.520 | 6530 | 26120 | 2.0 | 24 |
| 3/8" | 0.687 | 5585 | 22340 | 3.0 | 34 |
| 1/2" | 0.810 | 5000 | 20000 | 3.6 | 43 |
| 5/8" | 0.980 | 4625 | 18500 | 4.0 | 51 |
| 3/4" | 1.155 | 4350 | 17400 | 5.0 | 61 |
| 1" | 1.410 | 3250 | 13000 | 6.5 | 94 |
| 1-1/4" | 1.715 | 2500 | 10000 | 12 | 130 |
