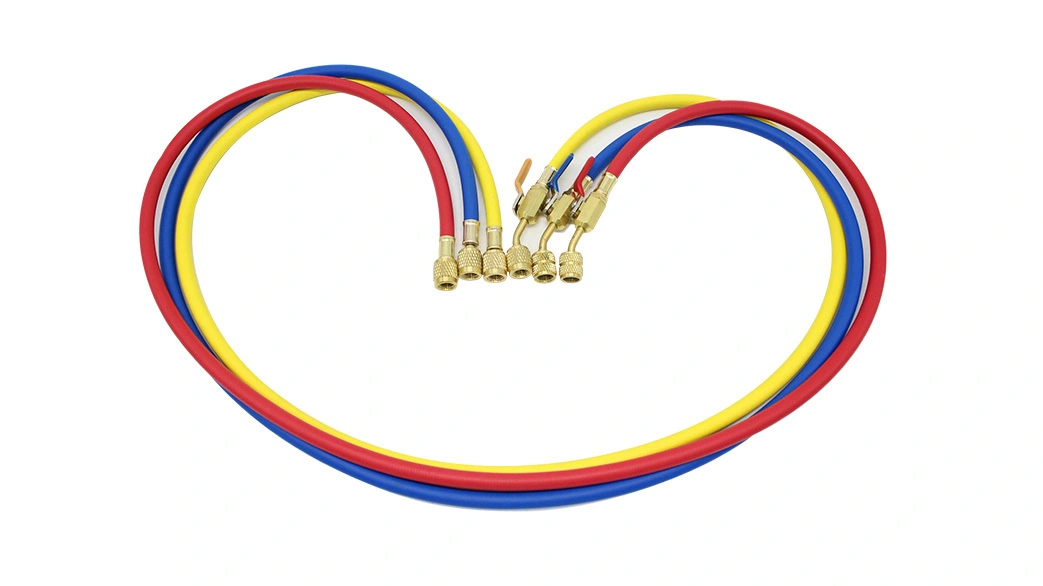

Working pressure 800psi good aging resistance red yellow blue Refrigerant charging hose with fittings and ball valves, 1/4" SAE straight fittings and 5/16" SAE 45° fittings and ball valve, the fittings material is brass.
◪ Flexibility
◪ High elasticity
◪ Excellent adhesion
◪ Red, Blue, and Yellow Colors
◪ 800psi working pressure
◪ Resistant to Aging and Abrasion
◪ Against hardening and embrittlement
Structure:
Inner tube: High nitrile-butadience rubber (NBR)
Outer tube: Smooth, NBR&PVC blends.
Reinforcement: Polyester fiber spiral line.
Operating temperature range: -30℃ to +100℃
Color: Red & Blue & Yellow
Standard length: 100M
Connector: 1/4" SAE
| Part Number | I.D.(mm) | I.D.(inch) | Thickness (mm) | O.D.(mm) | W.P.(psi) | B.P.(bar/psi) | Lengths (m) |
|---|---|---|---|---|---|---|---|
| PRC-1 | 5 | 3/16" | 3 | 11 | 500 | 2500 | 100 |
| PRC-2 | 5 | 3/16" | 3 | 11 | 600 | 3000 | 100 |
| PRC-3 | 5 | 3/16" | 3 | 11 | 800 | 4000 | 100 |
Refrigerant Charging Hose
5mm Red, Blue, Yellow
Refrigerant Charging Hose
Working Pressure 500, 600, 800psi
Refrigerant Charging Hose Assembly
Refrigerant Charging Hose with 1/4"SAE connector
Refrigerant Charging Hose Assembly
R1234yf quick coupler
1/4"SAE bend 45° connector
Refrigerant Charging Hose Assembly
Connector and Ball valve
A flexible hose for conveying refrigerants such as R12, R22, R502, R32, R1234YF, R410a, and R134a; applied widely to the auto refrigerant, air conditioning, industrial refrigerant, etc; both the inner rubber layer and protective layer are of high-level oil resistance of grade RMA-A and antiseepage.
For Air Conditioning System
For conveying R12，R22，R134a etc
For Automotive Refrigerant
