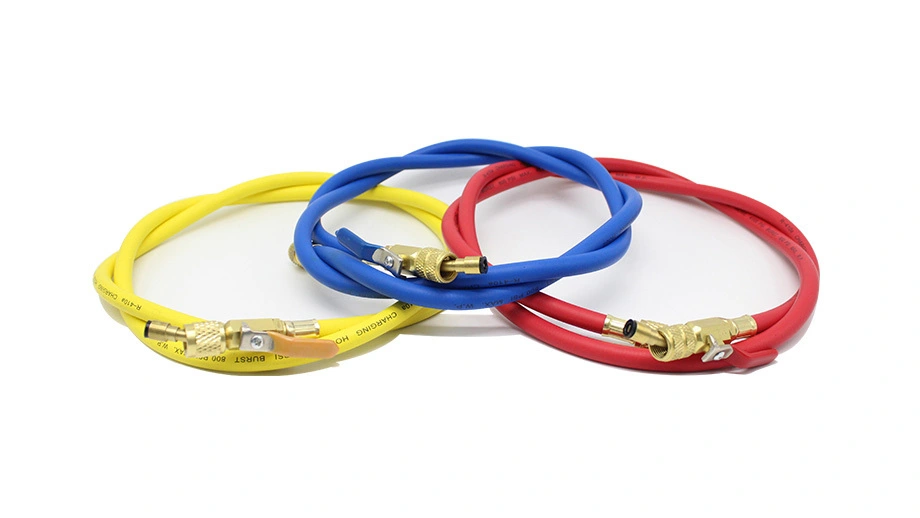

W.P 800psi Red Yellow Blue Vacuum Rated Refrigerant Charging Hoses with Ball Valves | PASSIONHOSE 1
W.P 800psi Red Yellow Blue Vacuum Rated Refrigerant Charging Hoses with Ball Valves | PASSIONHOSE 1

W.P 800psi Red Yellow Blue Vacuum Rated Refrigerant Charging Hoses with Ball Valves | PASSIONHOSE

The material of ball valve is brass, not easy to rust, one end with ¼"SAE female, the other end with ¼"SAE ball valves. Applicationis mainly used for conveying refrigerant such R12, R22, R502, R410a and R134a; applied widely to auto refrigerant, air conditioning, industrial refrigerant etc; both the inner rubber layer and protective layer are of high level oil resistance of grade RMA-A and antiseepage, hose surface is smooth suface, red, blue and yellow color.




Outer diameter: 11mm

Temperature:-30℃-100℃

Suface: smooth

Color: blue red yellow black

Material: NBR & PVC

Ball valve: 1/4”SAE, 5/16”SAE or 1/2”X20UNF

Application: For transportation of R12, R22, R502, R134a R410a medium etc


5.0
design customization
Inquiry

    oops...!

    no product data.

    Go to homepage
    Write a Review
    W.P 800psi Red Yellow Blue Vacuum Rated Refrigerant Charging Hoses with Ball Valves | PASSIONHOSE 2
    Product Features

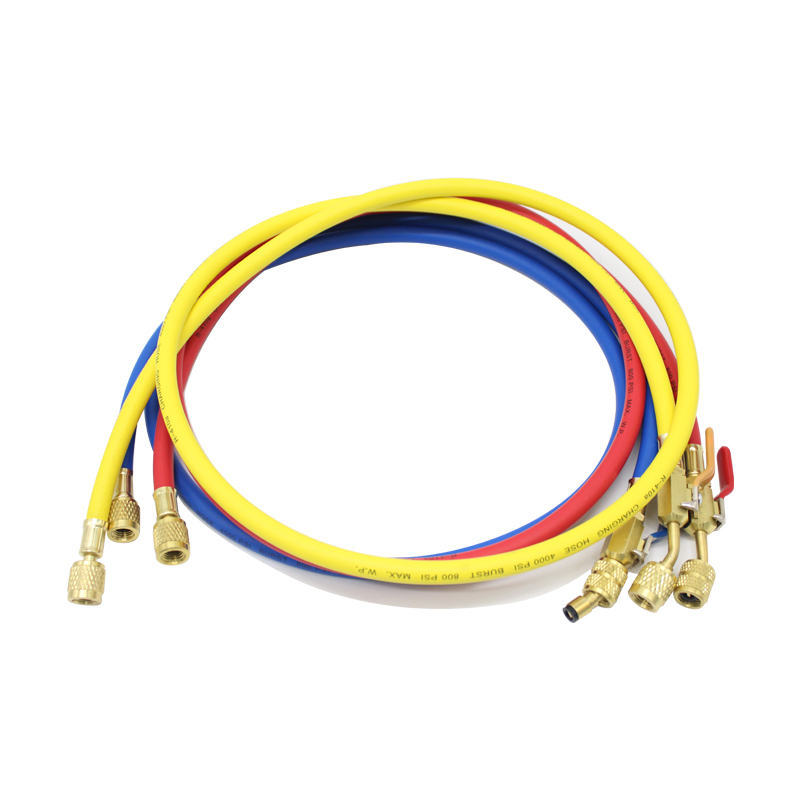

    W.P 800psi Red Yellow Blue Vacuum Rated Refrigerant Charging Hoses with Ball Valves | PASSIONHOSE 3
     Features

    • ◪ Flexibility

    • ◪ High quality

    • ◪ Excellent adhesion

    • ◪ Red, Blue, and Yellow Colors

    • ◪ 800psi working pressure

    • ◪ Resistant to Aging and Abrasion

    • ◪ Ball valve is brass material





    W.P 800psi Red Yellow Blue Vacuum Rated Refrigerant Charging Hoses with Ball Valves | PASSIONHOSE 4

    Product Description
    ---struction and specification---
    Description

    • Structure:

    • Inner tube: High nitrile-butadiene rubber (NBR)

    • Outer tube: Smooth, NBR&PVC blends.

    • Reinforcement: Polyester fiber spiral line.

    • Operating temperature range: -30℃ to +100℃

    • Color: Red & Blue & Yellow

    • One end:1/4"SAE female straight connector

    • The other end: 5/16" SAE female 45° connector with ball valve

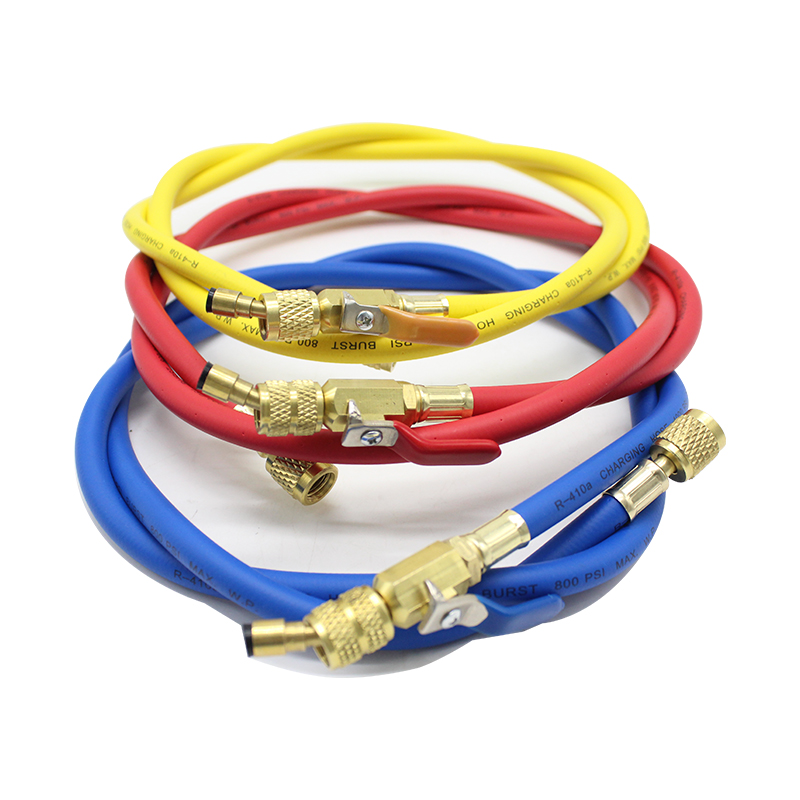

    W.P 800psi Red Yellow Blue Vacuum Rated Refrigerant Charging Hoses with Ball Valves | PASSIONHOSE 5
    Specification
    Part NumberI.D.(mm)I.D.(inch)

    Thickness (mm)

    		O.D.(mm)W.P.(psi)B.P.(bar/psi)  Lengths (m)
    PRC-153/16"3115002500100
    PRC-253/16"3116003000100
    PRC-3
    		53/16"3118004000100
    W.P 800psi Red Yellow Blue Vacuum Rated Refrigerant Charging Hoses with Ball Valves | PASSIONHOSE 6
    Product Details
    ---various refrigerant charging hose---

    W.P 800psi Red Yellow Blue Vacuum Rated Refrigerant Charging Hoses with Ball Valves | PASSIONHOSE 7Refrigerant Charging Hose

    5mm Red, Blue, Yellow

    W.P 800psi Red Yellow Blue Vacuum Rated Refrigerant Charging Hoses with Ball Valves | PASSIONHOSE 8     Refrigerant Charging Hose

    Working Pressure 500, 600, 800psi

    W.P 800psi Red Yellow Blue Vacuum Rated Refrigerant Charging Hoses with Ball Valves | PASSIONHOSE 9Refrigerant Charging Hose Assembly

    Refrigerant Charging Hose with 1/4"SAE connector







    W.P 800psi Red Yellow Blue Vacuum Rated Refrigerant Charging Hoses with Ball Valves | PASSIONHOSE 10

    Refrigerant Charging Hose Assembly

    R1234yf quick coupler

    W.P 800psi Red Yellow Blue Vacuum Rated Refrigerant Charging Hoses with Ball Valves | PASSIONHOSE 11
    Refrigerant Charging Hose Assembly

    1/4"SAE bend 45° connector

    W.P 800psi Red Yellow Blue Vacuum Rated Refrigerant Charging Hoses with Ball Valves | PASSIONHOSE 12

    Refrigerant Charging Hose Assembly

    Connector and Ball valve



    W.P 800psi Red Yellow Blue Vacuum Rated Refrigerant Charging Hoses with Ball Valves | PASSIONHOSE 13

    Application
    ---high pressure and flexible---

    About our product

    A flexible hose for conveying refrigerants such as R12, R22, R502, R32, R1234YF, R410a, and R134a; applied widely to the auto refrigerant, air conditioning, industrial refrigerant, etc; both the inner rubber layer and protective layer are of high-level oil resistance of grade RMA-A and antiseepage.




    W.P 800psi Red Yellow Blue Vacuum Rated Refrigerant Charging Hoses with Ball Valves | PASSIONHOSE 14


    For Air Conditioning System

    For conveying R12，R22，R134a etc

    For Automotive Refrigerant

          Applied widely to auto refrigerant
    W.P 800psi Red Yellow Blue Vacuum Rated Refrigerant Charging Hoses with Ball Valves | PASSIONHOSE 15
