PASSIONHOSE manufactures refrigerant charging hose, color is red, yellow, blue, etc, working pressure is 500psi, 600psi, and 800psi, the application is mainly used for conveying refrigerants such as R12, R22, R134a, and R410a.
◪ Flexibility
◪ High elasticity
◪ Excellent adhesion
◪ Red, Blue, and Yellow Colors
◪ 800psi working pressure
◪ Resistant to Aging and Abrasion
◪ Against hardening and embrittlement
Structure:
Inner tube: High nitrile-butadience rubber (NBR)
Outer tube: Smooth, NBR&PVC blends.
Reinforcement: Polyester fiber spiral line.
Operating temperature range: -30℃ to +100℃
Color: Red & Blue & Yellow
Standard length: 100M
Connector: 1/4" SAE
| Part Number | I.D.(mm) | I.D.(inch) | Thickness (mm) | O.D.(mm) | W.P.(psi) | B.P.(bar/psi) | Lengths (m) |
|---|---|---|---|---|---|---|---|
| PRC-1 | 5 | 3/16" | 3 | 11 | 500 | 2500 | 100 |
| PRC-2 | 5 | 3/16" | 3 | 11 | 600 | 3000 | 100 |
| PRC-3 | 5 | 3/16" | 3 | 11 | 800 | 4000 | 100 |

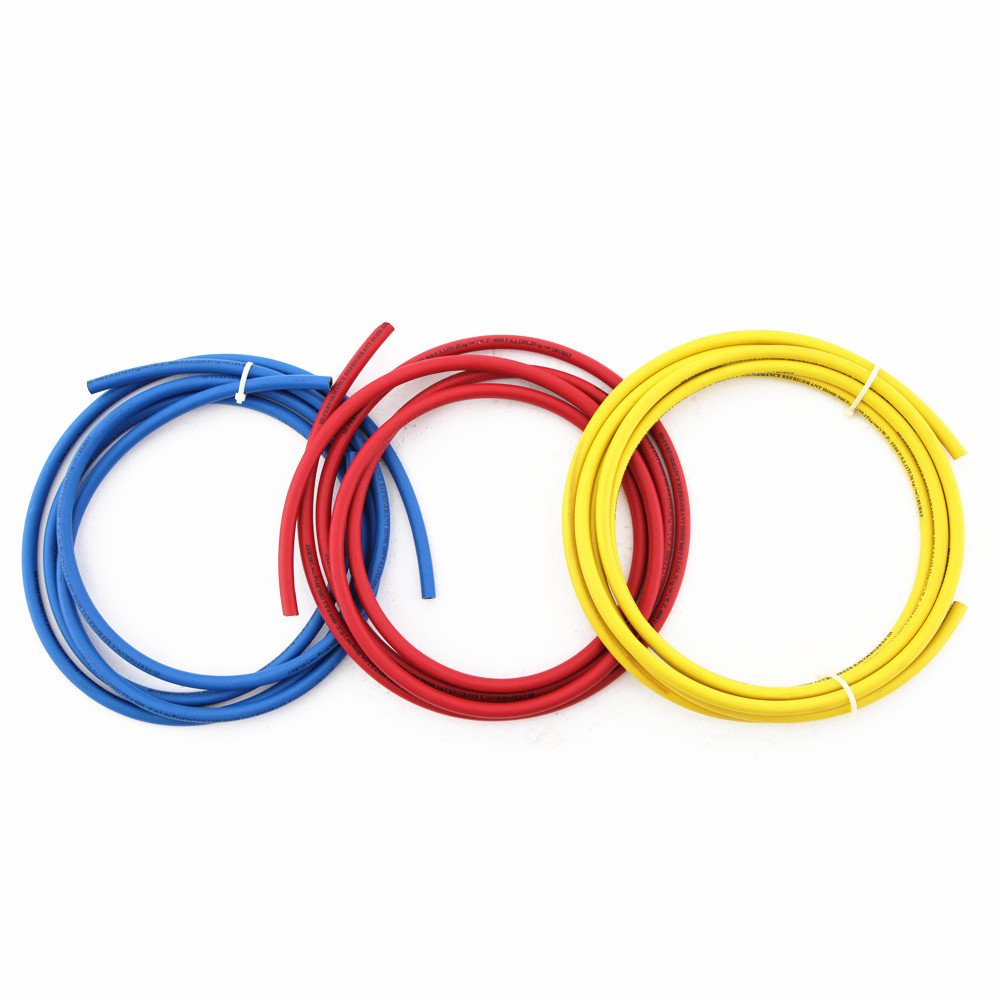

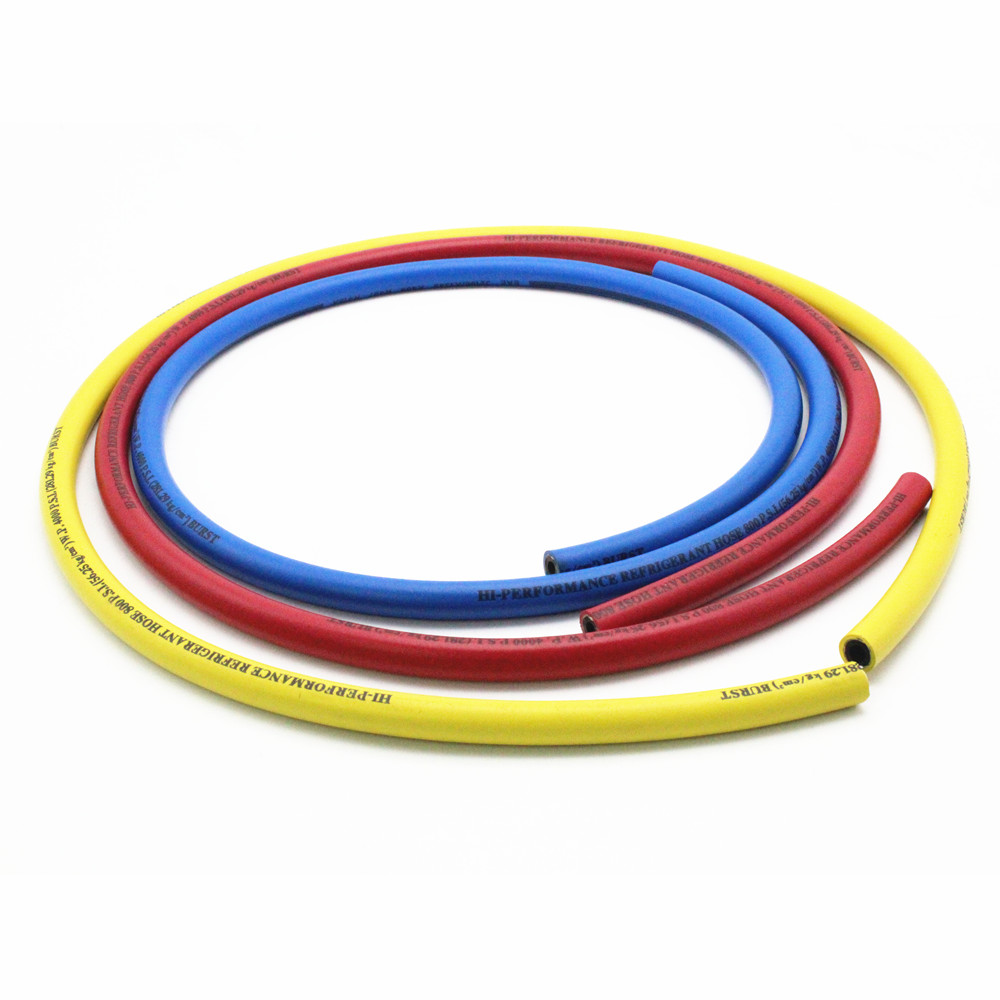

Refrigerant Charging Hose

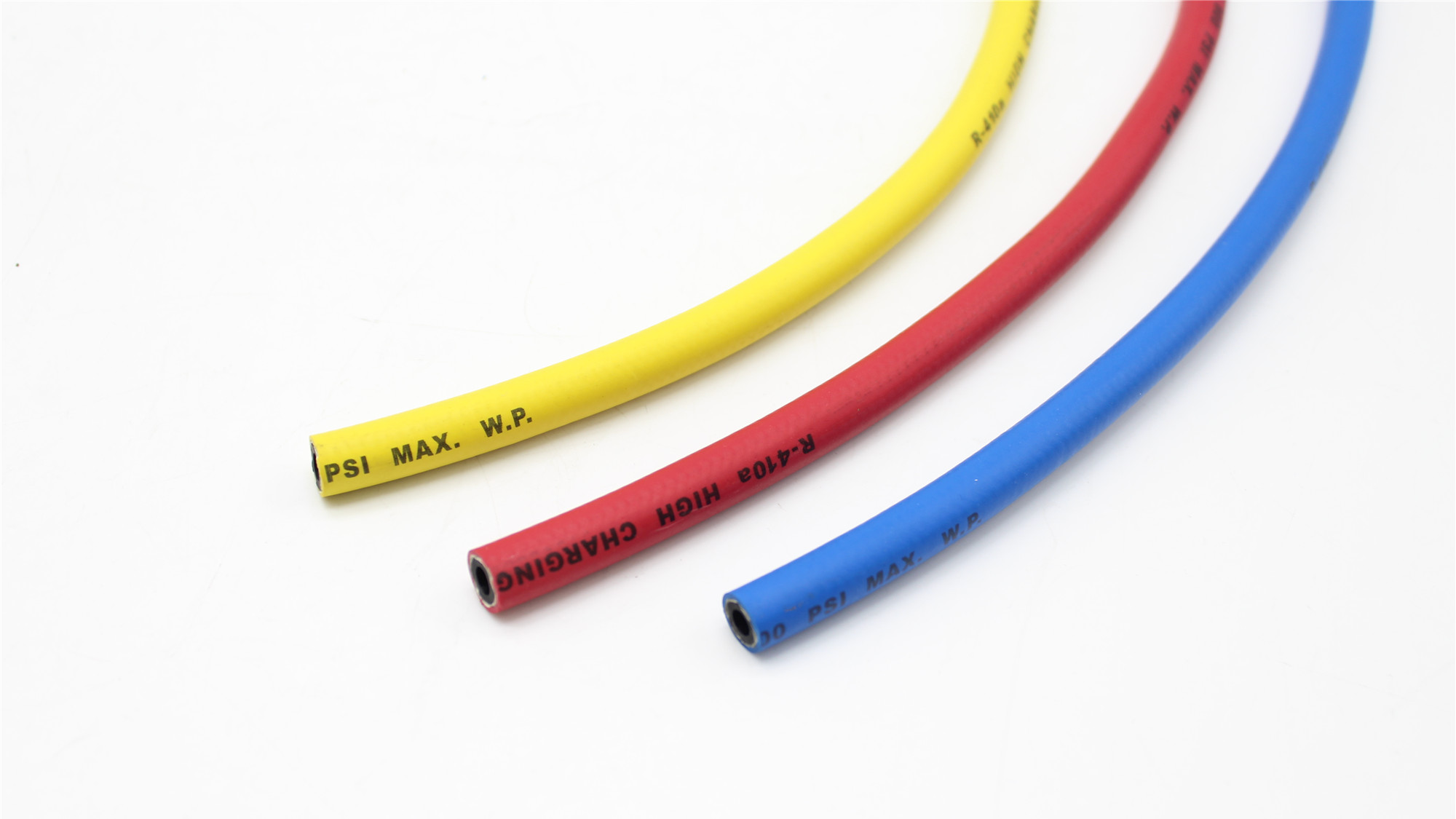

5mm Red, Blue, Yellow
Refrigerant Charging Hose

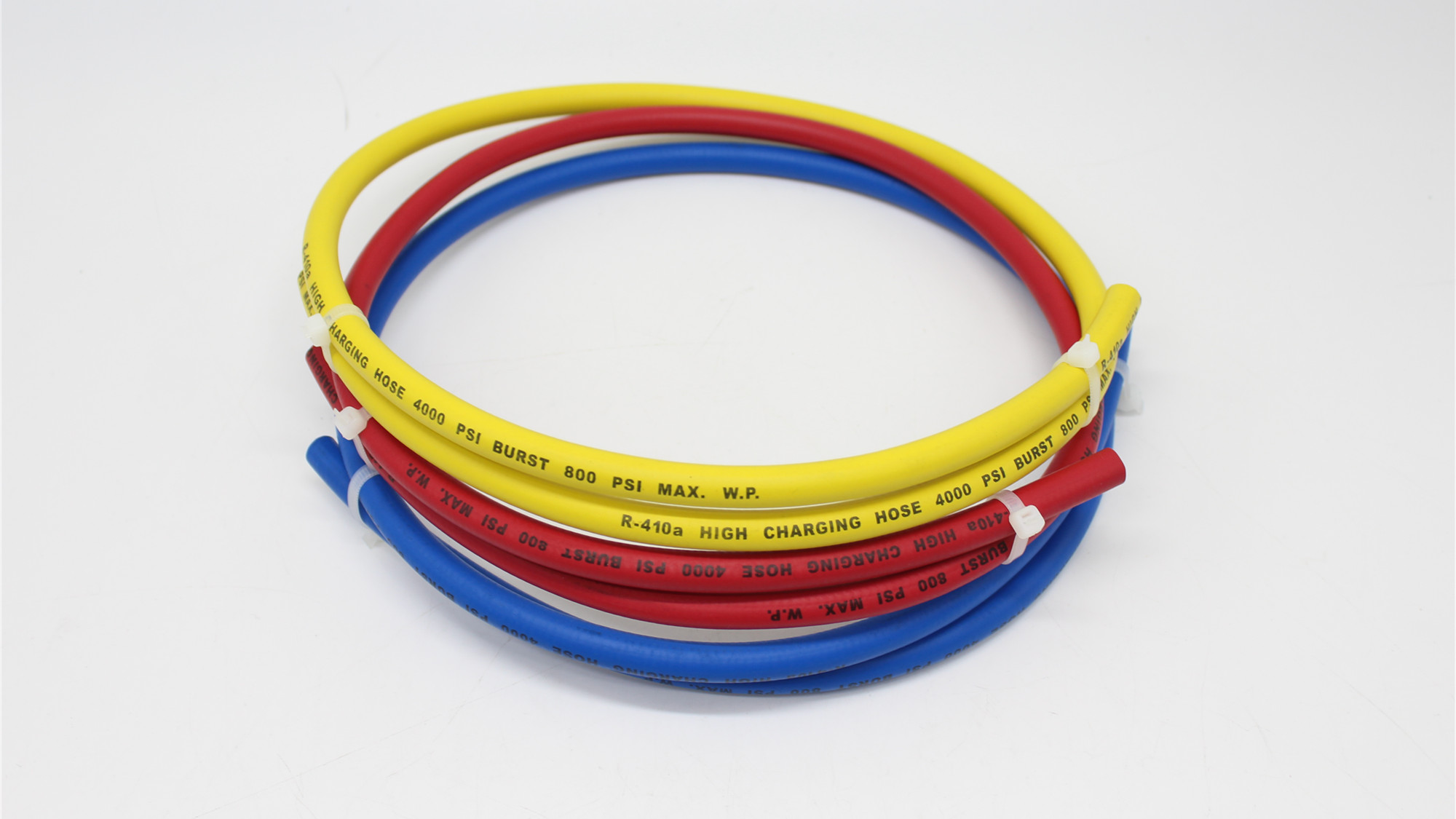

Working Pressure 500, 600, 800psi
Refrigerant Charging Hose Assembly

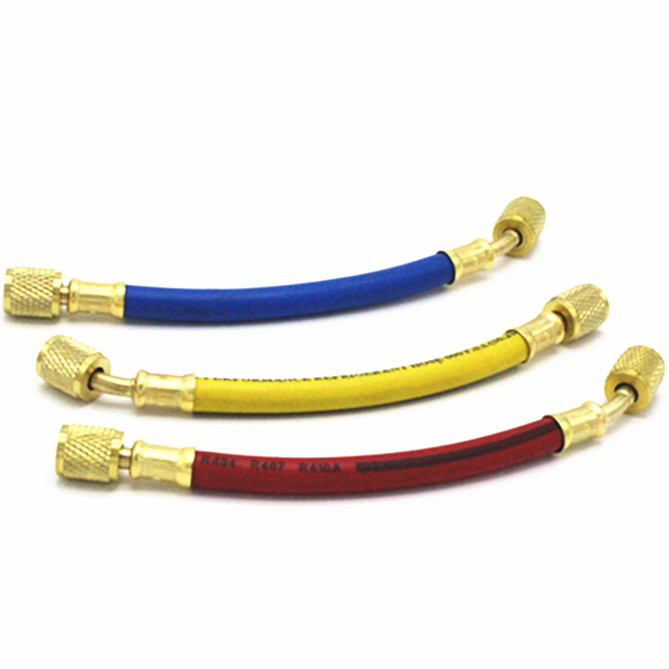

Refrigerant Charging Hose with 1/4"SAE connector

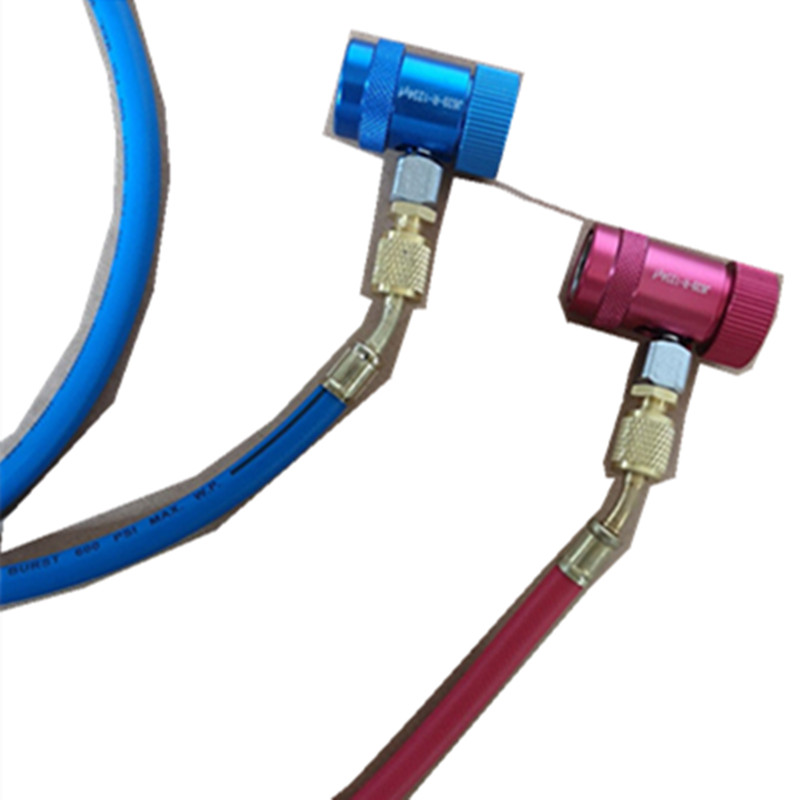

Refrigerant Charging Hose Assembly
R1234yf quick coupler

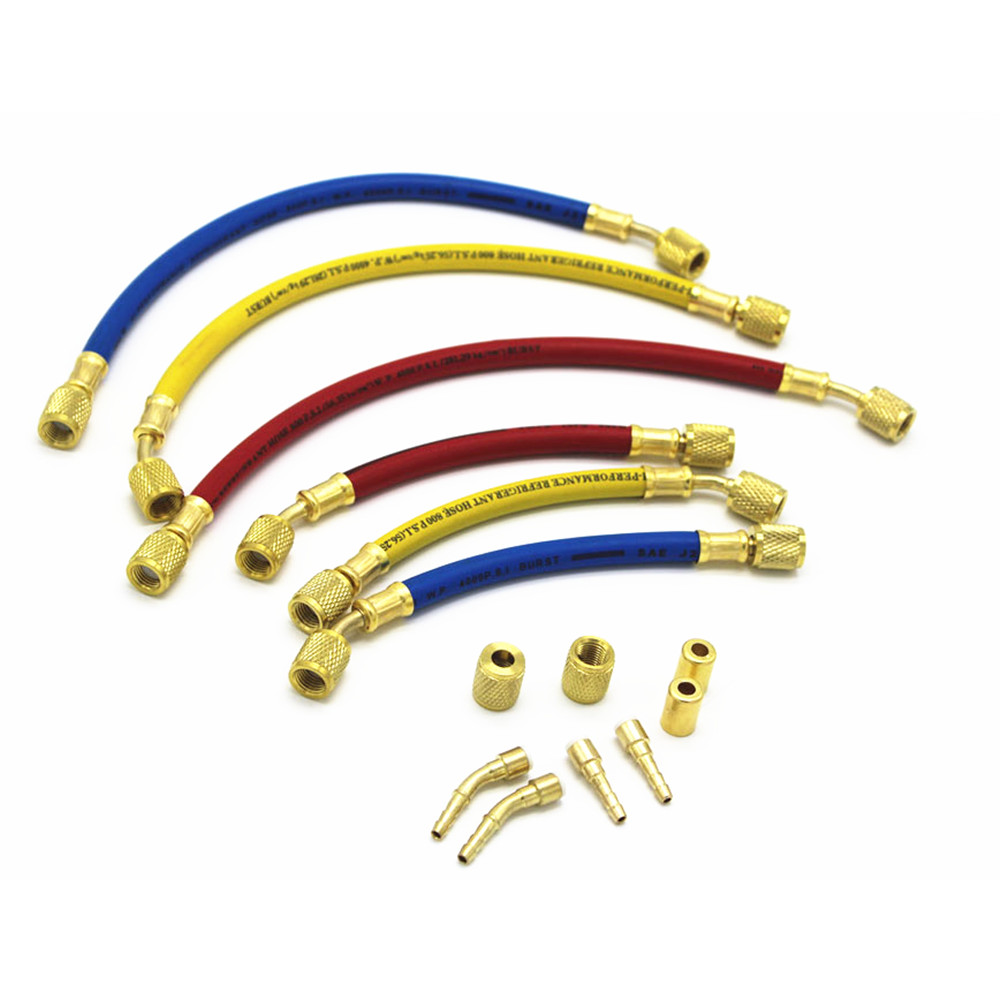

1/4"SAE bend 45° connector

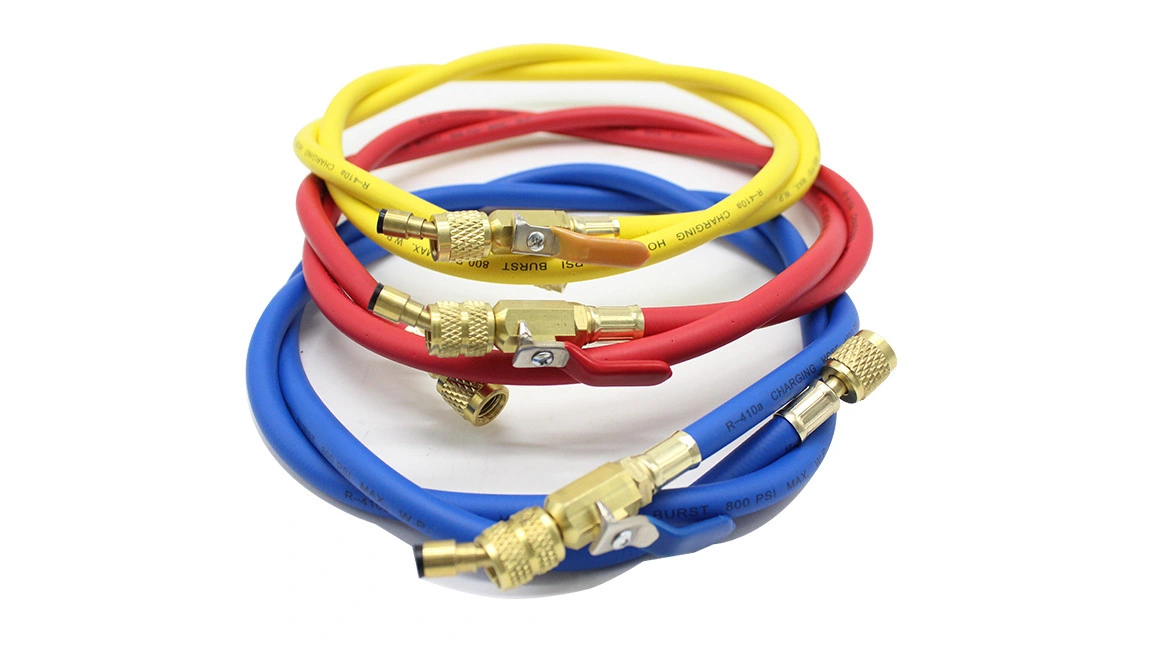

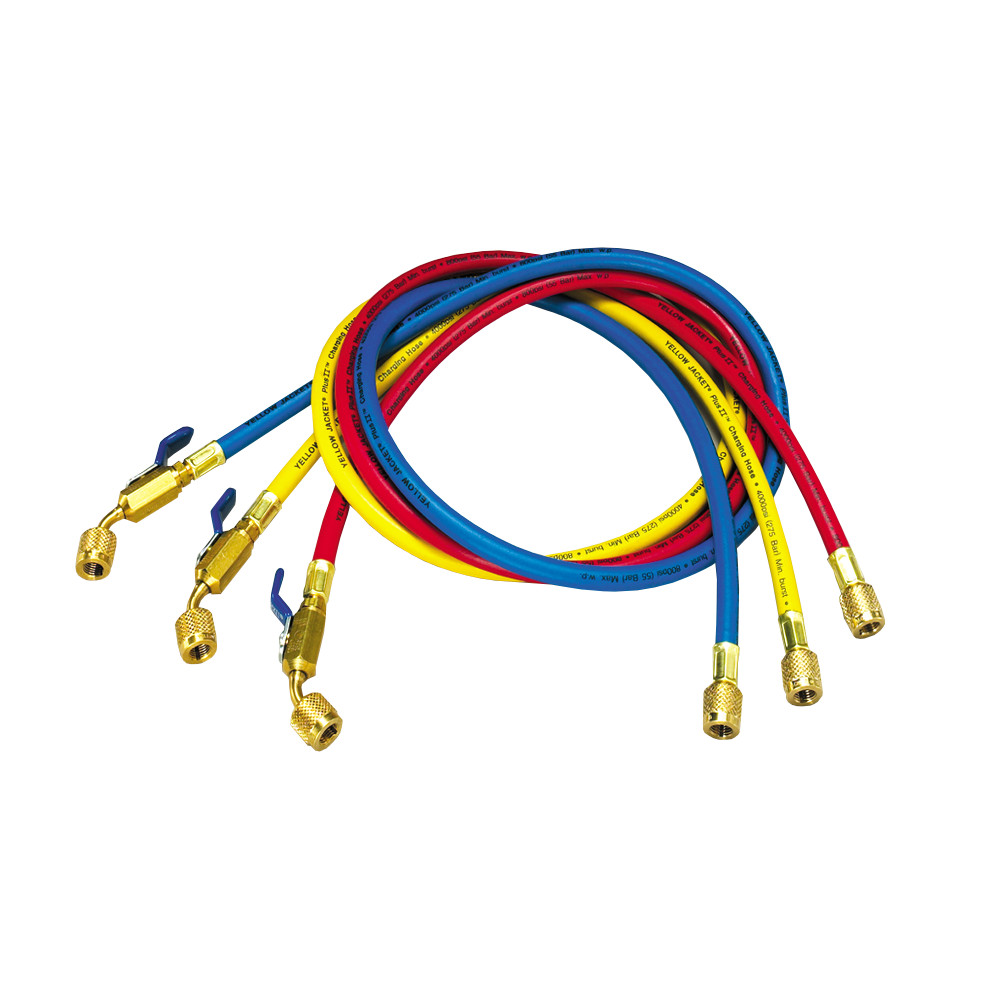

Refrigerant Charging Hose Assembly
Connector and Ball valve
A flexible hose for conveying refrigerants such as R12, R22, R502, R32, R1234YF, R410a, and R134a; applied widely to the auto refrigerant, air conditioning, industrial refrigerant, etc; both the inner rubber layer and protective layer are of high-level oil resistance of grade RMA-A and antiseepage.

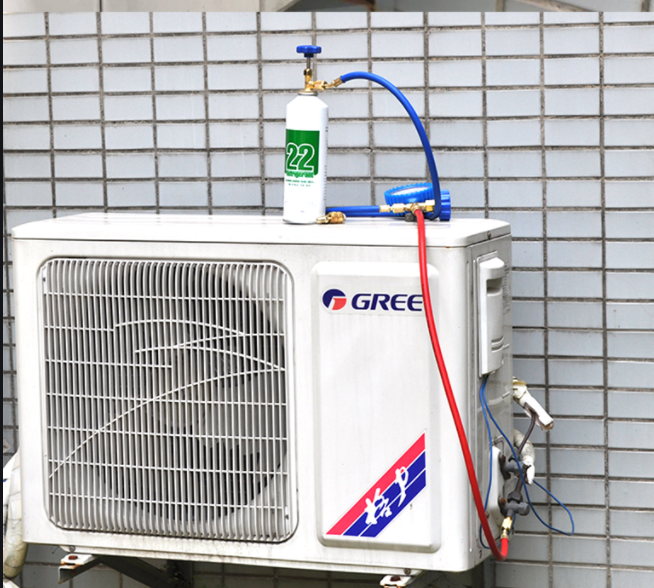

For Air Conditioning System
For conveying R12，R22，R134a etc

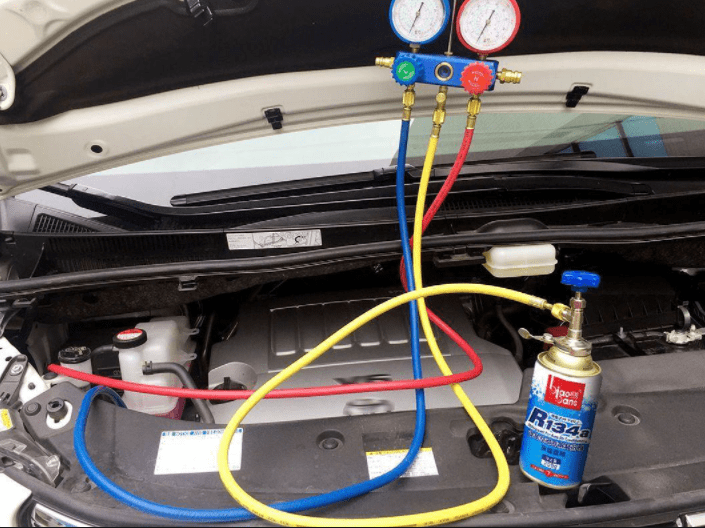

For Automotive Refrigerant
