Customized Smooth Bore PTFE Tube Company - PASSIONHOSE manufacturers
Smooth bore PTFE (polytetrafluoroethylene) tubing is a type of flexible tubing made from a fluoropolymer material known for its exceptional properties.
The smooth inner surface of the tube minimizes friction and pressure drop, allowing for efficient fluid transfer.
PTFE is also highly resistant to chemicals, making it suitable for a wide range of applications.
Core Properties: PTFE is resistant to low & high temperature, corrosion, aging with non-sticky surface.
Working Temperature: -65℃ ~ + 260℃ （-80F ~ 500F）
Transfer Medium: Strong acid, strong alkali, petroleum, diesel, gasoline, chemical, food, medicine, glue & other fluids.
Tube Color: Red, black, blue, natural; white, translucent, etc.
Packing Type: Roll, reel, carton, pallet, wooden case, etc.
Conductivity: 10^6
Certification: ISO9001:2015, TS16949:2016, Reach, RoHS, FDA, etc.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Smooth Bore PTFE Tube
Core Properties: PTFE is resistant to low & high temperature, corrosion, aging with non-sticky surface.
Working Temperature: -65℃ ~ + 260℃ （-80F ~ 500F）
Transfer Medium: Strong acid, strong alkali, petroleum, diesel, gasoline, chemical, food, medicine, glue & other fluids.
Tube Color: Red, black, blue, natural; white, translucent, etc.
Packing Type: Roll, reel, carton, pallet, wooden case, etc.
Conductivity: 10^6
Certification: ISO9001:2015, TS16949:2016, Reach, RoHS, FDA, etc.
| No. | Spec. | I.D. | O.D. | Thickness | W.P. | B.P. | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | inch | mm | inch | psi | bar | psi | bar | ||
| 1 | 1x3 | 1 | 0.039 | 3 | 0.118 | 1 | 0.039 | 148 | 10.2 | 444 | 30.6 |
| 2 | 2x4 | 2 | 0.079 | 4 | 0.157 | 1 | 0.039 | 148 | 10.2 | 444 | 30.6 |
| 3 | 2.5x4 | 2.5 | 0.098 | 4 | 0.157 | 0.75 | 0.030 | 148 | 10.2 | 444 | 30.6 |
| 4 | 3x4 | 3 | 0.118 | 4 | 0.157 | 0.5 | 0.020 | 148 | 10.2 | 444 | 30.6 |
| 5 | 3x5 | 3 | 0.118 | 5 | 0.197 | 1 | 0.039 | 148 | 10.2 | 444 | 30.6 |
| 6 | 3.2x5.2 | 3.2 | 0.126 | 5.2 | 0.205 | 1 | 0.039 | 148 | 10.2 | 444 | 30.6 |
| 7 | 3.5x5.5 | 3.5 | 0.138 | 5.5 | 0.217 | 1 | 0.039 | 148 | 10.2 | 444 | 30.6 |
| 8 | 4x6 | 4 | 0.157 | 6 | 0.236 | 1 | 0.039 | 148 | 10.2 | 444 | 30.6 |
| 9 | 4.5x5.5 | 4.5 | 0.177 | 5.5 | 0.217 | 0.5 | 0.020 | 148 | 10.2 | 444 | 30.6 |
| 10 | 5x7 | 5 | 0.197 | 7 | 0.276 | 1 | 0.039 | 148 | 10.2 | 444 | 30.6 |
| 11 | 6x8 | 6 | 0.236 | 8 | 0.315 | 1 | 0.039 | 148 | 10.2 | 444 | 30.6 |
| 12 | 6x9 | 6 | 0.236 | 9 | 0.354 | 1.5 | 0.059 | 148 | 10.2 | 444 | 30.6 |
| 13 | 6.5x7.5 | 6.5 | 0.256 | 7.5 | 0.295 | 0.5 | 0.020 | 148 | 10.2 | 444 | 30.6 |
| 14 | 8x10 | 8 | 0.315 | 10 | 0.394 | 1 | 0.039 | 148 | 10.2 | 444 | 30.6 |
| 15 | 10x12 | 10 | 0.394 | 12 | 0.472 | 1 | 0.039 | 118 | 8.16 | 370 | 25.5 |
| 16 | 10x12.5 | 10 | 0.394 | 12.5 | 0.492 | 1.25 | 0.049 | 118 | 8.16 | 370 | 25.5 |
| 17 | 12x14 | 12 | 0.472 | 14 | 0.551 | 1 | 0.039 | 118 | 8.16 | 370 | 25.5 |
| 18 | 13x15 | 13 | 0.512 | 15 | 0.591 | 1 | 0.039 | 118 | 8.16 | 370 | 25.5 |
| 19 | 14x16 | 14 | 0.551 | 16 | 0.630 | 1 | 0.039 | 118 | 8.16 | 370 | 25.5 |
| 20 | 16x18 | 16 | 0.630 | 18 | 0.709 | 1 | 0.039 | 118 | 8.16 | 370 | 25.5 |
| 21 | 16x19 | 16 | 0.630 | 19 | 0.748 | 1.5 | 0.059 | 118 | 8.16 | 370 | 25.5 |
| 22 | 19x22 | 19 | 0.748 | 22 | 0.866 | 1.5 | 0.059 | 74 | 5.1 | 296 | 20.4 |
| 23 | 20x24 | 20 | 0.787 | 24 | 0.945 | 2 | 0.079 | 74 | 5.1 | 296 | 20.4 |
| 24 | 25x28 | 25 | 0.984 | 28 | 1.102 | 1.5 | 0.059 | 74 | 5.1 | 296 | 20.4 |
| 25 | 25x29 | 25 | 0.984 | 29 | 1.142 | 2 | 0.079 | 74 | 5.1 | 296 | 20.4 |
| 26 | 32x36 | 32 | 1.260 | 36 | 1.417 | 2 | 0.079 | 29 | 2 | 145 | 10 |
| 27 | 38x42 | 38 | 1.496 | 42 | 1.654 | 2 | 0.079 | 29 | 2 | 145 | 10 |
| 28 | 48x52 | 48 | 1.969 | 52 | 2.126 | 2 | 0.079 | 29 | 2 | 145 | 10 |
| No. | Spec. | I.D. | O.D. | Thickness | W.P. | B.P | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | inch | mm | inch | psi | bar | psi | bar | ||
| 1 | 1/16" x 1/8" | 1.58 | 1/16" | 3.17 | 1/8" | 0.8 | 0.031 | 218 | 15 | 725 | 50 |
| 2 | 1/8"x 3/16" | 3.17 | 1/8" | 4.76 | 3/16" | 0.8 | 0.031 | 174 | 12 | 638 | 44 |
| 3 | 3/16" x 1/4" | 4.76 | 3/16" | 6.35 | 1/4" | 0.8 | 0.031 | 131 | 9 | 464 | 32 |
| 4 | 1/4" x 5/16" | 6.35 | 1/4" | 7.93 | 5/16" | 0.8 | 0.031 | 102 | 7 | 363 | 25 |
| 5 | 1/4" x 3/8" | 6.35 | 1/4" | 9.52 | 3/8" | 1.5 | 0.059 | 174 | 12 | 638 | 44 |
| 6 | 5/16" x 3/8" | 7.93 | 5/16" | 9.52 | 3/8" | 0.8 | 0.031 | 87 | 6 | 319 | 22 |
| 7 | 3/8" x 1/2" | 9.6 | 3/8" | 12.7 | 1/2" | 1.5 | 0.059 | 131 | 9 | 464 | 32 |
| 8 | 1/2" x 5/8" | 12.7 | 1/2" | 15.87 | 5/8" | 1.5 | 0.059 | 102 | 7 | 363 | 25 |
| 9 | 5/8" x 3/4" | 15.87 | 5/8" | 19.05 | 3/4" | 1.5 | 0.059 | 87 | 6 | 319 | 22 |

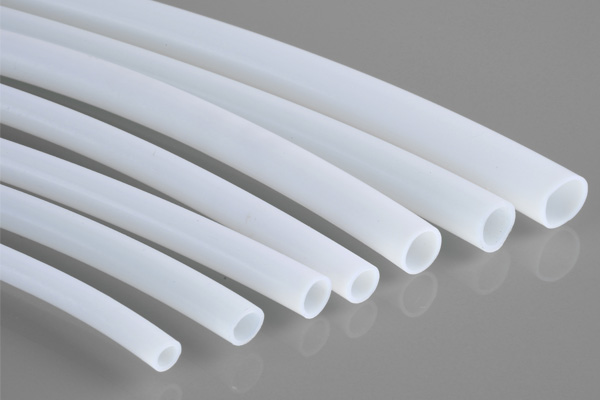

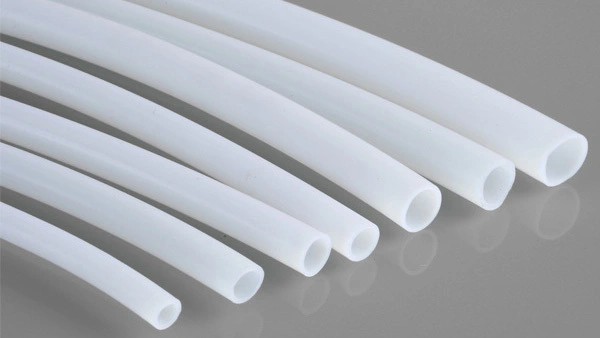

Smooth Bore PTFE
Conductive Smooth Bore PTFE

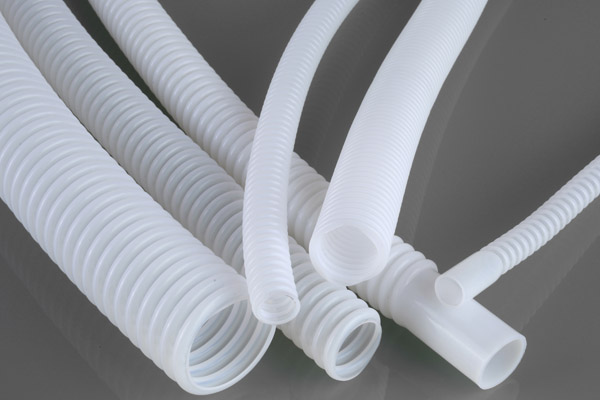

Corrugated Bore PTFE
