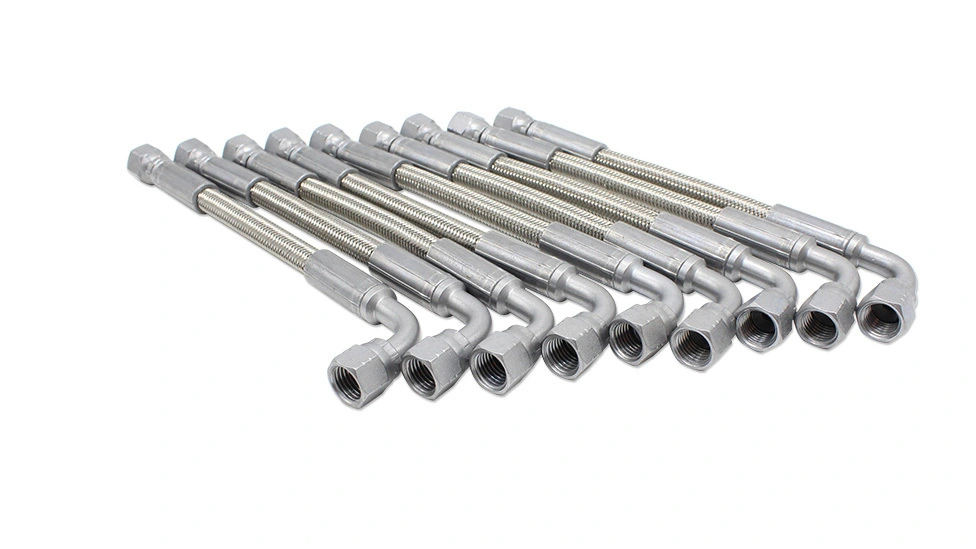

1/4" Corrosion Resistance High Pressure Stainless Steel Wire Braid PTFE Hose Manufacturers | PASSIONHOSE

Construction:
Inner tube: smooth bore PTFE
Outer tube: stainless steel 304 wire braid

Temperature range:

-65℃ to +260℃

Feature:

High temperature hose
Excellent chemical compatibility
Resists moisture
Low friction minimizes pressure drops and deposits

PTFE Hose Assembly

Ferrule: 00TF0-04

Crimping Fitting: 26711-04-04, 26791-04-04
Material: Carbon Steel with zinc-nickel plated


5.0
design customization

    oops...!

    no product data.

    Go to homepage
    1/4 Corrosion Resistance High Pressure Stainless Steel Wire Braid PTFE Hose Manufacturers | PASSIONHOSE 2
    Product Features
    ---Why choose PTFE---
    1/4 Corrosion Resistance High Pressure Stainless Steel Wire Braid PTFE Hose Manufacturers | PASSIONHOSE 3
    PTFE Features
    • ◪ Resistant to strong acid and alkali, resistant to various corrosive chemicals.

    • ◪ Anti-adhesive, anti-moisture and ultraviolet, non-toxic.

    • ◪ Excellent weather resistance, long service life, no brittle fracture and no aging.

    • ◪ With a very low friction coefficient. non-flammable.

    • ◪ With a very low evaporate transpiration rate, cold liquid is not volatile.

    • ◪ With excellent electrical characteristics.

    • ◪ Excellent mechanical properties, shock resistance and flexibility.




    1/4 Corrosion Resistance High Pressure Stainless Steel Wire Braid PTFE Hose Manufacturers | PASSIONHOSE 4

    Product Description
    ---struction and specification---
    Description
    • Inner tube

    • smooth PTFE(The imported F-205 of Japan Daikin PTFE)

      Outer tube:

    • stainless steel 304 wire braid (SS304 with diameter of 0.2mm and 0.25mm

    • Temperature:

    • Continuous temperature range: -65℃ to +260℃

    • Temporary temperature range: -70℃ to +300℃


    1/4 Corrosion Resistance High Pressure Stainless Steel Wire Braid PTFE Hose Manufacturers | PASSIONHOSE 5
    Specification
    Serial I.D.(inch) I.D.(mm) Thickness of tube (mm) O.D.(mm) W.P.(bar) B.P.(bar) Min. Bend Radius   (mm)
    1 1/8" 3.5 1.00 6.7 250 1000 16
    2 3/16" 4.8 0.85 7.6 205 820 20
    3 1/4" 6.4 0.85 9.4 187 750 27
    4 5/16" 8.0 0.85 11.1 163 650 27
    5 3/8" 10.0 0.85 13.1 130 520 33
    6 1/2" 12.7 1.00 16.2 113 450 66
    7 5/8" 16.0 1.00 19.4 80 320 150
    8 3/4" 19.0 1.20 23.0 70 280 226
    9 7/8" 22.2 1.20 26.2 60 240 245
    10 1" 25.4 1.50 29.8 50 200 300
    1/4 Corrosion Resistance High Pressure Stainless Steel Wire Braid PTFE Hose Manufacturers | PASSIONHOSE 6
    Product Details
    ---various PTFE hose assemblies---
    1/4 Corrosion Resistance High Pressure Stainless Steel Wire Braid PTFE Hose Manufacturers | PASSIONHOSE 7
    Smooth Bore PTFE Hose


    1/4 Corrosion Resistance High Pressure Stainless Steel Wire Braid PTFE Hose Manufacturers | PASSIONHOSE 8

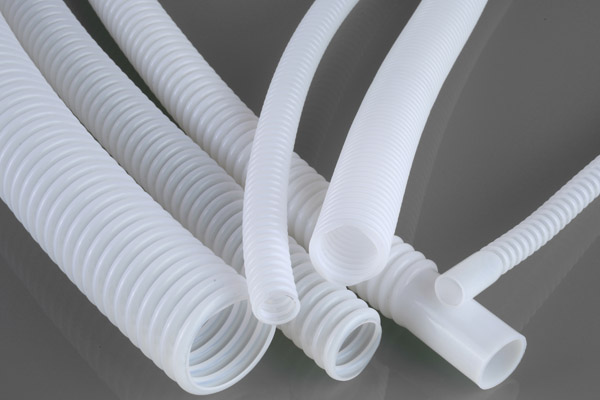

    Convoluted Bore PTFE Hose


    1/4 Corrosion Resistance High Pressure Stainless Steel Wire Braid PTFE Hose Manufacturers | PASSIONHOSE 9

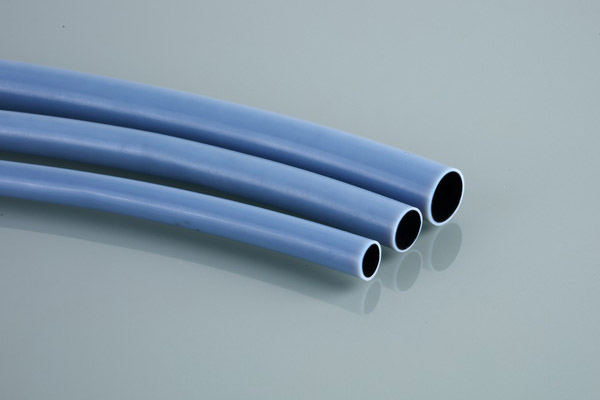

    Conductive PTFE Hose



    1/4 Corrosion Resistance High Pressure Stainless Steel Wire Braid PTFE Hose Manufacturers | PASSIONHOSE 10
    Smooth Bore SS Braided PTFE Hose

    brass fittings with o-rings

    1/4 Corrosion Resistance High Pressure Stainless Steel Wire Braid PTFE Hose Manufacturers | PASSIONHOSE 11

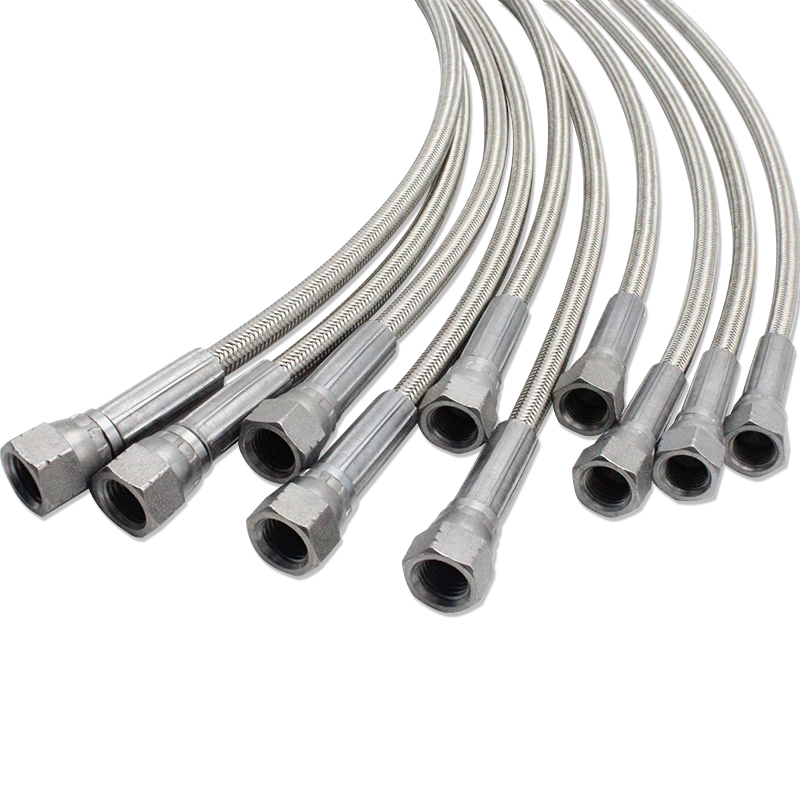

    Smooth Bore SS Braided PTFE Hose

    straight JIC female hose ends in carbon steel with zinc-nickel plated

    1/4 Corrosion Resistance High Pressure Stainless Steel Wire Braid PTFE Hose Manufacturers | PASSIONHOSE 12

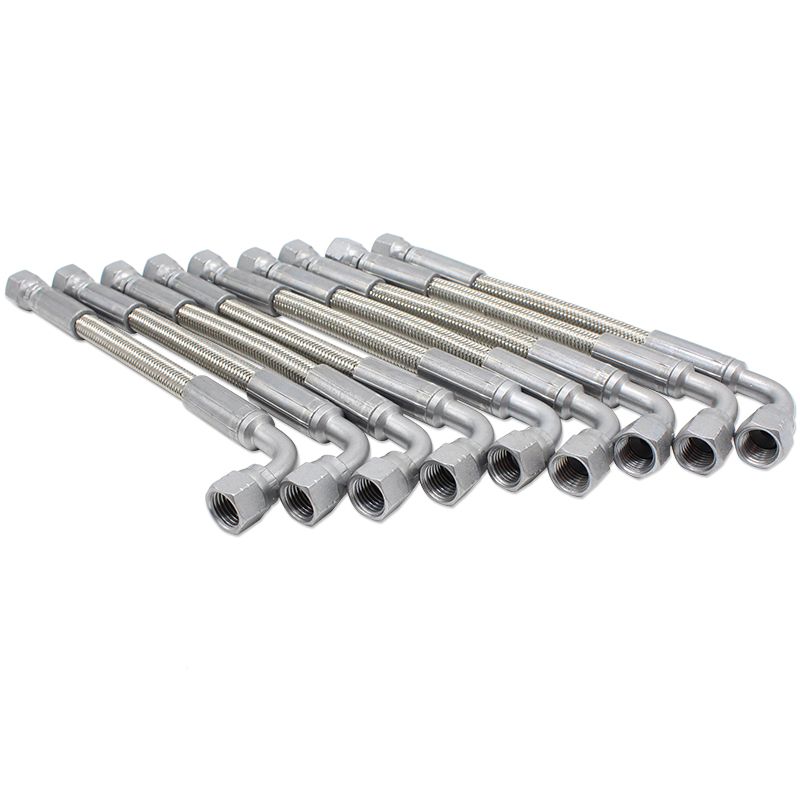

    Smooth Bore SS Braided PTFE Hose

    90 deg. elbow JIC female hos ends in carbon steel with zinc-nickel plated



    1/4 Corrosion Resistance High Pressure Stainless Steel Wire Braid PTFE Hose Manufacturers | PASSIONHOSE 13

    Application
    ---high temperature, resist chemical---

    About PTFE Hose

    As a PTFE hose manufacturer, our hoses be used in aviation transportation technology, electronic products, components and insulators, chemical manufacturing, food processing, fluid transportation equipment, and water treatment systems


    1/4 Corrosion Resistance High Pressure Stainless Steel Wire Braid PTFE Hose Manufacturers | PASSIONHOSE 14
    Air Compressor
    For Air
    1/4 Corrosion Resistance High Pressure Stainless Steel Wire Braid PTFE Hose Manufacturers | PASSIONHOSE 15

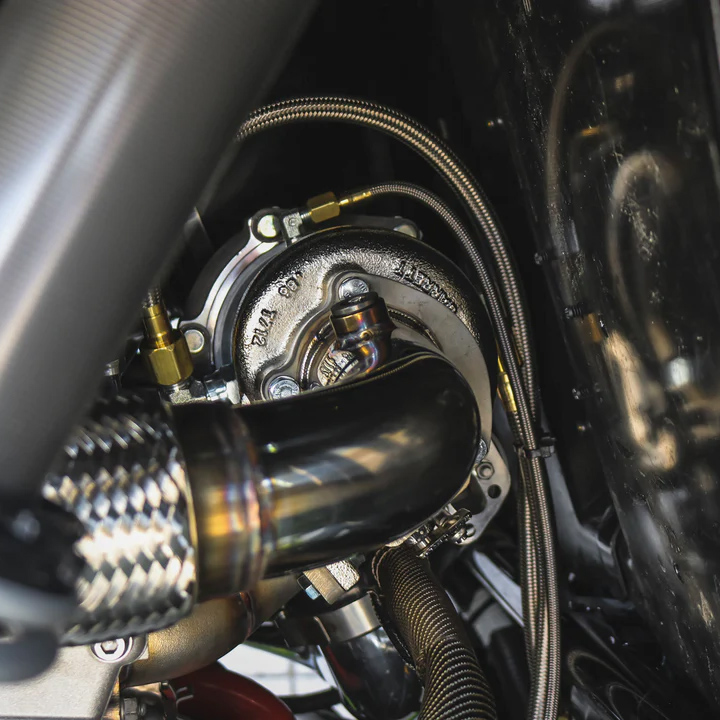

    Turbocharger
    For Oil
    1/4 Corrosion Resistance High Pressure Stainless Steel Wire Braid PTFE Hose Manufacturers | PASSIONHOSE 16

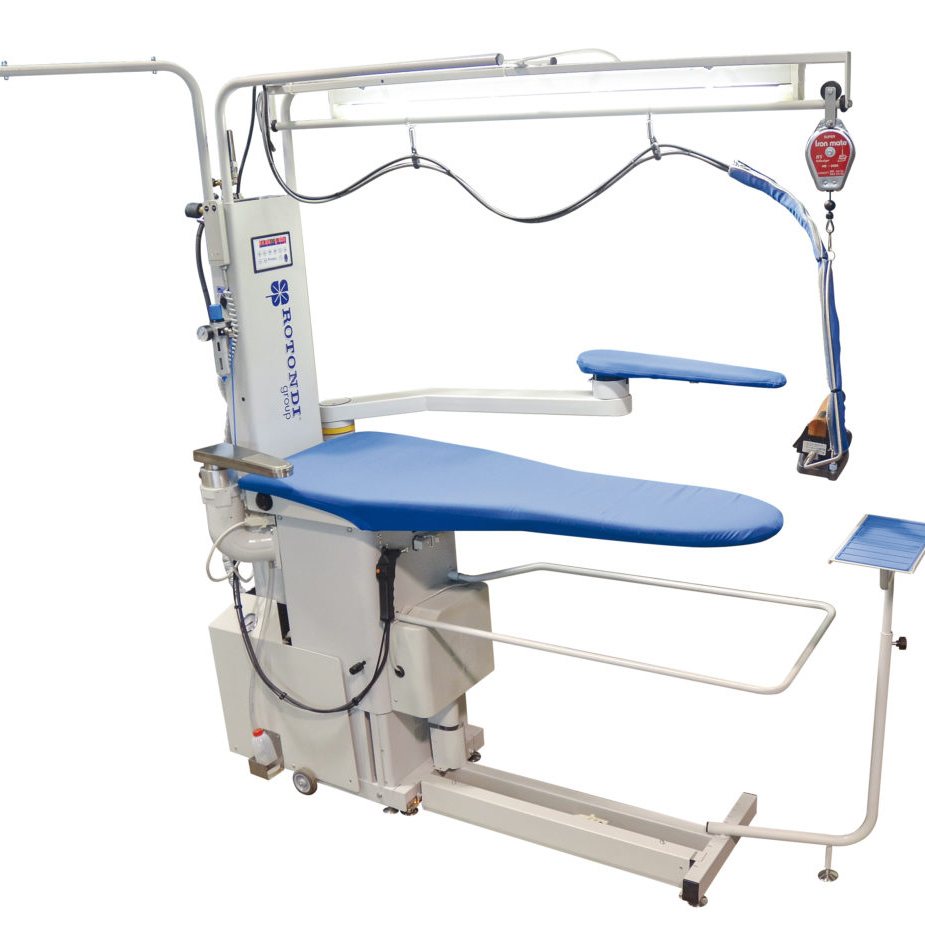

    Iron
    For Steam
