A hose manufacturer with over two decades of experience.

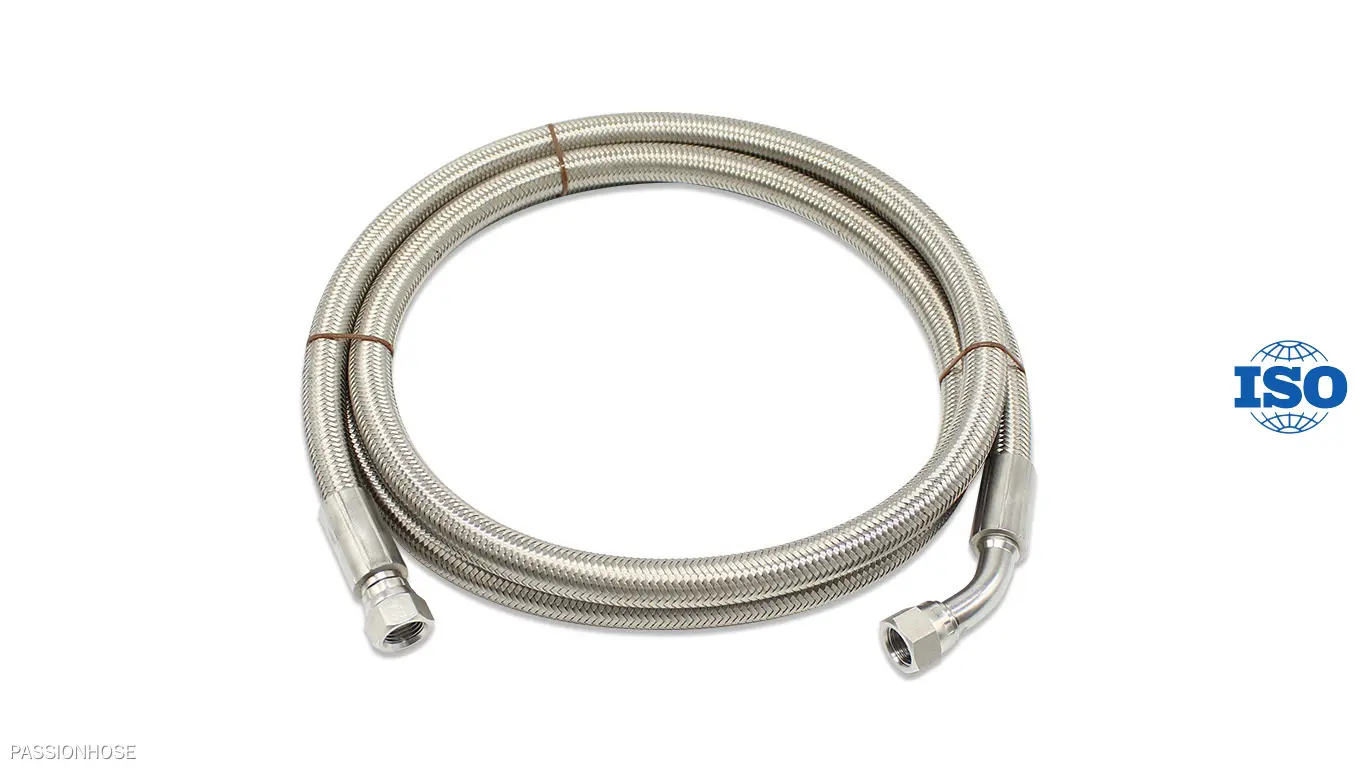

PASSIONHOSE | Latest hydraulic hose supplier 1
PASSIONHOSE | Latest hydraulic hose supplier 1

PASSIONHOSE | Latest hydraulic hose supplier

hydraulic hose Made of environmentally friendly materials and advanced technology, it has good waterproof performance, strong adaptability to deformation, safety and environmental protection, and is non-toxic and harmless.
Inquiry

With strong R&D strength and production capabilities, PASSIONHOSE now has become a professional manufacturer and reliable supplier in the industry. All our products including hydraulic hose are manufactured based on the strict quality management system and international standards. hydraulic hose We have professional employees who have years of experience in the industry. It is them that provides high-quality services for customers all over the world. If you have any questions about our new product hydraulic hose or want to know more about our company, feel free to contact us. Our professionals would love to help you at any time.hydraulic hose Selecting high-quality materials, it is made by mixing, granulating, extruding and other processes. It has stable performance, high quality and long service life.

PASSIONHOSE | Latest hydraulic hose supplier 2
Product Features
---Why choose PTFE---
PASSIONHOSE | Latest hydraulic hose supplier 3
PTFE Features
  • ◪ Resistant to strong acid and alkali, resistant to various corrosive chemicals.

  • ◪ Anti-adhesive, anti-moisture and ultraviolet, non-toxic.

  • ◪ Excellent weather resistance, long service life, no brittle fracture and no aging.

  • ◪ With a very low friction coefficient. non-flammable.

  • ◪ With a very low evaporate transpiration rate, cold liquid is not volatile.

  • ◪ With excellent electrical characteristics.

  • ◪ Excellent mechanical properties, shock resistance and flexibility.




PASSIONHOSE | Latest hydraulic hose supplier 4

Product Description
---struction and specification---
Description
  • Structure:

  • Inner tube: corrugated PTFE(The imported F-205 of Japan Daikin PTFE)Outer tube: stainless steel 304 wire braid (SS304 with diameter of 0.2mm and 0.25mm

  • Temperature:

  • Continuous temperature range: -65℃ to +260℃

  • Temporary temperature range: -70℃ to +300℃


PASSIONHOSE | Latest hydraulic hose supplier 5
Specification
SerialI.D.(inch)I.D.(mm)Thickness of tube (mm)O.D.(mm)W.P.(bar)B.P.(bar)Min. Bend Radius   (mm)
11/4"6.50.8013.115040020
25/16"8.00.6513.613036525
33/8"10.00.6515.512535033
41/2"13.00.8518.911033042
55/8"16.3
0.9023.48024550
63/4"19.01.0027.37021563
71"25.41.0033.05015079
81-1/4"32.01.1041.245140125
91-1/2"38.01.4547.943120145
102"50.01.5063.035100180
PASSIONHOSE | Latest hydraulic hose supplier 6
Product Details
---various PTFE hose assemblies---
PASSIONHOSE | Latest hydraulic hose supplier 7
PTFE Hose Assembly

45 deg. JIC female hose end in SS304

PASSIONHOSE | Latest hydraulic hose supplier 8
PTFE Hose Assembly

straight JIC female hose end in SS304

PASSIONHOSE | Latest hydraulic hose supplier 9
PTFE Hose Assembly

2 meters










PASSIONHOSE | Latest hydraulic hose supplier 10
PTFE Hose Assembly

brass fittings with o-rings

PASSIONHOSE | Latest hydraulic hose supplier 11
PTFE Hose Assembly

straight JIC female hose ends in carbon steel with zinc-nickel plated

PASSIONHOSE | Latest hydraulic hose supplier 12
PTFE Hose Assembly

90 deg. elbow JIC female hos ends in carbon steel with zinc-nickel plated



PASSIONHOSE | Latest hydraulic hose supplier 13

Application
---high temperature, resist chemical---

About our product

Stainless steel braided PTFE hoses are widely used in various industries for their unique properties and performance capabilities.

Here are some of the common applications:

1. Chemical industry: Stainless steel braided PTFE hose is used to transfer a wide range of chemicals, acids, and corrosive fluids, including solvents, fuels, and hydraulic fluids.

2. Food and beverage industry: These hoses are used in food and beverage processing plants to transfer food-grade fluids, such as milk, juice, beer, and wine, as well as cleaning solutions.

3. Pharmaceutical industry: Stainless steel braided PTFE hose is used in the pharmaceutical industry to transfer various chemicals and fluids, including solvents, acids, and cleaning solutions.

4. Automotive industry: These hoses are used in the automotive industry for fuel lines, oil lines, and brake lines due to their excellent resistance to high temperatures and corrosive fluids.

5. Aerospace industry: Stainless steel braided PTFE hose is used in the aerospace industry for various applications, including hydraulic lines, fuel lines, and cooling systems, due to their ability to withstand extreme temperatures and pressure conditions.


stainless steel braided PTFE hose is used in a wide range of applications where there is a need to transfer corrosive fluids, chemicals, and high-temperature fluids, especially in industries such as chemical, food and beverage, pharmaceutical, automotive, and aerospace.



PASSIONHOSE | Latest hydraulic hose supplier 14


For Air System

Convey high temperature and high-pressure air


For Fuel Pump

Covey high pressure and low pressure fuel
PASSIONHOSE | Latest hydraulic hose supplier 15




Hello, world!
simple hero unit, a simple jumbotron-style con

PASSIONHOSE | Latest hydraulic hose supplier 16




For Oil Line

Covey fuel for oil line in vehicle




For Brake System

Covey fuel for brake system in vehicle
PASSIONHOSE | Latest hydraulic hose supplier 17




Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
