A hose manufacturer with over two decades of experience.

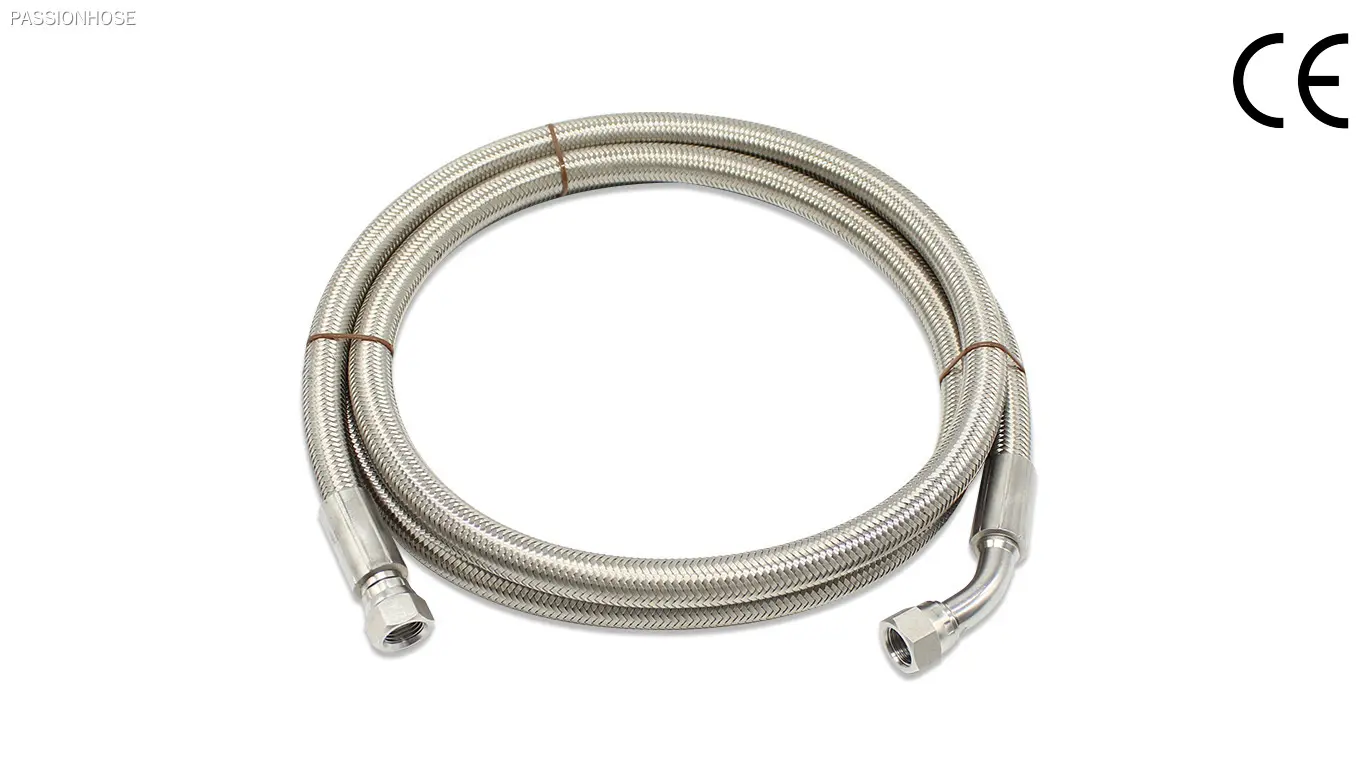

Hot Selling ptfe hose made in china | PASSIONHOSE 1
Hot Selling ptfe hose made in china | PASSIONHOSE 1

Hot Selling ptfe hose made in china | PASSIONHOSE

ptfe hose Made of high-quality materials, it has good elasticity, wear resistance, aging resistance and tear resistance, strong and durable, and has a long service life.
Inquiry

Over the years, PASSIONHOSE has been offering customers high-quality products and efficient after-sales services with the aim of bringing unlimited benefits for them. ptfe hose Having devoted a lot to product development and service quality improvement, we have established a high reputation in the markets. We promise to provide every customer throughout the world with prompt and professional service covering the pre-sales, sales, and after-sales services. No matter where you are or what business you are engaged in, we'd love to help you deal with any issue. If you want to know more details about our new product ptfe hose or our company, feel free to contact us.ptfe hose It is mainly used in the construction joints and deformation joints when the concrete is poured in place, and it is integrated with the concrete structure. It plays the role of leak-proof and seepage-proof in the joints of the building structure to ensure the service life of the engineering building.

Hot Selling ptfe hose made in china | PASSIONHOSE 2
Product Features
---Why choose PTFE---
Hot Selling ptfe hose made in china | PASSIONHOSE 3
PTFE Features
  • ◪ Resistant to strong acid and alkali, resistant to various corrosive chemicals.

  • ◪ Anti-adhesive, anti-moisture and ultraviolet, non-toxic.

  • ◪ Excellent weather resistance, long service life, no brittle fracture and no aging.

  • ◪ With a very low friction coefficient. non-flammable.

  • ◪ With a very low evaporate transpiration rate, cold liquid is not volatile.

  • ◪ With excellent electrical characteristics.

  • ◪ Excellent mechanical properties, shock resistance and flexibility.




Hot Selling ptfe hose made in china | PASSIONHOSE 4

Product Description
---struction and specification---
Description
  • Structure:

  • Inner tube: corrugated PTFE(The imported F-205 of Japan Daikin PTFE)Outer tube: stainless steel 304 wire braid (SS304 with diameter of 0.2mm and 0.25mm

  • Temperature:

  • Continuous temperature range: -65℃ to +260℃

  • Temporary temperature range: -70℃ to +300℃


Hot Selling ptfe hose made in china | PASSIONHOSE 5
Specification
SerialI.D.(inch)I.D.(mm)Thickness of tube (mm)O.D.(mm)W.P.(bar)B.P.(bar)Min. Bend Radius   (mm)
11/4"6.50.8013.115040020
25/16"8.00.6513.613036525
33/8"10.00.6515.512535033
41/2"13.00.8518.911033042
55/8"16.3
0.9023.48024550
63/4"19.01.0027.37021563
71"25.41.0033.05015079
81-1/4"32.01.1041.245140125
91-1/2"38.01.4547.943120145
102"50.01.5063.035100180
Hot Selling ptfe hose made in china | PASSIONHOSE 6
Product Details
---various PTFE hose assemblies---
Hot Selling ptfe hose made in china | PASSIONHOSE 7
PTFE Hose Assembly

45 deg. JIC female hose end in SS304

Hot Selling ptfe hose made in china | PASSIONHOSE 8
PTFE Hose Assembly

straight JIC female hose end in SS304

Hot Selling ptfe hose made in china | PASSIONHOSE 9
PTFE Hose Assembly

2 meters










Hot Selling ptfe hose made in china | PASSIONHOSE 10
PTFE Hose Assembly

brass fittings with o-rings

Hot Selling ptfe hose made in china | PASSIONHOSE 11
PTFE Hose Assembly

straight JIC female hose ends in carbon steel with zinc-nickel plated

Hot Selling ptfe hose made in china | PASSIONHOSE 12
PTFE Hose Assembly

90 deg. elbow JIC female hos ends in carbon steel with zinc-nickel plated



Hot Selling ptfe hose made in china | PASSIONHOSE 13

Application
---high temperature, resist chemical---

About our product

Stainless steel braided PTFE hoses are widely used in various industries for their unique properties and performance capabilities.

Here are some of the common applications:

1. Chemical industry: Stainless steel braided PTFE hose is used to transfer a wide range of chemicals, acids, and corrosive fluids, including solvents, fuels, and hydraulic fluids.

2. Food and beverage industry: These hoses are used in food and beverage processing plants to transfer food-grade fluids, such as milk, juice, beer, and wine, as well as cleaning solutions.

3. Pharmaceutical industry: Stainless steel braided PTFE hose is used in the pharmaceutical industry to transfer various chemicals and fluids, including solvents, acids, and cleaning solutions.

4. Automotive industry: These hoses are used in the automotive industry for fuel lines, oil lines, and brake lines due to their excellent resistance to high temperatures and corrosive fluids.

5. Aerospace industry: Stainless steel braided PTFE hose is used in the aerospace industry for various applications, including hydraulic lines, fuel lines, and cooling systems, due to their ability to withstand extreme temperatures and pressure conditions.


stainless steel braided PTFE hose is used in a wide range of applications where there is a need to transfer corrosive fluids, chemicals, and high-temperature fluids, especially in industries such as chemical, food and beverage, pharmaceutical, automotive, and aerospace.



Hot Selling ptfe hose made in china | PASSIONHOSE 14


For Air System

Convey high temperature and high-pressure air


For Fuel Pump

Covey high pressure and low pressure fuel
Hot Selling ptfe hose made in china | PASSIONHOSE 15




Hello, world!
simple hero unit, a simple jumbotron-style con

Hot Selling ptfe hose made in china | PASSIONHOSE 16




For Oil Line

Covey fuel for oil line in vehicle




For Brake System

Covey fuel for brake system in vehicle
Hot Selling ptfe hose made in china | PASSIONHOSE 17




Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
