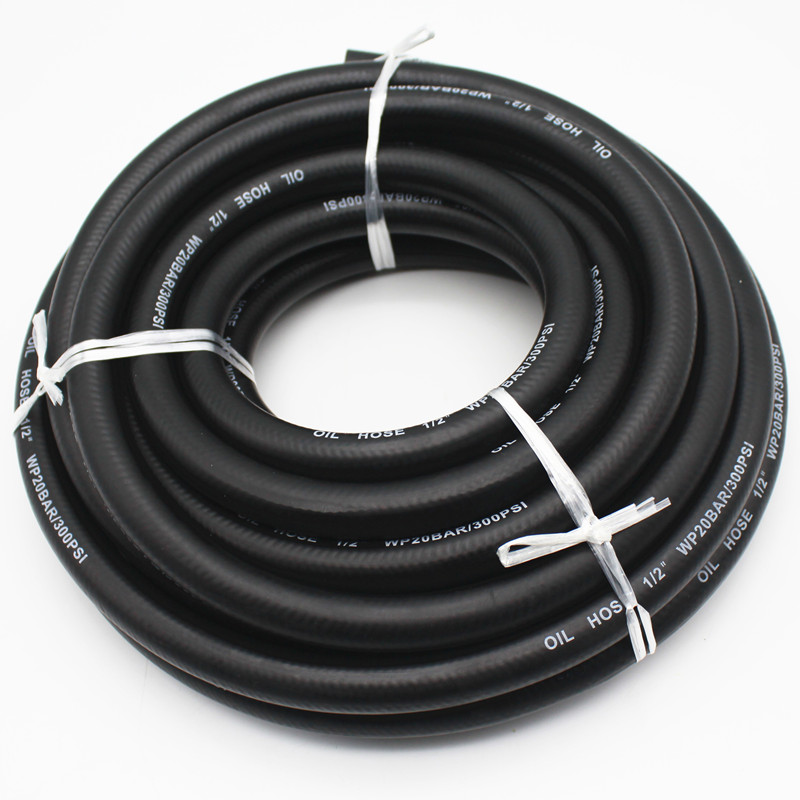

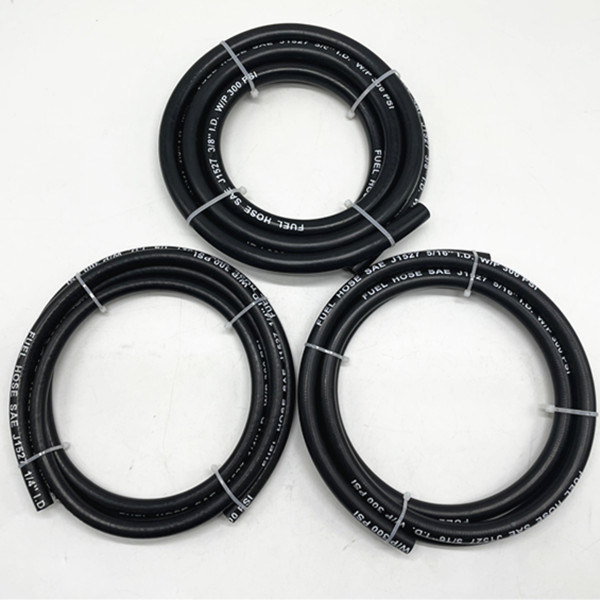

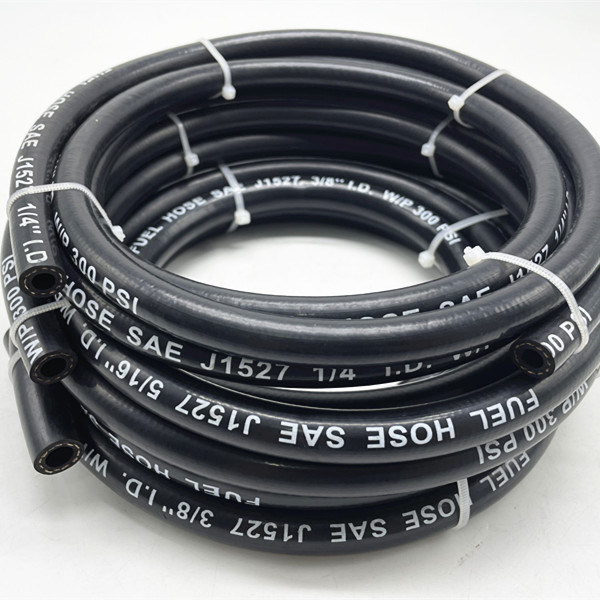

Flexible Black Middle Pressure Rubber Fuel Gasoline Hose 300 psi can be used for gasoline and diesel.
It is middle pressure hose for industrial use.
Working pressure is 300psi, Bursting Pressure is 900psi.
◪ Good flexibility with excellent kink resistance.
◪ Excellent gasoline resistance with strong permeation resistance.
◪ Excellent weather resistance, long service life, no brittle fracture and no aging.
◪ With a very low friction coefficient. non-flammable.
◪ With smooth, flat and nice experience.
◪ With accurate sizes.

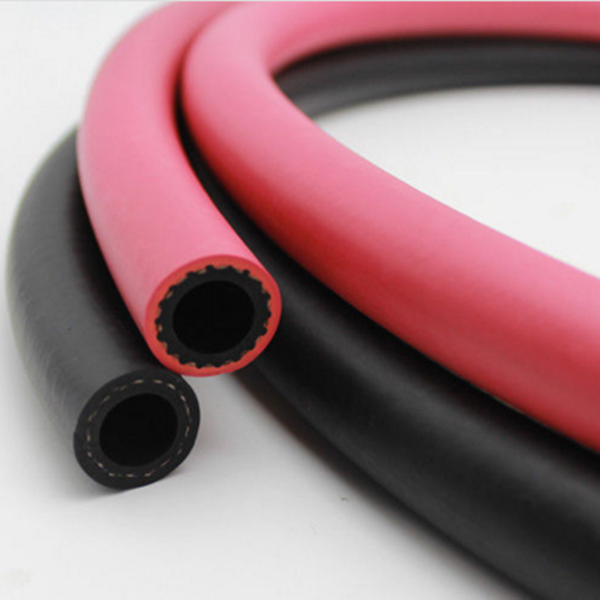

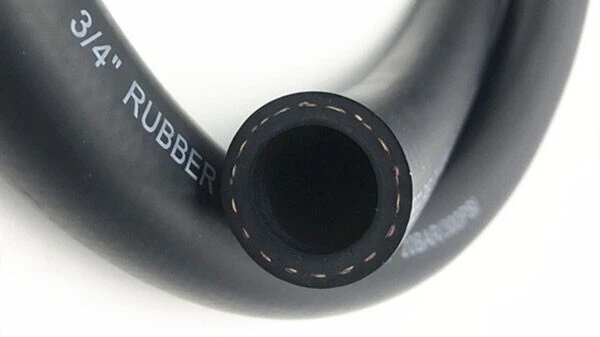

Structure:
Inner Tube: black synthetic nitrile rubber.
Reinforcement: high strength spiraled synthetic yarn.
Outer Tube: aging, gasoline resistant synthetic rubber.
Temperature:
Continuous temperature range: -40℃ to +100℃
| Serial | I.D.(inch) | I.D.(mm) | O.D.(mm) | W.P.(bar) | B.P.(bar) |
|---|---|---|---|---|---|
| 1 | 1/4" | 6.0 | 13.0 | 20 | 60 |
| 2 | 5/16" | 8.0 | 15.0 | 20 | 60 |
| 3 | 3/8" | 9.5 | 17.0 | 20 | 60 |
| 4 | 1/2" | 12.7 | 21.0 | 20 | 60 |
| 5 | 5/8" | 16.0 | 24.5 | 20 | 60 |
| 6 | 3/4" | 19.0 | 29.0 | 20 | 60 |
| 7 | 1" | 25.0 | 35.0 | 20 | 60 |
with high strength fiber reinforcment

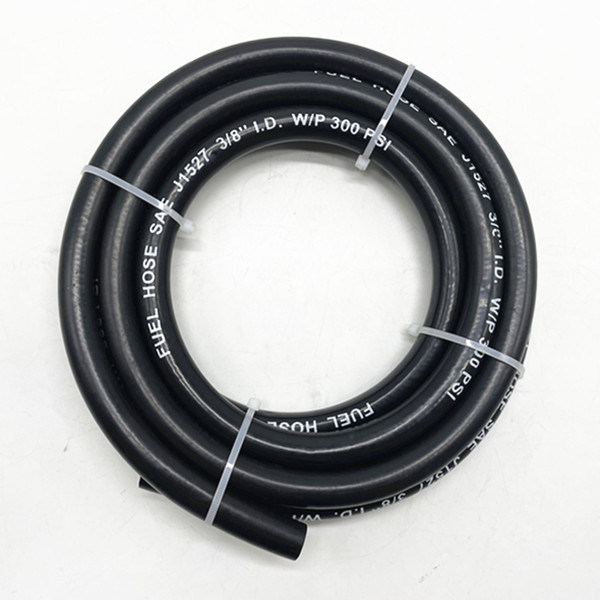

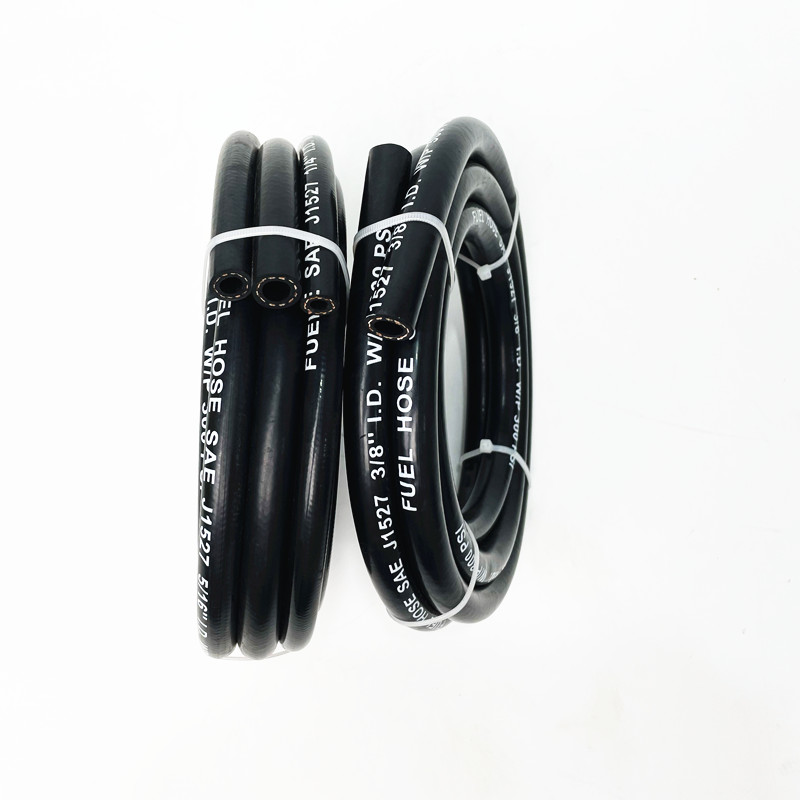

meets SAE J527 standard
2 supplied in different lengths

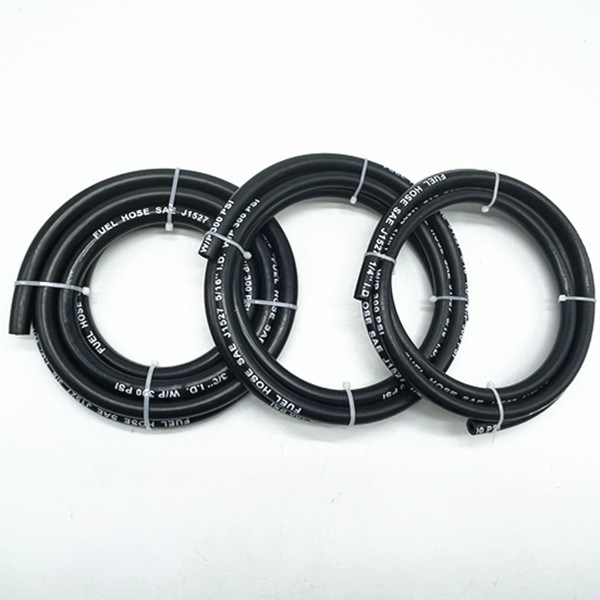

supplied in different sizes

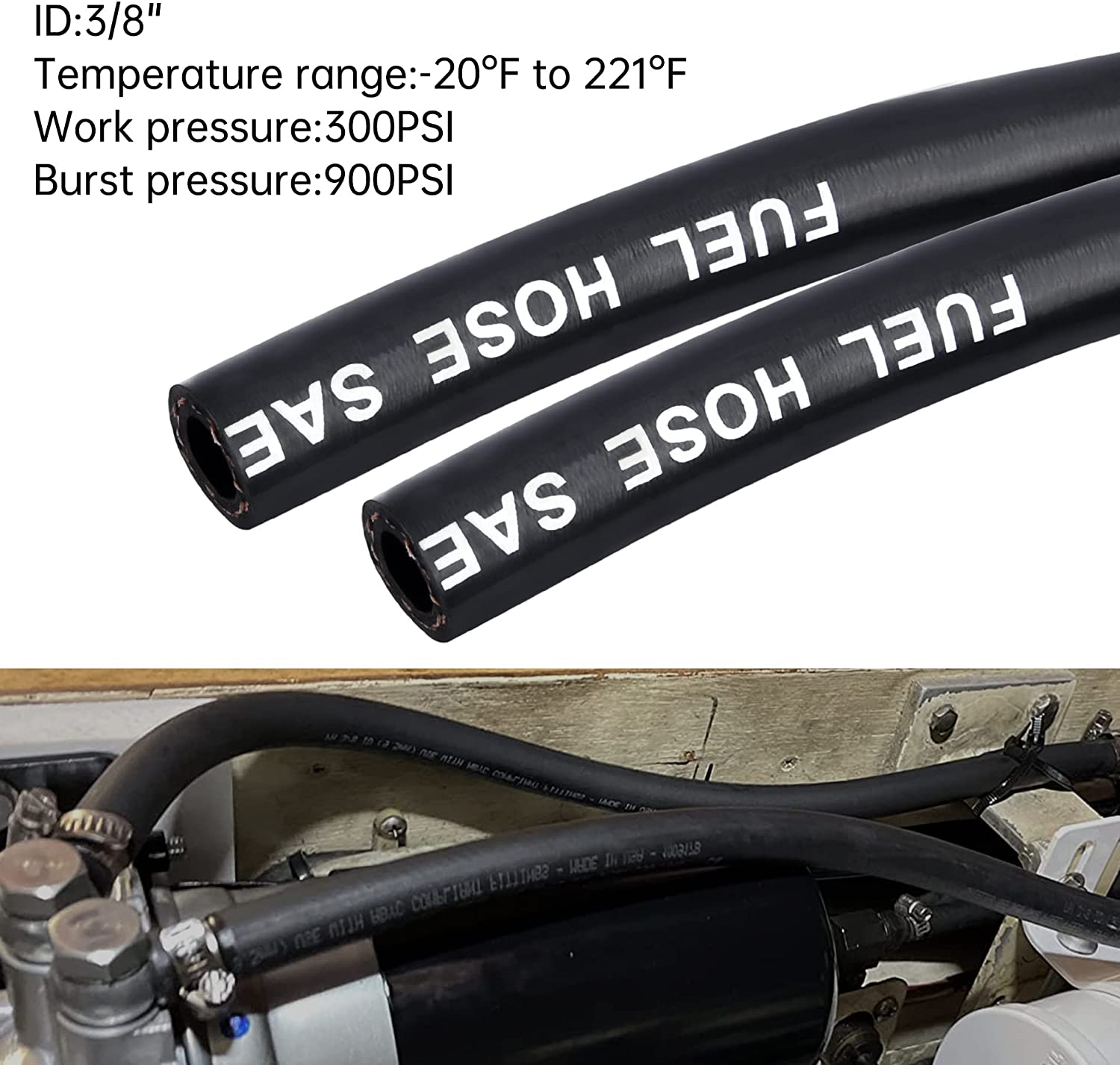

working pressure 300psi
smooth, flate and nice appearance
This SAE Standard is used to convey gasoline or diesel in boats with enclosed engine compartments.
Its cover is designed to resist oil, and permeation in enclosed areas from alcohol blended fuels.
Our marine fuel line is also compatible with E10/E85 Biofuels.
For Marine Fuel Hose
Transferring of gasoline and diesel for marine application
Marine Fuel Hose
