Flexible 20 bar Middle Pressure Oil Petrol Resistant Rubber Hose Tubing | PASSIONHOSE

Flexible Rubber Fuel Hose — Mainly used for circulating petrol and kerosene, or the oil products with contents of aromatic substances etc.
Standard length: 50m, 100m.


Place of Origin: Zhejiang, China

Brand Name: PASSION

Model Number: 1/4"-1"

Processing Service: Moulding, Cutting, crimping

Outer Tube: Nitrile Rubber

Reinforcement: braided polyester fiber

Inner Tube: NBR Sythetic Rubber

Color: black, red, blue

Certification: CE, ISO

Working pressure: 300psi

Bursting pressure: 900psi

Length: 50 meters or 100 meters per roll.

Usage: for industrial diesel and gasoline

Package: well packed by braided straps


5.0
design customization

    oops...!

    no product data.

    Go to homepage

    Hose Construction:


    Tube: Nitrile Rubber
    Reinforcement: High tensile polyester fiber braided.
    Cover: Nitrile Rubber
    Temperature: -30℃ to +100℃
    Color: Black, Red, Blue etc.
    Application: Mainly used for circulating petrol and kerosene, or the oil products with contents of aromatic substances etc.
    Standard length: 50m, 100m.

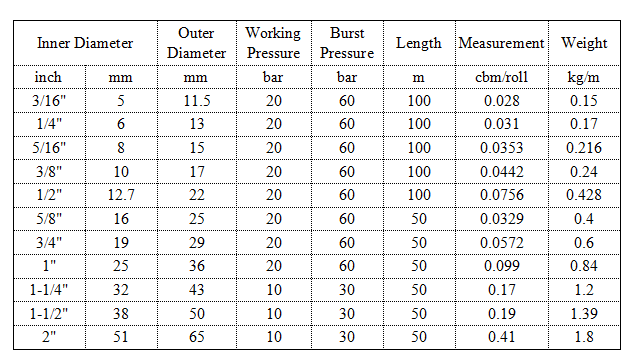

    Specification:

    Flexible 20 bar Middle Pressure Oil Petrol Resistant Rubber Hose Tubing | PASSIONHOSE 7

    Flexible 20 bar Middle Pressure Oil Petrol Resistant Rubber Hose Tubing | PASSIONHOSE 8


    Benefits


    1. High Permeation Resistance, resistant to gasoline & diesel perfectly.

    2. Excellent Adhesiveness between rubber layer and braided fibers.

    3. Accurate inner diameter and outer diameter sizes.

    4. Guaranteed Pressure.

    5. Smooth and Flat Surface.


    Flexible 20 bar Middle Pressure Oil Petrol Resistant Rubber Hose Tubing | PASSIONHOSE 9

    About Paishun


    “Hangzhou Paishun Rubber And Plastic” founded in 2007, owns our general headquarter in the beautiful historical city of HANGZHOU. We hold "Suqian Paishun Hose Industry" and "Guangzhou PassionCo Hose" as shareholder companies. Both our own brands and OEM/ODM share 50% of our productivity. English, French, Spanish or Russian speaking, our experienced team are 24-hours available to discuss your inquiries, and to ensure your maximum satisfaction. Knowing well the industries of all types of rubber hoses, as well as their applications, their international standards, we eager to help you to make rapid progress in your local markets. Covering 10,000 square meters, our factories have complete production facilities of rubber mixing process, cold feeding material extrusion process, micro-wave vulcanization process, and high-speed braiding process. Our hose lines are in categories like industrial hoses, hydraulic hoses, hoses for automobiles, and hoses for sanitary and drinking purposes. Yearly production capacity is now reaching 5 million meters. Since about 15 years, our R&D team members are always having big devotion to all types of rubber hoses, especially those of mid-to-high markets. Now, the tolerance of inner tube diameter is controlled lowest to +-0.1MM. We have introduced top level Crimping Machines with brand of Finn-Power. Thus, the tolerance of crimping diameters can be kept at +-0.1mm, even when in continuous crimping for long time operation. Since 2018, we have set dust-free workshop and till now have obtained CE, ISO 9001:2015, IATF 16949 and ROSH certificates. Our key policy is “Enterprise may only thrive with technology, may last with quality”. Therefore,  we invest much in researching, in laboratory equipments. Our technical team is in co-work with a military standards laboratory. They use a series of tensile testing machine, vulcanization testing device, aging testing chest, pressure testing machines to ensure effective quality control. We do wish, our products can largely satisfy our customers, and our team be helpful to find answers to any questions, and to offer most suitable solutions about Rubber Hoses. Here is our slogan “Passion for hose, passion for you”.

    Efficient production process: the production process of Paishun  has been streamlined and the efficient production process minimizes waste and brings the product to market in the most cost-effective manner possible.
