Comparing with the general type, the CNG hose with aramid fibers is more flexible, more easy to handle, high pressure is guaranteed.
Without steel wire, the hose can still keep anti-static, because we use a " conductive " material to produce the inner tube. It is safe when being used in LPG stations.
◪ With electrically conductive core.
◪ With fiber reinforcement.
◪ Lightweight and flexible.
◪ Extra tough cover for abrasion.
◪ Easy handling and manipulation.
◪ High safety factor: 1:4.
◪ Rugged construction offering kink-crush-twist-pull resistance.
Structure:
Inner tube: electrically conductive nylon inner tube.
Reinforcement: high-strength braided aramid fibers.
Outer tube: red smooth cover polyurethane.
Temperature: -40℃ to +70℃
| Specifications | I.D.(inch) | O.D.(mm) | Service Pressure (psi) | Min Bend Radius.(mm) |
|---|---|---|---|---|
| CNGG-6 | 1/4" | 14.0 | 5000 | 51 |
| CNGG-10 | 3/8" | 16.5 | 5000 | 76 |
| CNGG-13 | 1/2" | 12.5 | 5000 | 102 |
| CNGG-19 | 3/4" | 19.0 | 5000 | 191 |
| CNGG-25 | 1" | 25.0 | 5000 | 254 |

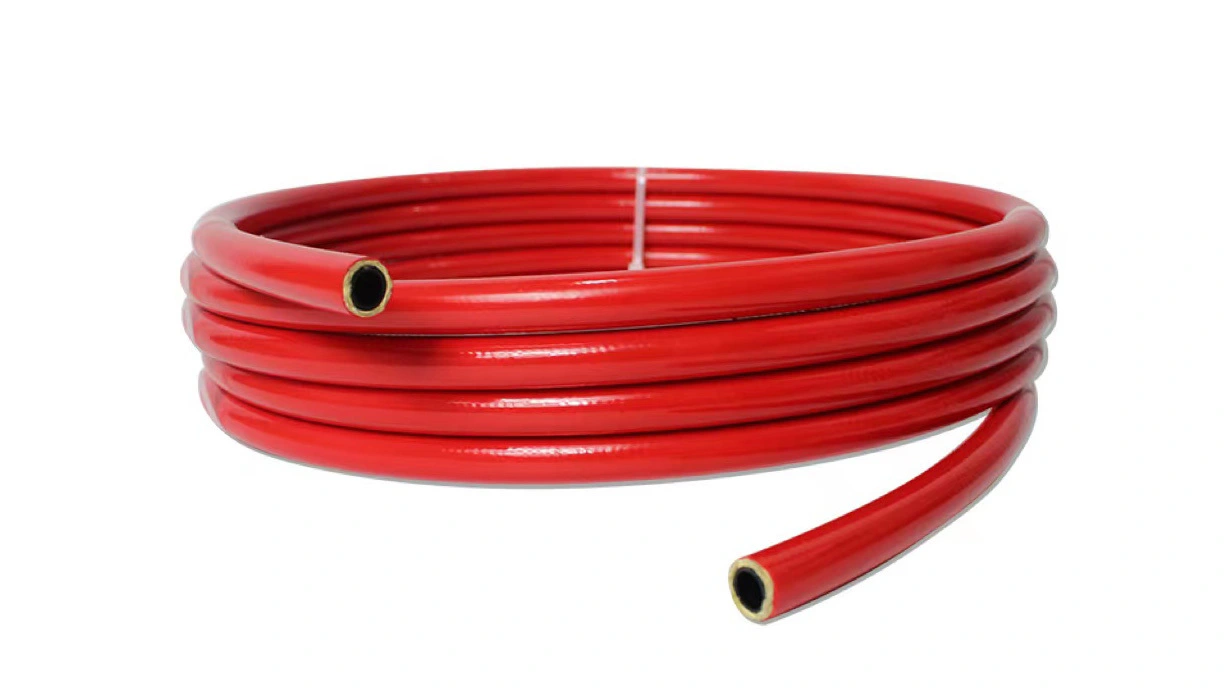

red color
5000psi working pressure
20000psi bursting pressure
with electrically conductive nylon tube
100meters/roll
excellent flexibility and softness
CNG hose incoporated with steel wire is a general hose, what about the hose embedded with aramid fibers?
Comparing with the general type, the CNG hose with aramid fibers is more flexible, more easy to handle, high pressure is guaranteed.
Without steel wire, the hose can still keep anti-static, because we use a " conductive " material to produce the inner tube. It is safe when being used in LPG stations.
For CNG Refueling Application
High pressure hose is suitable for CNG refueling
