Advantages:
1. Cost Effective (More than 30% lower than the current market price, with quality warranty);
2. Leak Free (this is a very important premise);
3. Eliminate fixtures (no need to use crimping machines or other special tools);
4. Eliminate uncertain fixture positioning (withholding position);
5. Faster assembly (it only takes a few seconds, saving precious time);
6. It can be directly processed and used on-site and reusable (cut and pull it out directly when dismantling, and continue to insert after cutting, no need to crimp the ferrule, and it can be connected in a few seconds);
7. Reduce potential risks caused by crimping mistakes (the operation is simpler)
◪ Good flexibility with excellent kink resistance.
◪ Easy Installation
◪ Cost-Effective
◪ Versatility
◪ Lightweight
◪ With accurate sizes.
Structure:
Inner Tube: Black RMA-A super oil-resistant and gas-tight NBR synthetic rubber
Reinforcement: high strength spiraled synthetic yarn.
Outer Tube: Oil, aging, wear-resistant plastic-rubber blend material
Temperature: -30 to 120℃ ( with clamps)
| Serial | I.D.(inch) | I.D.(mm) | O.D.(mm) | W.P.(bar) | B.P.(bar) |
|---|---|---|---|---|---|
| 1 | 1/4" | 6.4 | 13.0 | 20 | 80 |
| 2 | 5/16" | 8.0 | 15.0 | 20 | 80 |
| 3 | 3/8" | 9.5 | 17.0 | 20 | 80 |
| 4 | 1/2" | 12.7 | 21.0 | 20 | 80 |
| 5 | 5/8" | 16.0 | 24 | 20 | 80 |
| 6 | 3/4" | 19.0 | 28.0 | 20 | 70 |
| 7 | 1" | 25.0 | 36.0 | 20 | 60 |

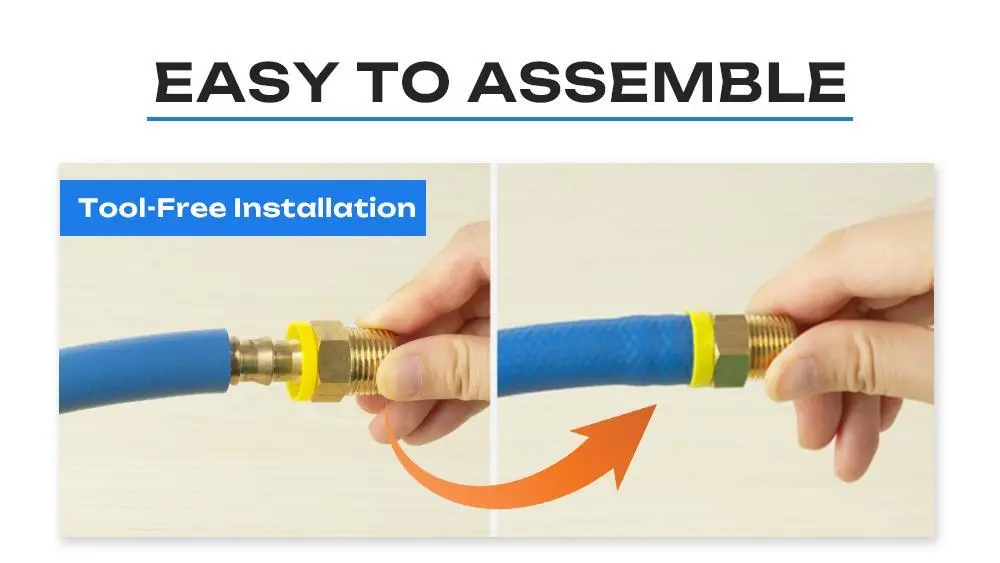

Very easy to install and user friendly
with specially designed fittings
Push-Lock Hose
High-temperature resistance
Push-Lock hoses, also known as push-lock or push-lock hoses, are a type of hose that features a simple,easy-to-use fitting.
These hoses have a barbed end that fits into a specially designed socket, allowing the hose to be secured without the need for clamps or ferrules.
Push-Lock hoses are made from various materials, including rubber, PVC, and nylon, and come in various sizes and lengths.
Applications
Automotive
Push-Lock hoses are commonly used in the automotive industry for fuel and oil transfer
Hydraulic
Push-on hoses are suitable for low-pressure hydraulic applications, such as lubrication and cooling systems.
Pneumatic
Push-Lock hoses are commonly used in pneumatic systems for air and gas transfer applications.
Chemical
Push-Lock hoses are suitable for chemical transfer applications, where chemical compatibility is not an issue.
Mold forming
A small bend radius allows this hose to be easily installed in tight spaces
Customization
Packing
Can be cartons, poly film, trays, reels, etc.
Colors
Various colors for your choice, and can be customized according to Pantone color number.
Printing
Our logo, neutral printing, or customize your printing.
Length
The regular length is 100 meters per roll for 1/4" to 1/2", 60 meters per roll for 3/4" and 1" size.
Accessories
Push-lock fittings and clamps can be provided by us
