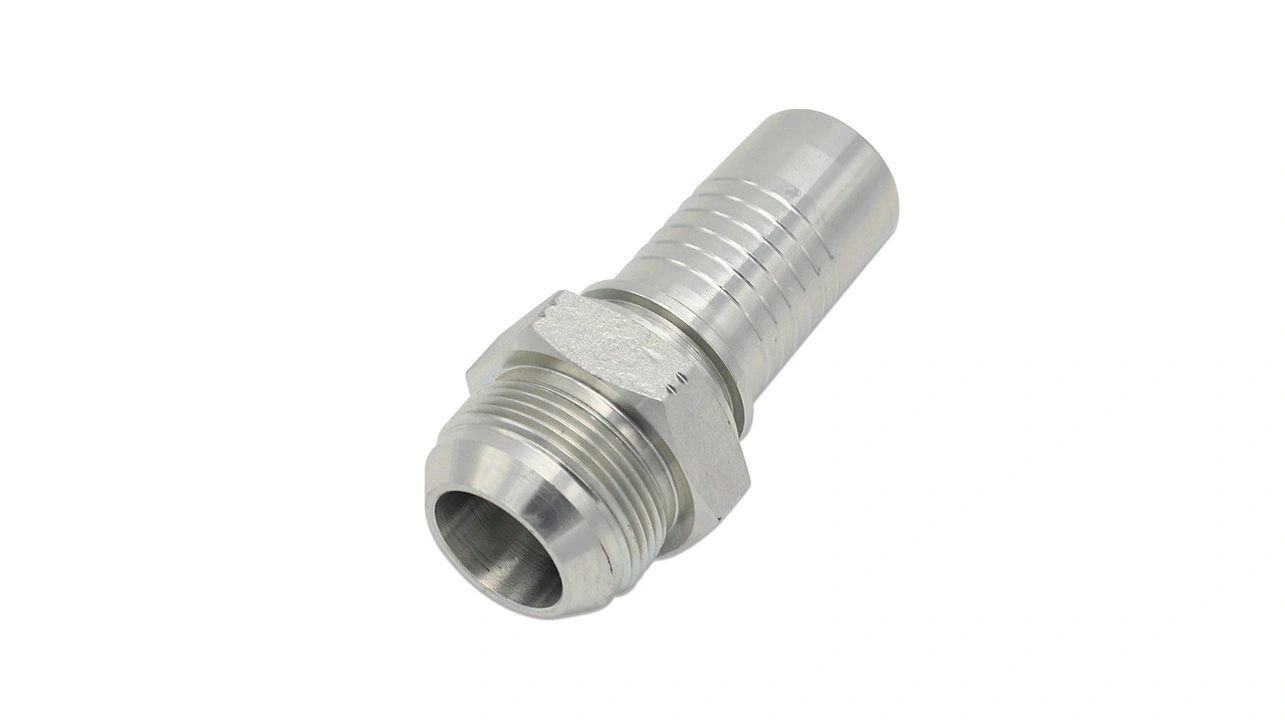

JIC Male 37 Degree High Pressure Hydraulic Hose Fittings Ends
Two Pieces standard type
Our part number: 16711
Material: Carbon Steel#45
Surface: zinc plated with cr+3. It can pass at least 120 hours of salt spray test
The main products are with SAE standards and Yonghua standards. Material: Carbon steel with zinc plated, Stainless Steel 304 or Stainless Steel 316. There are 56 automatic CNC machines and 280 CNC machines. The monthly production capacity is more than 30 million pieces. There are 10,000 square meters of warehouses with shelves. More than 10,000 specifications and 25 million pieces in stock.
◪ No complaint---standard process and excellent service
◪ Receive them in a very short time---enough stock
◪ Accurate dimensions---automatic CNC machines
◪ Receive them without damage---strong packing
◪ Free sample available
◪ OEM and ODM
◪ Supply hydraulic hose fittings, hydraulic hoses and hydraulic hose assemblies
Detail
| Standard | Yonghua |
| Part Number | 16711 for wire braided hoses; 16712 for wire spiral hoses |
| Material | Carbon Steel 45# |
| Surface | Zinc plated with Cr+3 |
| Testing | Pass at least 120 hours of salt spray test |

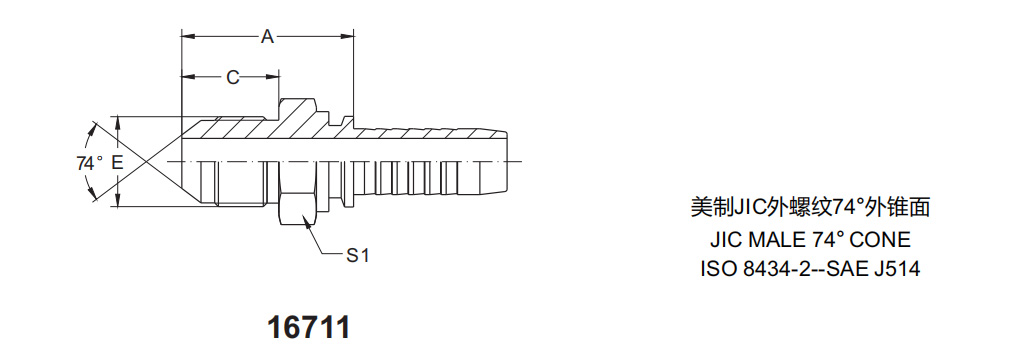

| Part No. | 螺纹 THREAD E | HOSE BORE DN | HOS BORE DASH | DIMENSION A | DIMENSION C | DIMENSION S1 |
|---|---|---|---|---|---|---|
| 16711-04-03 | 7/16"x20 | 5 | 03 | 26 | 14 | 12 |
| 16711-04-04 | 7/16"x20 | 6 | 04 | 26.5 | 14 | 12 |
| 16711-05-04 | 1/2"x20 | 6 | 04 | 26.5 | 14 | 14 |
| 16711-05-05 | 1/2"x20 | 8 | 05 | 26.5 | 14 | 14 |
| 16711-05-06 | 1/2"x20 | 10 | 06 | 26.5 | 14 | 17 |
| 16711-06-04 | 9/16"x18 | 6 | 04 | 26.5 | 14.1 | 17 |
| 16711-06-05 | 9/16"x18 | 8 | 05 | 26.5 | 14.1 | 17 |
| 16711-06-06 | 9/16"x18 | 10 | 06 | 26.5 | 14.1 | 17 |
| 16711-08-06 | 3/4"x16 | 10 | 06 | 31.5 | 16.7 | 22 |
| 16711-08-08 | 3/4"x16 | 12 | 08 | 32 | 16.7 | 22 |
| 16711-10-06 | 7/8"x14 | 10 | 06 | 33.5 | 19.3 | 24 |
| 16711-10-08 | 7/8"x14 | 12 | 08 | 34 | 19.3 | 24 |
| 16711-10-10 | 7/8"x14 | 16 | 10 | 35 | 19.3 | 24 |
| 16711-12-08 | 1-1/16"x12 | 12 | 08 | 38.5 | 21.9 | 30 |
| 16711-12-10 | 1-1/16"x12 | 16 | 10 | 39.5 | 21.9 | 30 |
| 16711-12-12 | 1-1/16"x12 | 20 | 12 | 40 | 21.9 | 30 |
| 16711-12-16 | 1-1/16"x12 | 25 | 16 | 42.5 | 21.9 | 30 |
| 16711-14-10 | 1-3/16"x12 | 16 | 10 | 41.5 | 22.6 | 32 |
| 16711-14-12 | 1-3/16"x12 | 20 | 12 | 40.5 | 22.6 | 32 |
| 16711-16-12 | 1-5/16"x12 | 20 | 12 | 43 | 23.1 | 36 |
| 16711-16-16 | 1-5/16"x12 | 25 | 16 | 43.5 | 23.1 | 36 |
| 16711-20-16 | 1-5/8"x12 | 25 | 16 | 47 | 24.3 | 46 |
| 16711-20-20 | 1-5/8"x12 | 32 | 20 | 47 | 24.3 | 46 |
| 16711-24-20 | 1-7/8"x12 | 32 | 20 | 53 | 27.5 | 50 |
| 16711-24-24 | 1-7/8"x12 | 40 | 24 | 53 | 27.5 | 50 |
| 16711-32-32 | 2-1/2"x12 | 50 | 32 | 62 | 33.9 | 65 |

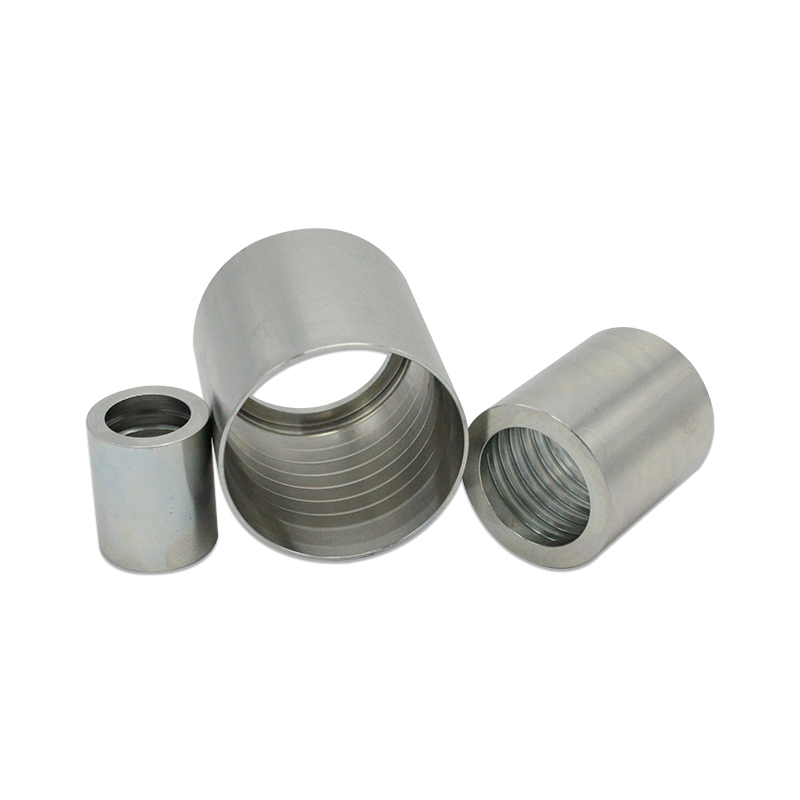

PASSIONCO Ferrule for one wire braided hydraulic hoe

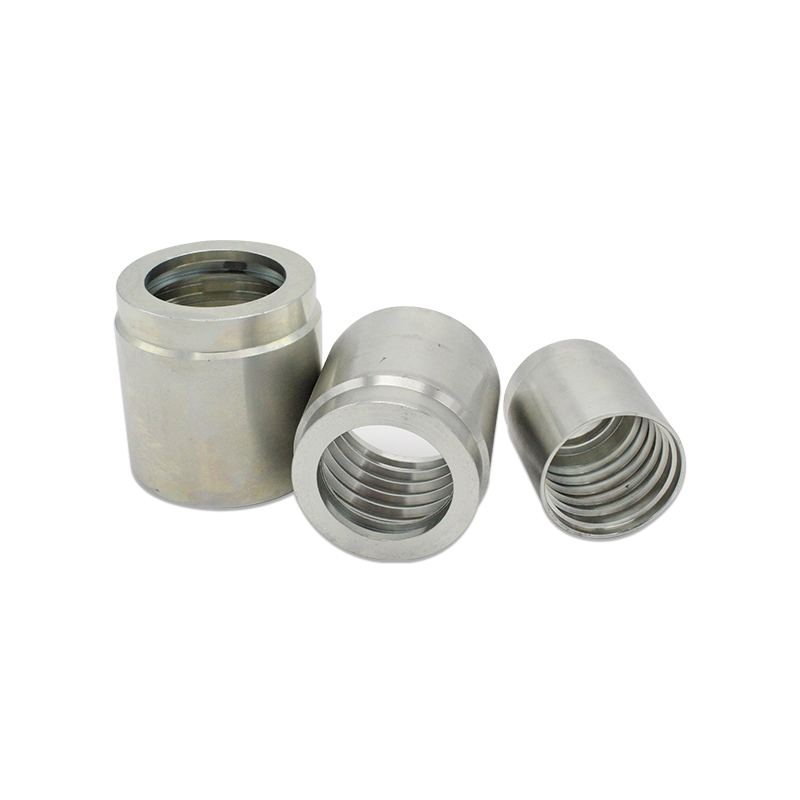

Ferrule for two wire braided hydraulic hose
20511-T

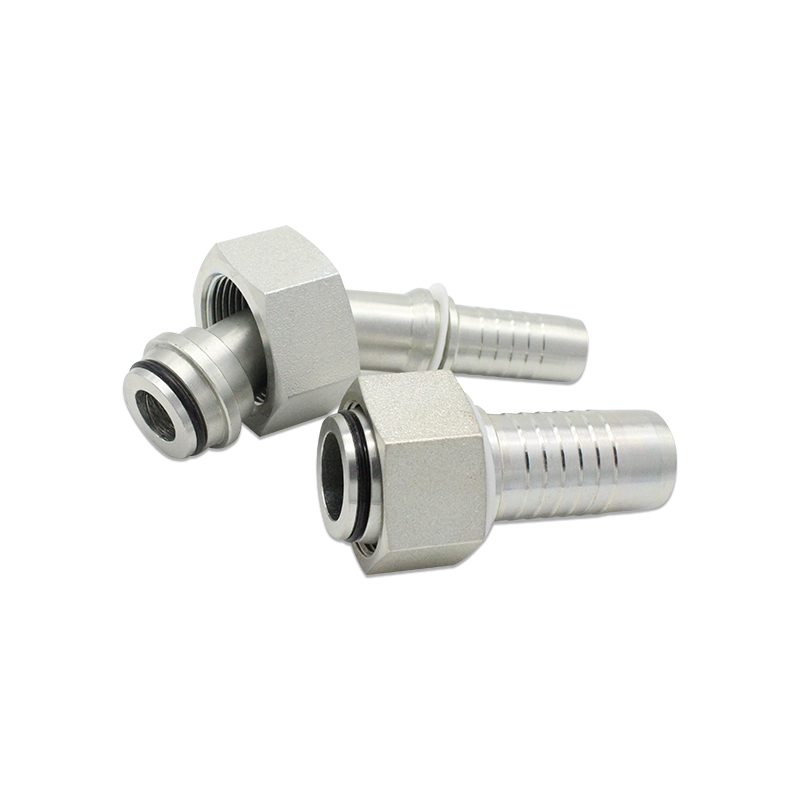

Metric Female 24 degree Cone with o-ring. H.T.
Paishun products are particularly suitable for the following areas of applications:
* Heavy equipment and earth-moving machinery in construction sites
* Mining and drilling
* Agricultural machines and equipment
* Working platforms, cranes, and lifting
* Pressure washer
For Construction Machinery
With high impulse performance, PAISHUN hydraulic hose can be widely used on construction machinery such as excavators, bulldozers, earthmovers, etc.
For Mining and Drilling
For Agricultural Machinery
For Working platforms, Cranes, and Lifting
PAISHUN hose can be used in working platforms, cranes, and lifting.
Customized hoses are available.
For Pressure washer
With high flexibility, PAISHUN hydraulic hose can be also used on pressure washers, and jet washers for the washing sites.
Home use and industry use are both available.
