Advantages:
1. Cost Effective (More than 30% lower than the current market price, with quality warranty);
2. Leak Free (this is a very important premise);
3. Eliminate fixtures (no need to use crimping machines or other special tools);
4. Eliminate uncertain fixture positioning (withholding position);
5. Faster assembly (it only takes a few seconds, saving precious time);
6. It can be directly processed and used on-site and reusable (cut and pull it out directly when dismantling, and continue to insert after cutting, no need to crimp the ferrule, and it can be connected in a few seconds);
7. Reduce potential risks caused by crimping mistakes (the operation is simpler)
◪ Good flexibility with excellent kink resistance.
◪ Easy Installation
◪ Cost-Effective
◪ Versatility
◪ Lightweight
◪ With accurate sizes.
Structure:
Inner Tube: Black RMA-A super oil-resistant and gas-tight NBR synthetic rubber
Reinforcement: high strength spiraled synthetic yarn.
Outer Tube: Oil, aging, wear-resistant plastic-rubber blend material
Temperature: -30 to 120℃ ( with clamps)
| Serial | I.D.(inch) | I.D.(mm) | O.D.(mm) | W.P.(bar) | B.P.(bar) |
|---|---|---|---|---|---|
| 1 | 1/4" | 6.4 | 13.0 | 20 | 60 |
| 2 | 5/16" | 8.0 | 15.0 | 20 | 60 |
| 3 | 3/8" | 9.5 | 17.0 | 20 | 60 |
| 4 | 1/2" | 12.7 | 21.0 | 20 | 60 |
| 5 | 5/8" | 16.0 | 24 | 20 | 60 |
| 6 | 3/4" | 19.0 | 28.0 | 20 | 60 |
| 7 | 1" | 25.0 | 36.0 | 20 | 60 |
with high-strength fiber reinforcement

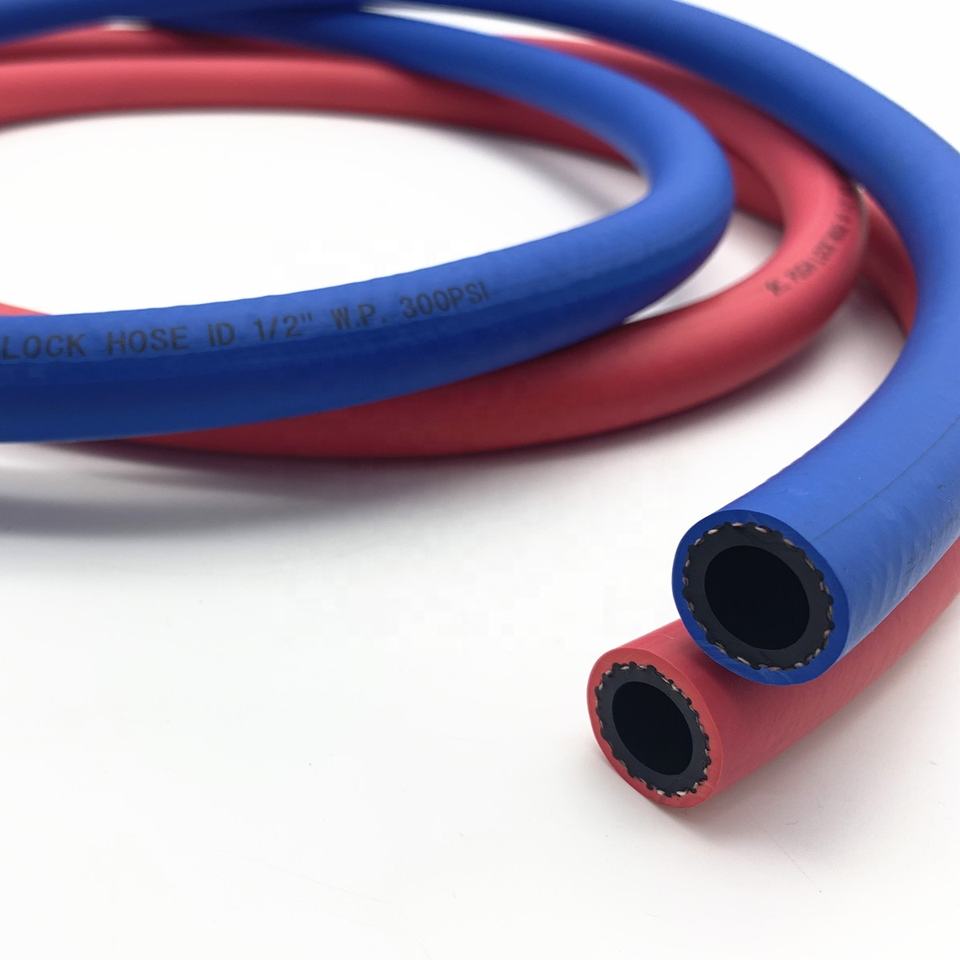

with 300psi working pressure

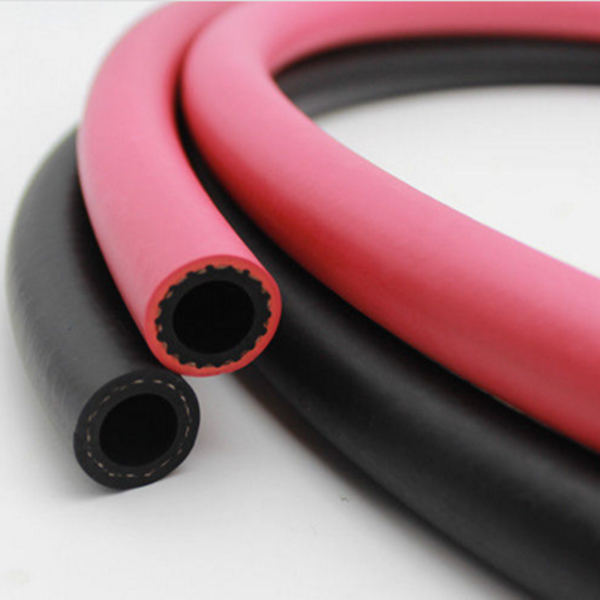

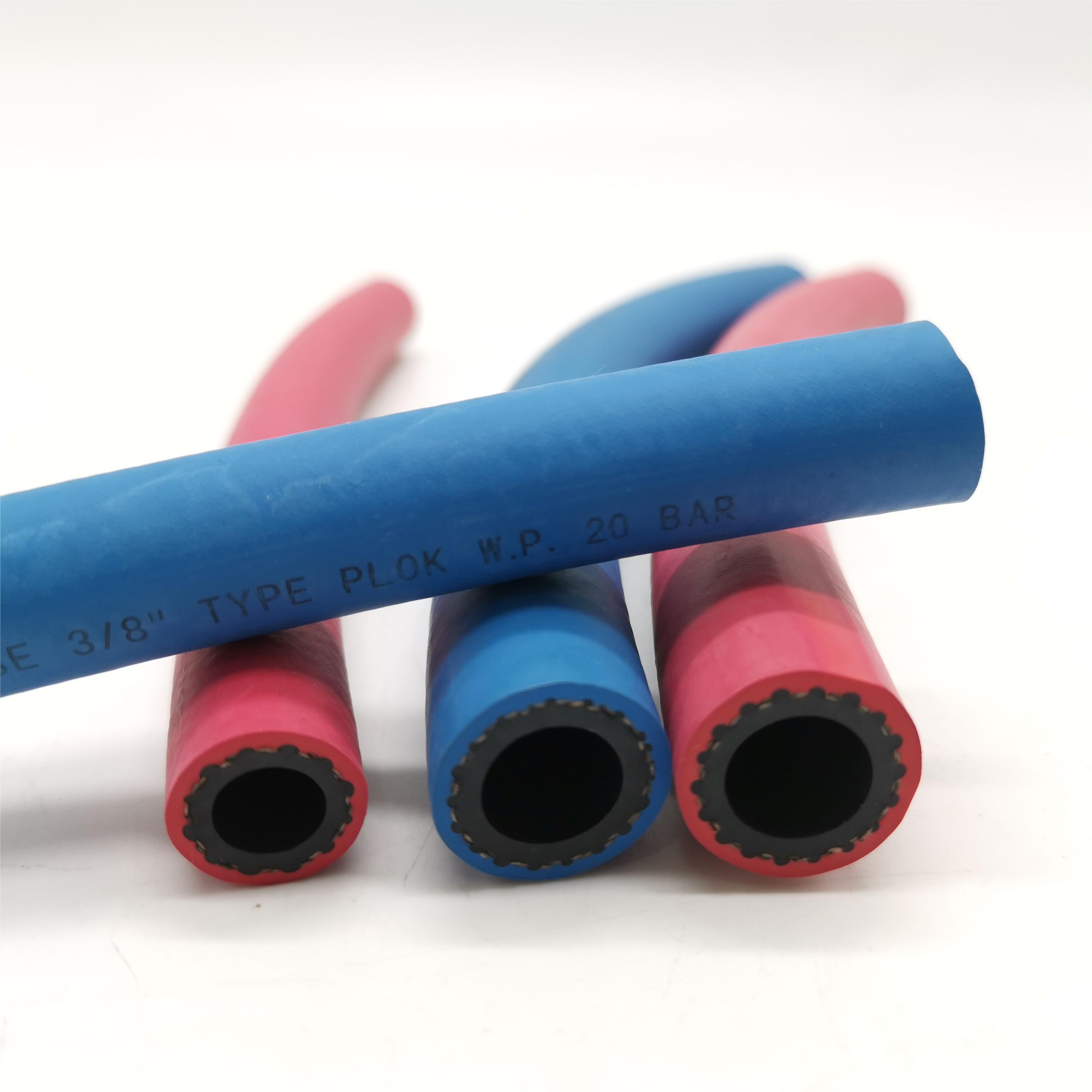

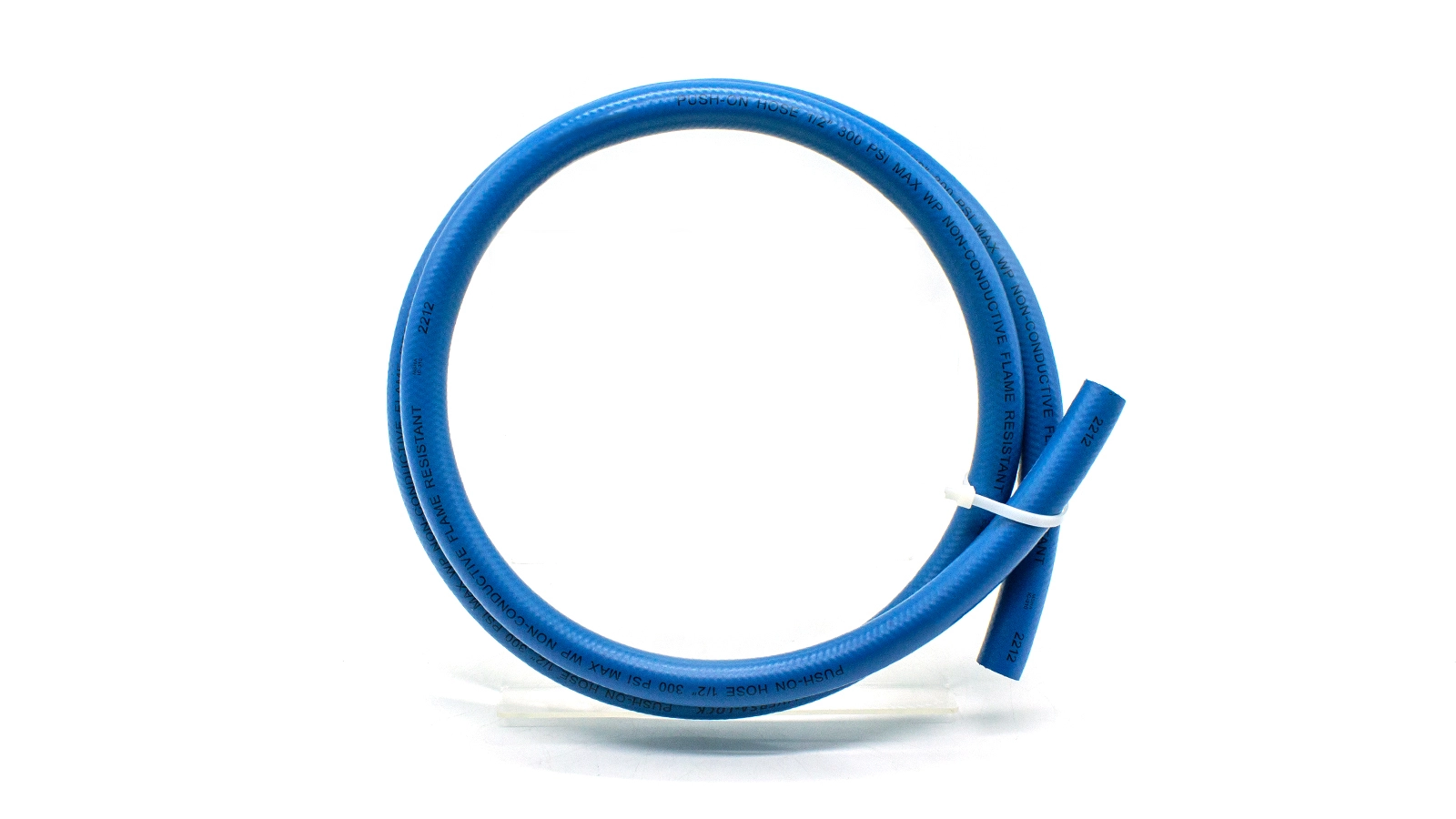

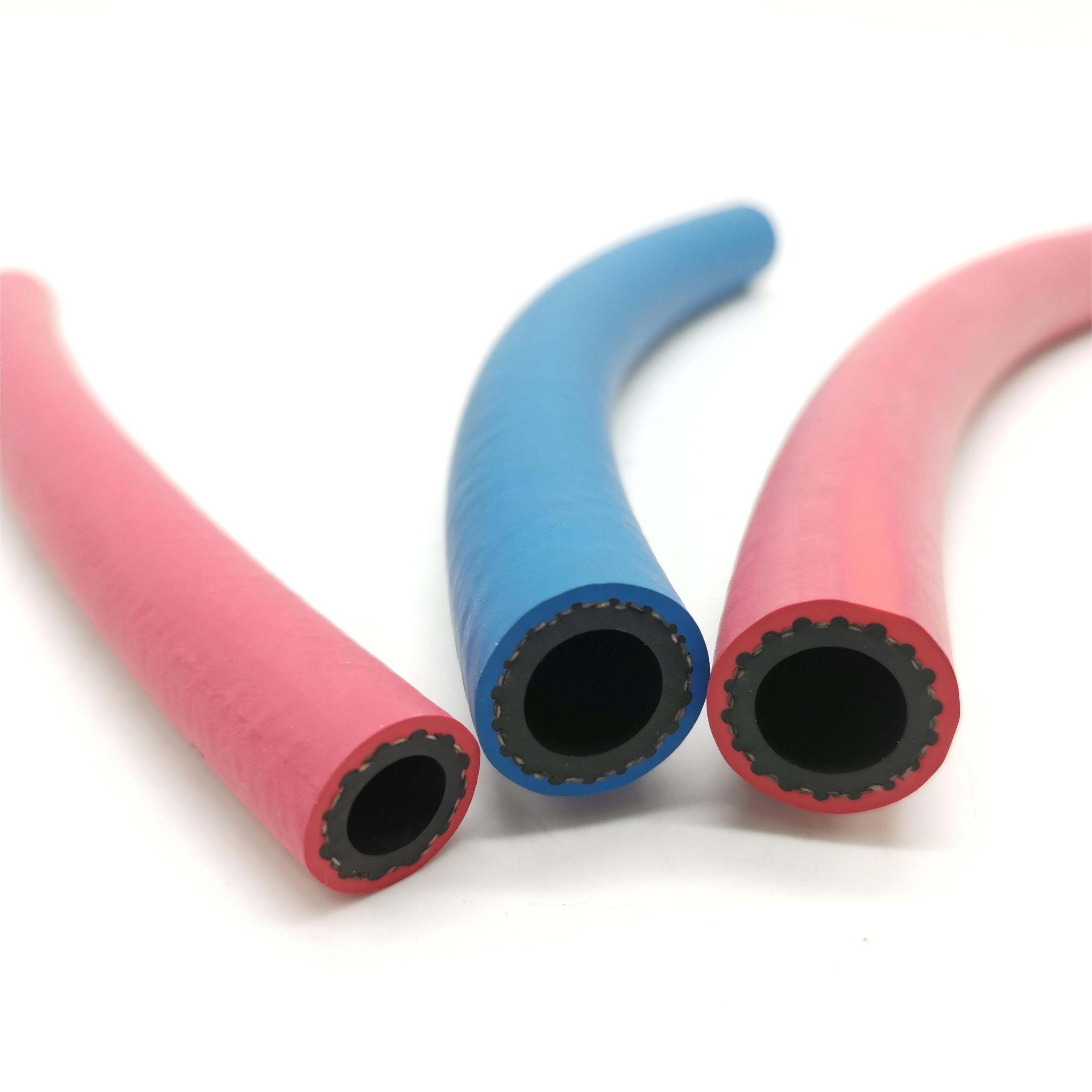

Push-Lock Hose
with many types to meet multi-application
Push-Lock hoses, also known as push-lock or push-lock hoses, are a type of hose that features a simple,easy-to-use fitting.
These hoses have a barbed end that fits into a specially designed socket, allowing the hose to be secured without the need for clamps or ferrules.
Push-Lock hoses are made from various materials, including rubber, PVC, and nylon, and come in various sizes and lengths.
Applications
Automotive
Push-Lock hoses are commonly used in the automotive industry for fuel and oil transfer
Hydraulic
Push-on hoses are suitable for low-pressure hydraulic applications, such as lubrication and cooling systems.
Pneumatic
Push-Lock hoses are commonly used in pneumatic systems for air and gas transfer applications.
Chemical
Push-Lock hoses are suitable for chemical transfer applications, where chemical compatibility is not an issue.
