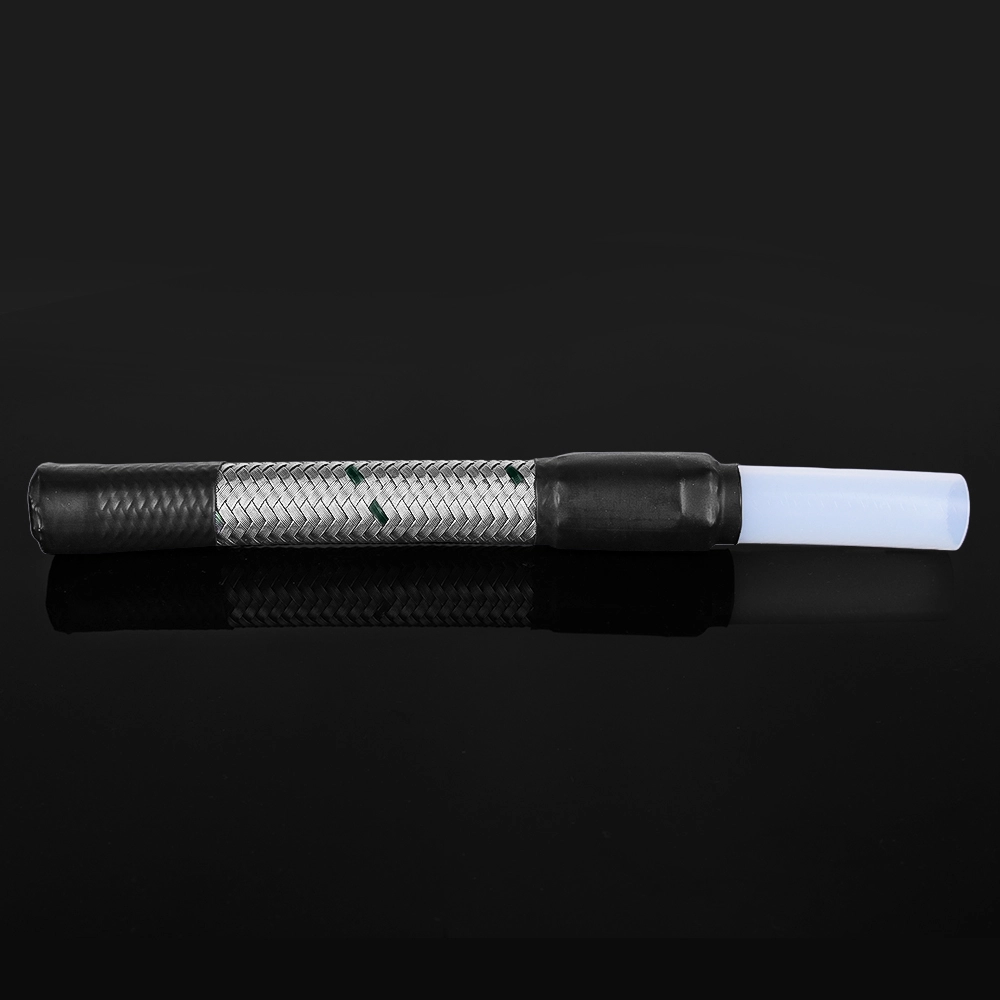

Ultra-high pressure PTFE Hoses for hydraulic, automotive and industrial machinery
Our ultra-high pressure PTFE hose, reinforced with 304 stainless steel braiding, delivers exceptional pressure resistance, high temperature stability, and excellent chemical resistance. The smooth bore ensures optimal fluid flow, reduced friction, and minimal residue buildup. Engineered for durability and reliability, it performs steadily under extreme working conditions. Widely used in hydraulic systems, turbochargers, injection molding machines, automotive, air compressors, and heavy‑duty industrial applications, this tube provides long service life, lower maintenance, and stable system performance.
PTFE Features- Excellent high and low temperature resistance
- Outstanding chemical corrosion resistance
- Non-stick and smooth surface for easy flow
- High insulation and dielectric properties
- Exceptional aging resistance and long service life
- Low friction coefficient and good wear resistance
- Wide compatibility with most fluids and gases
Description
Product Specification
— Specification —
| Serial | I.D.(inch) | I.D.(mm) | Thickness of tube (mm) | O.D. After Braiding (mm) | Max. W.P.(bar) | Min. B.P.(bar) | Min. Bend Radius (mm) |
| 1 | 3/16" | 5.0 | 0.85 | 8.4 | 260 | 1040 | 18 |
| 2 | 1/4" | 6.4 | 0.85 | 10.0 | 225 | 900 | 24 |
| 3 | 5/16" | 8.0 | 0.85 | 11.7 | 195 | 780 | 24 |
| 4 | 3/8" | 10.0 | 0.85 | 13.5 | 175 | 700 | 30 |
| 5 | 1/2" | 13.0 | 1.00 | 16.9 | 145 | 580 | 59 |
| 6 | 5/8" | 16.0 | 1.00 | 20.0 | 130 | 520 | 135 |
| 7 | 3/4" | 19.0 | 1.20 | 23.4 | 100 | 400 | 203 |
| 8 | 7/8" | 22.2 | 1.20 | 26.5 | 75 | 300 | 220 |
| 9 | 1" | 25.4 | 1.50 | 29.5 | 70 | 280 | 270 |
Product Details

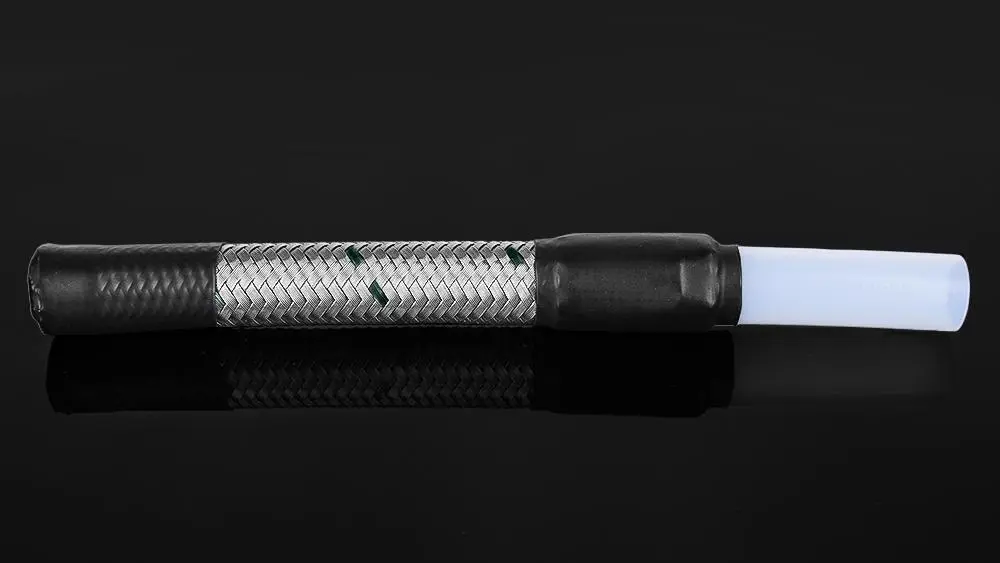

— various PTFE hoses —
PTFE Hose application

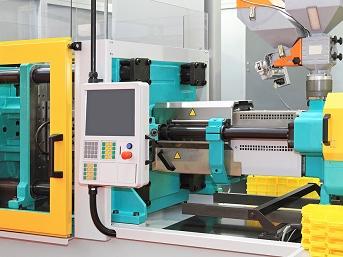

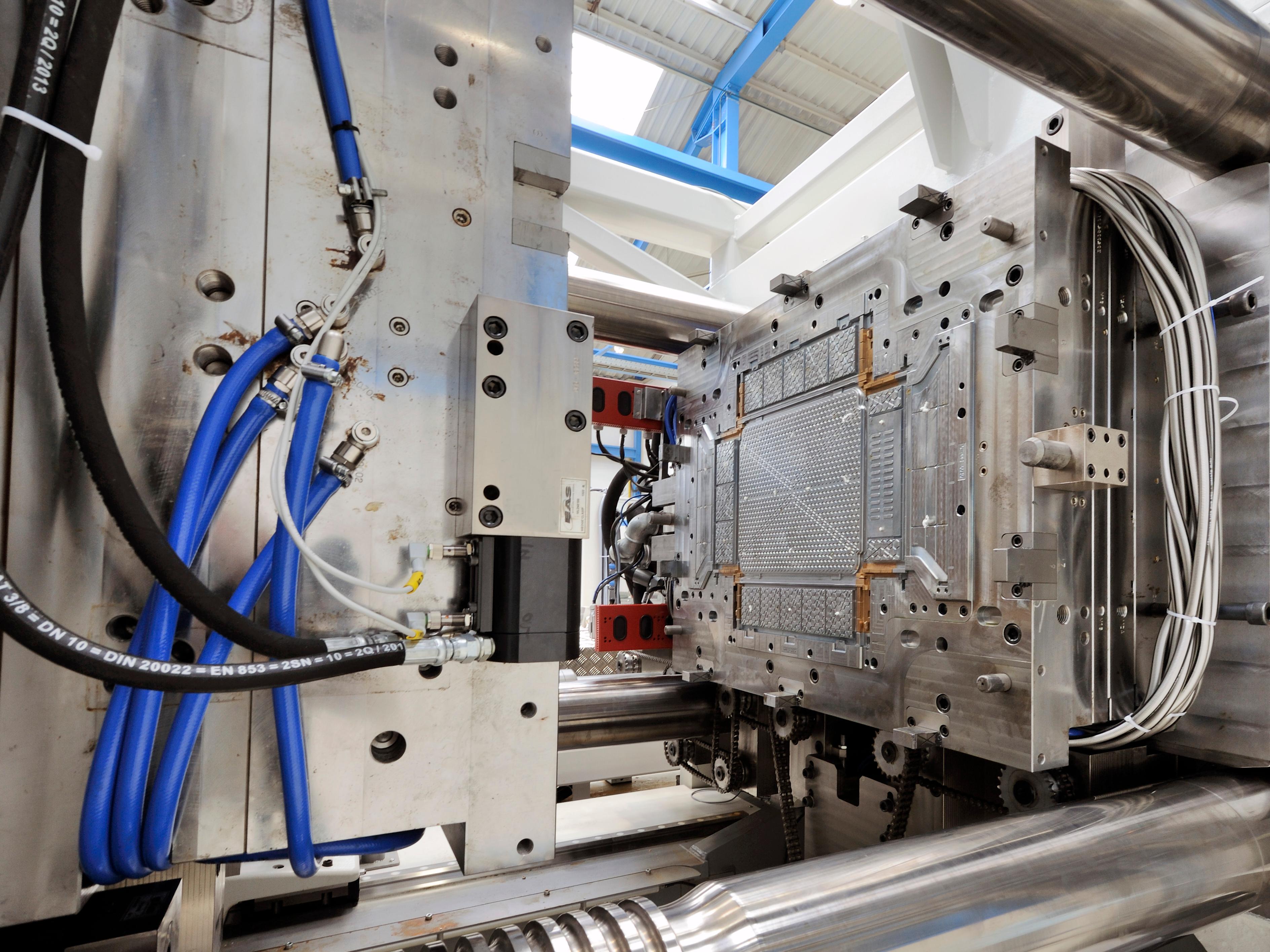

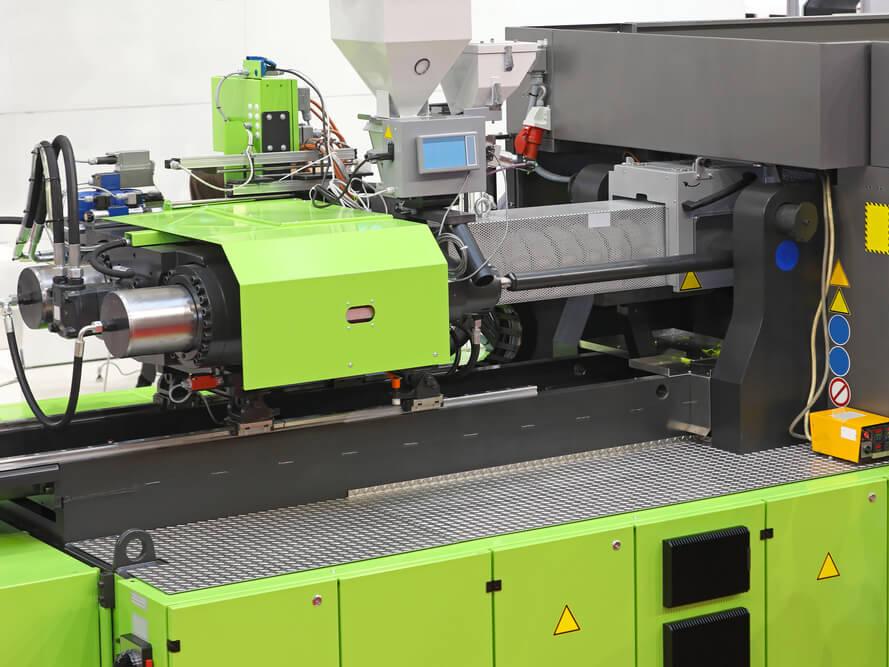

Our 304 stainless steel braided smooth PTFE hoses are widely used in hydraulic systems, automotive, chemical processing, food and beverage, pharmaceutical, and industrial machinery. Engineered for high pressure, extreme temperatures, and harsh chemical environments, they ensure stable and safe fluid and gas transfer. The smooth inner wall reduces flow resistance, while the 304 braided layer greatly enhances pressure resistance and durability. With excellent corrosion resistance and long service life, these hoses provide reliable performance in demanding industrial applications.
