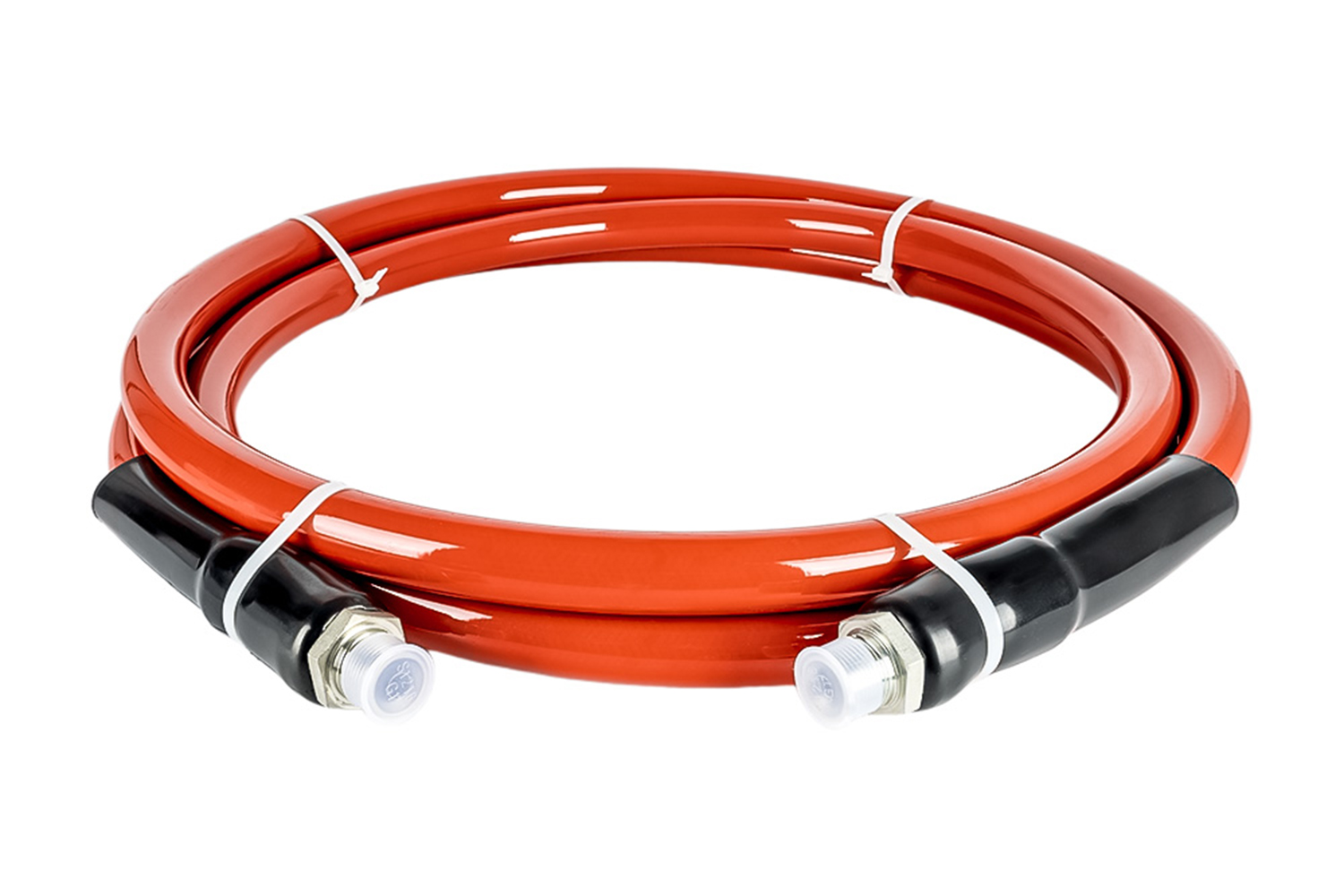

CNG Hose And Its Advantages

Are you looking for an electrically conductive lightweight and flexible CNG Hose?

YOU FIND US!

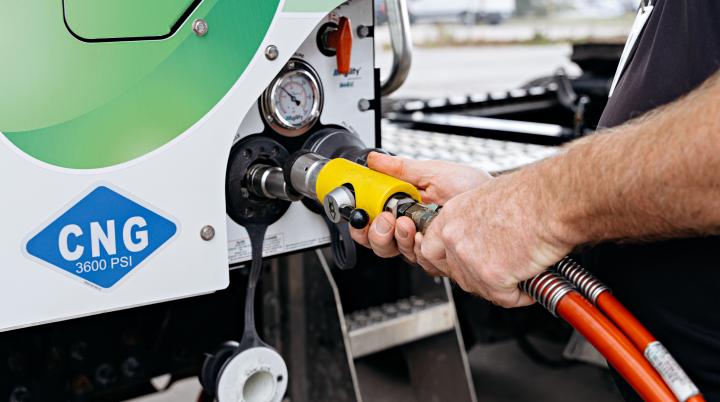

CNG Hoses are designed for dispensing compressed natural gas at working pressures up to 345 bar. CNG is widely used in Auto Rickshaws, Cars & Buses.

Compressed natural gas vehicles originated in Italy in 1931.

Compared with gasoline vehicles, gas vehicles have cleaner and more environmentally friendly emissions.

Paishun's CNG hose will impress you impressed at the aspects below.

a. Lightweight, 1/4” size only weighs at 0.14kg/m; 3/8” size only weighs at 0.15kg/m.

b. Good Flexibility, for instance, the bent radius for 3/8”is only 75mm.

c. Electrically Conductive Tube fully guarantees safety.

d. Hoses are well crimped by advanced FINNPOWER crimping machine and our fully experienced staff with more than 7 years’ crimping experience.

Other Advantages of CNG Hose:

1. Resists to high pressure, work pressure 35Mpa,burst pressure meets at least 140MPa.

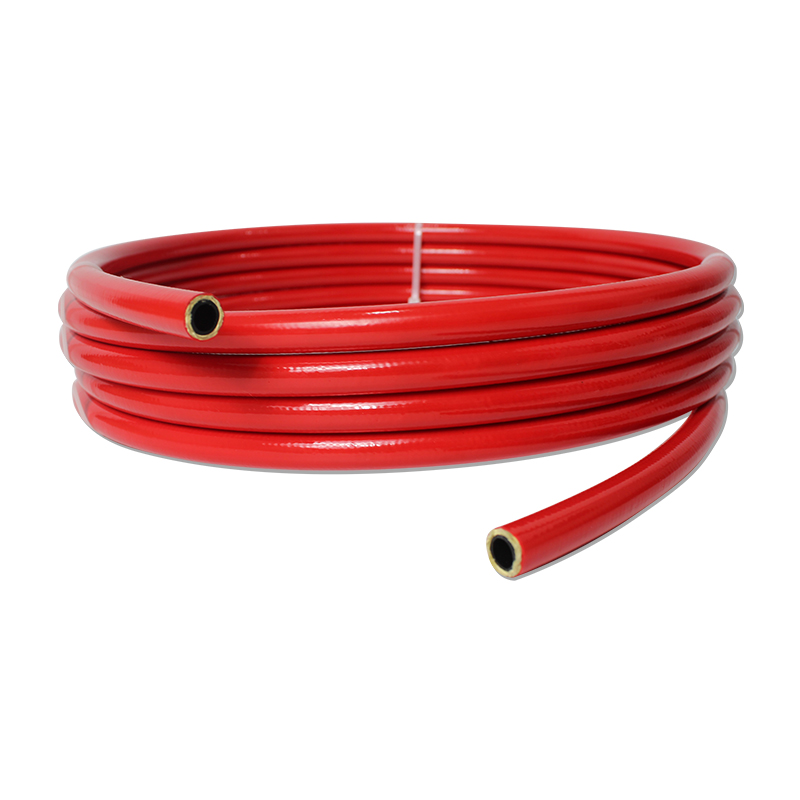

2. The inner tube is made of smooth polyamide and it will not pollute the medium,

ensuring the purity of the medium.

3. The outer cover is made of polyurethane material which makes the hose with strong corrosion resistance.

4.Pin-pricking design on cover largely avoids any failure such as bulge, crack on hose

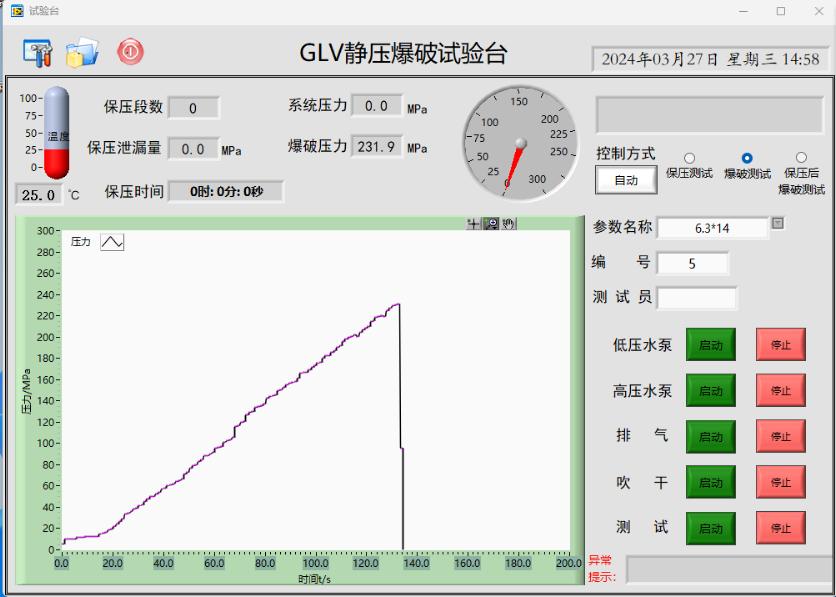

Burst Pressure Test on 1/4” CNG Hose.

Test Result: 231.9MPa

Paishun produces aramid fiber-reinforced CNG hose, if you have used the Parker 5CNG series before and if you want to replace the hose, Paishun will be a good choice!
