A hose manufacturer with over two decades of experience.

PASSIONHOSE | Hot Selling ptfe braided hose new arrival

ptfe braided hose Selected high-quality PVC material, manufactured by advanced technology and process, has good anti-corrosion and aging resistance, good water-stop performance, and can be applied to tunnels, culverts, diversion aqueducts, dams, liquid storage structures, underground facilities, etc. .

Construction:
Inner tube: smooth bore PTFE
Outer tube: stainless steel 304 wire braid

Temperature range:

-65℃ to +260℃

Feature:

High temperature hose
Excellent chemical compatibility
Resists moisture
Low friction minimizes pressure drops and deposits

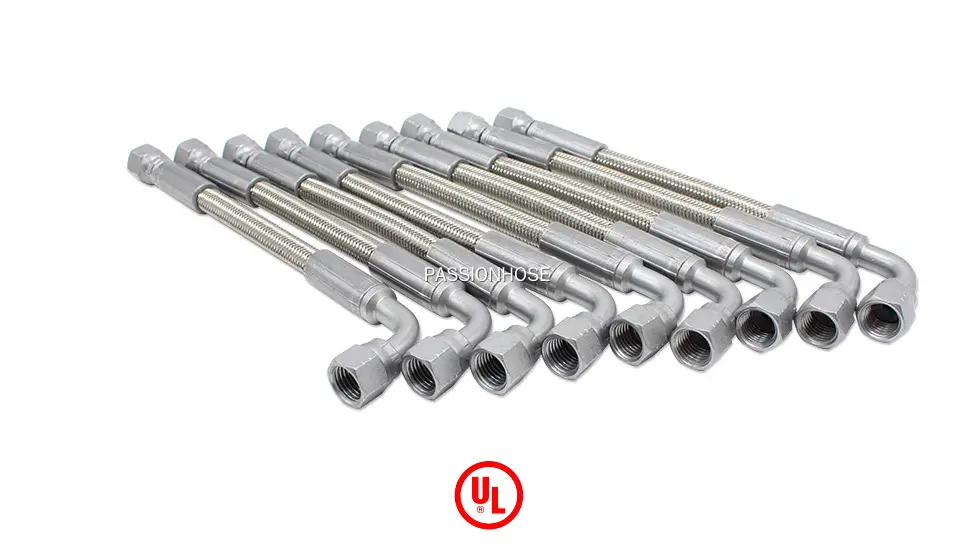

PTFE Hose Assembly

Ferrule: 00TF0-04

Crimping Fitting: 26711-04-04, 26791-04-04
Material: Carbon Steel with zinc-nickel plated

Inquiry

Relying on advanced technology, excellent production capabilities, and perfect service, PASSIONHOSE takes the lead in the industry now and spreads our PASSIONHOSE all over the world. Together with our products, our services are also supplied to be the highest-level. ptfe braided hose Today, PASSIONHOSE ranks the top as a professional and experienced supplier in the industry. We can design, develop, manufacture, and sell different series of products on our own combining the efforts and wisdom of all our staff. Also, we are responsible for offering a wide range of services for customers including technical support and prompt Q&A services. You may discover more about our new product ptfe braided hose and our company by directly contacting us.ptfe braided hose Selected high-quality rubber materials, manufactured with exquisite production and processing technology, fine workmanship, high quality, soft, thick and elastic texture, beautiful shape.

PASSIONHOSE | Hot Selling ptfe braided hose new arrival 2

Product Features

---Why choose PTFE---

PASSIONHOSE | Hot Selling ptfe braided hose new arrival 3

PTFE Features

◪ Resistant to strong acid and alkali, resistant to various corrosive chemicals.
◪ Anti-adhesive, anti-moisture and ultraviolet, non-toxic.
◪ Excellent weather resistance, long service life, no brittle fracture and no aging.
◪ With a very low friction coefficient. non-flammable.
◪ With a very low evaporate transpiration rate, cold liquid is not volatile.
◪ With excellent electrical characteristics.
◪ Excellent mechanical properties, shock resistance and flexibility.

Product Description

---struction and specification---

Description

Inner tube:
smooth PTFE（The imported F-205 of Japan Daikin PTFE）

Outer tube:

stainless steel 304 wire braid （SS304 with diameter of 0.2mm and 0.25mm
Temperature:

Continuous temperature range: -65℃ to +260℃

Temporary temperature range: -70℃ to +300℃

PASSIONHOSE | Hot Selling ptfe braided hose new arrival 5

Specification
Serial	I.D.(inch)	I.D.(mm)	Thickness of tube (mm)	O.D.(mm)	W.P.(bar)	B.P.(bar)	Min. Bend Radius (mm)
1	1/8"	3.5	1.00	6.7	250	1000	16
2	3/16"	4.8	0.85	7.6	205	820	20
3	1/4"	6.4	0.85	9.4	187	750	27
4	5/16"	8.0	0.85	11.1	163	650	27
5	3/8"	10.0	0.85	13.1	130	520	33
6	1/2"	12.7	1.00	16.2	113	450	66
7	5/8"	16.0	1.00	19.4	80	320	150
8	3/4"	19.0	1.20	23.0	70	280	226
9	7/8"	22.2	1.20	26.2	60	240	245
10	1"	25.4	1.50	29.8	50	200	300

PASSIONHOSE | Hot Selling ptfe braided hose new arrival 6

Product Details

---various PTFE hose assemblies---

PASSIONHOSE | Hot Selling ptfe braided hose new arrival 7

Smooth Bore PTFE Hose

PASSIONHOSE | Hot Selling ptfe braided hose new arrival 8

Convoluted Bore PTFE Hose

PASSIONHOSE | Hot Selling ptfe braided hose new arrival 9

Conductive PTFE Hose

PASSIONHOSE | Hot Selling ptfe braided hose new arrival 10

Smooth Bore SS Braided PTFE Hose

brass fittings with o-rings

PASSIONHOSE | Hot Selling ptfe braided hose new arrival 11

Smooth Bore SS Braided PTFE Hose

straight JIC female hose ends in carbon steel with zinc-nickel plated

PASSIONHOSE | Hot Selling ptfe braided hose new arrival 12

Smooth Bore SS Braided PTFE Hose

90 deg. elbow JIC female hos ends in carbon steel with zinc-nickel plated

Application

---high temperature, resist chemical---

About PTFE Hose

As a PTFE hose manufacturer, our hoses be used in aviation transportation technology, electronic products, components and insulators, chemical manufacturing, food processing, fluid transportation equipment, and water treatment systems

PASSIONHOSE | Hot Selling ptfe braided hose new arrival 14

Air Compressor

For Air

PASSIONHOSE | Hot Selling ptfe braided hose new arrival 15

Turbocharger

For Oil

PASSIONHOSE | Hot Selling ptfe braided hose new arrival 16

Iron

For Steam
