PASSIONHOSE | Fine Quality hydraulic connections modern design 

Relying on advanced technology, excellent production capabilities, and perfect service, PASSIONHOSE takes the lead in the industry now and spreads our PASSIONHOSE all over the world. Together with our products, our services are also supplied to be the highest-level. hydraulic connections We will do our best to serve customers throughout the whole process from product design, R&D, to delivery. Welcome to contact us for further information about our new product hydraulic connections or our company. has established a strict storage management system to ensure the excellent quality of hydraulic connections from the source. In addition, we have also established a scientific and perfect quality management system to ensure that hydraulic connections produced are in line with national quality inspection standards of high-quality products.



Product Features

---Why Choose PAISHUN Hydraulic Hose Adapters---



PAISHUN Hydraulic Hose Adapters Features

• ◪ No complaint---standard process and excellent service

• ◪ Receive them in a very short time---enough stock

• ◪ Accurate dimensions---automatic CNC machines

• ◪ Receive them without damage---strong packing

• ◪ Free sample available

• ◪ OEM and ODM

• ◪ Supply hydraulic hose fittings, hydraulic hoses and hydraulic hose assemblies

•

•


•




Product Description

---Struction and Specification---

Description

• Detail


  Standard	Yonghua
  Part Number	1JO
  Material	Carbon Steel 45#
  Surface	Zinc plated with Cr+3
  Testing	Pass at least 120 hours of salt spray test



Specification

Part No.	螺纹 THREAD E	螺纹 THREAD F	O形圈O-RING F端	DIMENSION A	DIMENSION B	DIMENSION L	DIMENSION S1
1JO-04-02	7/16"x20	5/16"x24	O902	14	7.54	27.5	14
1JO-04-03	7/16"x20	3/8"x24	O903	14	7.54	27.5	14
1JO-04	7/16"x20	7/16"x20	O904	14	9.14	29	14
1JO-04-05	7/16"x20	1/2"x20	O905	14	9.14	29	17
1JO-04-06	7/16"x20	9/16"x18	O906	14	9.93	30	17
1JO-05-04	1/2"x20	7/16"x20	O904	14	9.14	29	14
1JO-05-06	1/2"x20	9/16"x18	O906	14	9.93	30	17
1JO-06	9/16"x18	9/16"x18	O906	14.1	9.93	30	17
1JO-06-04	9/16"x18	7/16"x20	O904	14.1	9.14	29	17
1JO-06-05	9/16"x18	1/2"x20	O905	14.1	9.14	29.5	17
1JO-06-08	9/16"x18	3/4"x16	O908	14.1	11.13	33	22
1JO-08	3/4"x16	3/4"x16	O908	16.7	11.13	36	22
1JO-08-06	3/4"x16	9/16"x18	O906	16.7	9.93	35	22
1JO-08-10	3/4"x16	7/8"x14	O910	16.7	12.7	40	27
1JO-08-12	3/4"x16	1.1/16"x12	O912	16.7	15.09	43	32
1JO-10	7/8"x14	7/8"x14	O910	19.3	12.7	42.5	27
1JO-10-08	7/8"x14	3/4"x16	O908	19.3	11.13	39	24
1JO-10-12	7/8"x14	1.1/16"x12	O912	19.3	15.09	45.5	32
1JO-12	1-1/16"x12	1.1/16"x12	O912	21.9	15.09	48	32
1JO-12-08	1-1/16"x12	3/4"x16	O908	21.9	11.13	43	30
1JO-12-10	1-1/16"x12	7/8"x14	O910	21.9	12.7	45	30
1JO-12-16	1-1/16"x12	1.5/16"x12	O916	21.9	15.09	48	38
1JO-14	1-3/16"x12	1.3/16"x12	O914	22.6	15.09	48.5	36
1JO-14-12	1-3/16"x12	1.1/16"x12	O912	22.6	15.09	48.5	32
1JO-16	1-5/16"x12	1.5/16"x12	O916	23.1	15.09	49	38
1JO-16-12	1-5/16"x12	1.1/16"x12	O912	23.1	15.09	49	36
1JO-16-20	1-5/16"x12	1.5/8"x12	O920	23.1	15.09	53	50
1JO-20	1-5/8"x12	1.5/8"x12	O920	24.3	15.09	54.5	50
1JO-20-16	1-5/8"x12	1.5/16"x12	O916	24.3	15.09	52.5	46
1JO-24	1-7/8"x12	1.7/8"x12	O924	27.5	15.09	57.5	55
1JO-24-20	1-7/8"x12	1.5/8"x12	O920	27.5	15.09	57.5	50
1JO-32	2-1/2"x12	2.1/2"x12	O932	33.9	15.09	66	70



Product Details

---More of PAISHUN Hydraulic Hose Adapters---

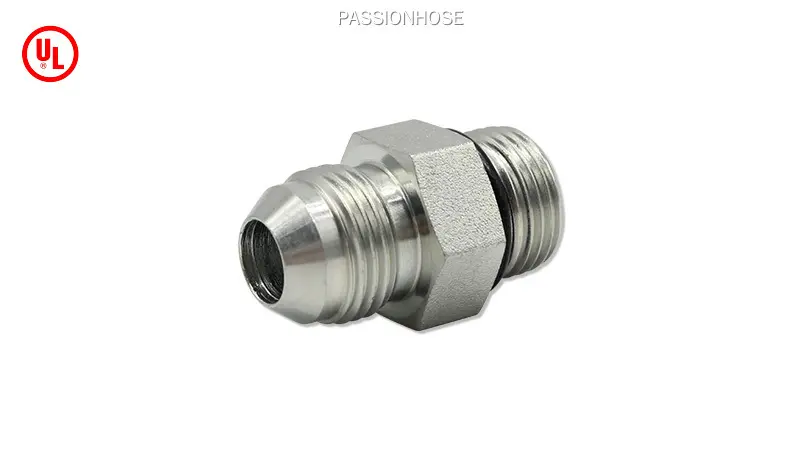

                1JO

JIC MALE 74 DEG CONE / SAE O-RING BOSS L-SERIES



1J

JIC MALE 74 DEG CONE / JIC MALE 74 DEG CONE



3J

JIC FEMALE 74 DEG SEAT



1N

NPT MALE



5NO

NPT MALE / SAE FEMALE ISO 11926-1



AJ

JIC MALE 74 DEG CONE TEE





Application

---Consttruction, Lifting, Pressure Washing---


About our hydraulic hose fitting adapters

Paishun products are particularly suitable for the following areas of applications:
* Heavy equipment and earth-moving machinery in construction sites
* Mining and drilling
* Agricultural machines and equipment
* Working platforms, cranes, and lifting
* Pressure washer



For Construction Machinery

With high impulse performance, PAISHUN hydraulic hose can be widely used on construction machinery such as excavators, bulldozers, earthmovers, etc.

For Mining and Drilling

With the MSHA certificate and extraordinary anti-flame resistance performance, PAISHUN hydraulic hose can be used on mining industry.

t, a simple jumbotron-style con



For Agricultural Machinery

PAISHUN hydraulic hose can also be used in agricultural machinery.

For Working platforms, Cranes, and Lifting

PAISHUN hose can be used in working platforms, cranes, and lifting.

Customized hoses are available.





For Pressure washer

With high flexibility, PAISHUN hydraulic hose can be also used on pressure washers, and jet washers for the washing sites.

Home use and industry use are both available.
