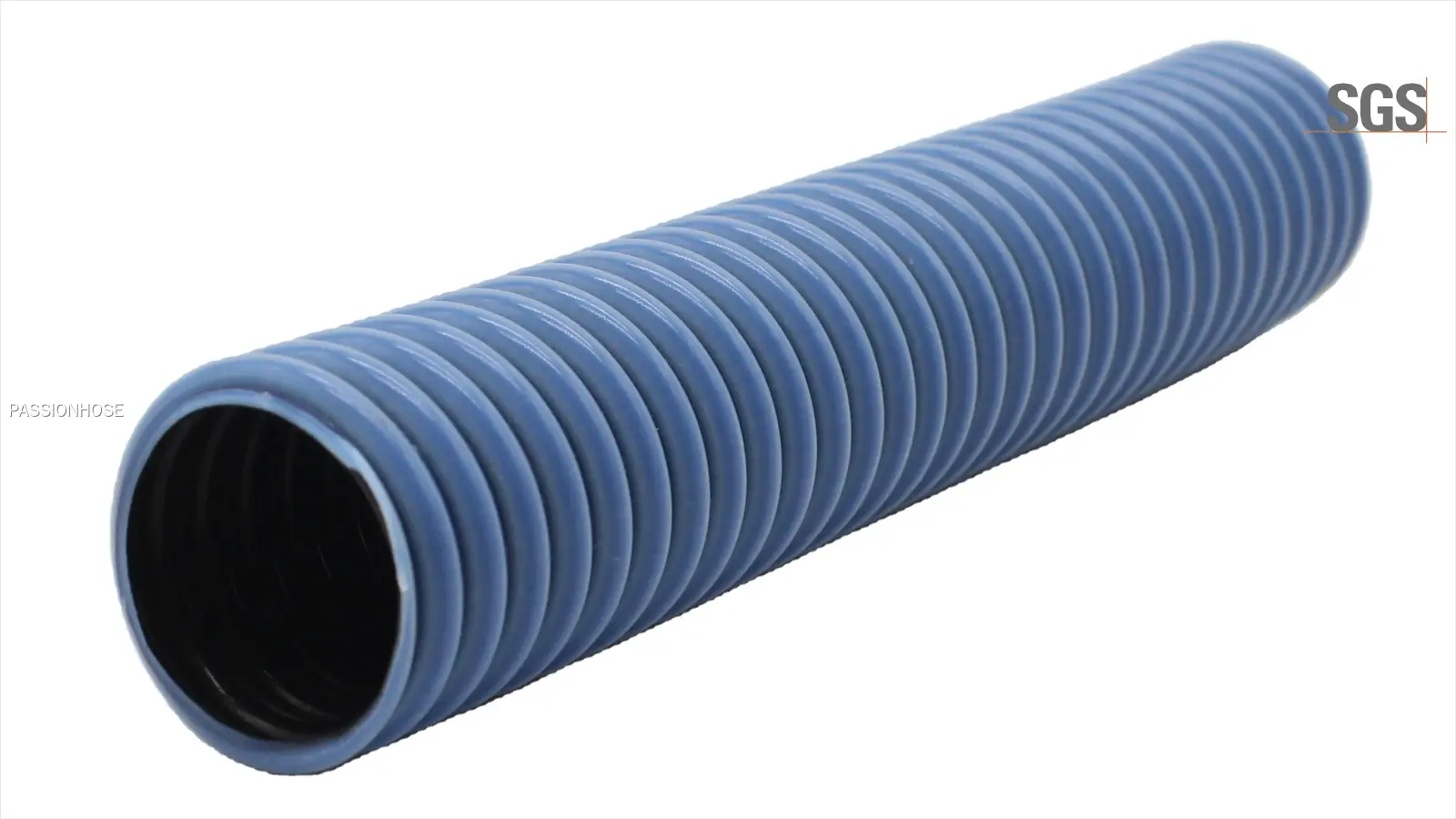

Structure:

Inner tube: corrugated PTFE（The imported F-205 of Japan Daikin PTFE）

Coating: A black conductive layer

Maximum operative temperature: 260°C

Application: High temperature hydraulic, pneumatic and chemical delivery hoses for rubber, automotive, machine tools, shipbuilding, electromechanical, diesel, pressure control, paper

and printing industries. For liquids, gases, and highly corrosive media with alternating hot and cold heat, it has better performance and longevity than other hoses.

Coil length: 50m (Random Lengths).

Testing a 350 mm with a 1 000 VDC potential, the minimum electrical current to be conducted is: • 10 µA for a size up to dash 8 • 20 µA for a size above dash 8

Longitudinal tensile strength : 15.1 N/mm² for every dash

Transverse tensile strength : dash < 16: N/A

                                              dash > 16: 12.4 N/mm²
