Custom high pressure stainless steel braided ptfe hose made in china Manufacturer | PASSIONHOSE
is a manufacturer of plastic waterstops with many years of production experience. We pay close attention to quality, strictly control management, and comprehensively control product quality from raw material procurement, production and processing, factory inspection, packaging and transportation, etc., to ensure the production The high pressure stainless steel braided ptfe hose are all qualified products in line with national standards.
At PASSIONHOSE, technology improvement and innovation are our core advantages. Since established, we have been focusing on developing new products, improving product quality, and serving customers. high pressure stainless steel braided ptfe hose Today, PASSIONHOSE ranks the top as a professional and experienced supplier in the industry. We can design, develop, manufacture, and sell different series of products on our own combining the efforts and wisdom of all our staff. Also, we are responsible for offering a wide range of services for customers including technical support and prompt Q&A services. You may discover more about our new product high pressure stainless steel braided ptfe hose and our company by directly contacting us. actively introduces advanced manufacturing equipment, and adopts strict production systems for standardized production. The high pressure stainless steel braided ptfe hose produced is fine in workmanship, high in quality, long in service life, and wide in application, enjoying a good reputation in the market.

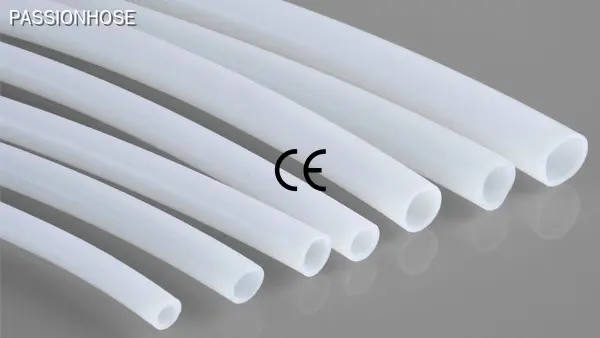

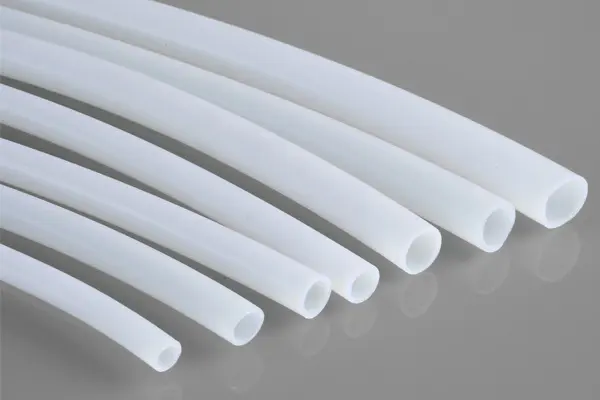

Smooth Bore PTFE Tube
Core Properties: PTFE is resistant to low & high temperature, corrosion, aging with non-sticky surface.
Working Temperature: -65℃ ~ + 260℃ （-80F ~ 500F）
Transfer Medium: Strong acid, strong alkali, petroleum, diesel, gasoline, chemical, food, medicine, glue & other fluids.
Tube Color: Red, black, blue, natural; white, translucent, etc.
Packing Type: Roll, reel, carton, pallet, wooden case, etc.
Conductivity: 10^6
Certification: ISO9001:2015, TS16949:2016, Reach, RoHS, FDA, etc.
| No. | Spec. | I.D. | O.D. | Thickness | W.P. | B.P. | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | inch | mm | inch | psi | bar | psi | bar | ||
| 1 | 1x3 | 1 | 0.039 | 3 | 0.118 | 1 | 0.039 | 148 | 10.2 | 444 | 30.6 |
| 2 | 2x4 | 2 | 0.079 | 4 | 0.157 | 1 | 0.039 | 148 | 10.2 | 444 | 30.6 |
| 3 | 2.5x4 | 2.5 | 0.098 | 4 | 0.157 | 0.75 | 0.030 | 148 | 10.2 | 444 | 30.6 |
| 4 | 3x4 | 3 | 0.118 | 4 | 0.157 | 0.5 | 0.020 | 148 | 10.2 | 444 | 30.6 |
| 5 | 3x5 | 3 | 0.118 | 5 | 0.197 | 1 | 0.039 | 148 | 10.2 | 444 | 30.6 |
| 6 | 3.2x5.2 | 3.2 | 0.126 | 5.2 | 0.205 | 1 | 0.039 | 148 | 10.2 | 444 | 30.6 |
| 7 | 3.5x5.5 | 3.5 | 0.138 | 5.5 | 0.217 | 1 | 0.039 | 148 | 10.2 | 444 | 30.6 |
| 8 | 4x6 | 4 | 0.157 | 6 | 0.236 | 1 | 0.039 | 148 | 10.2 | 444 | 30.6 |
| 9 | 4.5x5.5 | 4.5 | 0.177 | 5.5 | 0.217 | 0.5 | 0.020 | 148 | 10.2 | 444 | 30.6 |
| 10 | 5x7 | 5 | 0.197 | 7 | 0.276 | 1 | 0.039 | 148 | 10.2 | 444 | 30.6 |
| 11 | 6x8 | 6 | 0.236 | 8 | 0.315 | 1 | 0.039 | 148 | 10.2 | 444 | 30.6 |
| 12 | 6x9 | 6 | 0.236 | 9 | 0.354 | 1.5 | 0.059 | 148 | 10.2 | 444 | 30.6 |
| 13 | 6.5x7.5 | 6.5 | 0.256 | 7.5 | 0.295 | 0.5 | 0.020 | 148 | 10.2 | 444 | 30.6 |
| 14 | 8x10 | 8 | 0.315 | 10 | 0.394 | 1 | 0.039 | 148 | 10.2 | 444 | 30.6 |
| 15 | 10x12 | 10 | 0.394 | 12 | 0.472 | 1 | 0.039 | 118 | 8.16 | 370 | 25.5 |
| 16 | 10x12.5 | 10 | 0.394 | 12.5 | 0.492 | 1.25 | 0.049 | 118 | 8.16 | 370 | 25.5 |
| 17 | 12x14 | 12 | 0.472 | 14 | 0.551 | 1 | 0.039 | 118 | 8.16 | 370 | 25.5 |
| 18 | 13x15 | 13 | 0.512 | 15 | 0.591 | 1 | 0.039 | 118 | 8.16 | 370 | 25.5 |
| 19 | 14x16 | 14 | 0.551 | 16 | 0.630 | 1 | 0.039 | 118 | 8.16 | 370 | 25.5 |
| 20 | 16x18 | 16 | 0.630 | 18 | 0.709 | 1 | 0.039 | 118 | 8.16 | 370 | 25.5 |
| 21 | 16x19 | 16 | 0.630 | 19 | 0.748 | 1.5 | 0.059 | 118 | 8.16 | 370 | 25.5 |
| 22 | 19x22 | 19 | 0.748 | 22 | 0.866 | 1.5 | 0.059 | 74 | 5.1 | 296 | 20.4 |
| 23 | 20x24 | 20 | 0.787 | 24 | 0.945 | 2 | 0.079 | 74 | 5.1 | 296 | 20.4 |
| 24 | 25x28 | 25 | 0.984 | 28 | 1.102 | 1.5 | 0.059 | 74 | 5.1 | 296 | 20.4 |
| 25 | 25x29 | 25 | 0.984 | 29 | 1.142 | 2 | 0.079 | 74 | 5.1 | 296 | 20.4 |
| 26 | 32x36 | 32 | 1.260 | 36 | 1.417 | 2 | 0.079 | 29 | 2 | 145 | 10 |
| 27 | 38x42 | 38 | 1.496 | 42 | 1.654 | 2 | 0.079 | 29 | 2 | 145 | 10 |
| 28 | 48x52 | 48 | 1.969 | 52 | 2.126 | 2 | 0.079 | 29 | 2 | 145 | 10 |
| No. | Spec. | I.D. | O.D. | Thickness | W.P. | B.P | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | inch | mm | inch | psi | bar | psi | bar | ||
| 1 | 1/16" x 1/8" | 1.58 | 1/16" | 3.17 | 1/8" | 0.8 | 0.031 | 218 | 15 | 725 | 50 |
| 2 | 1/8"x 3/16" | 3.17 | 1/8" | 4.76 | 3/16" | 0.8 | 0.031 | 174 | 12 | 638 | 44 |
| 3 | 3/16" x 1/4" | 4.76 | 3/16" | 6.35 | 1/4" | 0.8 | 0.031 | 131 | 9 | 464 | 32 |
| 4 | 1/4" x 5/16" | 6.35 | 1/4" | 7.93 | 5/16" | 0.8 | 0.031 | 102 | 7 | 363 | 25 |
| 5 | 1/4" x 3/8" | 6.35 | 1/4" | 9.52 | 3/8" | 1.5 | 0.059 | 174 | 12 | 638 | 44 |
| 6 | 5/16" x 3/8" | 7.93 | 5/16" | 9.52 | 3/8" | 0.8 | 0.031 | 87 | 6 | 319 | 22 |
| 7 | 3/8" x 1/2" | 9.6 | 3/8" | 12.7 | 1/2" | 1.5 | 0.059 | 131 | 9 | 464 | 32 |
| 8 | 1/2" x 5/8" | 12.7 | 1/2" | 15.87 | 5/8" | 1.5 | 0.059 | 102 | 7 | 363 | 25 |
| 9 | 5/8" x 3/4" | 15.87 | 5/8" | 19.05 | 3/4" | 1.5 | 0.059 | 87 | 6 | 319 | 22 |
Smooth Bore PTFE
Conductive Smooth Bore PTFE

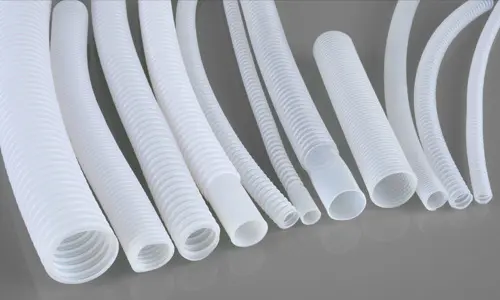

Corrugated Bore PTFE
