Having been producing hydraulic hoses for over 14 years, Passionco steel wire spiral hydraulic hoses have been well accepted by our clients.
Hoses are generally suitable for hydraulic oil-based fluids. Hoses are designed to perform in both high and low temperatures and pressures and are suitable for a variety of applications.
With over 400,000 times impulse, hoses are suitable for construction machinery, agricultural machinery, mining, etc.
Hoses are all strictly tested, such as pressure test, aging test, impulse test, ozone test, etc. Thus, we’ve got CE, ISO, MSHA, RoHS certificates.
◪ Strict quality control. Test the products before shipment with the complete line of test machines.
◪ OEM accepted, and we can print your LOGO and brand name.
◪ Impulse over 400,000 times.
◪ Suitable for heavy machinery.
◪ High concentricity.
◪ Solid construction and long service lifetime.
◪ Flexible and light.
Detail

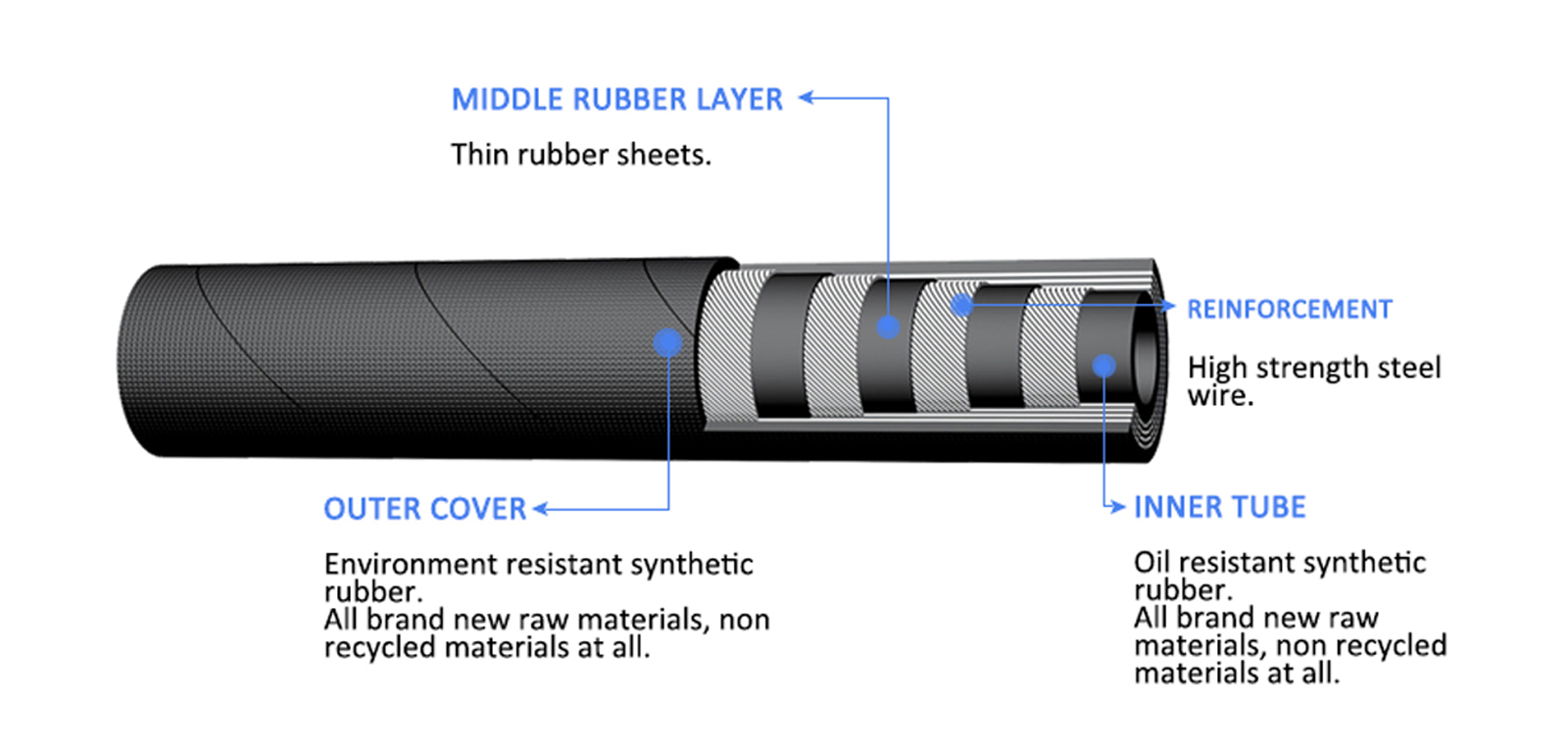

| Inner Tube | Oil-resistant synthetic rubber. |
| Reinforcement | Four layers of high tensile steel wire. |
| Outer Cover | Abrasion and ozone-resistant synthetic rubber. |
| Temperature | -40°C to +100°C / -40°F to +212°F (max 120°C/248°F intermittent) |
| Certification | MSHA, CE, ISO 9001 |
| Packing | Poly stripes, reels, pallets, etc. |
| Delivery | About 25 days for a 20' container. |
| Part No. | I.D. (inch) | I.D. (mm) | O.D. (mm) | W.P. (bar) | W.P. (psi) | B.P. (bar) | B.P. (psi) | Min Bend Radius (mm) | Weight (g/m) |
|---|---|---|---|---|---|---|---|---|---|
| EN856 4SP | |||||||||
| P06-4SP | 3/8" | 9.5 | 20.8 | 445 | 6675 | 1780 | 26700 | 180 | 650 |
| P08-4SP | 1/2" | 12.7 | 24.0 | 415 | 6225 | 1660 | 24900 | 230 | 920 |
| P10-4SP | 5/8" | 15.9 | 27.2 | 350 | 5250 | 1400 | 21000 | 250 | 1070 |
| P12-4SP | 3/4" | 19.0 | 31.0 | 350 | 5250 | 1400 | 21000 | 300 | 1600 |
| P16-4SP | 1" | 25.4 | 38.7 | 280 | 4200 | 1120 | 16800 | 340 | 1915 |
| P20-4SP | 1 1/4" | 31.8 | 45.5 | 210 | 3150 | 840 | 12600 | 460 | 2100 |
| P24-4SP | 1 1/2" | 38.1 | 52.8 | 185 | 2775 | 740 | 11100 | 560 | 2800 |
| P32-4SP | 2" | 50.8 | 67.8 | 165 | 2475 | 660 | 9900 | 700 | 3700 |
| EN856 4SH | |||||||||
| P12-4SH | 3/4" | 19.0 | 31.0 | 420 | 6300 | 1680 | 25200 | 280 | 1500 |
| P16-4SH | 1" | 25.4 | 38.7 | 380 | 5700 | 1520 | 22800 | 340 | 2065 |
| P20-4SH | 1 1/4" | 31.8 | 45.5 | 350 | 5250 | 1400 | 21000 | 460 | 2425 |
| P24-4SH | 1 1/2" | 38.1 | 52.8 | 290 | 4350 | 1160 | 17400 | 560 | 3235 |
| P32-4SH | 2" | 50.8 | 67.8 | 250 | 3750 | 1000 | 15000 | 700 | 4460 |
Paishun hydraulic hoses have very high flexibility.

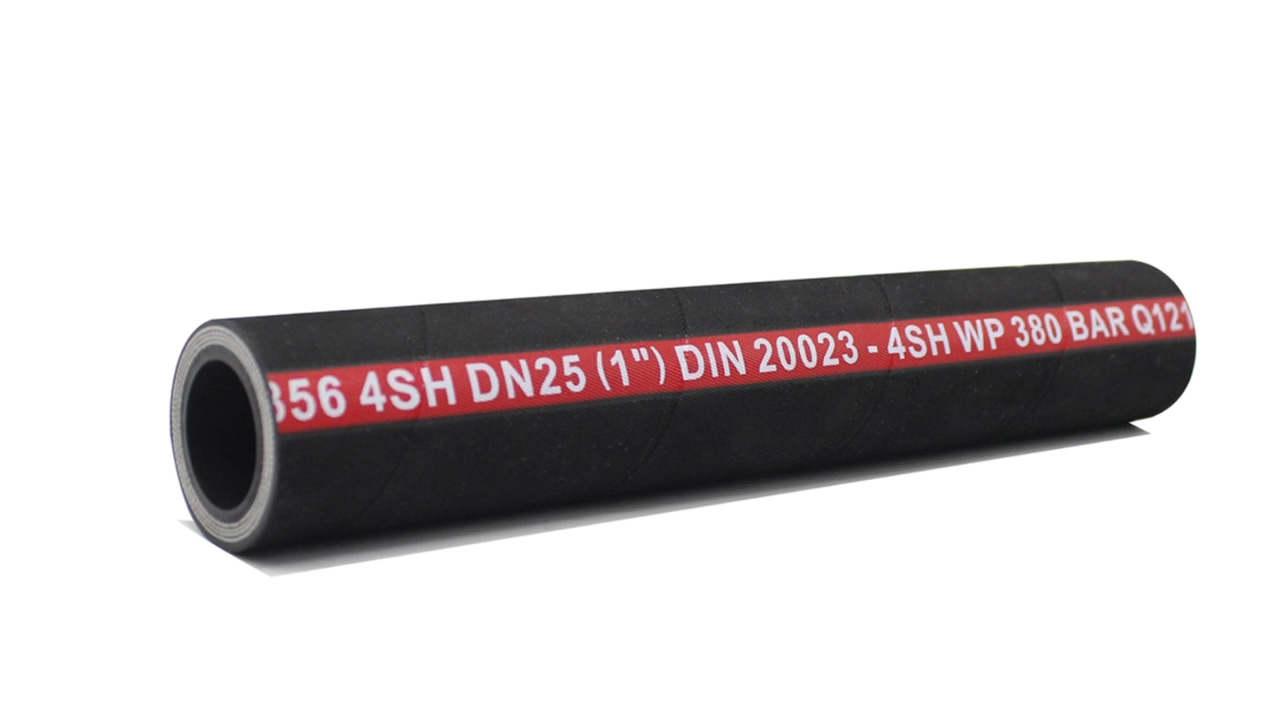

Printing colors can be red, blue, yellow, green, etc.

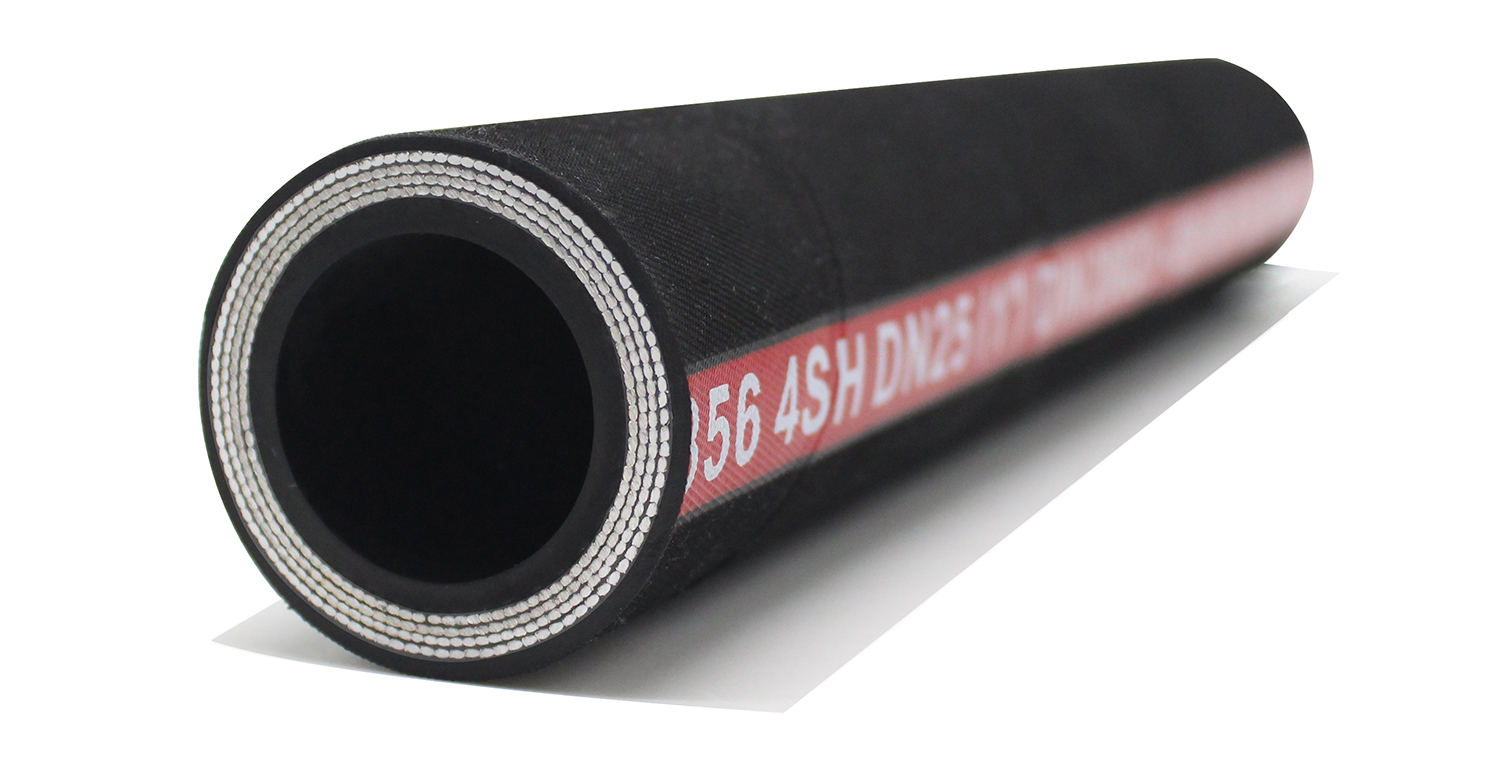

Cutting of the Reinforcement

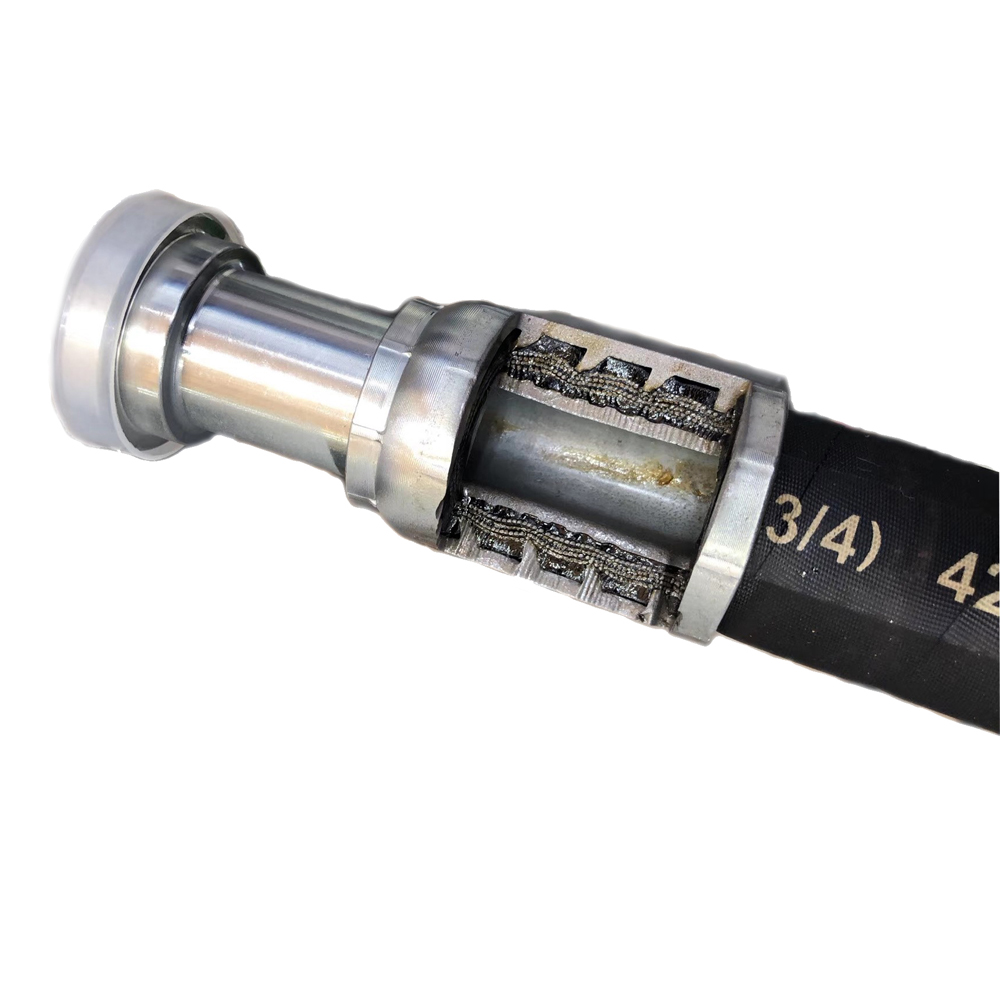

Inside of the crimped hose.

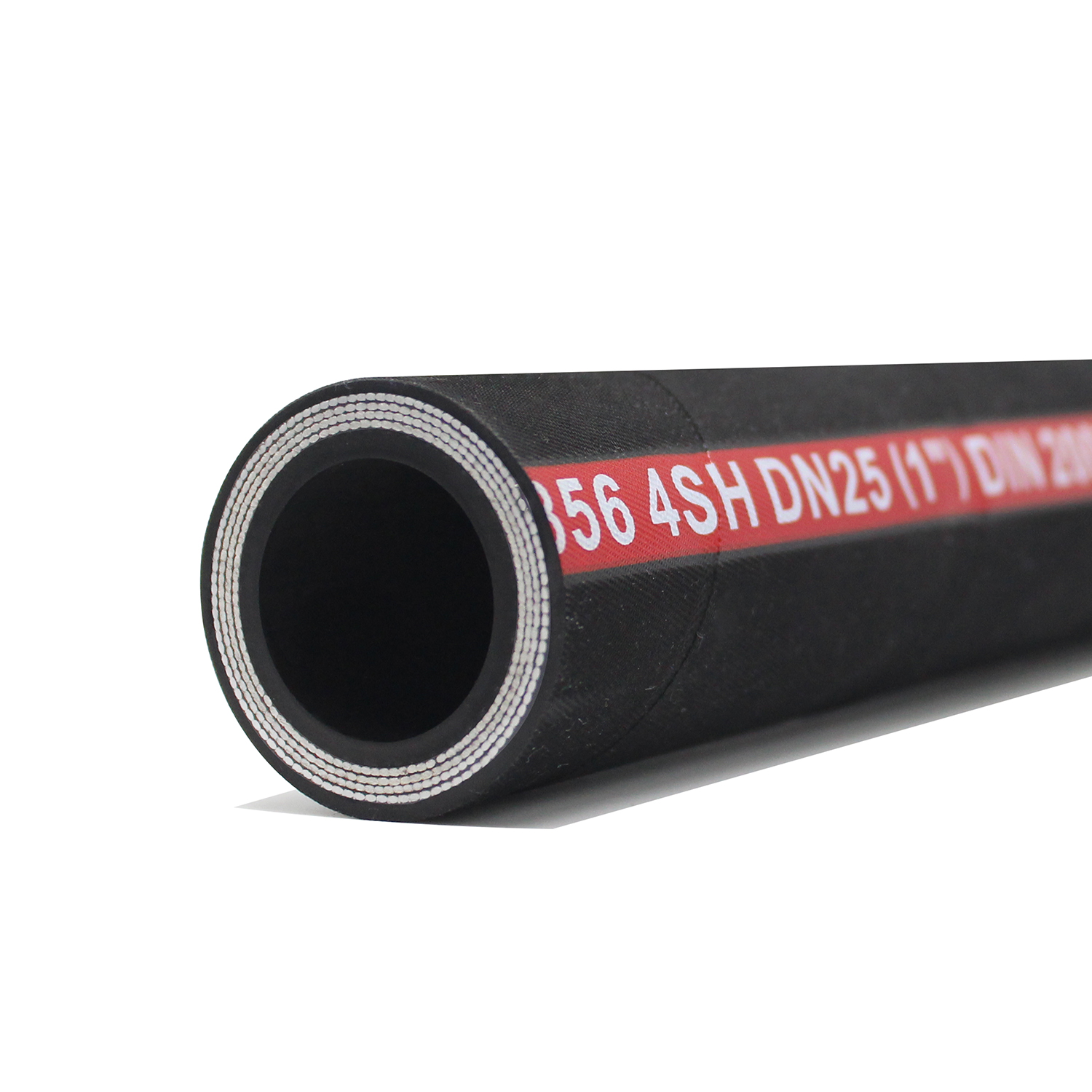

With advanced winding and spiral machines, the steel wire layer is very neat and even. Also with high concentricity.

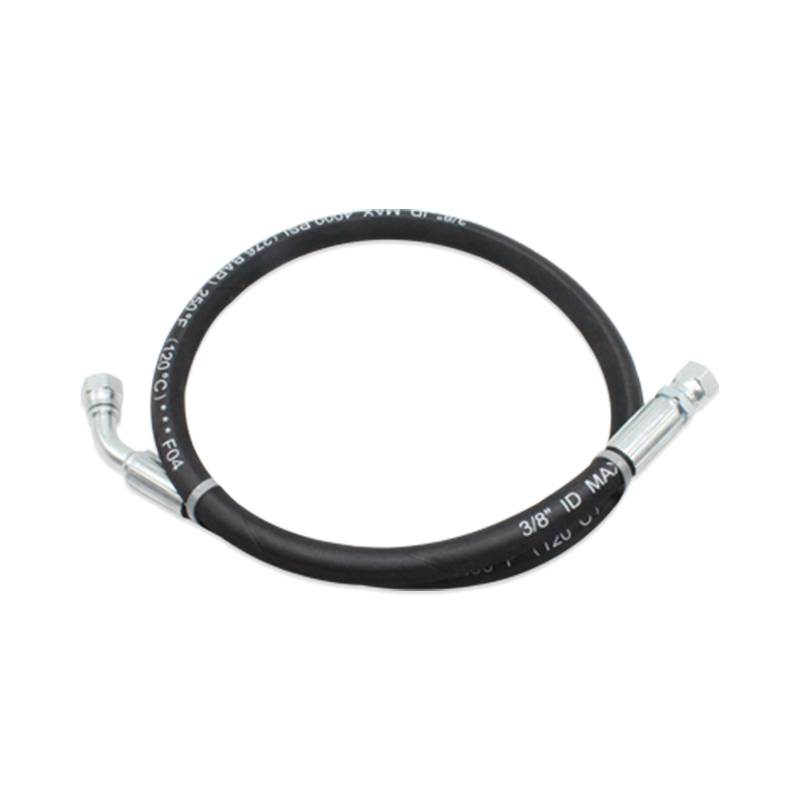

Straight JIC female hose ends in carbon steel with zinc plated.
BSP female fittings hose ends for construction machinery.
Paishun is one of the top manufacturers of rubber hoses in East China.
We're specialized in the production and marketing of these products.
Paishun products are particularly suitable for the following areas of applications:
* Heavy equipment and earth-moving machinery in construction sites
* Mining and drilling
* Agricultural machines and equipment
For Construction Machinery
With high impulse performance, PAISHUN hydraulic hose can be widely used on construction machinery such as excavators, bulldozers, earthmovers, etc.
For Mining and Drilling
For Agricultural Machinery
For Working platforms, Cranes, and Lifting
PAISHUN hose can be used in working platforms, cranes, and lifting.
Customized hoses are available.
