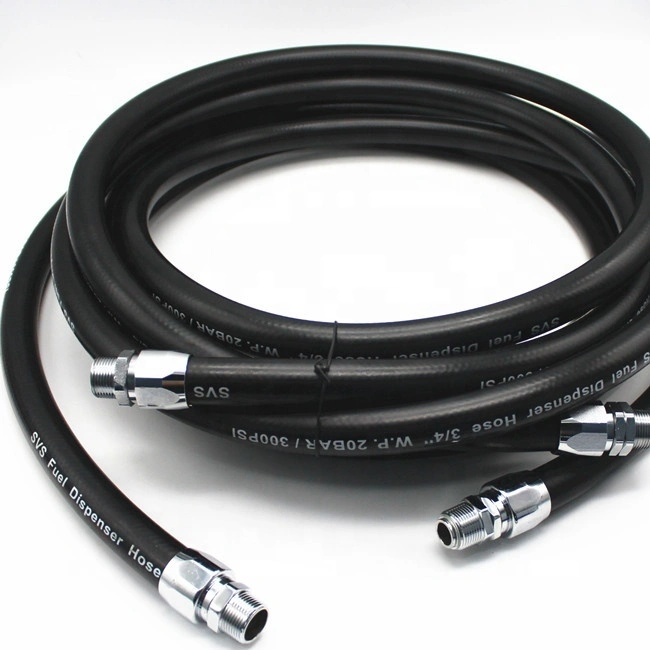

Paishun - Flexible Anti-Static Rubber Hose Fuel Dispenser Hose with Steel Wire 3/4" Inch for Service Station Gasoline Fuel Oil Hose

Hangzhou Paishun Rubber & Plastic Co., Ltd always devotes unlimited efforts to the research and development of products. Flexible Anti-Static Rubber Hose Fuel Dispenser Hose with Steel Wire 3/4" Inch for Service Station starting from the user experience and using strong research and development capabilities, it can effectively solving the pain points of the industry. After years of growth and development,Hangzhou Paishun Rubber & Plastic Co., Ltd have constructed characteristic corporate culture systems and confirmed our business principle of 'customer first'. We will always focus on customers' needs and promise that we will provide the most satisfying and valuable products.

Fuel Dispenser Hose Description

Product Introduction

Structure-

Tube: NBR
Reinforcement: Single High-strength wire braided.
Cover: NBR/PVC blend rubber.
Temperature: -40℃ to +80℃
Color:Black, Blue, Red and Green etc
Application:For fuel dispensing pump applications, including gasoline, diesel, oxygenated fuels (up to a maximum of 15% oxygenated
compounds), lubricating oil, and other mineral oil etc.
Standard length: Random length between 30m-60m

Specifications

Item code	Inner Diameter			Outer Diameter	Working Pressure			Burst Pressure		Weight	Weight
/	inch	mm	mm	bar	psi	bar	psi	kg/m
HPR-1	5/8"	15.9	25.4	30	450	120	1740	0.57
HPR-2	3/4"	19	28	30	450	120	1740	0.65
HPR-3	1"	25	35.5	30	450	120	1740	0.82

Hose Features

Compatible with fuels: Gasoline, Diesel, E10, B20, E55, E85.
Available in Finish Smooth.
Anti-Static.
High NBR Rubber Content: 42% for both tube & cover of black hose; 44% of
color hose.
Clear Printings on Hose.
Transparent & Non-transparent package is Available.
PASSION ® Brand or Client’s Customized Brand.
Available in Bulk or in Assemblies.
Temperature Resist: -40℃ to +80℃.
Colors Available: black, blue, green, red and yellow.

Hose Benefits

Highly Durable, Flexible, Soft, Light-Weight, Easy to Use. Excellent Aging Resistance, Ozone Resistance. Checking Every Meter of Hose During Production, Once Unqualified Part on Hose are Found, This Part will be Cut and not Sent to Clients. Complete Test Process & Equipment . Stable Hose Quality. Smooth, Flat and Nice Appearance.

Hose Assembly

Length of Hose Assembly	4meters, 4.5meters, 6meters, 8meters......
Couplings Material	Brass chrome plated material.
Type	Rotate / Non-Rotate.
Thread	NPT, BSP, BSPT.

Package

Hose Application

More Hose Details

1. Does the hose easy to kink?

- No, it doesn’t. The hose is reinforced with steel wire, which supports the hose.

2. Is it OK to use with ethanol gasoline?

- Yes, it is.

3. Does it have fittings at both end?

- Yes, we can supply you hose installed with reusable fittings or we can supply you hoses in rolls.

4. Is this hose ok for pump pressures like a gas hose at the gas station?
- It will not generate much pressure inside fuel pumps, only 3-5psi pressure will be enough. Our hose pressure can stand far more higher than that pressure.

5. Will this work on the suction side?

- Yes, you can use it for suction. the hose will not collapse when using it as a suction hose instead of a pumping hose. For example you can move fuel from your container to your storage tank.
