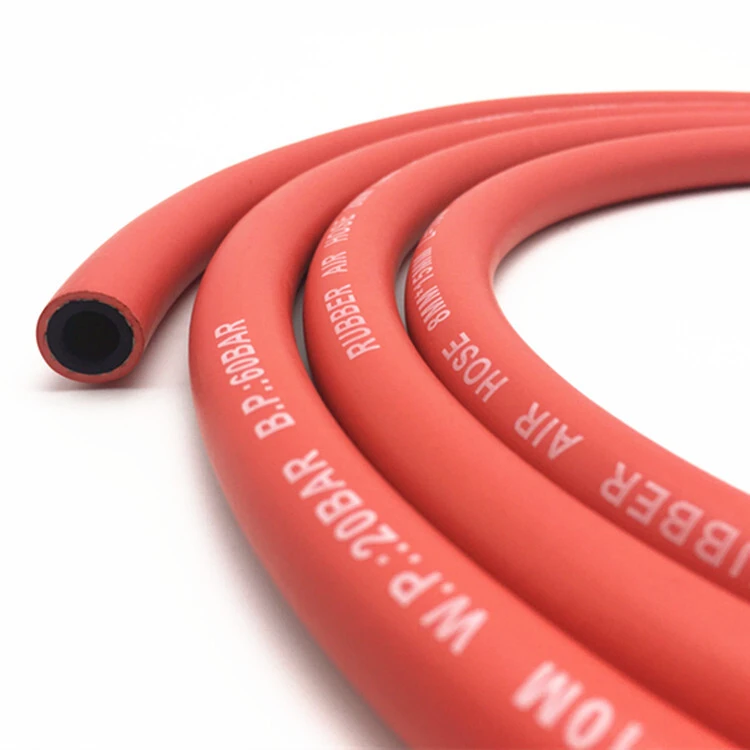

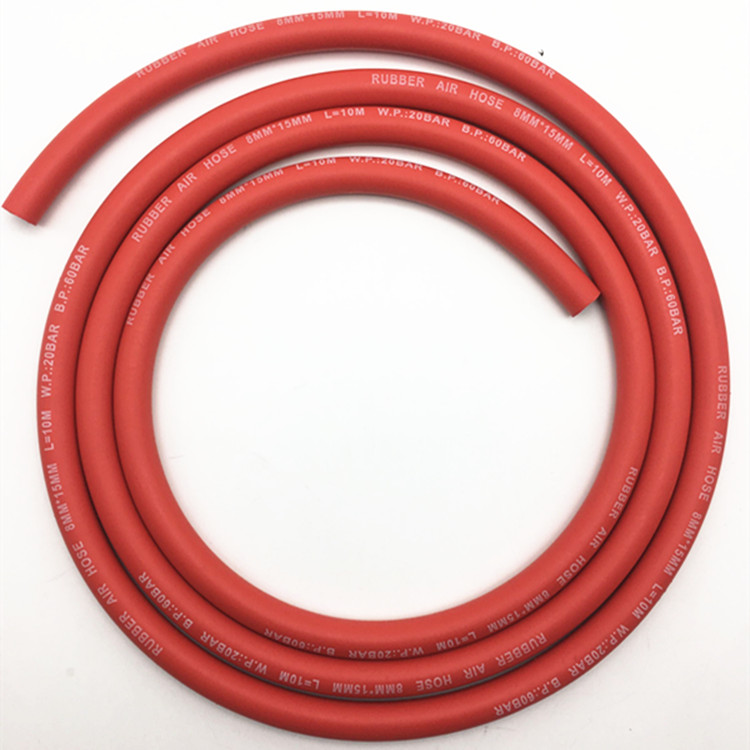

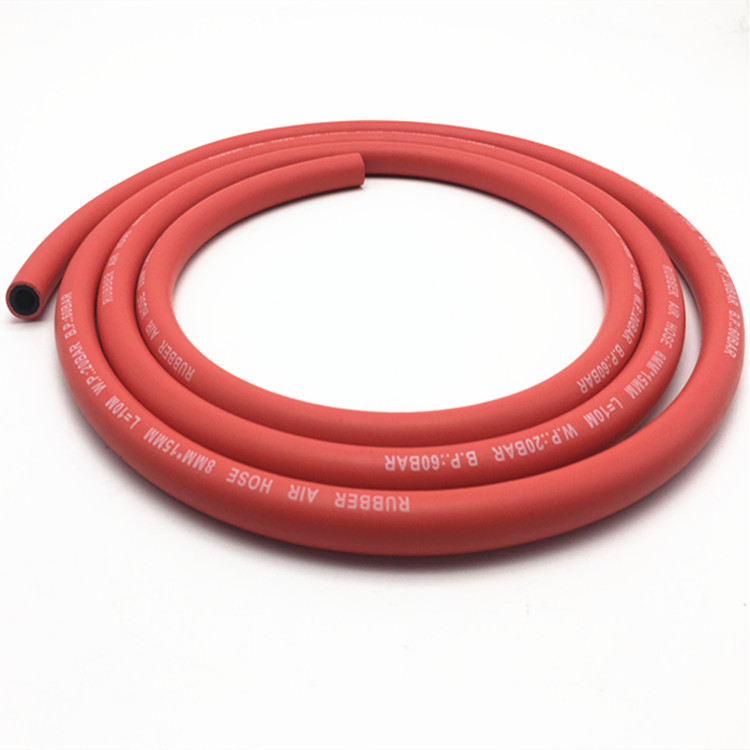

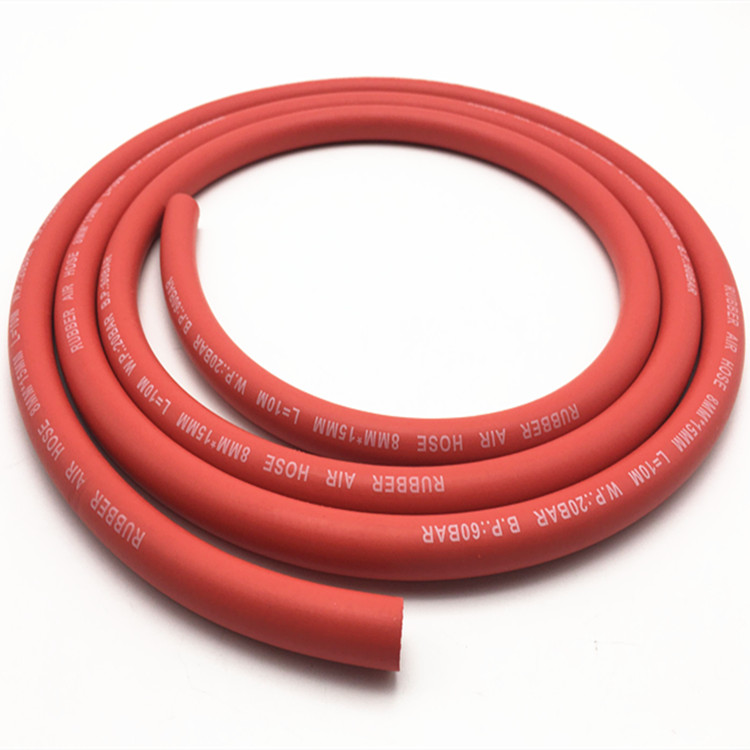

Paishun - High Tensile W.P300psi Red Air Compressor Hose Reel Rubber Air/ Water Hose
Hangzhou Paishun Rubber & Plastic Co., Ltd still remembered the time when we successfully developed the new product - High Tensile W.P300psi Red Air Compressor Hose Reel. The product is absolutely new and has something different in it. Our employees are skilled at utilizing tools and technology to manufacture High Tensile W.P300psi Red Air Compressor Hose Reel.The product has an enormous application range and now is widely used in the field(s) of Rubber Hoses. In aspect of the product design, our design team always pays close attention to the customers' taste and industry trends. Thanks to this, our High Tensile W.P300psi Red Air Compressor Hose Reel can fully attract people's attention with its unique appearance. Moreover, it is excellent performance, making it worth the investment.
| Place of Origin: | Zhejiang, China | Brand Name: | Paishun |
| Model Number: | 1/4" | Processing Service: | Cutting |
| Size: | 1/4" Inch | Outer Diameter: | 13mm |
| Length: | 50ft, 100ft | Reinforcement: | high tensile polyester fiber braided |
| Inner Tube: | EPDM sythetic rubber | Temperature Range: | -30 Deg C ~ +100Deg C |
| Fittings: | 1/4"NPT female fittings or the customized fittings. | Feature: | Abrasion, aging resistant |
| Color: | Black, Red, Blue etc. | Fitting Material: | brass |
High Tensile W.P300psi Red Air Compressor Hose Reel
Rubber Air Compressor Hose (Smooth Surface)
Construction: Tube: EPDM
Reinforcement: High tensile polyester fiber braided.
Cover: EPDM
Temperature: -30℃ to +80℃
Color: Black, Red, Blue etc.
Application: Mainly used for conveying of air, insert gas and water in mining, construction, engineering, shipbuilding, steel production etc.
Standard length: 50m, 100m.
Specification of hose:
|
Inner Diameter |
Outer Diameter |
Working Pressure |
Burst Pressure |
Length |
Measurement |
Weight |
|||
|
inch |
mm |
mm |
bar |
psi |
bar |
psi |
m |
cbm/roll |
kg/m |
|
3/16" |
5 |
11.5 |
20 |
300 |
60 |
900 |
100 |
0.028 |
0.15 |
|
1/4" |
6 |
13 |
20 |
300 |
60 |
900 |
100 |
0.031 |
0.17 |
|
5/16" |
8 |
15 |
20 |
300 |
60 |
900 |
100 |
0.0353 |
0.216 |
|
3/8" |
10 |
17 |
20 |
300 |
60 |
900 |
100 |
0.0442 |
0.24 |
|
1/2" |
12.7 |
22 |
20 |
300 |
60 |
900 |
100 |
0.0756 |
0.428 |
|
5/8" |
16 |
25 |
20 |
300 |
60 |
900 |
50 |
0.0329 |
0.40 |
|
3/4" |
19 |
29 |
20 |
300 |
60 |
900 |
50 |
0.0572 |
0.60 |
|
1" |
25 |
36 |
20 |
300 |
60 |
900 |
50 |
0.099 |
0.84 |
|
1-1/4" |
32 |
43 |
10 |
150 |
30 |
450 |
50 |
0.170 |
1.20 |
|
1-1/2" |
38 |
50 |
10 |
150 |
30 |
450 |
50 |
0.190 |
1.39 |
|
2" |
51 |
65 |
10 |
150 |
30 |
450 |
50 |
0.410 |
1.80 |

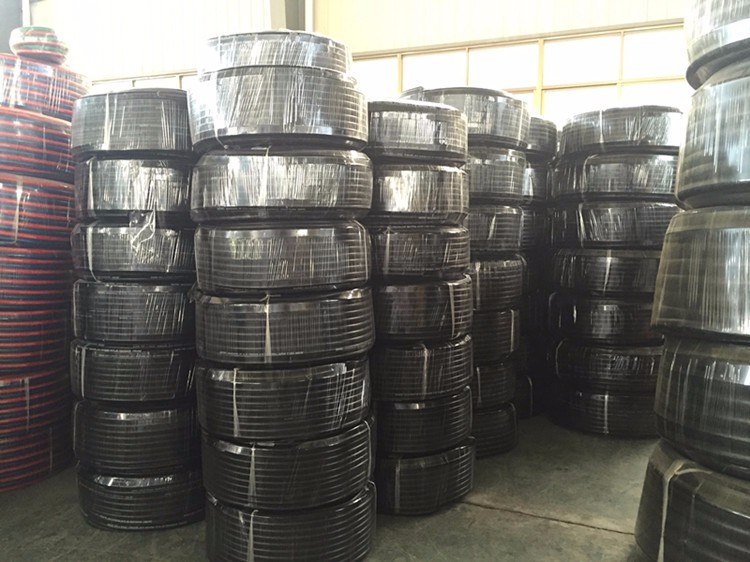

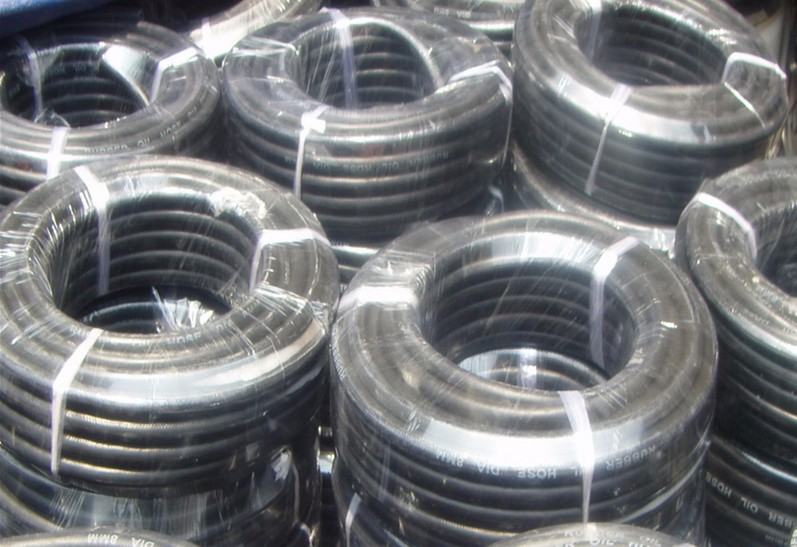

Packaging: Well packed by poly stripes or according to your requirement.
Shipping: We ship the goods by express, by air, by sea or according to your requirement.
Lead time: according to your quantity, generally speaking, 35 days 20' container.
♦ What is your terms of payment?
• T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
♦ How about your delivery time?
• Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
♦ Can you produce according to the samples?
• Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
♦ What is your sample policy?
• We can supply the sample for free, but the courier cost for you to pay.
♦ Do you test all your goods before delivery?
• Yes, we have 100% test before delivery
♦ How do you make our business long-term and good relationship?
• We keep good quality and competitive price to ensure our customers benefit ;
• We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
