Paishun - High Pressure Rubber Multipurpose Hose for Oil, Fuel, Water, Air Rubber Air/ Water Hose
Our months of efforts in product R&D has finally paid off. Hangzhou Paishun Rubber & Plastic Co., Ltd has successfully transformed the innovative idea into a reality - High Pressure Rubber Multipurpose Hose for Oil, Fuel, Water, Air. It is the newest product series of our company now. It is designed in accordance with the national standard. Hangzhou Paishun Rubber & Plastic Co., Ltd will introduce more advanced and innovative technology, and will gather more professional talents together.
| Place of Origin: | Zhejiang, China | Brand Name: | PASSION |
| Model Number: | 1/4"~1" | Processing Service: | Cutting |
| Size: | 1/4" ~1" | Inner Diameter: | 6mm~25mm |
| Outer Diameter: | 13mm~37mm | Standard: | ISO3821,EN559 |
| Cover: | NR & SBR/NBR/EPDM synthetic rubber | Standard Length: | 50m, 100m |
| Hose Surface: | Smooth surface | Reinforcement: | High Tensile Polyester Fiber Braided |
| Material: | NR & SBR/NBR/EPDM synthetic rubber | Color: | Black, Red, Yellow, Blue, Green, Orange,etc |

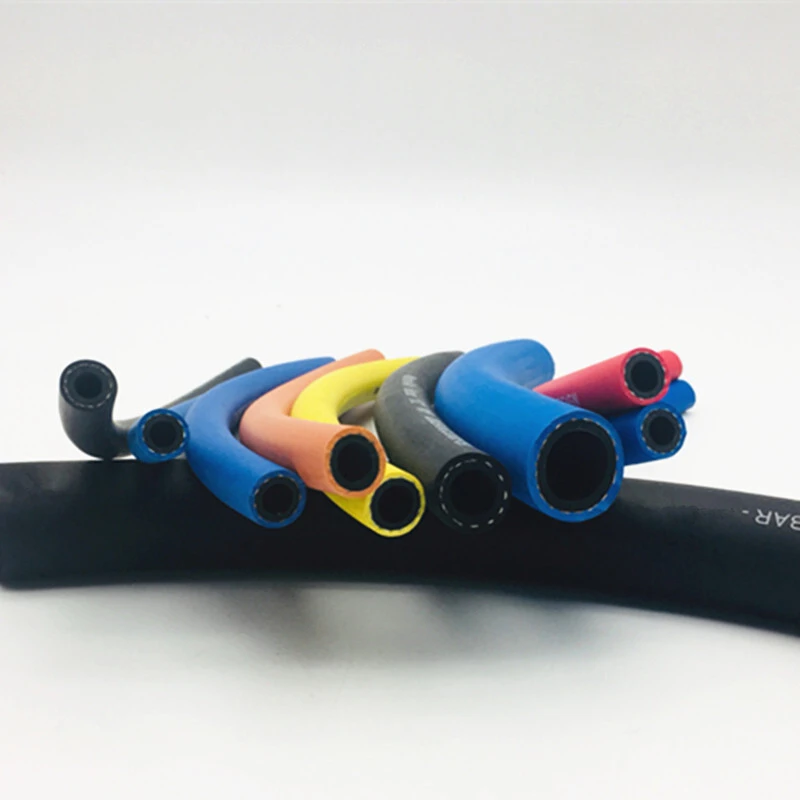

High Pressure Rubber Multipurpose Hose for Oil, Fuel, Water, Air

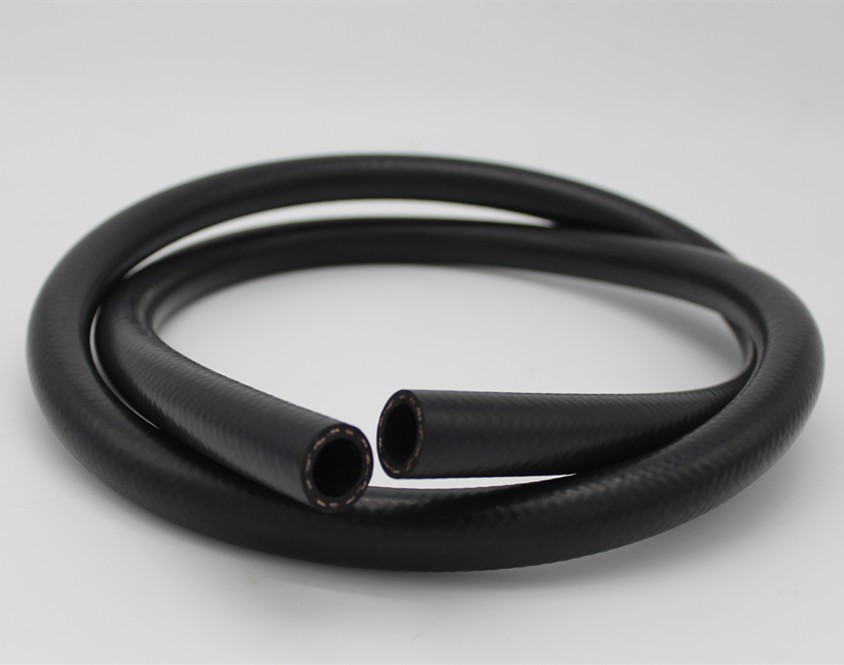

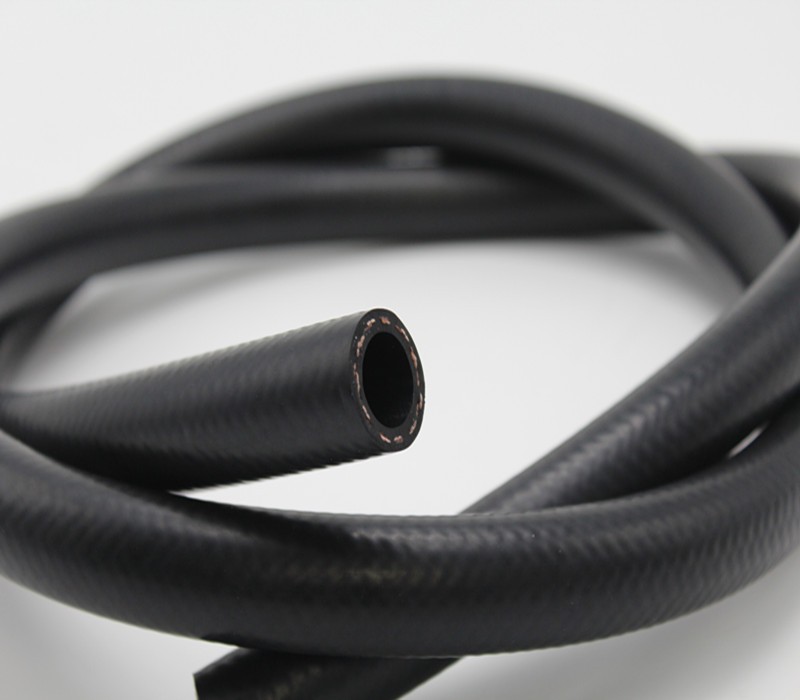

Rubber Multipurpose Hose (smooth surface)
Construction: Tube: NR& SBR/NBR/EPDM synthetic rubber.
Reinforcement: High tensile polyester fiber braided.
Cover: NR & SBR/NBR/EPDM synthetic rubber.
Temperature: -30℃ - +80℃

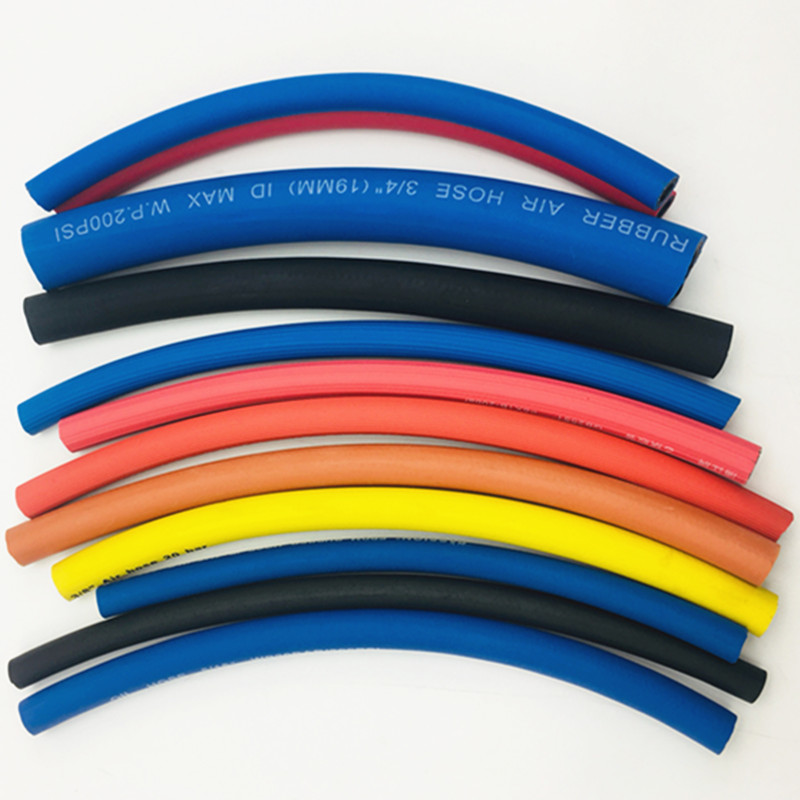

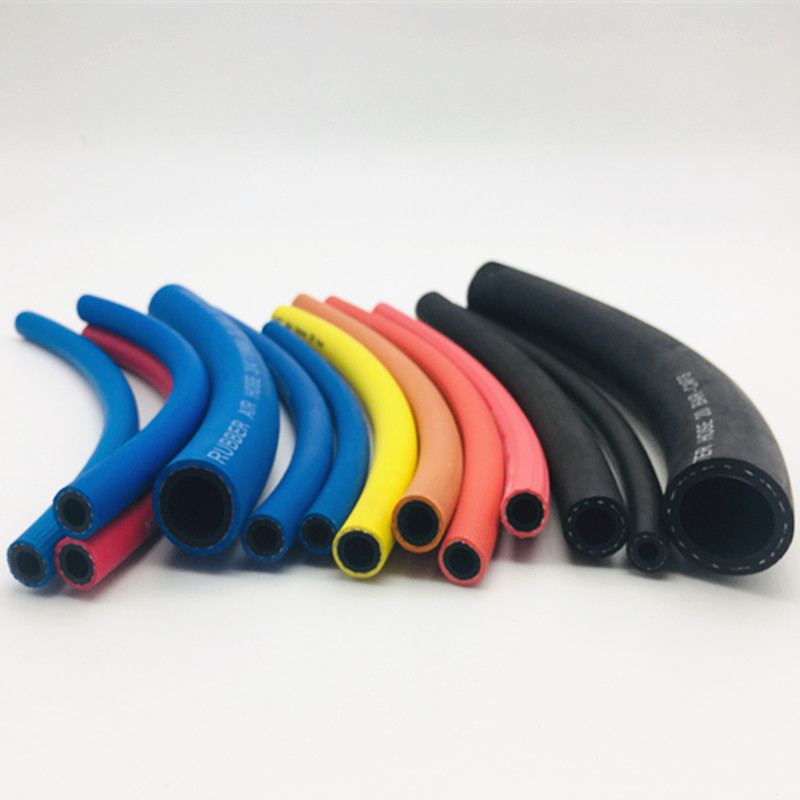

Color: Black, Red, Yellow, Blue, Green, Orange, etc.
Application: Mainly used for conveying of air, oil, fuel, insert gas and water in mining, construction, engineering, shipbuilding, steel production etc.
Standard length: 50m, 100m.
Resistant: Oil resistant, ageing resistant, abrasion resistant
Specification:
|
Item code |
Braided |
Inner Diameter |
Outer Diameter |
Working Pressure |
Burst Pressure |
Length |
Measurement |
Weight |
|||
|
inch |
mm |
mm |
bar |
psi |
bar |
psi |
m |
cbm/roll |
kg/m |
||
|
HPR1 |
1B |
1/4" |
6 |
12 |
12 |
180 |
36 |
540 |
100 |
0.025 |
0.14 |
|
HPR2 |
1B |
5/16" |
8 |
14 |
12 |
180 |
36 |
540 |
100 |
0.03 |
0.2 |
|
HPR3 |
1B |
3/8" |
10 |
15 |
12 |
180 |
36 |
540 |
100 |
0.04 |
0.21 |
|
HPR4 |
1B |
1/2" |
13 |
20 |
12 |
180 |
36 |
540 |
100 |
0.07 |
0.32 |
|
HPR5 |
1B |
5/8" |
16 |
24 |
12 |
180 |
36 |
540 |
50 |
0.05 |
0.44 |
|
HPR6 |
1B |
3/4" |
19 |
27 |
12 |
180 |
36 |
540 |
50 |
0.06 |
0.5 |
|
HPR7 |
1B |
1" |
25 |
35 |
12 |
180 |
36 |
540 |
50 |
0.09 |
0.79 |
|
HPR8 |
2B |
1-1/4" |
32 |
45 |
12 |
180 |
36 |
540 |
50 |
0.16 |
1.38 |
|
HPR9 |
2B |
1-1/2" |
38 |
52 |
12 |
180 |
36 |
540 |
50 |
0.2 |
1.7 |

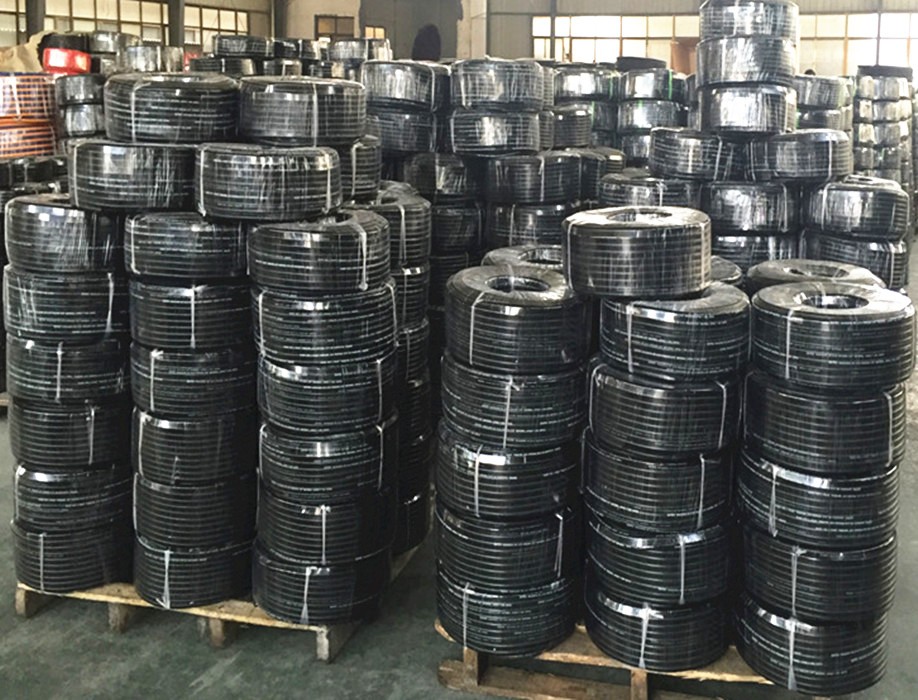

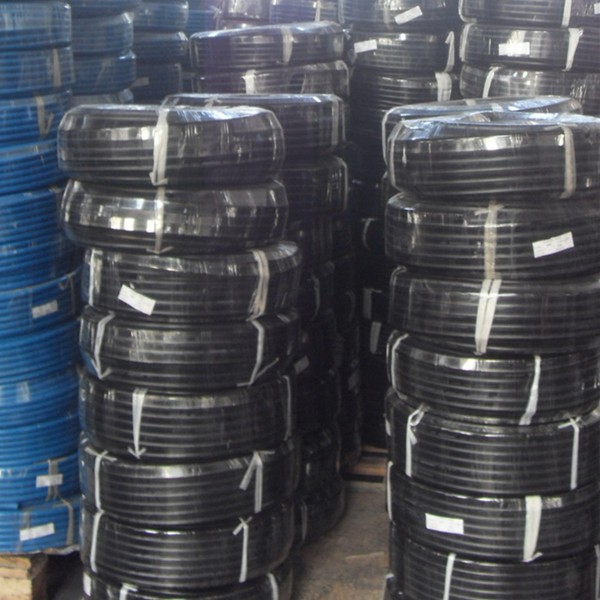

Packaging: Well packed by transparent OPP film or according to your requirement.
Shipping: We ship the goods by express, by air, by sea or according to your requirement.
Lead time: according to your quantity, generally speaking, 35 days 20' container.
♦ What is your terms of payment?
• T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
♦ How about your delivery time?
• Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
♦ Can you produce according to the samples?
• Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
♦ What is your sample policy?
• We can supply the sample for free, but the courier cost for you to pay.
♦ Do you test all your goods before delivery?
• Yes, we have 100% test before delivery
♦ How do you make our business long-term and good relationship?
• We keep good quality and competitive price to ensure our customers benefit ;
• We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
If you want to Know More Details. Please feel free to Contact Us!
