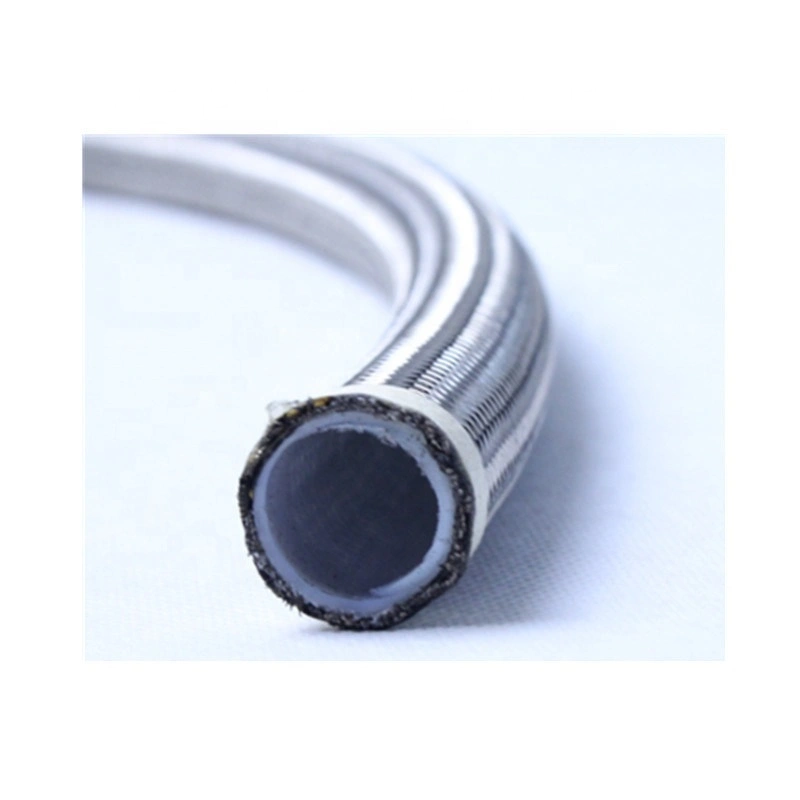

Paishun - 6mm Flexible Tube Stainless Steel PTFE Braided Hose for Steam SS PTFE Smooth Hose

It is the utilization of technology that contributes to the high-efficiency manufacturing of the product. In the field(s) of Plastic Tubes , it is highly accepted and widely used. 6mm Flexible Tube Stainless Steel PTFE Braided Hose for Steam can bring greater value to customers and help customers gain a firm foothold in the complex market environment. Hangzhou Paishun Rubber & Plastic Co., Ltd always stick to the core value of 'integrity and honesty' since established. We will strive forward to manufacture and provide the fine-quality products and try hard to provide the best services for our customers.

Why Choose PTFE

Character of PTFE

The PTFE hose material is made of Japanese Daikin.

The temperature range is -200C to +260C, melting point: 327C. It can't be injection molded and can be pressed and formed. The max. operating temperature is 280C.

PTFE has the following excellent properties due to its strong carbon-fluorine bond and high molecular wieght:

1. Excellent weather resistance, long service life, no brittle fracture and no aging.

2. Resistant to strong acid and alkali, resistant to various corrosive chemicals.

3. Anti-adhesive, anti-moisture and ultraviolet, non-toxic.

4. With a very low friction coefficuent. non-flammable.

5. With very low evaporate transpiration rate, cold liquid is not volatile.

6. With excellent electrical charateristics (does not change with frequency and temperature changes)

7. Excellent mechanical properties, shock resistance and flexibility.

Product Overview

Inner tube: PTFE

Outer tube: stainless steel 304 wire braided Temperature range: -65℃ to +260℃

Advantage:

Because of its high temperature resistance, low temperature resistance, corrosion resistance high lubricating property, inadhesion, toxicity and electrical insulation it is widely used in mechanical, electrical applicances, automotive, aerospace,, chemical, pharmaceutical, communication and other fields.

No	Specification	I.D.	O.D.	Thickness	W.P.	B.P	Min. Bending Radius
				mm	mm	mm	bar	bar	mm
1	1/8	3.5	6.6	1	320	988	51
2	3/16	4.8	7.6	0.85	242	726	75
3	1/4	6.4	9.2	0.85	210	653	81
4	5/16	8	11	0.85	188	587	92
5	3/8	9.7	12.8	0.85	185	556	131
6	1/2	12.7	15.9	1	106	461	182
7	5/8	16	19.2	1	90	382	211
8	3/4	19	22.7	1.2	78	269	338
9	7/8	22.2	26	1.2	60	195	421
10	1	25	29.3	1.5	40	153	539
11	2	50	55.6	2	30	120	1015

PTFE Hose Assembly

We can crimp the hose assembly in our factory.

Ferrule: 00TF0

Fitting: According to customers' request. Most of them use JIC Female thread.

Material 1: carbon steel with zinc plated

Material 2: carbon steel with nickel alloy plated

Material 3: SS304 / SS316

Application

Because of wide using temeprature range, it can be used for food processing, high temperature fluid, chemicals and compressed gas, like

-Flamethrower

-Air Compressor

Packing&Shipping

Packing 1: PE bag with headcard for short hose assembly

Packing 2: by rolls with poly stripes

Paishun Can quote you EXW, FOB, CNF, CIF, DDU price based on the experienced shipment team.

If you need the goods urgently, ship
by express is a good way. Paishun cooperates with over 5 express agents, who can get discounts from DHL, FedEx, UPS, TNT or some
special line to your door. Express cost is much lower than regular charges. Goods can be sent to your door dicrectly.

If your goods is not small, and also want to get the goods quickly. A good way is to ship by air. Paishun can ship the goods from
air port in Hangzhou or Shanghai, etc.Goods can be sent to the nearest air port of your city.

If you don't need the goods in a hurry, a good way is to ship by sea. Shipment cost is much lower. Paishun can ship from Ningbo Port, Shanghai Port, Lianyungang Port or other ports as your request. Goods can be sent to the nearest sea port of your city.

The goods also can sent to your other suppliers in China to make full container, or send to your agents in Yiwu, Guangzhou, Suifenhe, etc.

PASSION Team

Paishun Exhibition

FAQ

Are you manufacturer?

Yes, we are. Welcome to visit our factory. Your 3rd party inspection company is welcomed too.

Price and MOQ?

Please enter your message in the form below and send inquiry to Peter, or chat online by WhatsApp or Trademanager.
