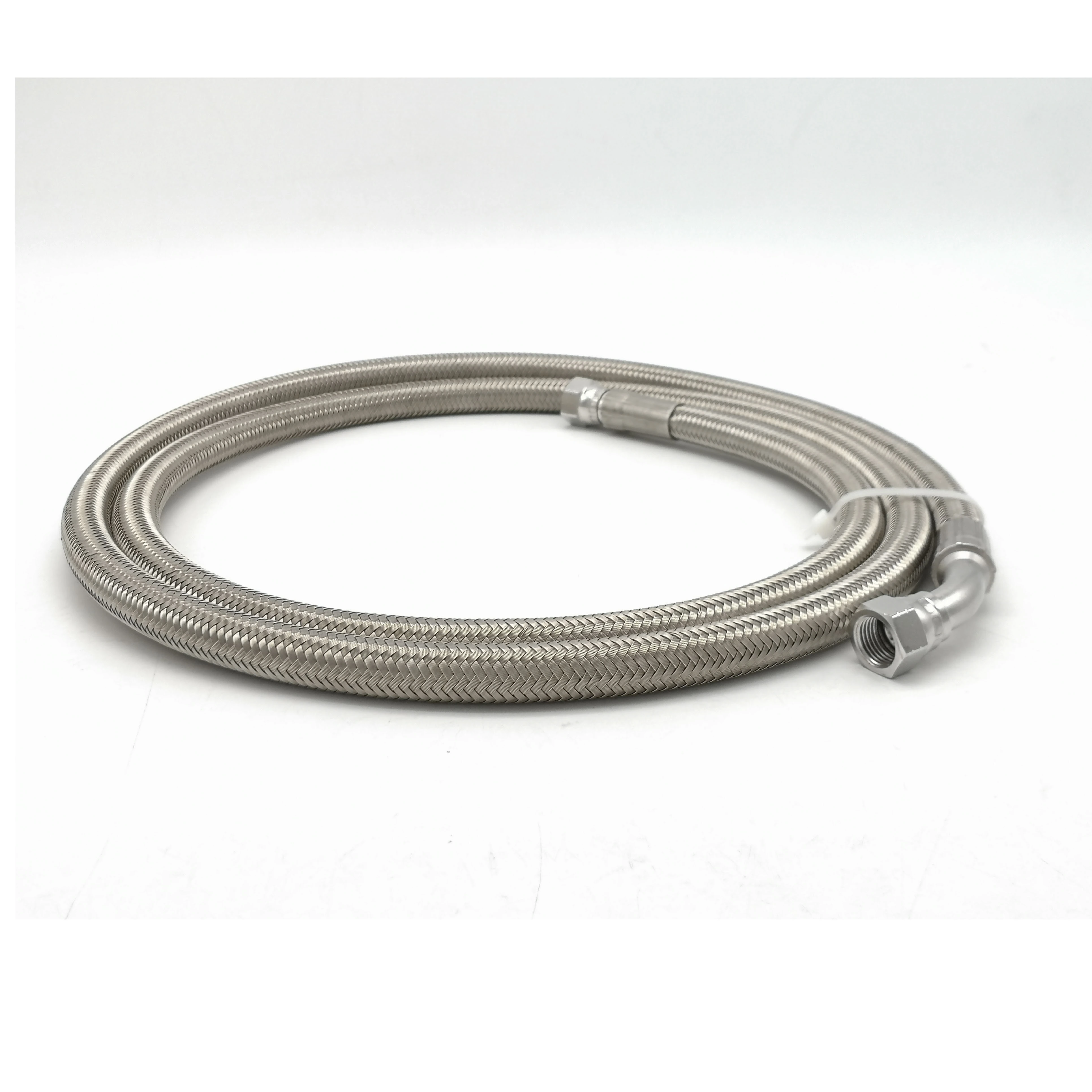

Paishun - 6AN (3/8) Stainless Steel Braided flexible PTFE Corrugated hose assembly PTFE Hose Assembly

Having been through countless days and nights,Hangzhou Paishun Rubber & Plastic Co., Ltd has successfully developed 6AN (3/8) Stainless Steel Braided flexible PTFE Corrugated hose assembly. It is bound to catch people's eyeballs in various fields. Continuous innovation ability is the fundamental guarantee of product quality. Looking to the future, 6AN (3/8) Stainless Steel Braided flexible PTFE Corrugated hose assembly will continue to follow the route of independent innovation, and continue to introduce high-tech talents as intellectual support, and strive to achieve the goal of becoming a world-class enterprise.

Why Choose PTFE

Character of PTFE

The PTFE hose material is made of Japanese Daikin.

The temperature range is -200C to +260C, melting point: 327C. It can't be injection molded and can be pressed and formed. The max. operating temperature is 280C.

PTFE has the following excellent properties due to its strong carbon-fluorine bond and high molecular wieght:

1. Excellent weather resistance, long service life, no brittle fracture and no aging.

2. Resistant to strong acid and alkali, resistant to various corrosive chemicals.

3. Anti-adhesive, anti-moisture and ultraviolet, non-toxic.

4. With a very low friction coefficuent. non-flammable.

5. With very low evaporate transpiration rate, cold liquid is not volatile.

6. With excellent electrical charateristics (does not change with frequency and temperature changes)

7. Excellent mechanical properties, shock resistance and flexibility.

Product Overview

Inner tube: corrugated PTFE

Outer tube: stainless steel 304 wire braided Temperature range: -65℃ to +260℃

Advantage:

high temperature resistance, corrsion resistance, excellent flexibility and resistance to distortion

No	Specification	I.D.	O.D.	Thickness	W.P.	B.P	Min. Bending Radius
				mm	mm	mm	bar	bar	mm
1	1/4	6.4	11.5	0.8	150	400	20
2	5/16	8	12.3	0.65	130	365	25
3	3/8	10	14.2	0.65	125	350	33
4	1/2	13	17.2	0.85	110	330	42
5	5/8	16	21.6	0.9	80	245	50
6	3/4	19	25.3	1	70	215	63
7	1	25	31	1	50	150	79
8	1 1/4	32	39	1.1	45	140	125
9	1 1/2	38	45	1.45	43	120	145
10	2	50	60	1.5	35	100	180

PTFE Hose Assembly

We can crimp the hose assembly in our factory.

Ferrule: 00TF0

Fitting: According to customers' request. Most of them use JIC Female thread.

Material 1: carbon steel with zinc plated

Material 2: carbon steel with nickel alloy plated

Material 3: SS304 / SS316

Application

High temperature hydraulic, pneumatic and chemical delivery hoses for rubber, automotive, machine tools, shipbuilding, electromechanical, diesel, pressure control, paper and printing industries. For liqids, gases and highly corrosive media with laternating hot and cold heat, it has better performance and longevity than other hoses.

-Flamethrower

-Air Compressor

Packing&Shipping

Packing 1: PE bag with headcard for short hose assembly

Packing 2: by rolls with poly stripes

Paishun Can quote you EXW, FOB, CNF, CIF, DDU price based on the experienced shipment team.

If you need the goods urgently, ship
by express is a good way. Paishun cooperates with over 5 express agents, who can get discounts from DHL, FedEx, UPS, TNT or some
special line to your door. Express cost is much lower than regular charges. Goods can be sent to your door dicrectly.

If your goods is not small, and also want to get the goods quickly. A good way is to ship by air. Paishun can ship the goods from
air port in Hangzhou or Shanghai, etc.Goods can be sent to the nearest air port of your city.

If you don't need the goods in a hurry, a good way is to ship by sea. Shipment cost is much lower. Paishun can ship from Ningbo Port, Shanghai Port, Lianyungang Port or other ports as your request. Goods can be sent to the nearest sea port of your city.

The goods also can sent to your other suppliers in China to make full container, or send to your agents in Yiwu, Guangzhou, Suifenhe, etc.
