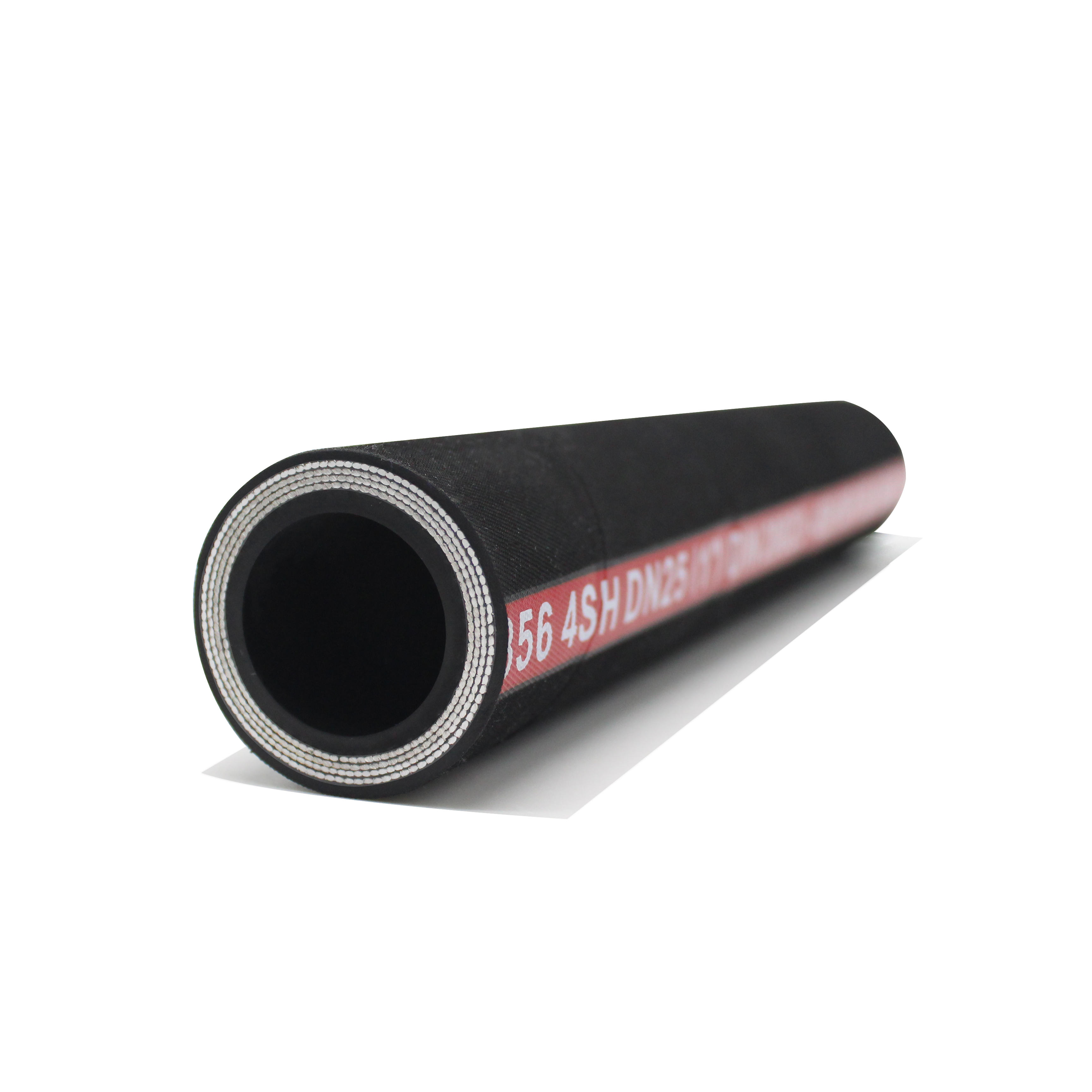

Paishun - Steel Wire Hydraulic Rubber Hose 6 Layer Tractor Hydraulic Hose SAE 100R15 SAE 100R15

We mainly introduced one of our latest and best products -Steel Wire Hydraulic Rubber Hose 6 Layer Tractor Hydraulic Hose SAE 100R15 to the visitors coming to the website. We can manufacture this product to your exact specifications. By gathering the elites in the industry together,Hangzhou Paishun Rubber & Plastic Co., Ltd aim to make full use of their wisdom and experience to develop and manufacture competitive products. Our great wish is to become a leading enterprise on a global scale.

Why Choose Us

* Various colors.

* Free hose sample available.
* Words and your logo can be printed. OEM accepted.
* Strict quality control. Test the products before shipping out with the complete line of test machines.
* Customized hose accepted.
* Factory sale with lower prices.
* Solid construction
* Good service lifetime
* Increased working pressure
* Very flexible and light

Product Description

Product Detail
Name	Hydraulic Rubber Hose
Size	3/8" ~ 2"
Reinforcement	4 spirals of high tensile steel wire.
Temperature Range	-40ºC ~ +100ºC (-40ºF~ +212 ºF)
Application	High pressure hydraulic oil lines used in construction, machine tool and agricultural applications using petroleum or water based hydraulic fluids.
Certification	CE and ISO approved
Printing Word	We can print LOGO or as your requirement.
Packaging Detail	By poly stripes or as your request.
Delivery	About 28 days for a 20' container.

Product Specification
EN856 4SP
Part No.	SIZE	I.D	O.D	W.P	B.P	WEIGHT
	Part Number	inch	mm	mm	bar	bar	g/m
P04-4SP	1/4"	6.4	17.9	450	1800	585
P06-4SP	3/8"	9.5	21.4	445	1780	750
P08-4SP	1/2"	12.7	24.6	415	1660	890
P10-4SP	5/8"	16	28.2	350	1400	1070
P12-4SP	3/4"	19	32	350	1400	1500
P16-4SP	1"	25.4	39	280	1120	1915
EN856 4SH
Part No.	SIZE	I.D	O.D	W.P	B.P	WEIGHT
		inch	mm	mm	bar	bar	g/m
P10-4SH	5/8"	16	27.4	420	1680	1225
P12-4SH	3/4"	19	32	420	1680	1500
P16-4SH	1"	25.4	37.5	380	1520	2065
P20-4SH	1 1/4"	31.8	45.5	350	1400	2425
P24-4SH	1 1/2"	38.1	53.5	290	1160	3235
P32-4SH	2"	50.8	67.1	250	1000	4460

Product Photo

Workshop

Production Line

Raw Materials

We only use new raw materials, none recycled materials at all.

The raw materials are bought from big group company such as China Petro and Sinopec.

Rubber Mixing Machines

We have our own rubber mixing machines, this makes us be able to do research and produce different types of hoses.

And keep a constant rubber sheet supplying.

Steel Wire Braiding Machine

Vulcanizing Boiler

Braiding Machine

Spiral Machine

Packaging

Test Machines

Impulse Testing Machine

Impulse Test

.

Burst Pressure Test

Abrasion Test

Wire Diameter

Test Table

Wire Kontting

Wire Kontting

Ozone Resistance

Rubber Sheet Thickness

Rubber Sheet Strength

Rubber Sheet Hardness

Vulcanizer

Exhaustion Test

Aging Test

Certifications

CE Certificate

MSHA Certificate

ISO Certificate

Paishun has various types of certificates, such as ISO, CE, Rohs, MSHA, etc.

Application

Paishun is one of the top manufacturers of rubber hoses in East China.
We're specialized in the production and marketing of these products.

Paishun products are particularly suitable for the following areas of applications:
* Heavy equipment and earth-moving machinery
* Mining and drilling
* Agricultural machines and equipment
* Working platforms, cranes and lifting
* Marine and off-shore
* Naval Construction
* Machine tool industry, automatic machines and industrial plants
* Wood machinery, marble and sheet metal machining

Exhibition

More of Paishun

About Paishun

Paishun factory covers a land of over 3 hectares, and the workshops occupy a surface of 25000 square meters. We own complete production lines of the rubber mixing process, cold feeding material extrusion process, microwave vulcanization process, and high-speed braiding process, etc.

We produce mainly industrial hoses like Air Hose, Water Hose, Oil Hose, Welding Hose, Hydraulic Hose, and Assemblies. Paishun, being a rapidly growing enterprise focusing on the professional production of pure rubber hoses and braided rubber hoses, its yearly production capacity reaches 10 million meters.

Our key policy is "enterprise may thrive with the technology, and may last with good quality". So we put much investment in the research team, and in advanced testing laboratory equipment. We now use a series of tensile testing machines, vulcanization testing devices, aging testing chest, pressure testing machines to ensure effective quality control. All these testing machines and related procedures may form a complete quality control system, beginning from the selection of the raw materials until the end step. Thus, we wish our products can satisfy all of our customers, and help them to gain more and more market share.

Why Choose Paishun

RELATIONSHIPS

Long term business relationships are of upmost importance to us at Paishun. With our roots planted as a manufacturer, we take the time to learn about your business and your individual needs so we can provide better service to you. We pride ourselves on maintaining long term business relationships and understand that it takes time to build trust in new ones.

QUALITY

Paishun is ISO 9001:2015 certified for the manufacturing of rubber hoses. This certification encompassed with lean manufacturing allows us to ensure our products are safe, reliable and of superior quality.
Our workshop upholds strict cleanliness guidelines at all times. We maintain a clean and organized environment. This allows us to guarantee your hoses are produced promptly and efficiently.

SHORT LEAD TIMES

We have continually made improvements to our manufacturing process over 12+ years. We've implemented lean manufacturing and moved to a larger workshop. These changes have enabled us to support growth and streamlined our supply chain process in order to respond quickly to market change. All with the goal to decrease lead time and improve quality.

INVENTORY MANAGEMENT

A consistent unbroken supply chain allows us to produce rubber hoses at a steady pace. We understand how important production scheduling and inventory flow are to your business. We will work with you on an individual basis and will process blanket orders to assist with your inventory level. All of our materials are sourced from big group company such as China Petro and Sinopec, to adhere to our best quality standard.
