Paishun - ISO7241-A BSP Thread 1" Steel Hydraulic Quick Couplings Quick Coupling
We always create a perfect quality of product at prices that meet a customer’s budget. High-end technologies helps us ensure ISO7241-A BSP Thread 1" Steel Hydraulic Quick Couplings quality, improve manufacturing efficiency, and reduce manpower input. It has extensive uses in the field(s) of Other Hydraulic Parts. Hangzhou Paishun Rubber & Plastic Co., Ltd adhere to the corporate philosophy of 'people orientation' and always advocate honesty, innovation, and fairness. We hope to occupy an important position in the industry and become one of the most leading brands in the future.
| Condition: | New | Warranty: | 1.5 years |
| Showroom Location: | None | Type: | Fittings |
| Brand Name: | PAISHUN | Place of Origin: | Zhejiang, China |
| Material: | Steel | Surface: | Zinc-Chromate plated |
| Standard: | ISO7241-A | Size: | 1" |
| After Warranty Service: | Video technical support, Online support | Local Service Location: | None |
| After-sales Service Provided: | Online support, Video technical support, Free spare parts |

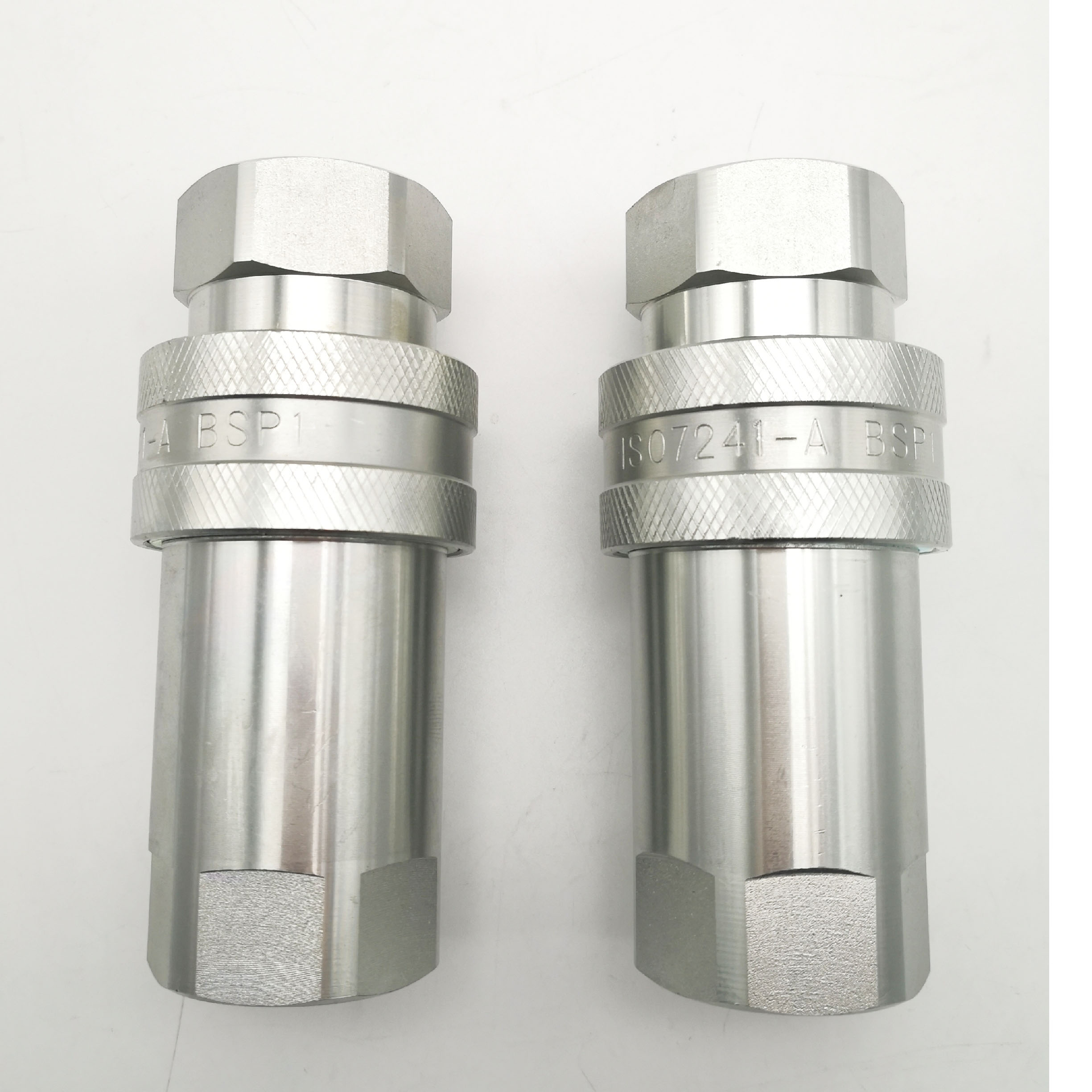

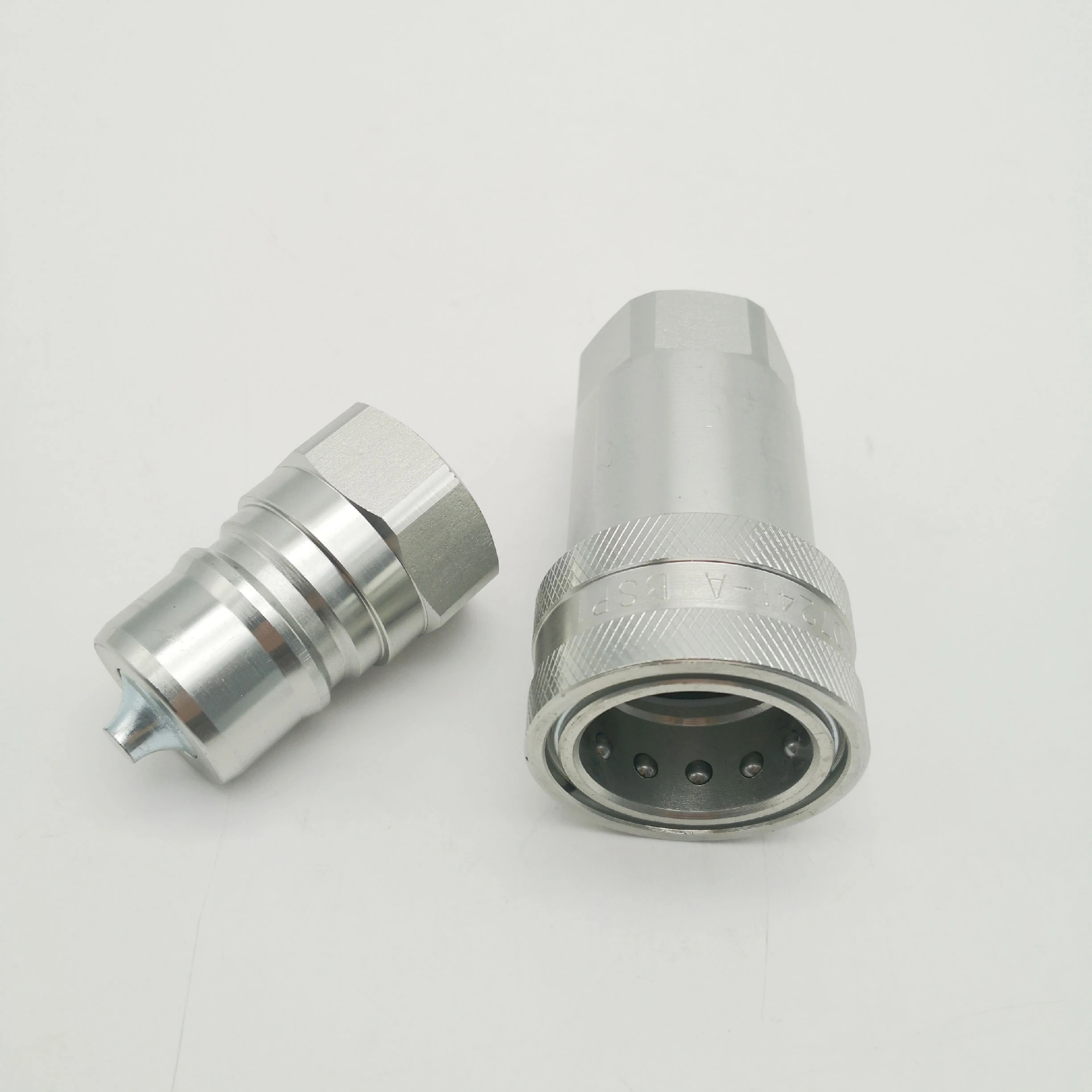

ISO7241-A BSP Thread 1" Steel Hydraulic Quick Couplings
1 Application: Mainly used for construction equipment, hydraulic machinery, oil euipment and other hydraulic applications.
2 Material of Female Socket: Zinc- Chromate plated Steel
Material of Male Plug: Zinc- Chromate plated Steel
3 Advantage: Critical Parts are hardened for durability.
Poppet valves are available to prevent uncoupled leakage.
Poppet valves open automatically when coupled within rated working pressure to keep the flow expeditely.
4 Sizes: BSP 1/4, 3/8, 1/2, 3/4, 1. It's OK to order Female Socket and Male Plug together or seperately.
5 Standard: ISO7241-1 Series A
6 It can be interchanged in the following foreign brand:
PARKER 6600 series
FASTER ANV series
AEROQUIP 5600 series
HANSEN HA 15000 series

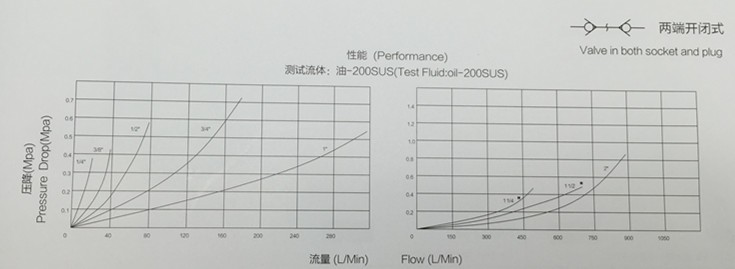

Specification:
| Body Size (inch) | Code | Rated Pressure (Mpa) | Rated Flow (L/min) | Temperature Range of NBR (deg.C) | Temperature Range of FKM (deg. C) | ||
| Steel | SS | Brass | |||||
| 1/4 | 02 | 34.5 | 13.8 | 7 | 11.5 | -20-+100 | -20-+180 |
| 3/8 | 03 | 27.6 | 13.8 | 7 | 23 | -20-+100 | -20-+180 |
| 1/2 | 04 | 27.6 | 10.4 | 7 | 45.5 | -20-+100 | -20-+180 |
| 3/4 | 06 | 20.7 | 10.4 | 7 | 106 | -20-+100 | -20-+180 |
| 1 | 08 | 20.7 | 7 | 7 | 190 | -20-+100 | -20-+180 |
| 1 1/4 | 10 | 20.7 | 7 | 7 | 330 | -20-+100 | -20-+180 |
| 1 1/2 | 12 | 13.8 | 7 | 7 | 830 | -20-+100 | -20-+180 |
| 2 | 16 | 13.8 | 7 | 7 | 900 | -20-+100 | -20-+180 |

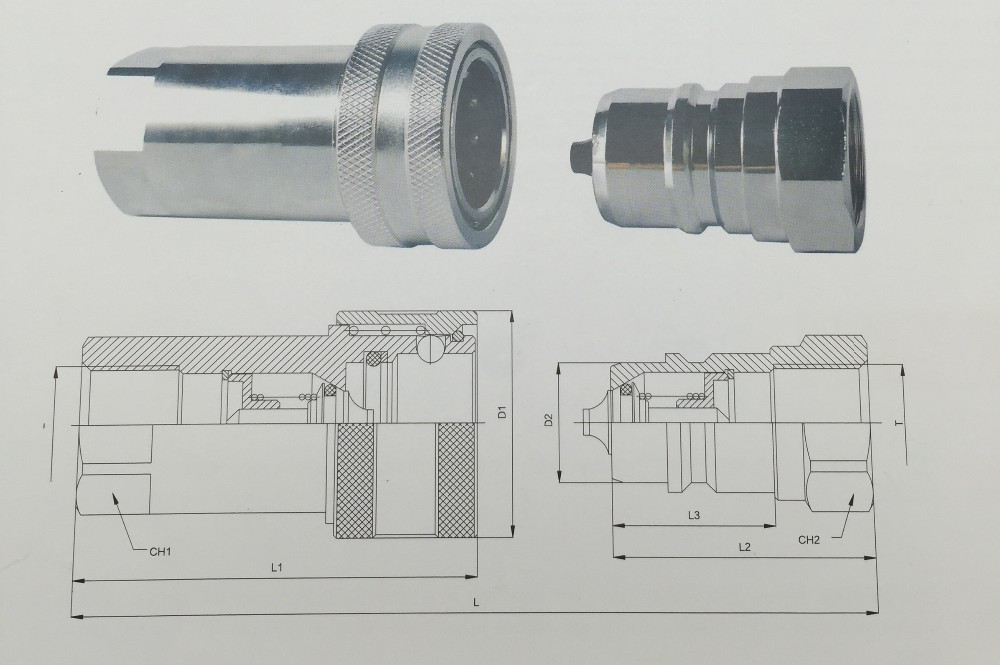

| Part No. | ISO | L | L1 | L2 | L3 | D1 | D2 | CH1 | CH2 | T | ||
| H001-02T-SP | DN6.3 | 71 | 50 | 35.5 | 15.2 | 26 | 11.8 | 19 | 19 | ZG1/4 | G1/4 | NPT1/4 |
| H001-03T-SP | DN10 | 75 | 56 | 36.5 | 21.4 | 31.5 | 17.3 | 22 | 22 | ZG3/8 | G3/8 | NPT3/8 |
| H001-04T-SP | DN12.5 | 88 | 66.5 | 43.5 | 27 | 38.5 | 20.5 | 27 | 27 | ZG1/2 | G1/2 | NPT1/2 |
| H001-06T-SP | DN20 | 110 | 80 | 57 | 28 | 48 | 29.1 | 34 | 35 | ZG3/4 | G3/4 | NPT3/4 |
| H001-08T-SP | DN25 | 120 | 94 | 59.5 | 36 | 56 | 34.3 | 41 | 41 | ZG1 | G1 | NPT1 |
| H001-10T-SP | DN31.5 | 150 | 117 | 75 | 46 | 69.5 | 45 | 50 | 50 | ZG1-1/4 | G1-1/4 | NPT1-1/4 |
| H001-12T-SP | DN40 | 167 | 133 | 83.5 | 52 | 84 | 55 | 60 | 60 | ZG1-1/2 | G1-1/2 | NPT1-1/2 |
| H001-16T-SP | DN50 | 211 | 165 | 105 | 64 | 99 | 65.1 | 75 | 75 | ZG-2 | G2 | NPT2 |
