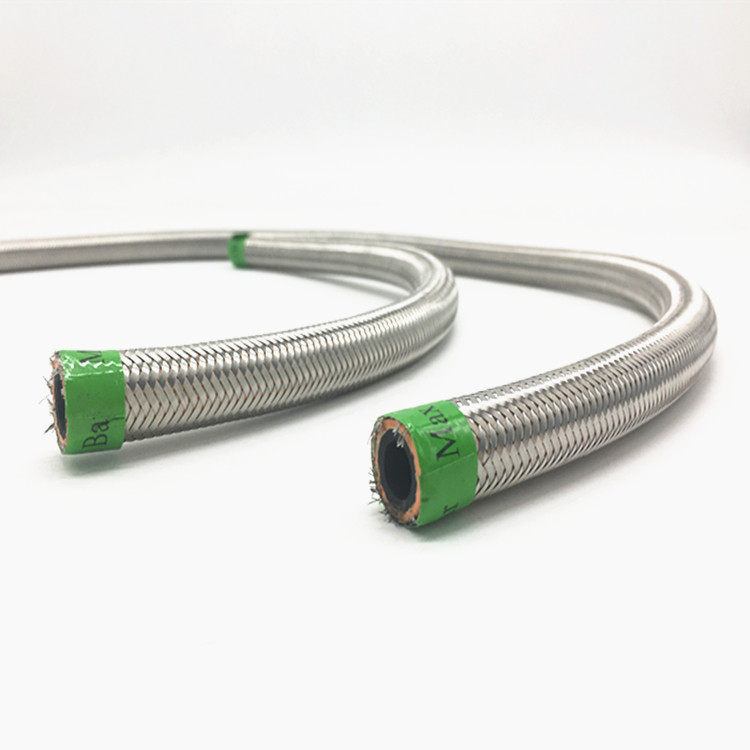

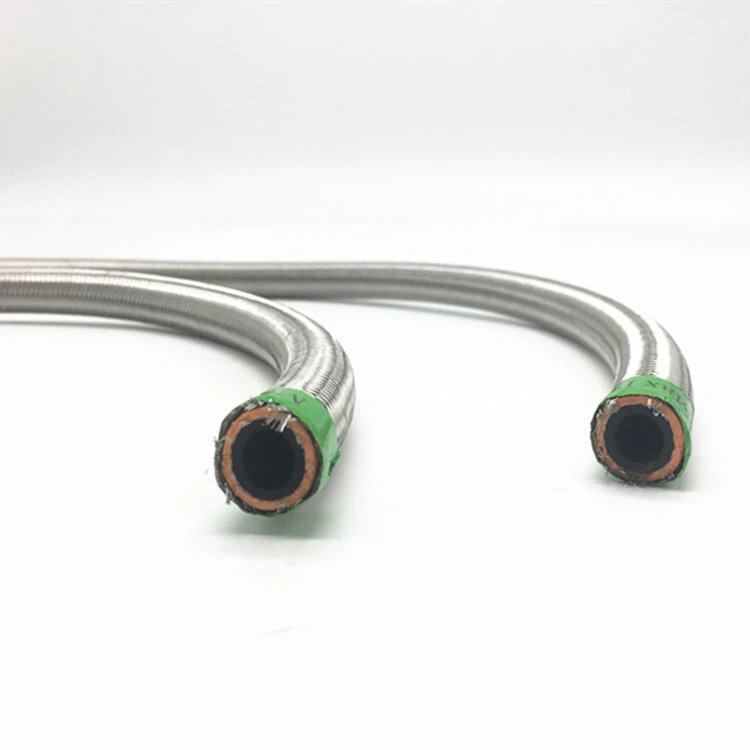

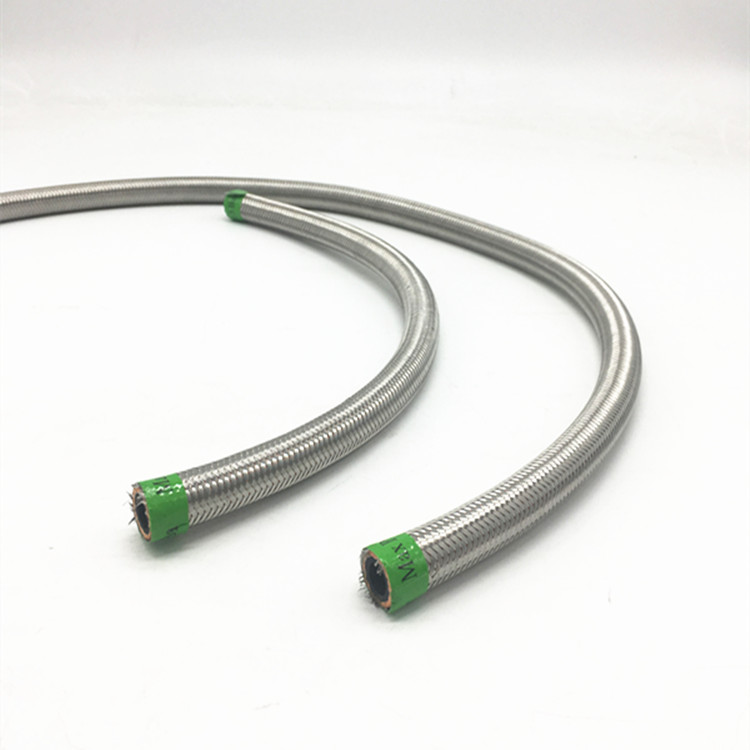

Paishun - High Performance Flexible Stainless Steel Hoses Special for Gas Propane/ LPG Gas hose
Hangzhou Paishun Rubber & Plastic Co., Ltd always upholds the principle of'complementary advantages, mutual benefit and win-win', and has established long-term cooperative relations with many well-known domestic and foreign companies. Innovation ability is the key to the core competitiveness of products. Hangzhou Paishun Rubber & Plastic Co., Ltd has developed a market-leading reputation in the industry for delivering outstanding products and solutions. The exceptional ability sees our efforts in R&D.
| Place of Origin: | Zhejiang, China | Brand Name: | Paishun |
| Model Number: | 6mm,8mm,10mm | Processing Service: | Cutting |
| Size: | 3/8" Inch | Length: | 50m or 100m |
| Reinforcement: | high tensile polyester fiber braided | Inner Tube: | NBR sythetic rubber |
| Cover Compound: | Stainless steel wire | Temperature Range: | -30 Deg C ~ +80Deg C |
| Inner Diameter: | 10mm | Outer Diameter: | 17mm |
| Color: | Black, Red, Blue ect. | Working pressure: | 20bar |
High Performance Stainless Steel Wire Braided Rubber Gas Hose
Stainless Steel Wire Braided Rubber Gas hose
Construction: Tube: NBR synthetic rubber.
Reinforcement: High tensile polyester fiber braided.
Cover: NBR synthetic rubber.
Outer tube:Stainless Steel Wire Braided.
Temperature: -30℃ to +80℃
Color: Black, Red, Blue etc.
Application: Mainly used for circulating diesel, biodiesel, hydraulic oil, machinery oil and lubricating oil etc.
Standard length: 50m, 100m.
Inner Tube Specification:
|
Inner Diameter |
Outer Diameter |
Working Pressure |
Burst Pressure |
Length |
Measurement |
Weight |
|||
|
inch |
mm |
mm |
bar |
psi |
bar |
psi |
m/roll |
cbm/roll |
kg/m |
|
3/16" |
5 |
11.5 |
20 |
300 |
60 |
900 |
100 |
0.028 |
0.15 |
|
1/4" |
6 |
13 |
20 |
300 |
60 |
900 |
100 |
0.031 |
0.17 |
|
5/16" |
8 |
15 |
20 |
300 |
60 |
900 |
100 |
0.0353 |
0.216 |
|
3/8" |
10 |
17 |
20 |
300 |
60 |
900 |
100 |
0.0442 |
0.24 |
|
1/2" |
12.7 |
22 |
20 |
300 |
60 |
900 |
100 |
0.0756 |
0.428 |
|
5/8" |
16 |
25 |
20 |
300 |
60 |
900 |
50 |
0.0329 |
0.40 |
|
3/4" |
19 |
29 |
20 |
300 |
60 |
900 |
50 |
0.0572 |
0.60 |
|
1" |
25 |
36 |
20 |
300 |
60 |
900 |
50 |
0.099 |
0.84 |
|
1-1/4" |
32 |
43 |
10 |
150 |
30 |
450 |
50 |
0.170 |
1.20 |
|
1-1/2" |
38 |
50 |
10 |
150 |
30 |
450 |
50 |
0.190 |
1.39 |
|
2" |
51 |
65 |
10 |
150 |
30 |
450 |
50 |
0.410 |
1.80 |
Packaging: Well packed by woven poly stripes or according to your requirement.
Shipping: We ship the goods by express, by air, by sea or according to your requirement.
Lead time: according to your quantity, generally speaking, 35 days 20' container.
♦ What is your terms of payment?
• T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
♦ How about your delivery time?
• Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
♦ Can you produce according to the samples?
• Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
♦ What is your sample policy?
• We can supply the sample for free, but the courier cost for you to pay.
♦ Do you test all your goods before delivery?
• Yes, we have 100% test before delivery
♦ How do you make our business long-term and good relationship?
• We keep good quality and competitive price to ensure our customers benefit ;
• We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
If you want to Know More Details. Please feel free to Contact Us!
