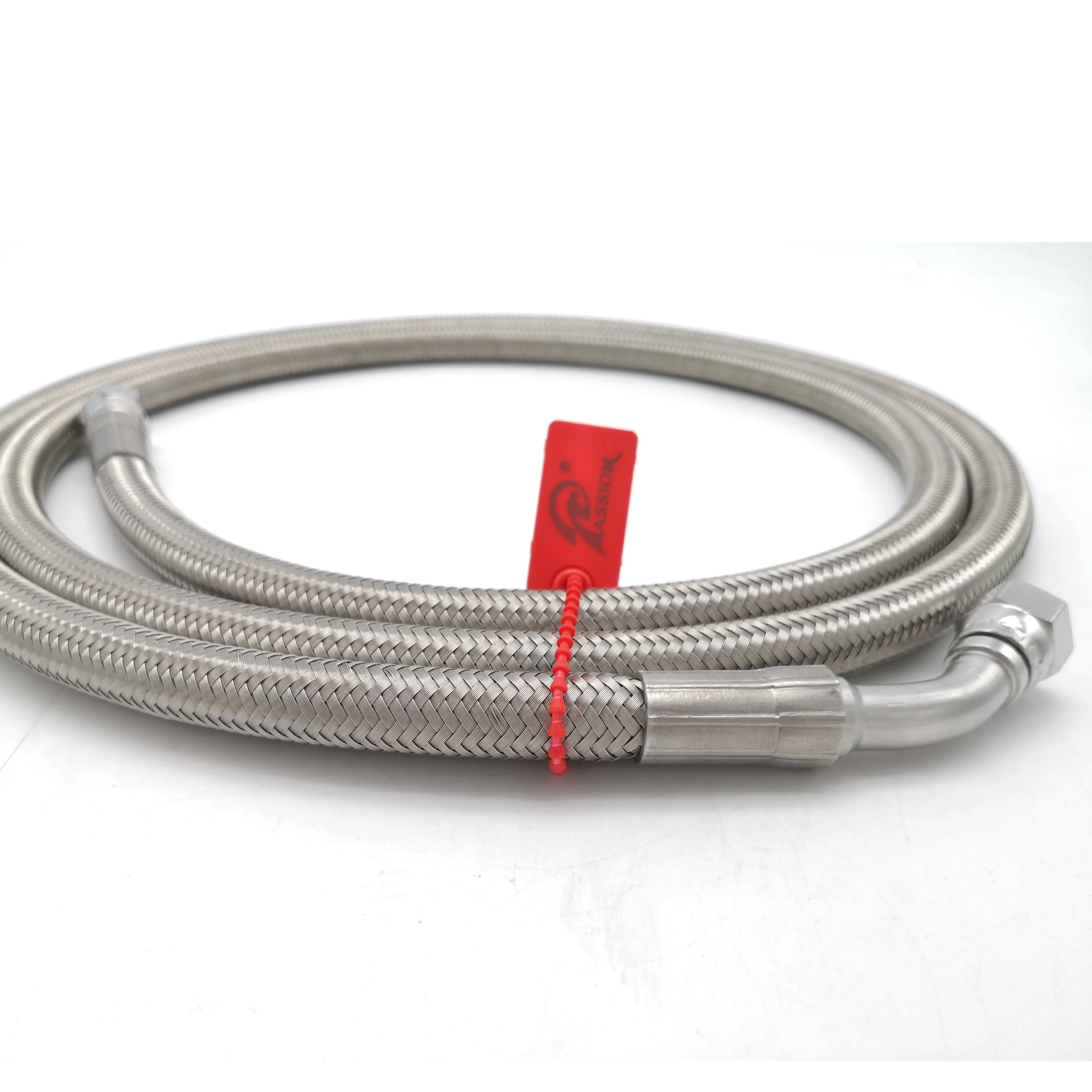

Paishun - 3/8" Stainless Steel Braided Flexible PTFE Corrugated Hose Pipe Assembly PTFE Hose Assembly

Name: Paishun - 3/8" Stainless Steel Braided Flexible PTFE Corrugated Hose Pipe Assembly PTFE Hose Assembly
Uploaded: 2025-12-17T10:20:24+08:00
Description: Advanced technology plays a key role in the manufacturing process for a company. We have been consistently improving manufacturing tools.Since we have carefully reviewed every application scenario, we have confirmed that 3/8" Stainless Steel Braided Flexible PTFE Corrugated Hose Pipe Assembly is indispensable in the field(s) of Plastic Tubes.

Advanced technology plays a key role in the manufacturing process for a company. We have been consistently improving manufacturing tools.Since we have carefully reviewed every application scenario, we have confirmed that 3/8" Stainless Steel Braided Flexible PTFE Corrugated Hose Pipe Assembly is indispensable in the field(s) of Plastic Tubes.

Customization:

Customized logo (Min. Order: 1000 Meters),Graphic customization (Min. Order: 1000 Meters),Customized packaging (Min. Order: 1000 Meters)

shipping:

Support Sea freight · Land freight

Inquiry

Write a Review

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

Hangzhou Paishun Rubber & Plastic Co., Ltd always devotes unlimited efforts to the research and development of products. By accurately grasping the pain points of customers, the 3/8" Stainless Steel Braided Flexible PTFE Corrugated Hose Pipe Assembly developed by us has been supported and praised by the majority of customers in the market. Our expertise and technologies enable tailor-made solutions for every customer.

Place of Origin:	Zhejiang, China	Brand Name:	PAISHUN
Model Number:	SAE100R14	Material:	PTFE
Specification:	3/8" I.D.	Length:	2 meter
Thickness:	0.65mm	Standard:	SAE 100R14
Processing Service:	extrusion and braid	Style:	ptfe convoluted hose
Size:	1/4" to 2"	Temperature:	-65C to +260C
Connection:	JIC female thread	Inner tube:	convoluted ptfe tubing
Outer:	SS304 wire braided	Advantage:	Very flexible
MOQ:	100 Meters

Why Choose PTFE

Paishun - 3/8 Stainless Steel Braided Flexible PTFE Corrugated Hose Pipe Assembly PTFE Hose Assembly 7

Character of PTFE

The PTFE hose material is made of Japanese Daikin.

The temperature range is -200C to +260C, melting point: 327C. It can't be injection molded and can be pressed and formed. The max. operating temperature is 280C.

PTFE has the following excellent properties due to its strong carbon-fluorine bond and high molecular wieght:

1. Excellent weather resistance, long service life, no brittle fracture and no aging.

2. Resistant to strong acid and alkali, resistant to various corrosive chemicals.

3. Anti-adhesive, anti-moisture and ultraviolet, non-toxic.

4. With a very low friction coefficuent. non-flammable.

5. With very low evaporate transpiration rate, cold liquid is not volatile.

6. With excellent electrical charateristics (does not change with frequency and temperature changes)

7. Excellent mechanical properties, shock resistance and flexibility.

Product Overview

Paishun - 3/8 Stainless Steel Braided Flexible PTFE Corrugated Hose Pipe Assembly PTFE Hose Assembly 8

Inner tube: corrugated PTFE

Outer tube: stainless steel 304 wire braided Temperature range: -65℃ to +260℃

Advantage:

high temperature resistance, corrsion resistance, excellent flexibility and resistance to distortion

No	Specification	I.D.	O.D.	Thickness	W.P.	B.P	Min. Bending Radius
No	Specification			mm	mm	mm	bar	bar	mm
1	1/4	6.4	11.5	0.8	150	400	20
2	5/16	8	12.3	0.65	130	365	25
3	3/8	10	14.2	0.65	125	350	33
4	1/2	13	17.2	0.85	110	330	42
5	5/8	16	21.6	0.9	80	245	50
6	3/4	19	25.3	1	70	215	63
7	1	25	31	1	50	150	79
8	1 1/4	32	39	1.1	45	140	125
9	1 1/2	38	45	1.45	43	120	145
10	2	50	60	1.5	35	100	180

PTFE Hose Assembly

We can crimp the hose assembly in our factory.

Ferrule: 00TF0

Fitting: According to customers' request. Most of them use JIC Female thread.

Material 1: carbon steel with zinc plated

Material 2: carbon steel with nickel alloy plated

Material 3: SS304 / SS316

Paishun - 3/8 Stainless Steel Braided Flexible PTFE Corrugated Hose Pipe Assembly PTFE Hose Assembly 11

Paishun - 3/8 Stainless Steel Braided Flexible PTFE Corrugated Hose Pipe Assembly PTFE Hose Assembly 12

Application

High temperature hydraulic, pneumatic and chemical delivery hoses for rubber, automotive, machine tools, shipbuilding, electromechanical, diesel, pressure control, paper and printing industries. For liqids, gases and highly corrosive media with laternating hot and cold heat, it has better performance and longevity than other hoses.

-Flamethrower

-Air Compressor

Paishun - 3/8 Stainless Steel Braided Flexible PTFE Corrugated Hose Pipe Assembly PTFE Hose Assembly 13

Paishun - 3/8 Stainless Steel Braided Flexible PTFE Corrugated Hose Pipe Assembly PTFE Hose Assembly 14

Paishun - 3/8 Stainless Steel Braided Flexible PTFE Corrugated Hose Pipe Assembly PTFE Hose Assembly 15

Packing&Shipping

Packing 1: PE bag with headcard for short hose assembly

Packing 2: by rolls with poly stripes

Paishun - 3/8 Stainless Steel Braided Flexible PTFE Corrugated Hose Pipe Assembly PTFE Hose Assembly 16

Paishun - 3/8 Stainless Steel Braided Flexible PTFE Corrugated Hose Pipe Assembly PTFE Hose Assembly 17

Paishun Can quote you EXW, FOB, CNF, CIF, DDU price based on the experienced shipment team.

Paishun - 3/8 Stainless Steel Braided Flexible PTFE Corrugated Hose Pipe Assembly PTFE Hose Assembly 18

If you need the goods urgently, ship
by express is a good way. Paishun cooperates with over 5 express agents, who can get discounts from DHL, FedEx, UPS, TNT or some
special line to your door. Express cost is much lower than regular charges. Goods can be sent to your door dicrectly.

Paishun - 3/8 Stainless Steel Braided Flexible PTFE Corrugated Hose Pipe Assembly PTFE Hose Assembly 19

If your goods is not small, and also want to get the goods quickly. A good way is to ship by air. Paishun can ship the goods from
air port in Hangzhou or Shanghai, etc.Goods can be sent to the nearest air port of your city.

Paishun - 3/8 Stainless Steel Braided Flexible PTFE Corrugated Hose Pipe Assembly PTFE Hose Assembly 20

If you don't need the goods in a hurry, a good way is to ship by sea. Shipment cost is much lower. Paishun can ship from Ningbo Port, Shanghai Port, Lianyungang Port or other ports as your request. Goods can be sent to the nearest sea port of your city.
