Paishun - 1/4" Stainless Braided PTFE Hose 304 JIC PTFE Hose Assembly
Buyers have always reached the best quality providing and reliable 1/4" Stainless Braided PTFE Hose 304 JIC manufacturers. Our company has been investing heavily in R&D and upgrades of technologies. This has given initial results eventually. As 1/4" Stainless Braided PTFE Hose 304 JIC advantages are discovered continually, it has been widely used in the field(s) of Rubber Hoses. The design is the most striking aspect of Paishun. Its design comes from our designers who are sensitive to fashion and are know the commercial needs of the market very well. Also, Rubber hoses made of well-selected raw materials.
| Place of Origin: | Zhejiang, China | Brand Name: | PASSION |
| Model Number: | PTFE Hose | Size: | 1/4" Inch |
| Inner Diameter: | 6.5mm | Outer Diameter: | 9.2mm |
| Tube: | PTFE | Cover: | SS304 Braided |
| Coil Length: | 100m ( Random Length ) | Standard: | SAE100 R14 Assembly |
| Connector: | Customize as per request | Working Pressure: | 170 Bar |
| Burst Pressure: | 680 Bar |
1/4" Stainless Braided PTFE Hose 304 JIC

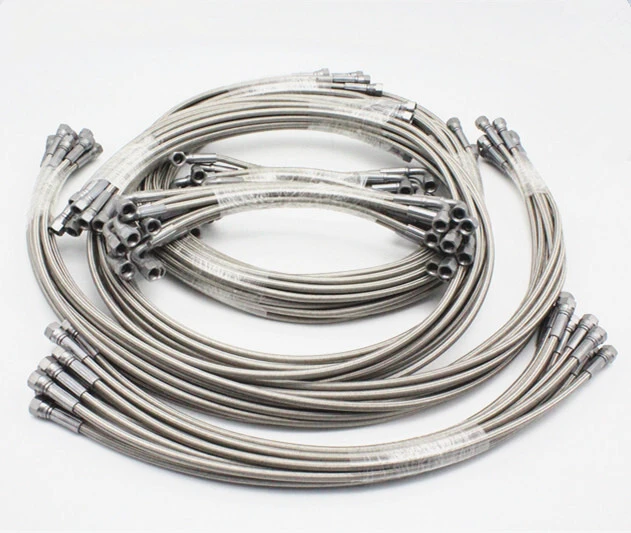

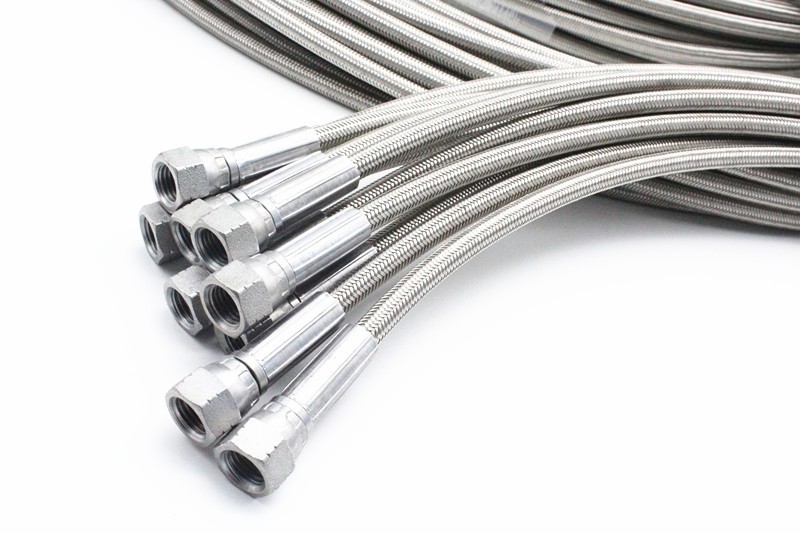

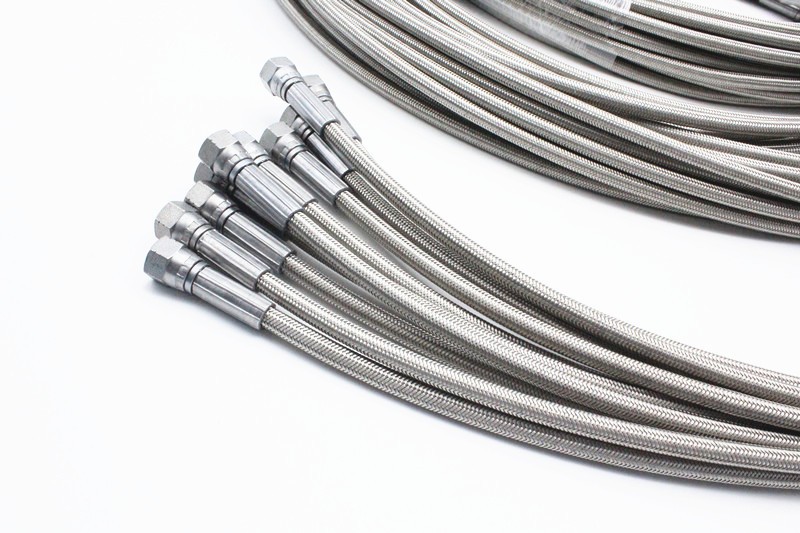

Stainless Steel Braided PTFE Hose Assembly
Tube: Temperature chemical resistant PTFE material.

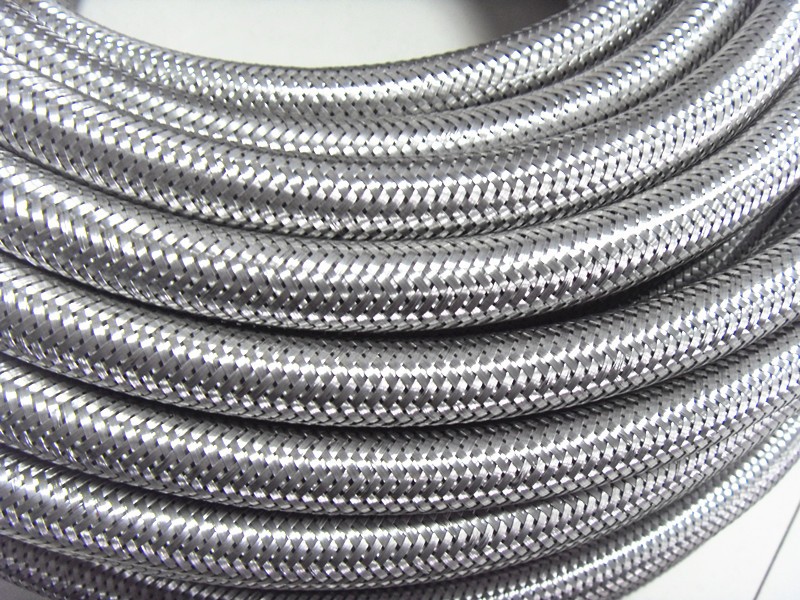

Cover: Braided with Stainless Steel 304.
Temperature: -50 ℃up to +220 ℃
Application: Used on Mechanical hydraulic system in Shipping Industry, Auto Industry and Ocean Industry.
Specifications:
SERIAL | I.D(inch) | I.D*O.D(mm) | W.P (bar) | B.P (bar) | Length/roll(m) |
3 | 1/4" | 6.0*8.7 | 179.5 | 718 | >50 |
4 | 6.5*9.2 | 170.0 | 680 | >50 | |
5 | 5/16'' | 8.0*10.8 | 155.0 | 620 | >50 |
6 | 3/8" | 10*12.4 | 135.0 | 540 | >50 |
7 | 1/2" | 12.7*15.9 | 90.0 | 360 | >50 |
8 | 5/8" | 15.9*19.3 | 62.5 | 250 | >40 |
9 | 3/4" | 19.0*22.3 | 55.8 | 223 | >30 |
10 | 7/8'' | 22.2*25.8 | 52.5 | 210 | >20 |
11 | 1" | 25.0*29.5 | 48.8 | 195 | >10 |

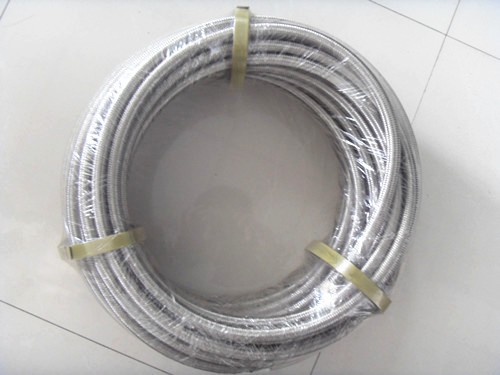

Packaging: Well packed by woven bags or Wooden pallets. Colored packing can be offered.
Shipping: We ship the goods by express, by air, by sea or according to your requirement.
Lead time: according to your quantity, generally speaking, 35 days 20' container.
♦ What is your terms of payment?
• T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
♦ How about your delivery time?
• Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
♦ Can you produce according to the samples?
• Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
♦ What is your sample policy?
• We can supply the sample for free, but the courier cost for you to pay.
♦ Do you test all your goods before delivery?
• Yes, we have 100% test before delivery
♦ How do you make our business long-term and good relationship?
• We keep good quality and competitive price to ensure our customers benefit ;
• We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
If you want to Know More Details. Please feel free to Contact Us!
