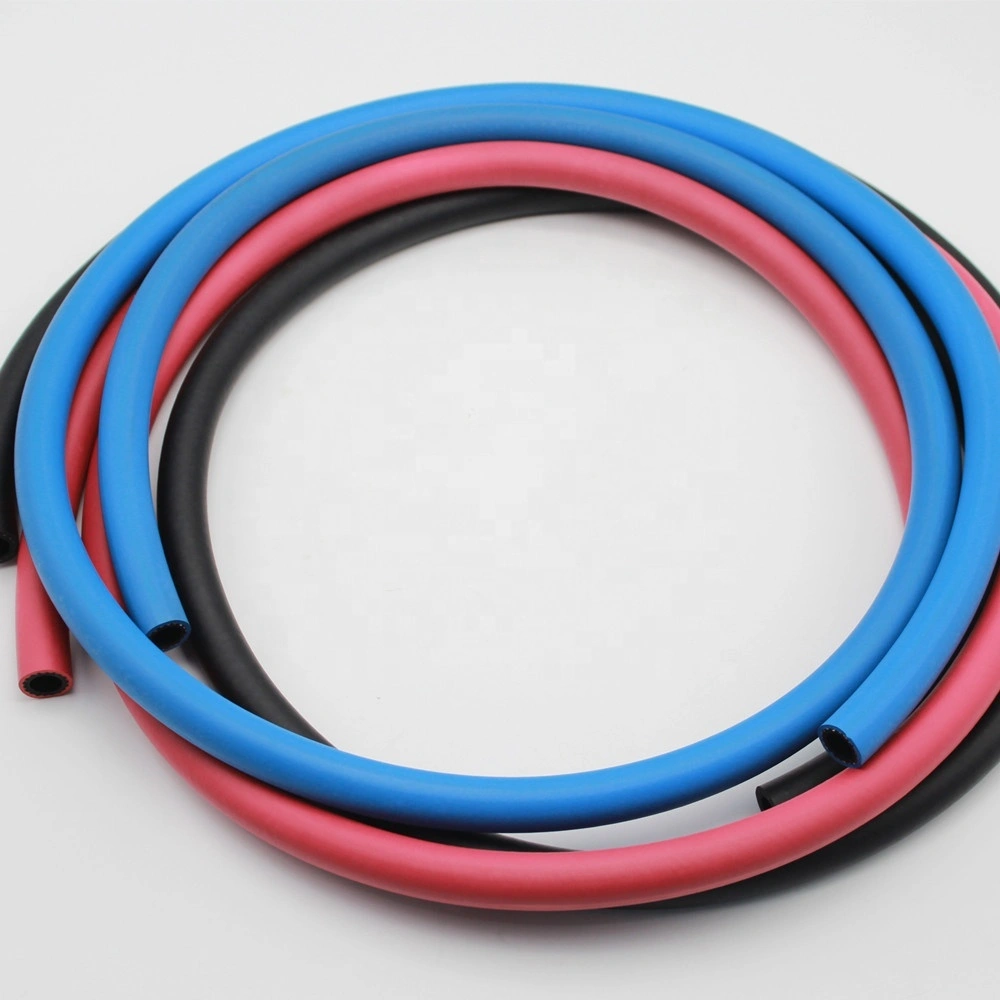

Paishun - ID 3/8 ID 1/2" Red Blue Rubber Push Lock hose For Fuel Gasoline Fuel Oil Hose
Hangzhou Paishun Rubber & Plastic Co., Ltd have accumulated many years of experience. The development of technology enables us to exploit more product advantages.Due to its practical use and versatile functions, the product is suitable for a wide range of industries such as Rubber Hoses. Our featured ID 3/8 ID 1/2" Red Blue Rubber Push Lock hose For Fuel providers ensure top quality product that will be ideal for all kinds of applications.
| Place of Origin: | China | Brand Name: | Paishun |
| Model Number: | ID 3/8" 1/2" | Material: | Synthetic Rubber |
| Application: | Fuel, Air | Color: | Red Blue |
| Working pressure: | 300 Psi (20 Bar) | Feature: | Non-clamping |
PUSH Lock HOSE
Non-clamp fastening, RMA super oil resistant, wear resistant and bending resistant;
120℃ temperature resistant, applicable to outdoor harsh environment, excellent durability;
Application: High-quality multipurpose push-on hose is especially designed for manipulators and automation equipment, with flexibility, durability and high tensile strength. It is especially suitable for transporting gas, oils, air, water and emulsified liquid at rigorous occasions in assembly line, mold, robot and T-grade welding. It is non-conducting, and can withstand 6000V or above voltage.
Technical characteristics: It is produced according to the highest European and American standards, so that it can withstand severe tests in aspect of air-tightness, durability and pressure safety.
The hose stands 5 million times of bending tests, is applicable to rolling-up of spindle, in particular to occasions needing repeated bending or friction;
It has excellent anti-UV property, can be used around clock.
By dedicated push-on connectors, it can be fastened without clamps.
Structure: Inner rubber layer: black RMA-A super oil-resistant and gas-tight NBR synthetic rubber;
Outer rubber layer: Oil-resistant, wear-resistant and super anti-aging CSM synthetic rubber.
Reinforced layer: high-strength fiber reinforced layer.
Appearance: Glossy, commonly in black, red or blue, or customized colors.
Working pressure: W.P 300 PSI
Safety factor: 4 times
Temperature: -30 to 120℃ (Free clip fastening temperature -30 to 80 ℃; With clamps temperature -30 to 120℃)
Packing: Standard export packing with double protection. Available for specific length cutting and pallet package according to customer needs.
Technical standard: ISO 19013 AS 1869
Product number | specifications | I.D (mm) | O.D (mm) | W.P (PSI) | B.P (PSI) | Bend Radius (mm) | Weight (kg/m) | Length (m/pc) |
push on hose -06 | 1/4" | 6.4 | 13.0 | 300 | 1200 | 50 | 0.15 | 100 |
push on hose -08 | 5/16" | 7.9 | 15.0 | 300 | 1200 | 60 | 0.18 | 100 |
push on hose -10 | 3/8" | 9.5 | 17.0 | 300 | 1200 | 70 | 0.23 | 100 |
push on hose -13 | 1/2" | 12.7 | 21.0 | 300 | 1200 | 120 | 0.31 | 100 |
push on hose -16 | 5/8" | 15.9 | 24.0 | 300 | 1200 | 150 | 0.38 | 60 |
push on hose -19 | 3/4" | 19.0 | 28.0 | 300 | 1200 | 170 | 0.50 | 60 |
push on hose -25 | 1" | 25.4 | 36.0 | 300 | 1200 | 200 | 0.74 | 60 |
