PASSIONHOSE - SAE R3 Two Textile Braids 1/4" To 11/4" Flexible Reinforced Hose SAE 100R3
After multiple tests, it proves that utilizing technology contributes to high-efficiency manufacturing and ensuring the stability of SAE R3 Two Textile Braids 1/4" To 11/4" Flexible Reinforced Hose.It has widespread uses in the application field(s) of Rubber Hoses and is totally worth the investment.
Hangzhou Paishun Rubber & Plastic Co., Ltd always upholds the principle of'complementary advantages, mutual benefit and win-win', and has established long-term cooperative relations with many well-known domestic and foreign companies. Rubber Hoses has passed a series of international quality assurance system and product safety certification . Hangzhou Paishun Rubber & Plastic Co., Ltd have always advocated the customer-centric business concept, aiming to provide customers with specialized, standardized, and diversified services. We focus on technology development and hope to make some innovations backed by strong technical strength.
| Place of Origin: | Zhejiang, China | Brand Name: | PASSION |
| Model Number: | SAE 100R3 | Material: | NBR |
| Size Range: | 1/4" ~ 11/4" | Length: | 20m, 50m, 100m per roll |
| Reinforcement: | Two textile braids | Inner Tube: | Synthetic rubber |
| Cover Compound: | Neoprene | Temperature Range: | -40 Deg C ~ +100 Deg C |
| Hose surface: | Cloth wrapped | Color: | Black |
| Capability: | Oil resistant, wear resistant, anti-aging etc. |

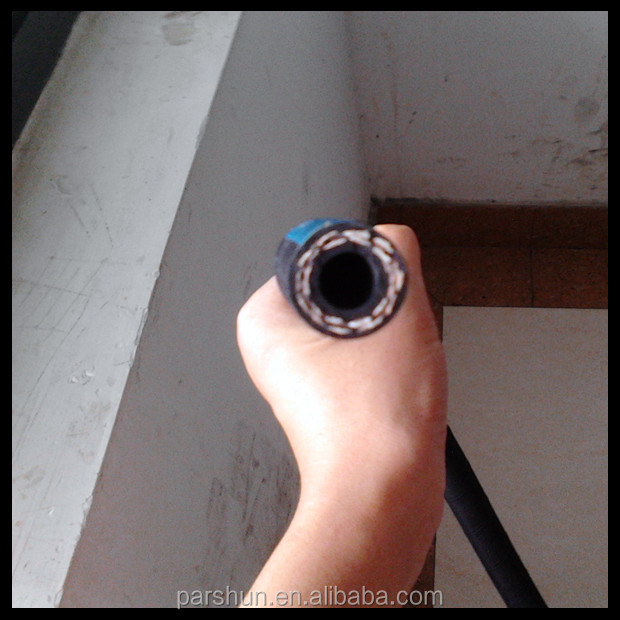

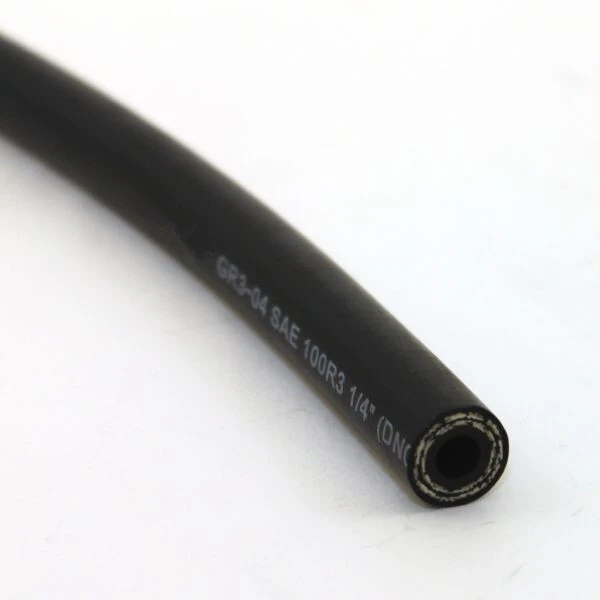

Two textile braids 1/4" to 11/4" flexible reinforced hose hydraulic rubber hose sae r3
Application: A low pressure textile reinforced hose for petroleum or water based hydraulic fluids or pheumatic applications. Not to be used for air brake.
Inner Tube: Synthetic Rubber
Reinforcement: Two textile braids
Cover Compound: Neoprene
Temperature Range: -40C~+100C
Size: 1/4"~11/4"
Color: Black
Features: Oil resistant, wear resistant, anti-aging
Length: 100m, 50m, 20m
Surface: Cloth wrapped
Specification
part | In | Hose Size ID DIN Dash Size | Hose OD | Max.Working pressure | Min.Bend Radius | Min..Burst pressure | Weight (ibs/foot) | ||||
in | mm | psi | mpa | in | mm | psi | mpa | ||||
GR3-04 | 1/4 | 6.4 Din Dash Size | 0.536 | 14.3 | 1250 | 8.6 | 3 | 76 | 5000 | 34.5 | 0.12 |
GR3-05 | 5/16 | 7.9 Din Dash Size | 0.689 | 17.5 | 1200 | 8.3 | 4 | 102 | 4800 | 33.1 | 0.1615 |
GR3-06 | 3/8 | 9.5 Din Dash Size | 0.75 | 19 | 1125 | 7.8 | 4 | 102 | 4500 | 31 | 0.17 |
GR3-08 | 1/2 | 12.7 Din Dash Size | 0.938 | 23.8 | 1000 | 6.9 | 5 | 127 | 4000 | 27.6 | 0.25 |
GR3-12 | 3/4 | 19 Din Dash Size | 1.25 | 31.8 | 750 | 5.2 | 6 | 152 | 3000 | 20.7 | 0.43 |
GR3-16 | 1 | 25.4 Din Dash Size | 1.5 | 38.1 | 565 | 3.9 | 8 | 203 | 2260 | 15.6 | 0.51 |
GR3-20 | 11/4 | 31.8 Din Dash Size | 1.75 | 44.4 | 377 | 2.6 | 10 | 254 | 1508 | 10.4 | 0.6311 |

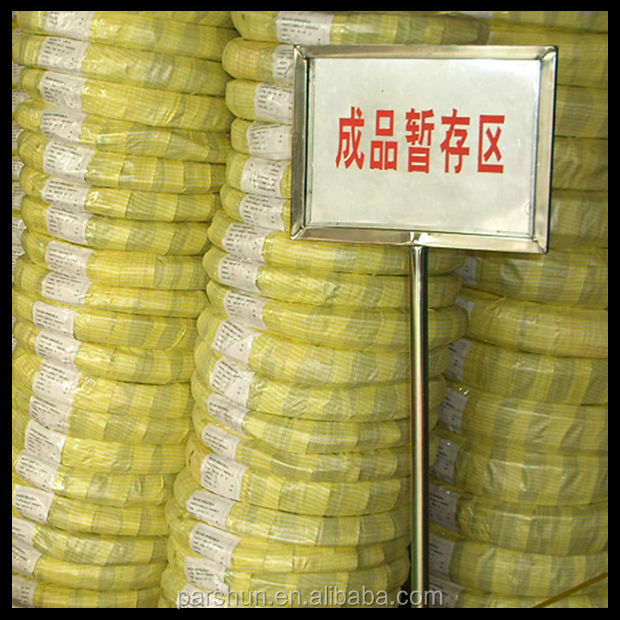

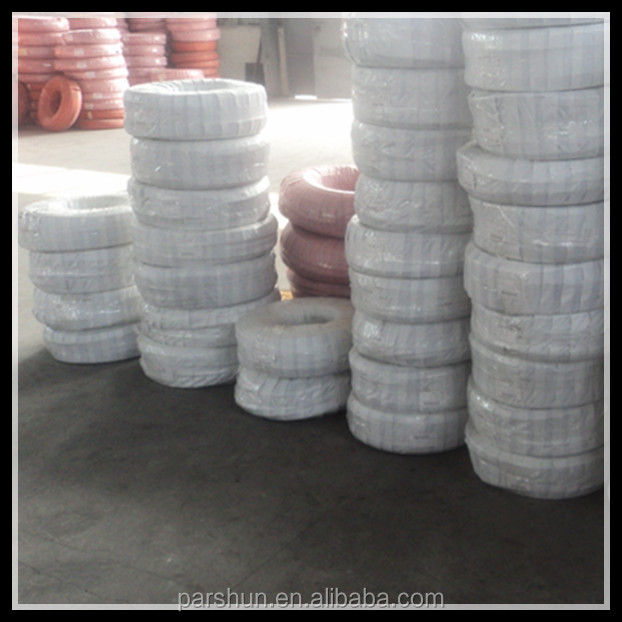

Packaging: We will package the goods with poly stripes for well packaging and we can also package the goods according to your specific requirement.
shipping: We ship the goods by express, by sea, by air or as your requirement.
Lead time: According to your quantity, usually, 25 days for a 20' container.
Our company specialized in manufacturing various rubber hose, rubber products and hydraulic rubber hose assemby. And our products are extensively used in coal mine, petrol,construction, chemical, mechanical equipment and transportation system of liquid media and they are resistant of oil, heat, bending, aging, high pressure and with powered pulse. Adhering to the principle of " Being honest first and win from specialty ", we have received good praise from our usual customers.

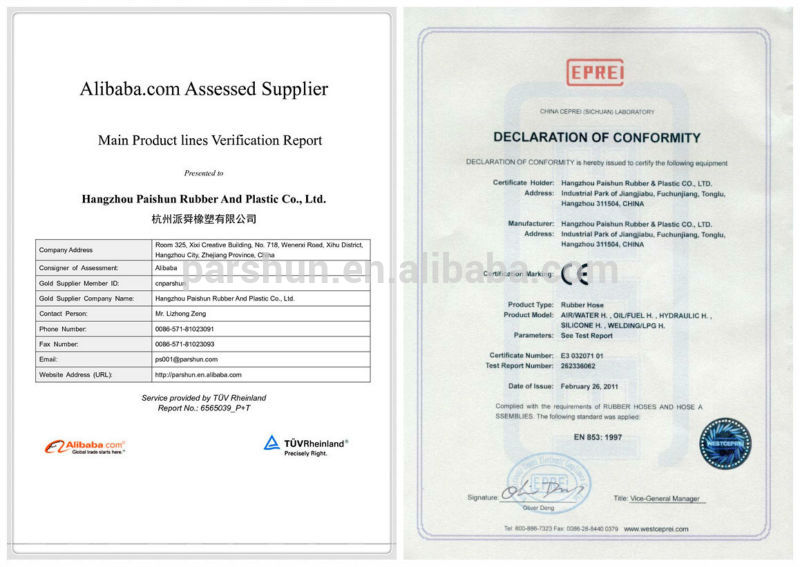

Certification

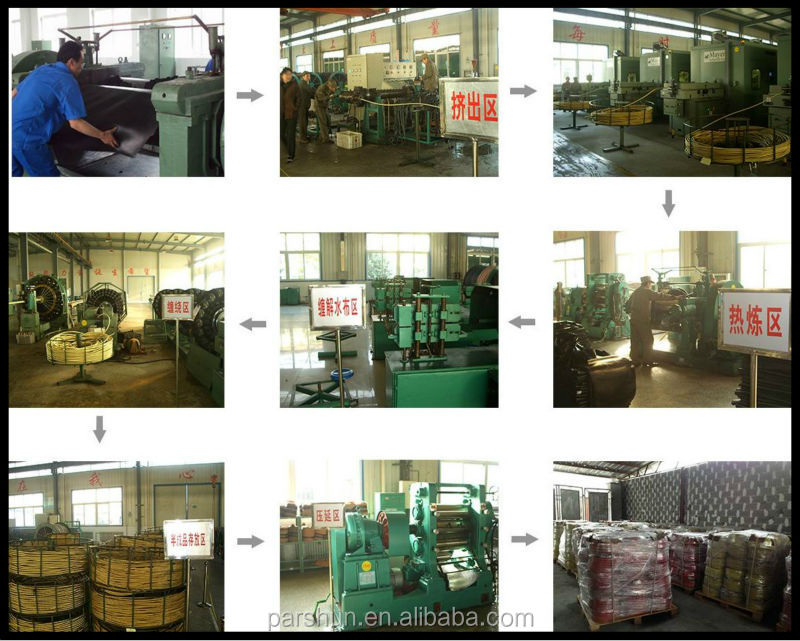

Production flow
Activities
Fairs
Hot Sales!
Click Here!
1. What's the minimum order quantity ?
The minimum order quantity is 1000 meters.
2. How many kinds of payment do you have and what' s your main one ?
We have more than three kinds of payment and the main one is 30% deposit and 70% against the
copy of B/L.
3. How many sizes can you provide ?
The size of our products is usually from 1/4 inch to 11/4" inch, but other sizes can also be customized according to your requirement.
4.Can you send free sample ?
Yes, it's OK.
