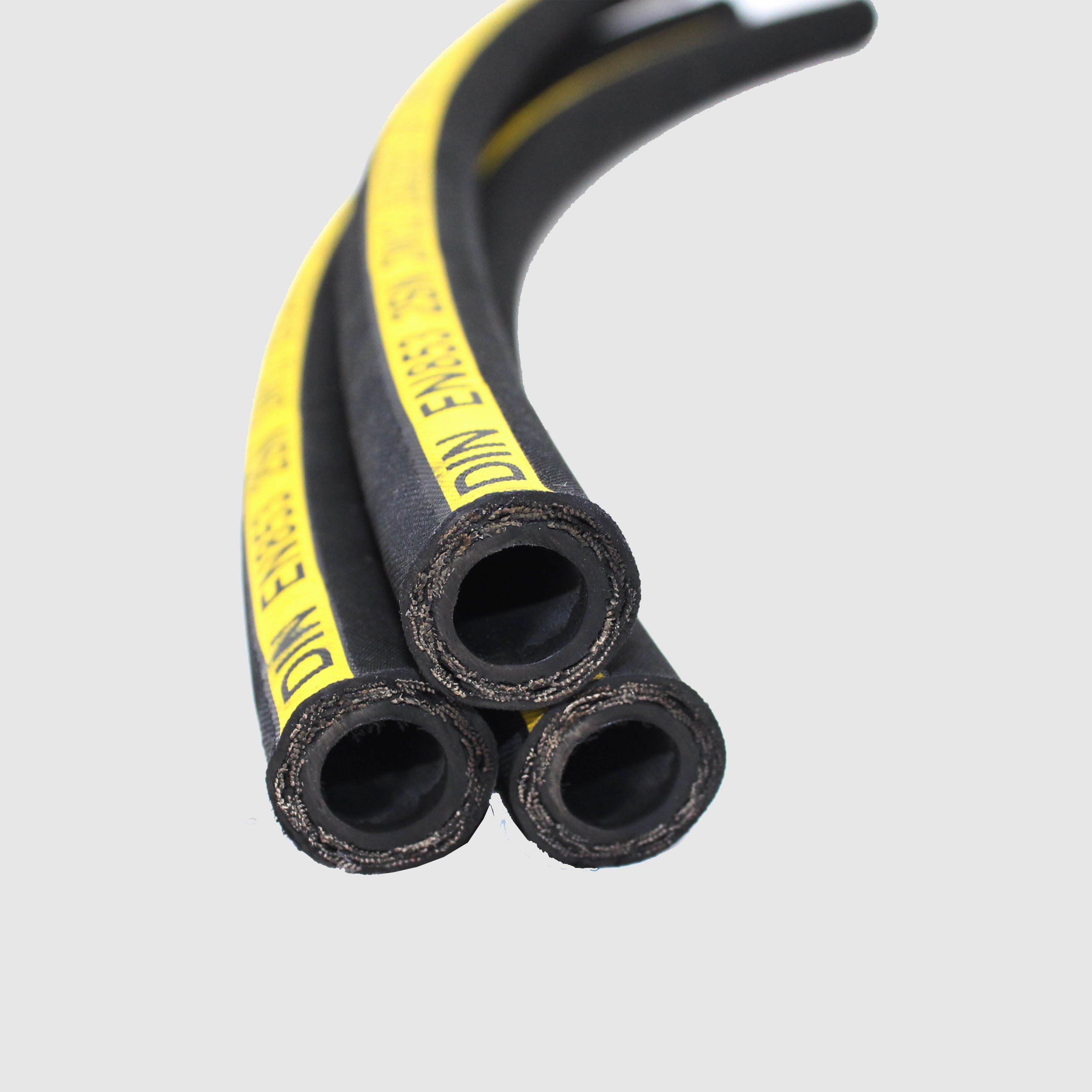

Paishun - Upgraded Temperature Resistance Hydraulic Hose R2-1/2" SAE 100R2 EN853 2SN
Hangzhou Paishun Rubber & Plastic Co., Ltd conforms to the development trend of the industry, integrates internal superior resources, adopts the industry's cutting-edge manufacturing technology and production technology, and successfully creates Upgraded Temperature Resistance Hydraulic Hose R2-1/2" with excellent performance and reliable quality.
5.0
Customization:
Customized logo (Min. Order: 500 Meters),Customized packaging (Min. Order: 500 Meters),Graphic customization (Min. Order: 500 Meters)
shipping:
Support Sea freight · Land freight
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Required Products
Total price discount:
Among Hangzhou Paishun Rubber & Plastic Co., Ltd's product categories, Upgraded Temperature Resistance Hydraulic Hose R2-1/2" is especially favored by customers. It's designed out of the needs of our customers. Hangzhou Paishun Rubber & Plastic Co., Ltd has developed a market-leading reputation in the industry for delivering outstanding products and solutions. The exceptional ability sees our efforts in R&D.
| Place of Origin: | Zhejiang, China | Brand Name: | Paishun |
| Model Number: | Hydraulic Hose | Length: | 40m, 50m, 100m |

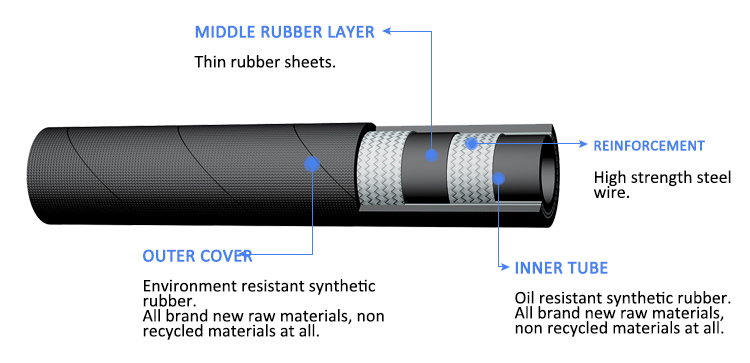

| Reinforcement: | Two layer of steel wire braided | Inner Tube: | NBR sythetic rubber |
| Temperature Range: | -40Deg C ~ +100Deg C | ID: | 1/4"~2" |
| Hose surface: | Cloth or Smooth | Color: | Black, Grey, Blue |
| Standard: | EN 853 2SN | Outer Tube: | NBR sythetic rubber |
Why Choose Us
* Various colors.
* Free hose sample available.* Words and your logo can be printed. OEM accepted.
* Strict quality control. Test the products before shipping out with the complete line of test machines.
* Customized hose accepted.
* Factory sale with lower prices.
* Solid construction
* Good service lifetime
* Increased working pressure
* Very flexible and light
Product Description
Product Detail | ||
Name | Hydraulic Rubber Hose | |
Size | 1/4" ~ 2" | |
Reinforcement | 1 or 2 steel wire braid. | |
Temperature Range | -40ºC ~ +100ºC (-40ºF~ +212 ºF) | |
Application | High pressure hydraulic oil lines used in construction, machine tool and agricultural applications using petroleum or water based hydraulic fluids. | |
Certification | CE and ISO approved | |
Printing Word | We can print LOGO or as your requirement. | |
Packaging Detail | By poly stripes or as your request. | |
Delivery | About 28 days for a 20' container. | |
Product Specification | ||||||||||||
SAE 100R1AT / EN853 1SN | ||||||||||||
Part No. | SIZE | I.D | O.D | W.P | B.P | WEIGHT | ||||||
Part Number | inch | mm | mm | bar | bar | g/m | ||||||
P04-1SN | 1/4″ | 6.4 | 13.4 | 225 | 900 | 225 | ||||||
P05-1SN | 5/16″ | 8 | 15.2 | 215 | 860 | 260 | ||||||
P06-1SN | 3/8″ | 9.5 | 17.3 | 180 | 720 | 340 | ||||||
P08-1SN | 1/2″ | 12.7 | 20.3 | 160 | 640 | 415 | ||||||
P10-1SN | 5/8″ | 16 | 23.7 | 130 | 520 | 475 | ||||||
P12-1SN | 3/4″ | 19 | 28 | 105 | 420 | 590 | ||||||
P16-1SN | 1″ | 25.4 | 36.2 | 87 | 348 | 875 | ||||||
P20-1SN | 1 1/4″ | 31.8 | 43 | 62 | 248 | 1205 | ||||||
P24-1SN | 1 1/2″ | 38.1 | 49.2 | 50 | 200 | 1405 | ||||||
P32-1SN | 2″ | 50.8 | 62.6 | 40 | 160 | 1910 | ||||||
SAE 100R2AT / EN853 2SN | ||||||||||||
Part No. | SIZE | I.D | O.D | W.P | B.P | WEIGHT | ||||||
inch | mm | mm | bar | bar | g/m | |||||||
P04-2SN | 1/4″ | 6.4 | 14.5 | 400 | 1600 | 380 | ||||||
P05-2SN | 5/16″ | 8 | 16.7 | 350 | 1400 | 435 | ||||||
P06-2SN | 3/8″ | 9.5 | 19.2 | 330 | 1320 | 550 | ||||||
P08-2SN | 1/2″ | 12.7 | 21.8 | 275 | 1100 | 640 | ||||||
P10-2SN | 5/8″ | 16 | 25.4 | 250 | 1000 | 750 | ||||||
P12-2SN | 3/4″ | 19 | 29.9 | 215 | 850 | 925 | ||||||
P16-2SN | 1″ | 25.4 | 37.8 | 165 | 650 | 1290 | ||||||
P20-2SN | 1 1/4″ | 31.8 | 46.4 | 125 | 500 | 1895 | ||||||
P24-2SN | 1 1/2″ | 38.1 | 52.7 | 90 | 360 | 2120 | ||||||
P32-2SN | 2″ | 50.8 | 65.4 | 80 | 320 | 2765 | ||||||
Product Photo | ||||||||
Workshop
Production Line | ||||||||
Raw Materials
We only use new raw materials, none recycled materials at all.
The raw materials are bought from big group company such as China Petro and Sinopec.
Rubber Mixing Machines
We have our own rubber mixing machines, this makes us be able to do research and produce different types of hoses.
And keep a constant rubber sheet supplying.
Steel Wire Braiding Machine
Vulcanizing Boiler
Braiding Machine
Spiral Machine
Packaging
Test Machines | ||||||||
Impulse Testing Machine
Impulse Test
.
Burst Pressure Test
Abrasion Test
Wire Diameter
Test Table
Wire Kontting
Wire Kontting
Ozone Resistance
Rubber Sheet Thickness
Rubber Sheet Strength
Rubber Sheet Hardness
Vulcanizer
Exhaustion Test
Aging Test
Exhibition
Packing
Shipping
We ship the goods by express, by air, by sea or according to your requirement.
Exhibition
More of Paishun
Paishun Sales Network | ||||||||
We have a wide range of global market. Our rubber hoses and hose assemblies are exported to USA, Canada, UK, Norway, Germany, Spain, Portugal, Denmark, Australia, Japan, Thailand, Sri Lanka, Vietnam, Peru, Chile, Argentina, South Africa etc, more than 90 countries all over the world.
About Paishun | ||||||||
Paishun factory covers a land of over 3 hectares, and the workshops occupy a surface of 25000 square meters. We own complete production lines of the rubber mixing process, cold feeding material extrusion process, microwave vulcanization process, and high-speed braiding process, etc.
We produce mainly industrial hoses like Air Hose, Water Hose, Oil Hose, Welding Hose, Hydraulic Hose, and Assemblies. Paishun, being a rapidly growing enterprise focusing on the professional production of pure rubber hoses and braided rubber hoses, its yearly production capacity reaches 10 million meters.
Our key policy is "enterprise may thrive with the technology, and may last with good quality". So we put much investment in the research team, and in advanced testing laboratory equipment. We now use a series of tensile testing machines, vulcanization testing devices, aging testing chest, pressure testing machines to ensure effective quality control. All these testing machines and related procedures may form a complete quality control system, beginning from the selection of the raw materials until the end step. Thus, we wish our products can satisfy all of our customers, and help them to gain more and more market share.
We produce mainly industrial hoses like Air Hose, Water Hose, Oil Hose, Welding Hose, Hydraulic Hose, and Assemblies. Paishun, being a rapidly growing enterprise focusing on the professional production of pure rubber hoses and braided rubber hoses, its yearly production capacity reaches 10 million meters.
Our key policy is "enterprise may thrive with the technology, and may last with good quality". So we put much investment in the research team, and in advanced testing laboratory equipment. We now use a series of tensile testing machines, vulcanization testing devices, aging testing chest, pressure testing machines to ensure effective quality control. All these testing machines and related procedures may form a complete quality control system, beginning from the selection of the raw materials until the end step. Thus, we wish our products can satisfy all of our customers, and help them to gain more and more market share.
Why Choose Paishun | ||||||||
RELATIONSHIPS
Long term business relationships are of upmost importance to us at Paishun. With our roots planted as a manufacturer, we take the time to learn about your business and your individual needs so we can provide better service to you. We pride ourselves on maintaining long term business relationships and understand that it takes time to build trust in new ones.
QUALITY
Paishun is ISO 9001:2015 certified for the manufacturing of rubber hoses. This certification encompassed with lean manufacturing allows us to ensure our products are safe, reliable and of superior quality.
Our workshop upholds strict cleanliness guidelines at all times. We maintain a clean and organized environment. This allows us to guarantee your hoses are produced promptly and efficiently.
Our workshop upholds strict cleanliness guidelines at all times. We maintain a clean and organized environment. This allows us to guarantee your hoses are produced promptly and efficiently.
SHORT LEAD TIMES
We have continually made improvements to our manufacturing process over 12+ years. We've implemented lean manufacturing and moved to a larger workshop. These changes have enabled us to support growth and streamlined our supply chain process in order to respond quickly to market change. All with the goal to decrease lead time and improve quality.
INVENTORY MANAGEMENT
A consistent unbroken supply chain allows us to produce rubber hoses at a steady pace. We understand how important production scheduling and inventory flow are to your business. We will work with you on an individual basis and will process blanket orders to assist with your inventory level. All of our materials are sourced from big group company such as China Petro and Sinopec, to adhere to our best quality standard.
