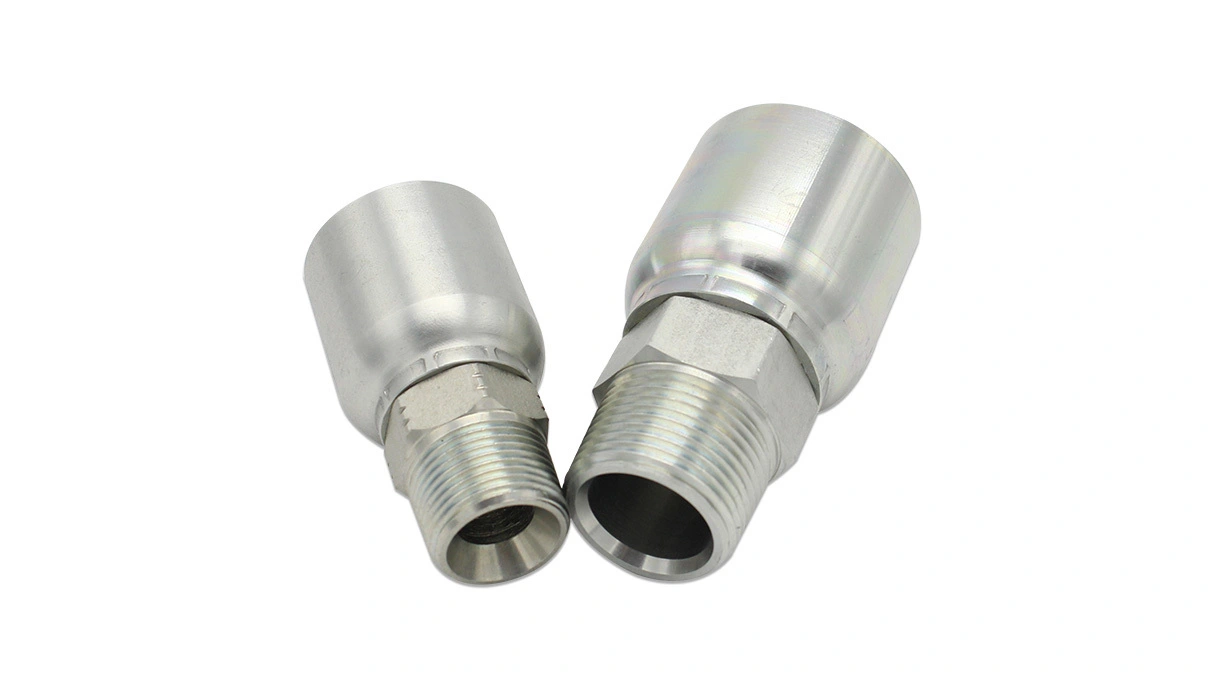

No skiving Crimp NPT Male High Pressure 1 Piece Hydraulic Hose Fitting is made adopting standardized raw materials and processed by advanced technology. This product is the perfect result of combining all the great performance of those qualified raw materials. There are many advantages of our Rubber hoses.Moreover, its unique appearance makes it highly eye-catching among the like.
Material: carbon steel 45#
Surface: zinc plated
Thread: NPT male
Fitting type: one piece fitting
Size: 3/16" to 2"
Hose: for 1, 2, 4 wires hydraulic hoses
◪ No complaint---standard process and excellent service
◪ Receive them in a very short time---enough stock
◪ Accurate dimensions---automatic CNC machines
◪ Receive them without damage---strong packing
◪ Free sample available
◪ OEM and ODM
◪ Supply hydraulic hose fittings, hydraulic hoses and hydraulic hose assemblies
Detail
| Standard | Yonghua |
| Part Number | 15611-RW for wire braided hoses |
| Material | Carbon Steel 45# |
| Surface | Zinc plated with Cr+3 |
| Testing | Pass at least 120 hours of salt spray test |
| Part No. | 螺纹 THREAD E | HOSE BORE DN | HOS BORE DASH | DIMENSION A | DIMENSION B | DIMENSION H |
|---|---|---|---|---|---|---|
| 15611-02-04RW | 1/8"x27 NPTF | 6 | 04 | 47 | 23 | 12 |
| 15611-04-04RW | 1/4"x18 NPTF | 6 | 04 | 53 | 29 | 14 |
| 15611-06-04RW | 3/8"x18 NPTF | 6 | 04 | 55 | 31 | 19 |
| 15611-04-05RW | 1/4"x18 NPTF | 8 | 05 | 53 | 29 | 14 |
| 15611-06-05RW | 3/8"x18 NPTF | 8 | 05 | 55 | 31 | 19 |
| 15611-04-06RW | 1/4"x18 NPTF | 10 | 06 | 52 | 29 | 14 |
| 15611-06-06RW | 3/8"x18 NPTF | 10 | 06 | 54 | 31 | 19 |
| 15611-08-06RW | 1/2"x14 NPTF | 10 | 06 | 55 | 32 | 22 |
| 15611-06-08RW | 3/8"x18 NPTF | 12 | 08 | 55 | 32 | 19 |
| 15611-08-08RW | 1/2"x14 NPTF | 12 | 08 | 62 | 38 | 22 |
| 15611-08-10RW | 1/2"x14 NPTF | 16 | 10 | 63 | 38 | 22 |
| 15611-12-10RW | 3/4"x14 NPTF | 16 | 10 | 59 | 34 | 27 |
| 15611-12-12RW | 3/4"x14 NPTF | 20 | 12 | 60 | 34 | 27 |
| 15611-16-16RW | 1"x11-1/2 NPTF | 25 | 16 | 75 | 45 | 36 |
| 15611-20-20RW | 1-1/4"x11-1/2 | 32 | 20 | 104 | 57 | 46 |
| 15611-24-24RW | 1-1/2"x11-1/2 | 40 | 24 | 89 | 51 | 50 |
| 15611-32-32RW | 2"x11-1/2 | 50 | 32 | 104 | 55 | 65 |
PASSIONCO Ferrule for one wire braided hydraulic hoe
Ferrule for two wire braided hydraulic hose
20511-T
Metric Female 24 degree Cone with o-ring. H.T.
ORFS Flat Female
JIC female 37 degree cone seat
One piece type NPT Male
Paishun products are particularly suitable for the following areas of applications:
* Heavy equipment and earth-moving machinery in construction sites
* Mining and drilling
* Agricultural machines and equipment
* Working platforms, cranes, and lifting
* Pressure washer
For Construction Machinery
With high impulse performance, PAISHUN hydraulic hose can be widely used on construction machinery such as excavators, bulldozers, earthmovers, etc.
For Mining and Drilling
For Agricultural Machinery
For Working platforms, Cranes, and Lifting
PAISHUN hose can be used in working platforms, cranes, and lifting.
Customized hoses are available.
For Pressure washer
With high flexibility, PAISHUN hydraulic hose can be also used on pressure washers, and jet washers for the washing sites.
Home use and industry use are both available.
