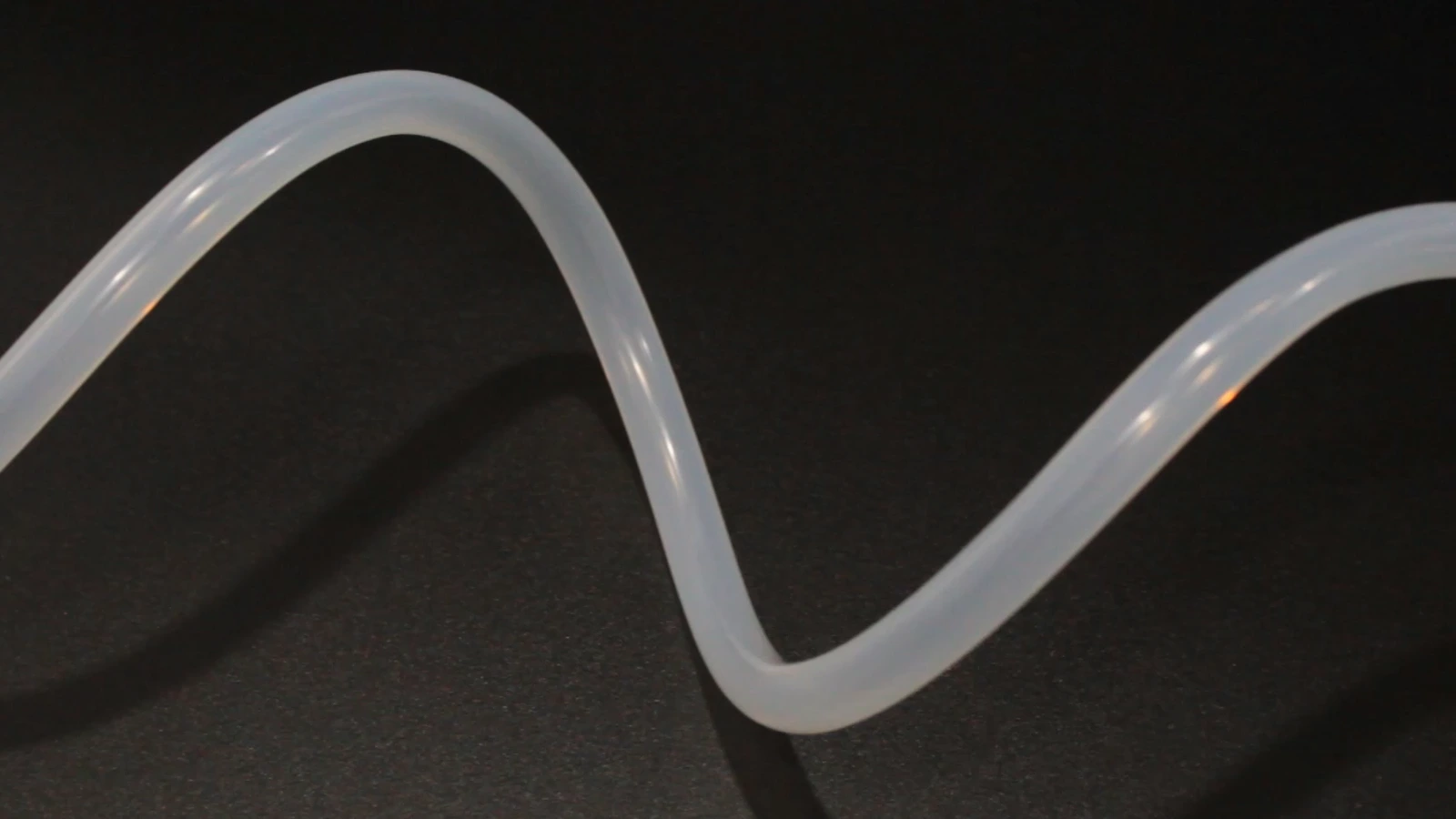

PASSIONHOSE vacuum silicone hoses are made of high-grade silicone material, which are highly flexible, without bad smell, and have high-temperature resistance.
Industrial-grade silicone hoses are good to be used to transfer air, water, and antifreeze.
Food-grade silicone hoses are FDA, LFGB, ROHS, REACH, and Prop 65 certified, which are excellent to transfer drinking water, milk, beer, coffee, etc.
Hose sizes are controlled by machines precisely.
The size tolerance is only +/-0.3mm. Length could be 50m or 100m per roll, 100ft or 10ft per roll.

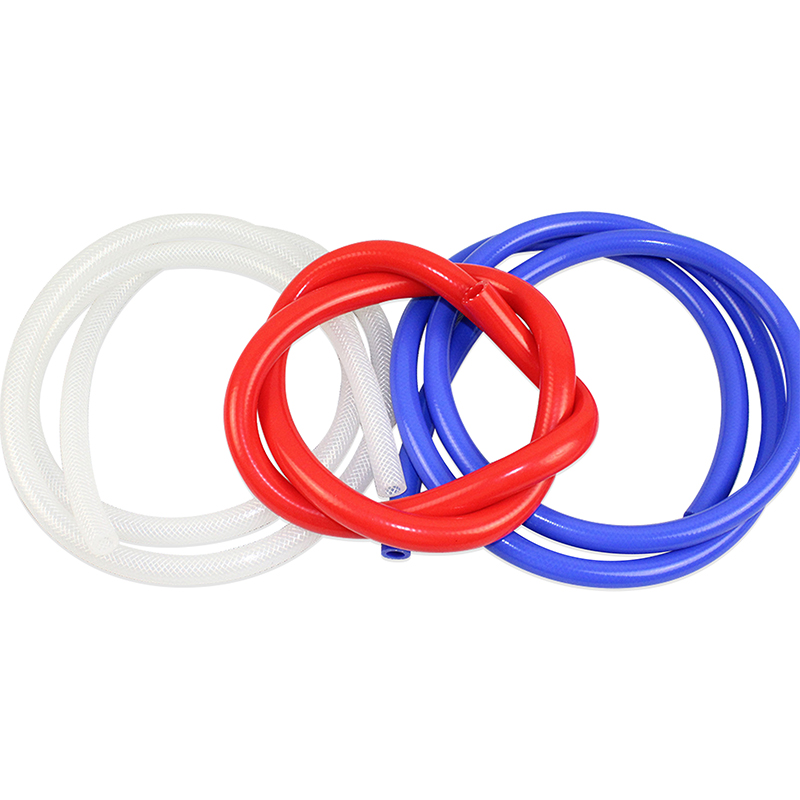

Black, blue, red, and transparent are the most popular colors.
◪ High flexibility
◪ Food grade or industrial grade.
◪ Various color options
◪ Odorless.
◪ High-temperature and pressure resistance.
◪ Only +/-0.3mm size tolerance.
-Material:
100% band new silicone, from big groups
-Certificate:
RoHS, Reach, FDA, LFGB, Prop 65, LFGB
-Surface:
Shiny
-Color:
Black, blue, red, transparent, gray, or as request

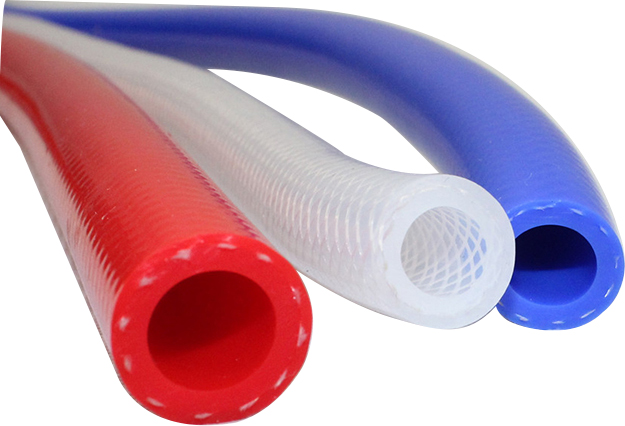

-Reinforcement:
Highly tensile polyester
| Serial | I.D. (mm) | Thickness (mm) | O.D. (mm) | Length (meter/roll) | Hardness (Shore A) | Grade |
|---|---|---|---|---|---|---|
| 1 | 3 | 2 | 7 | 50 or 100 | 65 | High Grade |
2 | 4 | 2 | 8 | 50 or 100 | 65 | High Grade |
| 3 | 5 | 2 | 9 | 50 or 100 | 65 | High Grade |
| 4 | 6 | 2 | 10 | 50 or 100 | 65 | High Grade |
| 5 | 10 | 3 | 16 | 50 or 100 | 65 | High Grade |
| 6 | 15 | 3 | 21 | 50 or 100 | 65 | High Grade |
HVAC Systems
For heating, ventilation, and air conditioning (HVAC) systems, and accompanying ducting requirements, silicone is a great choice. These heater hoses need to withstand temperature fluctuations and perform reliably at high temperatures.
Diesel-Powered Applications
Many vehicles use turbo-diesel engines (that run on diesel fuel rather than standard gasoline), which often offer greater performance and reduced emissions levels. While the heat is distributed differently inside a diesel engine as compared to a gasoline-powered engine, it’s still very present, making high-temp silicone hoses a good choice for diesel-powered vehicle engines and similar applications.
Large Trucks
Every day, large trucks ship wares from one region to the next. Many fleets take cross-country trips from coast to coast. These trucks need reliable engines that can handle such heavy loads. As with other engines, heat is involved in the generation of power, and silicone hoses and tubing can withstand that level of heat.
Heavy Equipment
Bulldozers, forklifts, cranes, excavators, tractors, and other types of heavy equipment often work in harsh environments. They perform grueling jobs that would take countless people and hours to complete manually. These heavy equipment vehicles are used in building construction, road repair, farming, and many other applications. Because of the force and power needed for such applications, a lot of heat is generated in the process, and high-temp silicone hoses make a great choice for just about any type of heavy construction equipment.

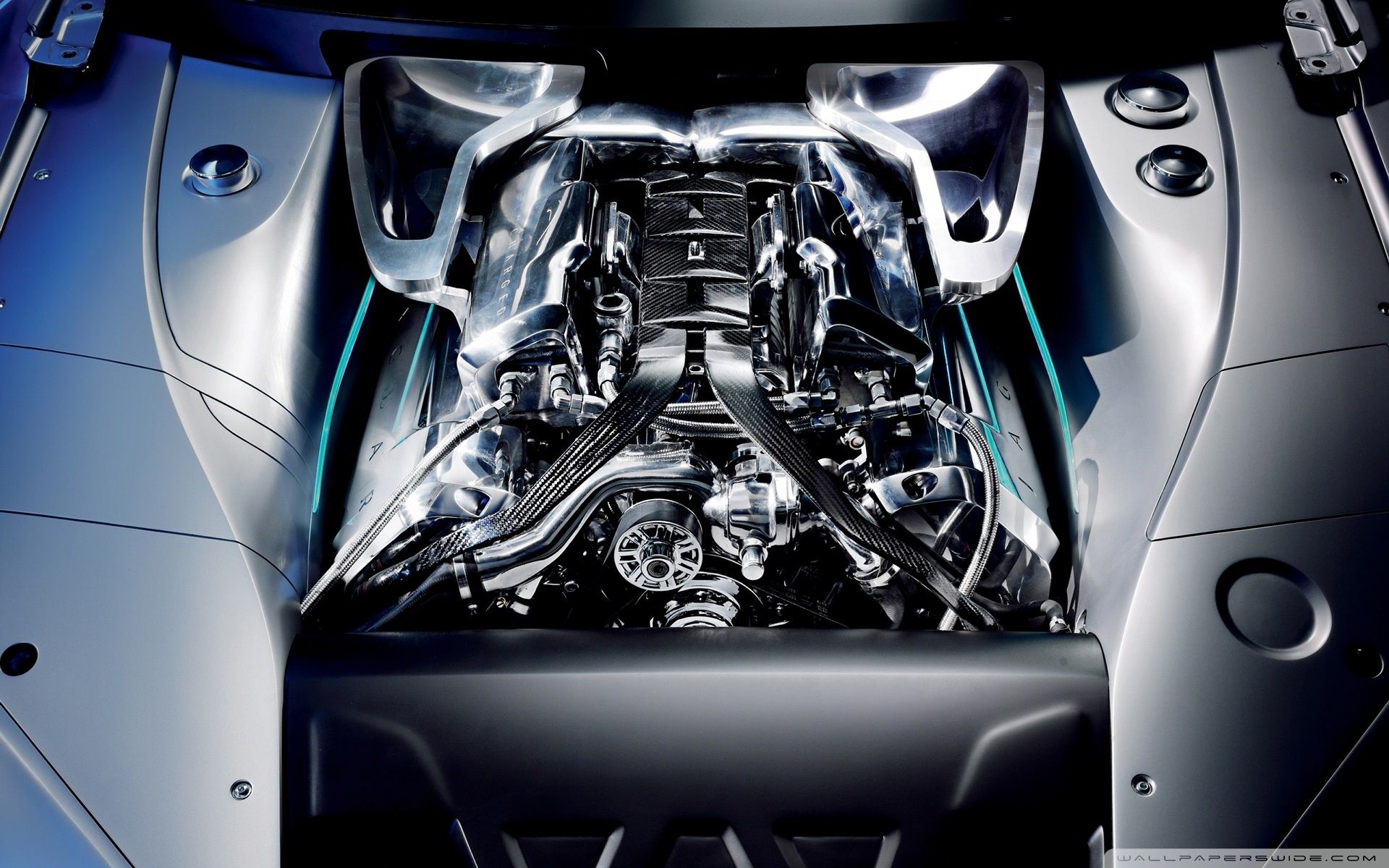

Car Engines
There’s a lot of power in car engines and a lot of heat that’s generated! Hoses are used to deliver important fluids to the various components of your vehicle’s engine. These fluids can include oil, gasoline, coolant, and more. In this compact, high-temperature environment that works hard to enable you to move your vehicle from one place to another, whether it’s your daily commute to work or a cross-country, multi-day trip, reliability is important; these hoses need to hold up and perform well in the presence of extreme heat.
Performance Vehicles
Race cars and other vehicles that push the limits of speed use engines that have been highly modified from what we’re used to seeing in our everyday commuter cars. These engines have evolved significantly over the years to be lightweight, ultra-powerful, and highly predictable on the racetrack. Silicone hoses feature prominently in such engines because they are lightweight and strong, and they can withstand extreme temperatures.
Airplane Engines
Just as you’ll find silicone hoses in your vehicle and in race cars, you’ll frequently see them in aerospace applications, including airplane engines, which have to run under sometimes very high operating temperatures. With aircraft engines, there is no room for error, so they need to be designed and constructed with materials that will hold up well during the rigors of flight. Thankfully, silicone heater hoses meet the stringent requirements of airplane engines.
Food Production
When it comes to maintaining purity in the end food product as well as in all the ingredients that go into the production stream, high-temp silicone hoses make a great choice. They don’t degrade, which means they will not contaminate the food being produced, and they prevent outside contaminants from getting into the foods (or beverages) being processed.
