SAE 100R6 One Fiber Braid Hydraulic Rubber hose
SAE 100R6 is a lightweight, flexible, and cost-effective hydraulic hose built for low-pressure applications where extreme strength is not required. Its single-textile-braid construction offers excellent flexibility and easy routing, making it ideal for tight spaces and simple hydraulic circuits. While not suitable for high-pressure or high-impulse conditions, it delivers reliable performance in return/suction lines, air brake systems, and lubrication lines. With good resistance to oils, ozone, and weather, it serves as a practical, economical choice for non-critical fluid conveyance across various industries.
Key specifications at a glance:
| Parameter | Specification |
|---|---|
| Reinforcement | Single textile braid |
| Tube material | Oil-resistant synthetic rubber |
| Cover material | Weather- and abrasion-resistant synthetic rubber |
| Temperature range | –40°C to +100°C |
| Max working pressure | Up to 3.5 MPa (500 psi) |
| Common applications | Return lines, suction lines, air brakes, lubrication |
Hydraulic Hose FeaturesEngineered for medium pressure, high pressure, extreme temperatures, and durability
-
Flexible, reliable, and built for long service life
-
Meets international standards (e.g., SAE, DIN, EN)
-
One source for all your hydraulic connection needs
-
OEM accepted
-
Customized hose accepted
-
Free hose sample available

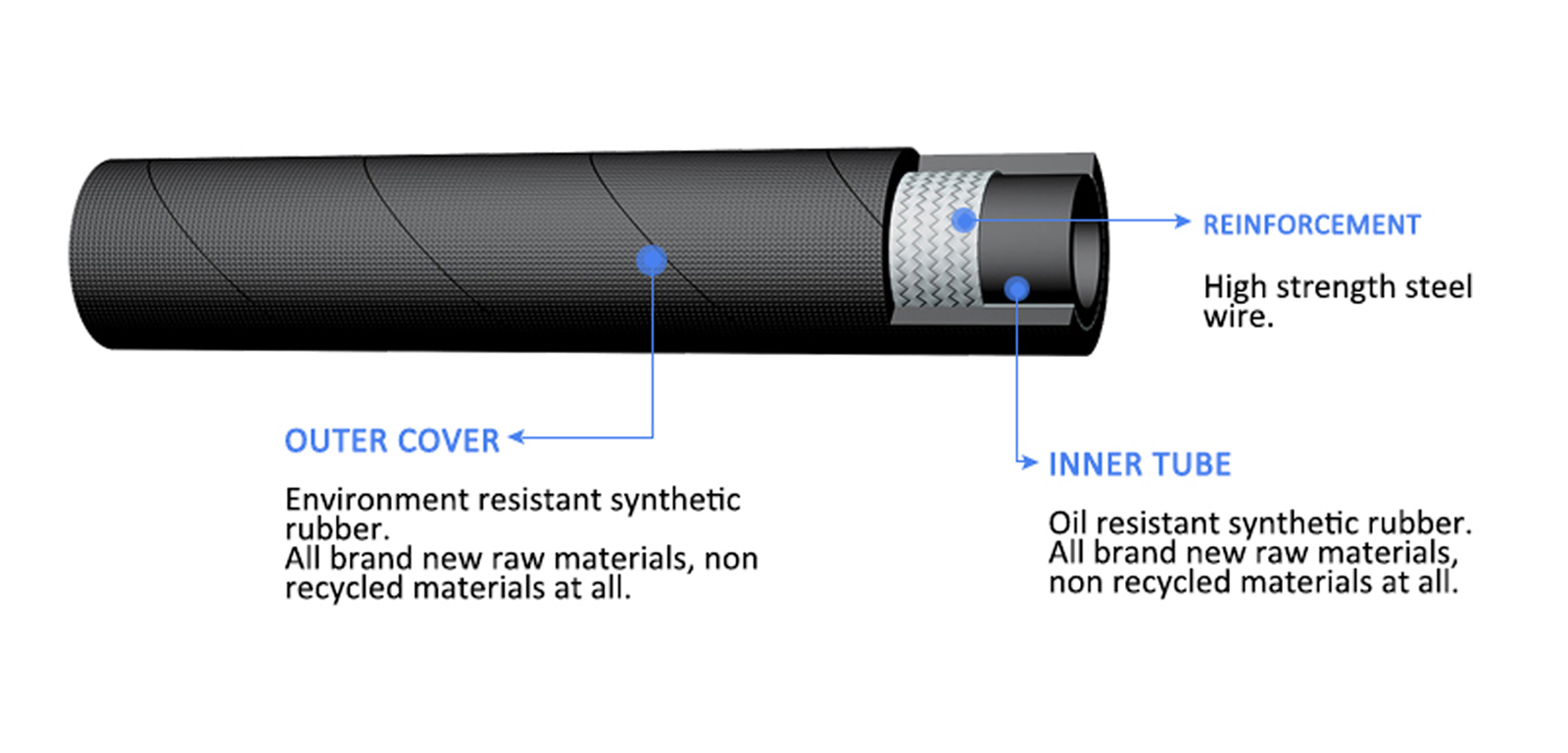

Description
Inner Tube: Oil-Resistant Synthetic Rubber
-
Outer Cover: Abrasion & Ozone Resistant Synthetic Rubber. Note: Various Covers Available
Reinforcement: One Braids of High Tensile Fiber - Temperature: -40 ℃ ~ +100 ℃ / -40 ℃ ~ + 212 ℉
- Standard: SAE 100R6
- Option: Smooth Cover/ Wrapped Cover
Product Specification
| Serial | I.D.(inch) | I.D.(mm) | O.D.(mm) | Max. W.P.(Mpa) | Min. B.P.(Mpa) | Min. Bend Radius (mm) |
| PR6-03 | 3/16" | 5.0 | 11.1 | 3.5 | 14.0 | 50 |
| PR6-04 | 1/4" | 6.3 | 12.6 | 3.0 | 12.0 | 65 |
| PR6-05 | 5/16" | 8.0 | 14.1 | 3.0 | 12.0 | 75 |
| PR6-06 | 3/8" | 9.8 | 16.0 | 3.0 | 12.0 | 75 |
| PR6-08 | 1/2" | 12.8 | 19.0 | 3.0 | 12.0 | 100 |
| PR6-10 | 5/8" | 16.0 | 23.0 | 3.0 | 12.0 | 125 |
| PR6-12 | 3/4" | 19.0 | 28.0 | 3.0 | 12.0 | 150 |
| PR6-16 | 1" | 25.4 | 33.8 | 3.0 | 12.0 | 200 |
Product Details
— Various Hydraulic Hose —
About Hydraulic Hoses
Paishun is one of the top manufacturers of hydraulic rubber hoses in East China. We specialize in the production and marketing of these products.
Paishun's hydraulic hoses are particularly suitable for the following areas of application:
- Heavy equipment and earth-moving machinery at construction sites
-Mining and drilling
-Agricultural machines and equipment
-Working platforms, cranes, and lifting
-Pressure washer
