A hose manufacturer with over two decades of experience.

Practical high pressure stainless steel braided ptfe hose factory direct supply | PASSIONHOSE

actively introduces advanced manufacturing equipment, and adopts strict production systems for standardized production. The high pressure stainless steel braided ptfe hose produced is fine in workmanship, high in quality, long in service life, and wide in application, enjoying a good reputation in the market.

Construction:
Inner tube: smooth bore PTFE
Outer tube: stainless steel 304 wire braid

Temperature range:

-65℃ to +260℃

Feature:

High temperature hose
Excellent chemical compatibility
Resists moisture
Low friction minimizes pressure drops and deposits

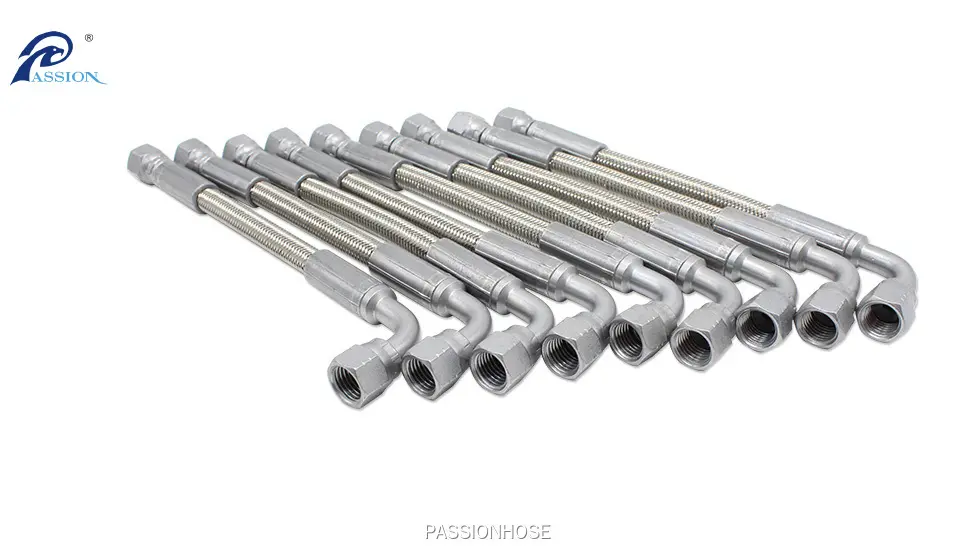

PTFE Hose Assembly

Ferrule: 00TF0-04

Crimping Fitting: 26711-04-04, 26791-04-04
Material: Carbon Steel with zinc-nickel plated

Inquiry

At PASSIONHOSE, technology improvement and innovation are our core advantages. Since established, we have been focusing on developing new products, improving product quality, and serving customers. high pressure stainless steel braided ptfe hose PASSIONHOSE is a comprehensive manufacturer and supplier of high-quality products and one-stop service. We will, as always, actively provide prompt services such. For more details about our high pressure stainless steel braided ptfe hose and other products, just let us know.high pressure stainless steel braided ptfe hose It has good elasticity, and can produce elastic deformation under various loads, so as to play a firm seal and effectively prevent water leakage in buildings.

Practical high pressure stainless steel braided ptfe hose factory direct supply | PASSIONHOSE 2

Product Features

---Why choose PTFE---

Practical high pressure stainless steel braided ptfe hose factory direct supply | PASSIONHOSE 3

PTFE Features

◪ Resistant to strong acid and alkali, resistant to various corrosive chemicals.
◪ Anti-adhesive, anti-moisture and ultraviolet, non-toxic.
◪ Excellent weather resistance, long service life, no brittle fracture and no aging.
◪ With a very low friction coefficient. non-flammable.
◪ With a very low evaporate transpiration rate, cold liquid is not volatile.
◪ With excellent electrical characteristics.
◪ Excellent mechanical properties, shock resistance and flexibility.

Product Description

---struction and specification---

Description

Inner tube:
smooth PTFE（The imported F-205 of Japan Daikin PTFE）

Outer tube:

stainless steel 304 wire braid （SS304 with diameter of 0.2mm and 0.25mm
Temperature:

Continuous temperature range: -65℃ to +260℃

Temporary temperature range: -70℃ to +300℃

Practical high pressure stainless steel braided ptfe hose factory direct supply | PASSIONHOSE 5

Specification
Serial	I.D.(inch)	I.D.(mm)	Thickness of tube (mm)	O.D.(mm)	W.P.(bar)	B.P.(bar)	Min. Bend Radius (mm)
1	1/8"	3.5	1.00	6.7	250	1000	16
2	3/16"	4.8	0.85	7.6	205	820	20
3	1/4"	6.4	0.85	9.4	187	750	27
4	5/16"	8.0	0.85	11.1	163	650	27
5	3/8"	10.0	0.85	13.1	130	520	33
6	1/2"	12.7	1.00	16.2	113	450	66
7	5/8"	16.0	1.00	19.4	80	320	150
8	3/4"	19.0	1.20	23.0	70	280	226
9	7/8"	22.2	1.20	26.2	60	240	245
10	1"	25.4	1.50	29.8	50	200	300

Practical high pressure stainless steel braided ptfe hose factory direct supply | PASSIONHOSE 6

Product Details

---various PTFE hose assemblies---

Practical high pressure stainless steel braided ptfe hose factory direct supply | PASSIONHOSE 7

Smooth Bore PTFE Hose

Practical high pressure stainless steel braided ptfe hose factory direct supply | PASSIONHOSE 8

Convoluted Bore PTFE Hose

Practical high pressure stainless steel braided ptfe hose factory direct supply | PASSIONHOSE 9

Conductive PTFE Hose

Practical high pressure stainless steel braided ptfe hose factory direct supply | PASSIONHOSE 10

Smooth Bore SS Braided PTFE Hose

brass fittings with o-rings

Practical high pressure stainless steel braided ptfe hose factory direct supply | PASSIONHOSE 11

Smooth Bore SS Braided PTFE Hose

straight JIC female hose ends in carbon steel with zinc-nickel plated

Practical high pressure stainless steel braided ptfe hose factory direct supply | PASSIONHOSE 12

Smooth Bore SS Braided PTFE Hose

90 deg. elbow JIC female hos ends in carbon steel with zinc-nickel plated

Application

---high temperature, resist chemical---

About PTFE Hose

As a PTFE hose manufacturer, our hoses be used in aviation transportation technology, electronic products, components and insulators, chemical manufacturing, food processing, fluid transportation equipment, and water treatment systems

Practical high pressure stainless steel braided ptfe hose factory direct supply | PASSIONHOSE 14

Air Compressor

For Air

Practical high pressure stainless steel braided ptfe hose factory direct supply | PASSIONHOSE 15

Turbocharger

For Oil

Practical high pressure stainless steel braided ptfe hose factory direct supply | PASSIONHOSE 16

Iron

For Steam
