PASSIONHOSE has developed to be a professional manufacturer and reliable supplier of high-quality products. Throughout the whole production process, we strictly implement the ISO quality management system control. Since established, we always adhere to independent innovation, scientific management, and continuous improvement, and provide high-quality services to meet and even exceed customers' requirements. We guarantee our new product hose hydraulic will bring you a lot of benefits. We are always standby to receive your inquiry. hose hydraulic If you are interested in our new product hose hydraulic and others, welcome you to contact us.hose hydraulic It has a wide range of uses and can be applied to tunnels, culverts, diversion aqueducts, dams, liquid storage structures, underground facilities and other places.
◪ Strict quality control. Test the products before shipment with the complete line of test machines.
◪ OEM accepted, and we can print your LOGO and brand name.
◪ Various colors. Hoses can be black, gray, red, etc.
◪ Customized hose accepted.
◪ Free hose sample available.
◪ Solid construction and long service lifetime.
◪ Very flexible and light.
Detail
| Inner Tube | Oil-resistant synthetic rubber. |
| Reinforcement | Two braids of high tensile steel wire. |
| Outer Cover | Abrasion and ozone resistant synthetic rubber. |
| Temperature | -40°C to +100°C / -40°F to +212°F (max 120°C/248°F intermittent) |
| Certification | MSHA, CE, ISO 9001 |
| Packing | Poly stripes, reels, pallets, etc. |
| Delivery | About 28 days for a 20' container. |
| Part No. | I.D. (inch) | I.D. (mm) | O.D. (mm) | W.P. (bar) | W.P. (psi) | B.P. (bar) | B.P. (psi) | Min Bend Radius (mm) | Weight (g/m) |
|---|---|---|---|---|---|---|---|---|---|
| P04-2SN | 1/4" | 6.4 | 14.5 | 400 | 5800 | 1600 | 23200 | 100 | 380 |
| P05-2SN | 5/16" | 8.0 | 16.7 | 350 | 5075 | 1400 | 20300 | 115 | 435 |
| P06-2SN | 3/8" | 9.5 | 19.2 | 330 | 4785 | 1320 | 19140 | 125 | 550 |
| P08-2SN | 1/2" | 12.7 | 21.8 | 275 | 3988 | 1100 | 15950 | 180 | 640 |
| P10-2SN | 5/8" | 16.0 | 25.4 | 250 | 3625 | 1000 | 14500 | 205 | 750 |
| P12-2SN | 3/4" | 19.0 | 29.9 | 215 | 3118 | 850 | 12325 | 240 | 925 |
| P16-2SN | 1" | 25.4 | 37.8 | 165 | 2393 | 650 | 9425 | 300 | 1290 |
| P20-2SN | 1-1/4" | 31.8 | 46.4 | 125 | 1813 | 500 | 7250 | 420 | 1895 |
| P24-2SN | 1-1/2" | 38.1 | 52.7 | 90 | 1305 | 360 | 5220 | 500 | 2120 |
| P32-2SN | 2" | 50.8 | 65.4 | 80 | 1160 | 320 | 4640 | 630 | 2765 |
Paishun hydraulic hoses have very high flexibility.
Printing colors can be red, blue, yellow, green, etc.
Smooth Surface Hose
Besides cloth surface, hydraulic hoses can also be in smooth surface.

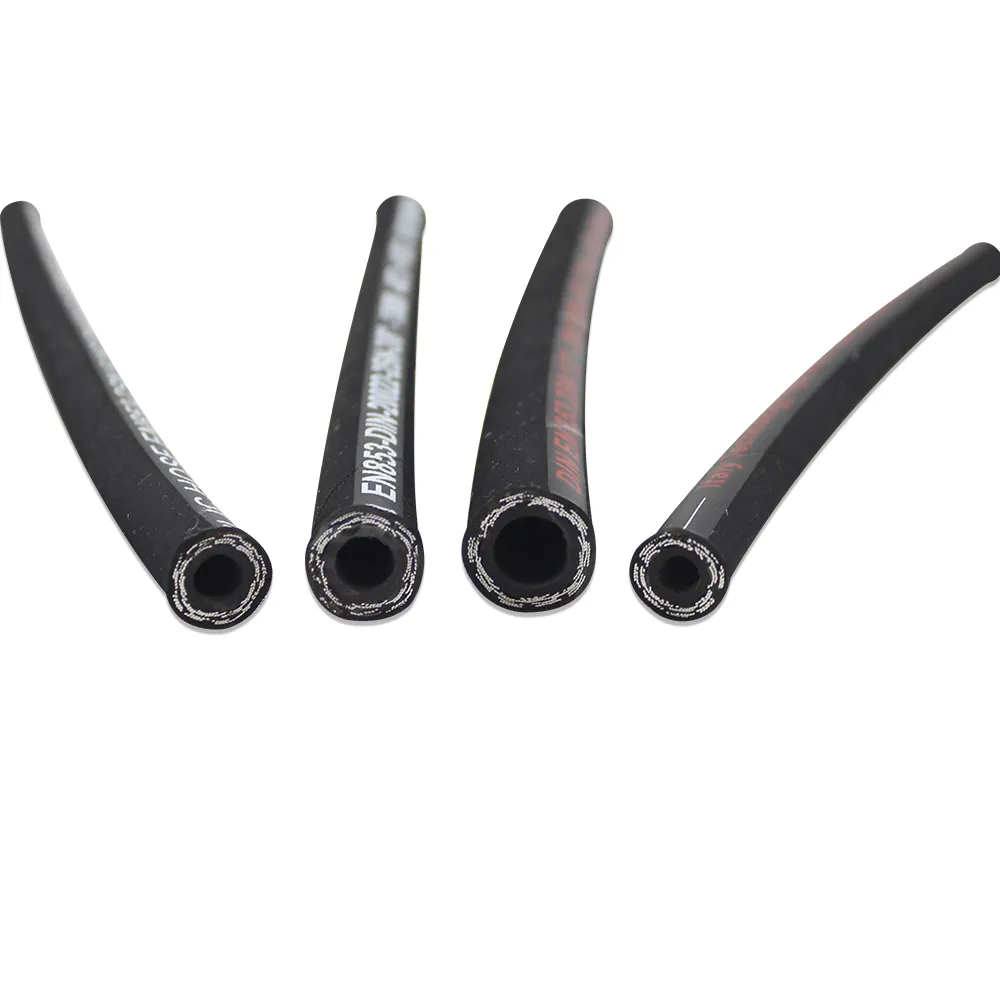

With advanced winding and braiding machines, steel wire layer is very neat and even.
Straight JIC female hose ends in carbon steel with zinc plated

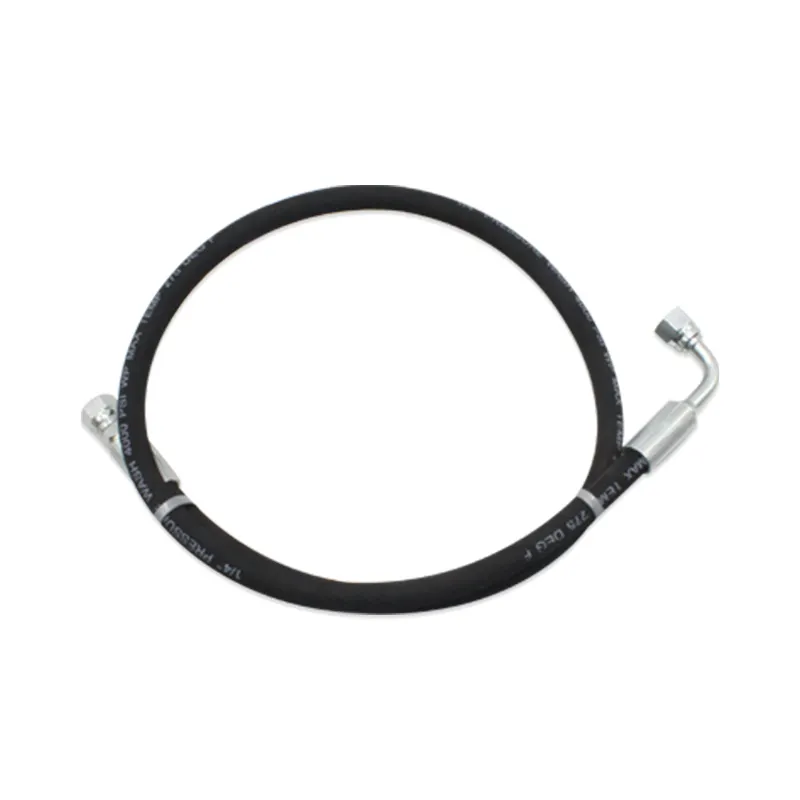

Gray hose with quick couplers for high pressure washing.
Paishun is one of the top manufacturers of rubber hoses in East China.
We're specialized in the production and marketing of these products.
Paishun products are particularly suitable for the following areas of applications:
* Heavy equipment and earth-moving machinery in construction sites
* Mining and drilling
* Agricultural machines and equipment
* Working platforms, cranes, and lifting
* Pressure washer
For Construction Machinery
With high impulse performance, PAISHUN hydraulic hose can be widely used on construction machinery such as excavators, bulldozers, earthmovers, etc.
For Mining and Drilling
For Agricultural Machinery
For Working platforms, Cranes, and Lifting
PAISHUN hose can be used in working platforms, cranes, and lifting.
Customized hoses are available.
For Pressure washer
With high flexibility, PAISHUN hydraulic hose can be also used on pressure washers, and jet washers for the washing sites.
Home use and industry use are both available.
Passion Hose founded in 2007, a professional silicone hose manufacturer, a brand of pipeline hose and accessories R&D, production and sales. Main products: stainless steel shower hose,hydraulic hose, industrial hose, automotivehose, plumbing hose etc., which are widely used in home, hotel, industry and other fields.
