Guided by scientific and technological innovation, PASSIONHOSE always keeps outward-oriented and sticks to the positive development on the basis of technological innovation. oil hose If you are interested in our new product oil hose and others, welcome you to contact us.oil hose It meets the product design requirements and relevant national standards, and has passed the strict quality inspection of the national authority. The quality is reliable and guaranteed, so you can buy and use it with confidence.



Product Features

---Why choose fuel injection hose---



Fuel Injection Hose Features

• ◪ Exceptionally flexible for easy routing.

• ◪ Low Permeation Rate:

  (with an average fuel permeation rate of 0.65g/m2/day~13g/m2/day).

• ◪ High Temperature Resistance:



  (temperature range -34℃ to 135℃; Intermittent use at +150℃).

• ◪ Excellent aging resistance.

•


•




Product Description

---structure and specification---

Description

• Structure:

• Barrier: FKM Rubber, low permeation resistance, chemical resistance.

• Inner Tube: synthetic rubber with excellent permeation resistance.

• Reinforcement: Aramid Yarn, provides exceptional dimensional stability in high-temp.

• Outer tube: synthetic rubber with excellent heat resisatnce, aging resistance and ozone resistance.

• ContinuousTemperature Range: -34℃ to 135℃.

• Intermittent use at: 150℃






Specification

Part No.	I.D. (inch)	I.D.  (mm)	Tube Thickness (mm)	O.D. (mm)	W.P. (bar)	B.P. (bar)	B.P. (psi)
PSJR9-02	1/8''	3.2	2.9	9.0	20	80	1160
PSJR9-03	3/16''	5.0	3.0	11.0	20	80	1160
PSJR9-04	1/4"	6.3	3.2	12.7	20	80	1160
PSJR9-05	5/16"	8.0	3.0	14.0	20	80	1160
PSJR9-06	3/8"	9.5	3.25	16.0	20	80	1160
PSJR9-08	1/2"	12.7	3.65	20.0	20	80	1160
PSJR9-10	5/8"	16.0	4.0	24.0	10	40	580
PSJR9-12	3/4"	19.0	5.5	30.0	10	40	580
PSJR9-16	1"	25.0	5.0	35.0	10	40	580



Product Details

---fuel injection hose in different angles ---



Fuel Injection Hose

FKM layer strengthen hose's permeability resistance largely



Fuel Injection Hose

Clear printings with SAE J30R9 standard on the hose



Fuel Injection Hose

Excellent flexibility and kink resistance









Fuel Injection Hose

Continuous temperature range:

-34℃ to 135℃.



Fuel Injection Hose

Excellent ozone resistance



Fuel Injection Hose

Aramid Yarn, provides exceptional dimensional stability in high-temp.





Application

---high temperature, high permeability resistance---


About our product

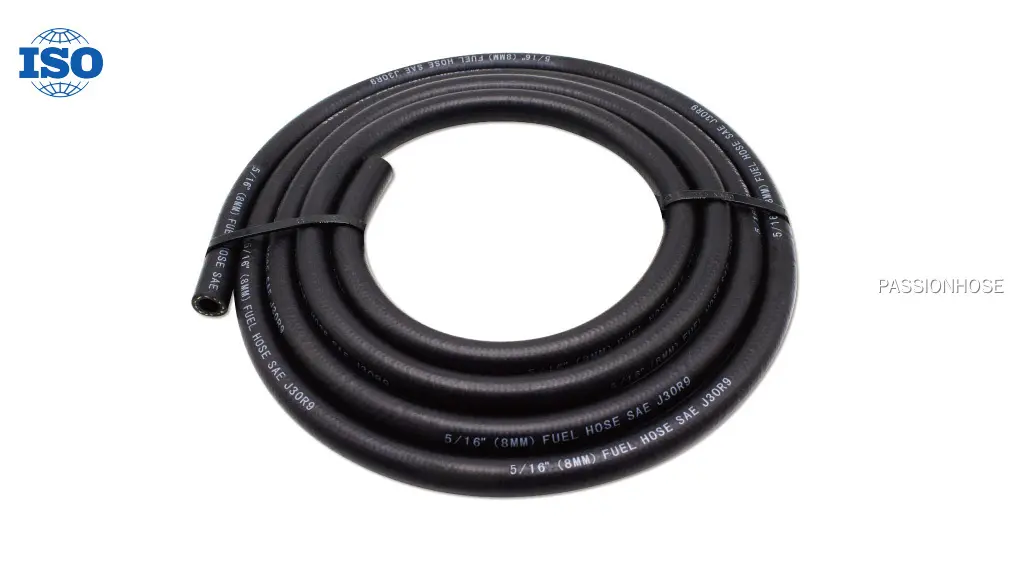

The SAE J30R9 Fuel Injection Hose is designed specifically for auto and truck fuel injection systems.

It is applicable for gasoline, ethanol extended gasoline, oxidized sour gas, diesel fuel, biodiesel (B5, B10, B20), lubrication oil.

(Sour Gas Compatible, Biodiesel Compatible).





For Car Fuel Injection System

Excellent permeation resistance, high temperature resistance, good ozone resistance.
