A hose manufacturer with over two decades of experience.

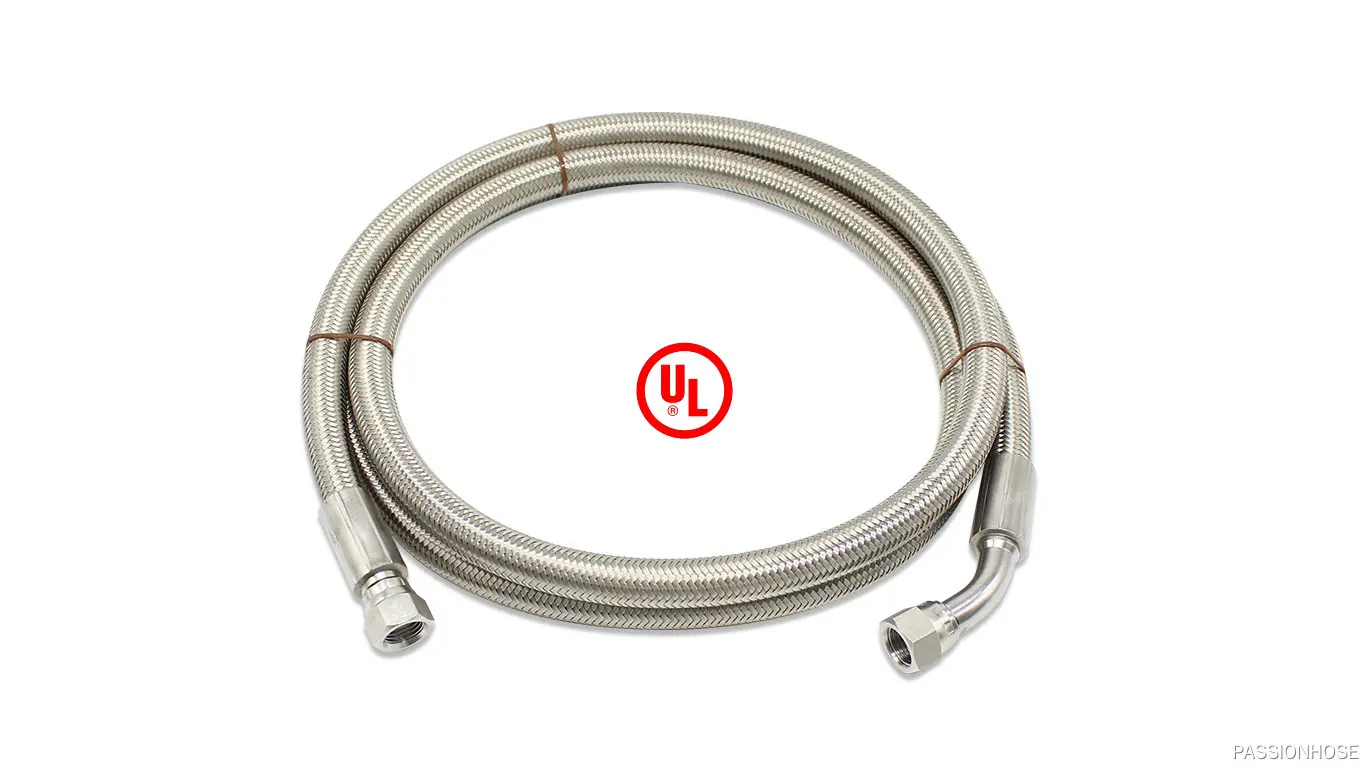

PASSIONHOSE | Practical flexible ss304 braided convoluted tubing ptfe hose from China 1
PASSIONHOSE | Practical flexible ss304 braided convoluted tubing ptfe hose from China 1

PASSIONHOSE | Practical flexible ss304 braided convoluted tubing ptfe hose from China

flexible ss304 braided convoluted tubing ptfe hose It has a wide range of uses and can be applied to tunnels, culverts, diversion aqueducts, dams, liquid storage structures, underground facilities and other places.
Inquiry

Set up years ago, PASSIONHOSE is a professional manufacturer and also a supplier with strong capabilities in production, design, and R&D. flexible ss304 braided convoluted tubing ptfe hose We will do our best to serve customers throughout the whole process from product design, R&D, to delivery. Welcome to contact us for further information about our new product flexible ss304 braided convoluted tubing ptfe hose or our company.flexible ss304 braided convoluted tubing ptfe hose Excellent material selection, exquisite workmanship, stable quality, reliable quality, strong and durable, even if used for a long time, it is not easy to fade or break.

PASSIONHOSE | Practical flexible ss304 braided convoluted tubing ptfe hose from China 2
Product Features
---Why choose PTFE---
PASSIONHOSE | Practical flexible ss304 braided convoluted tubing ptfe hose from China 3
PTFE Features
  • ◪ Resistant to strong acid and alkali, resistant to various corrosive chemicals.

  • ◪ Anti-adhesive, anti-moisture and ultraviolet, non-toxic.

  • ◪ Excellent weather resistance, long service life, no brittle fracture and no aging.

  • ◪ With a very low friction coefficient. non-flammable.

  • ◪ With a very low evaporate transpiration rate, cold liquid is not volatile.

  • ◪ With excellent electrical characteristics.

  • ◪ Excellent mechanical properties, shock resistance and flexibility.




PASSIONHOSE | Practical flexible ss304 braided convoluted tubing ptfe hose from China 4

Product Description
---struction and specification---
Description
  • Structure:

  • Inner tube: corrugated PTFE(The imported F-205 of Japan Daikin PTFE)Outer tube: stainless steel 304 wire braid (SS304 with diameter of 0.2mm and 0.25mm

  • Temperature:

  • Continuous temperature range: -65℃ to +260℃

  • Temporary temperature range: -70℃ to +300℃


PASSIONHOSE | Practical flexible ss304 braided convoluted tubing ptfe hose from China 5
Specification
SerialI.D.(inch)I.D.(mm)Thickness of tube (mm)O.D.(mm)W.P.(bar)B.P.(bar)Min. Bend Radius   (mm)
11/4"6.50.8013.115040020
25/16"8.00.6513.613036525
33/8"10.00.6515.512535033
41/2"13.00.8518.911033042
55/8"16.3
0.9023.48024550
63/4"19.01.0027.37021563
71"25.41.0033.05015079
81-1/4"32.01.1041.245140125
91-1/2"38.01.4547.943120145
102"50.01.5063.035100180
PASSIONHOSE | Practical flexible ss304 braided convoluted tubing ptfe hose from China 6
Product Details
---various PTFE hose assemblies---
PASSIONHOSE | Practical flexible ss304 braided convoluted tubing ptfe hose from China 7
PTFE Hose Assembly

45 deg. JIC female hose end in SS304

PASSIONHOSE | Practical flexible ss304 braided convoluted tubing ptfe hose from China 8
PTFE Hose Assembly

straight JIC female hose end in SS304

PASSIONHOSE | Practical flexible ss304 braided convoluted tubing ptfe hose from China 9
PTFE Hose Assembly

2 meters










PASSIONHOSE | Practical flexible ss304 braided convoluted tubing ptfe hose from China 10
PTFE Hose Assembly

brass fittings with o-rings

PASSIONHOSE | Practical flexible ss304 braided convoluted tubing ptfe hose from China 11
PTFE Hose Assembly

straight JIC female hose ends in carbon steel with zinc-nickel plated

PASSIONHOSE | Practical flexible ss304 braided convoluted tubing ptfe hose from China 12
PTFE Hose Assembly

90 deg. elbow JIC female hos ends in carbon steel with zinc-nickel plated



PASSIONHOSE | Practical flexible ss304 braided convoluted tubing ptfe hose from China 13

Application
---high temperature, resist chemical---

About our product

Stainless steel braided PTFE hoses are widely used in various industries for their unique properties and performance capabilities.

Here are some of the common applications:

1. Chemical industry: Stainless steel braided PTFE hose is used to transfer a wide range of chemicals, acids, and corrosive fluids, including solvents, fuels, and hydraulic fluids.

2. Food and beverage industry: These hoses are used in food and beverage processing plants to transfer food-grade fluids, such as milk, juice, beer, and wine, as well as cleaning solutions.

3. Pharmaceutical industry: Stainless steel braided PTFE hose is used in the pharmaceutical industry to transfer various chemicals and fluids, including solvents, acids, and cleaning solutions.

4. Automotive industry: These hoses are used in the automotive industry for fuel lines, oil lines, and brake lines due to their excellent resistance to high temperatures and corrosive fluids.

5. Aerospace industry: Stainless steel braided PTFE hose is used in the aerospace industry for various applications, including hydraulic lines, fuel lines, and cooling systems, due to their ability to withstand extreme temperatures and pressure conditions.


stainless steel braided PTFE hose is used in a wide range of applications where there is a need to transfer corrosive fluids, chemicals, and high-temperature fluids, especially in industries such as chemical, food and beverage, pharmaceutical, automotive, and aerospace.



PASSIONHOSE | Practical flexible ss304 braided convoluted tubing ptfe hose from China 14


For Air System

Convey high temperature and high-pressure air


For Fuel Pump

Covey high pressure and low pressure fuel
PASSIONHOSE | Practical flexible ss304 braided convoluted tubing ptfe hose from China 15




Hello, world!
simple hero unit, a simple jumbotron-style con

PASSIONHOSE | Practical flexible ss304 braided convoluted tubing ptfe hose from China 16




For Oil Line

Covey fuel for oil line in vehicle




For Brake System

Covey fuel for brake system in vehicle
PASSIONHOSE | Practical flexible ss304 braided convoluted tubing ptfe hose from China 17




Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
