Relying on advanced technology, excellent production capabilities, and perfect service, PASSIONHOSE takes the lead in the industry now and spreads our PASSIONHOSE all over the world. Together with our products, our services are also supplied to be the highest-level. ptfe brake hose Having devoted a lot to product development and service quality improvement, we have established a high reputation in the markets. We promise to provide every customer throughout the world with prompt and professional service covering the pre-sales, sales, and after-sales services. No matter where you are or what business you are engaged in, we'd love to help you deal with any issue. If you want to know more details about our new product ptfe brake hose or our company, feel free to contact us. has established a strict storage management system to ensure the excellent quality of ptfe brake hose from the source. In addition, we have also established a scientific and perfect quality management system to ensure that ptfe brake hose produced are in line with national quality inspection standards of high-quality products.



Product Features

---Why choose PTFE---



PTFE Features

• ◪ Resistant to strong acid and alkali, resistant to various corrosive chemicals.

• ◪ Anti-adhesive, anti-moisture and ultraviolet, non-toxic.

• ◪ Excellent weather resistance, long service life, no brittle fracture and no aging.

• ◪ With a very low friction coefficient. non-flammable.

• ◪ With a very low evaporate transpiration rate, cold liquid is not volatile.

• ◪ With excellent electrical characteristics.

• ◪ Excellent mechanical properties, shock resistance and flexibility.






Product Description

---struction and specification---

Description

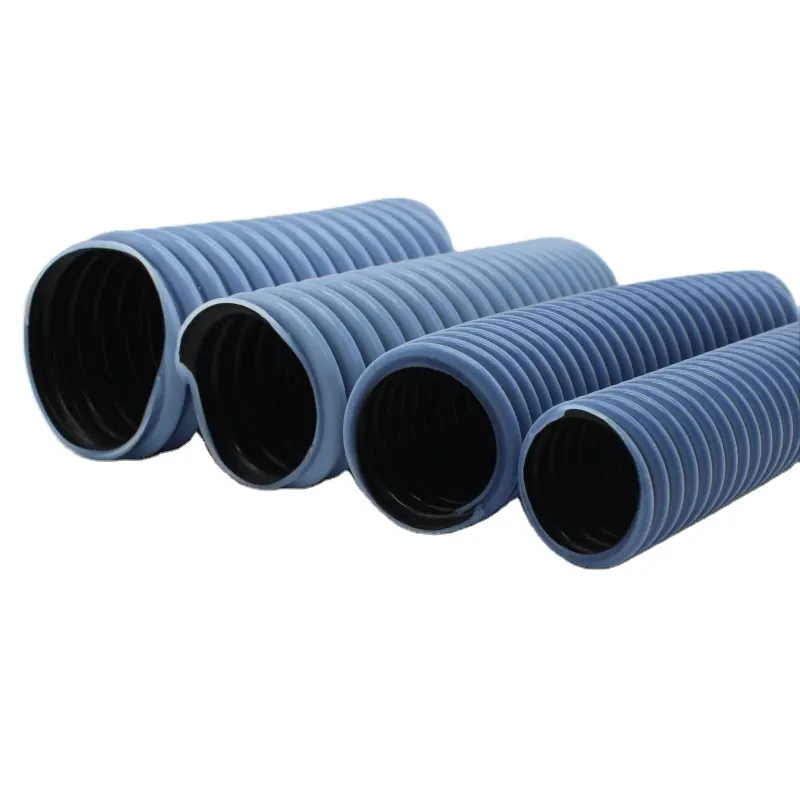

• Structure:

• Inner tube: corrugated PTFE（The imported F-205 of Japan Daikin PTFE）

• Coating: A black conductive layer

• Maximum operative temperature: 260°C

• Application: High temperature hydraulic, pneumatic and chemical delivery hoses for rubber, automotive, machine tools, shipbuilding, electromechanical, diesel, pressure control, paper

• and printing industries. For liquids, gases, and highly corrosive media with alternating hot and cold heat, it has better performance and longevity than other hoses.

• Coil length: 50m (Random Lengths).

• Testing a 350 mm with a 1 000 VDC potential, the minimum electrical current to be conducted is: • 10 µA for a size up to dash 8 • 20 µA for a size above dash 8

• Longitudinal tensile strength : 15.1 N/mm² for every dash

• Transverse tensile strength : dash < 16: N/A

•                                               dash > 16: 12.4 N/mm²



Specification

Part No.	I.D. (inch)	I.D. Tolerance  (mm)	Tube Thickness (mm)	Corrugated O.D. (mm)	W.P. (bar)	Specific gravity	Min.  Bend Radius (mm)
PSCPH-51	2	±1	1.5	61	2	2.14	150



Product Details

---various PTFE hose assemblies---



PTFE Hose Assembly

45 deg. JIC female hose end in SS304



PTFE Hose Assembly

straight JIC female hose end in SS304



PTFE Hose Assembly

2 meters









PTFE Hose Assembly

brass fittings with o-rings



PTFE Hose Assembly

straight JIC female hose ends in carbon steel with zinc-nickel plated



PTFE Hose Assembly

90 deg. elbow JIC female hos ends in carbon steel with zinc-nickel plated





Application

---high temperature, resist chemical---


About PTFE Hose

High temperature hydraulic, pneumatic and chemical delivery hoses for rubber, automotive, machine tools, shipbuilding, electromechanical, diesel, pressure control, paper and printing industries. For liquids, gases and highly corrosive media with alternating hot and cold heat, it has better performance and longevity than other hoses.





For Air System

Convey high temperature and high-pressure air

For Fuel Pump

Covey high pressure and low pressure fuel





Hello, world!

simple hero unit, a simple jumbotron-style con



For Oil Line

Covey fuel for oil line in vehicle

For Brake System

Covey fuel for brake system in vehicle
