PASSIONHOSE has developed to be a professional manufacturer and reliable supplier of high-quality products. Throughout the whole production process, we strictly implement the ISO quality management system control. Since established, we always adhere to independent innovation, scientific management, and continuous improvement, and provide high-quality services to meet and even exceed customers' requirements. We guarantee our new product rubber hydraulic hose will bring you a lot of benefits. We are always standby to receive your inquiry. rubber hydraulic hose We will do our best to serve customers throughout the whole process from product design, R&D, to delivery. Welcome to contact us for further information about our new product rubber hydraulic hose or our company. actively introduces advanced manufacturing equipment, and adopts strict production systems for standardized production. The rubber hydraulic hose produced is fine in workmanship, high in quality, long in service life, and wide in application, enjoying a good reputation in the market.
◪ Strict quality control. Test the products before shipment with the complete line of test machines.
◪ OEM accepted, and we can print your LOGO and brand name.
◪ Various colors. Hoses can be black, gray, red, etc.
◪ Customized hose accepted.
◪ Free hose sample available.
◪ Solid construction and long service lifetime.
◪ Very flexible and light.

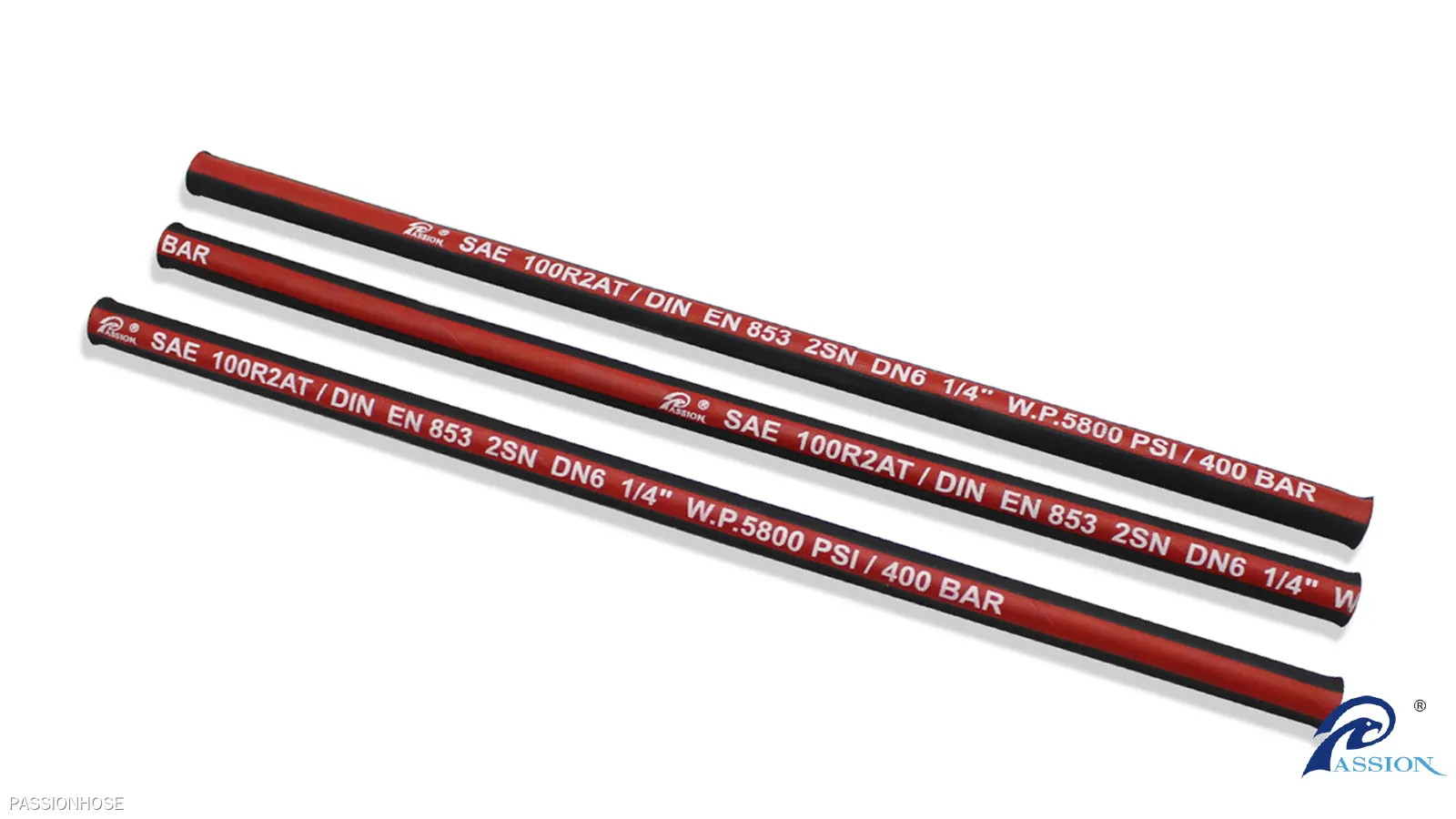

Detail
| Inner Tube | Oil-resistant synthetic rubber. |
| Reinforcement | Two braids of high tensile steel wire. |
| Outer Cover | Abrasion and ozone resistant synthetic rubber. |
| Temperature | -40°C to +100°C / -40°F to +212°F (max 120°C/248°F intermittent) |
| Certification | MSHA, CE, ISO 9001 |
| Packing | Poly stripes, reels, pallets, etc. |
| Delivery | About 28 days for a 20' container. |
| Part No. | I.D. (inch) | I.D. (mm) | O.D. (mm) | W.P. (bar) | W.P. (psi) | B.P. (bar) | B.P. (psi) | Min Bend Radius (mm) | Weight (g/m) |
|---|---|---|---|---|---|---|---|---|---|
| P04-2SN | 1/4" | 6.4 | 14.5 | 400 | 5800 | 1600 | 23200 | 100 | 380 |
| P05-2SN | 5/16" | 8.0 | 16.7 | 350 | 5075 | 1400 | 20300 | 115 | 435 |
| P06-2SN | 3/8" | 9.5 | 19.2 | 330 | 4785 | 1320 | 19140 | 125 | 550 |
| P08-2SN | 1/2" | 12.7 | 21.8 | 275 | 3988 | 1100 | 15950 | 180 | 640 |
| P10-2SN | 5/8" | 16.0 | 25.4 | 250 | 3625 | 1000 | 14500 | 205 | 750 |
| P12-2SN | 3/4" | 19.0 | 29.9 | 215 | 3118 | 850 | 12325 | 240 | 925 |
| P16-2SN | 1" | 25.4 | 37.8 | 165 | 2393 | 650 | 9425 | 300 | 1290 |
| P20-2SN | 1-1/4" | 31.8 | 46.4 | 125 | 1813 | 500 | 7250 | 420 | 1895 |
| P24-2SN | 1-1/2" | 38.1 | 52.7 | 90 | 1305 | 360 | 5220 | 500 | 2120 |
| P32-2SN | 2" | 50.8 | 65.4 | 80 | 1160 | 320 | 4640 | 630 | 2765 |
Paishun hydraulic hoses have very high flexibility.
Printing colors can be red, blue, yellow, green, etc.
Smooth Surface Hose
Besides cloth surface, hydraulic hoses can also be in smooth surface.
With advanced winding and braiding machines, steel wire layer is very neat and even.
Straight JIC female hose ends in carbon steel with zinc plated
Gray hose with quick couplers for high pressure washing.
Paishun is one of the top manufacturers of rubber hoses in East China.
We're specialized in the production and marketing of these products.
Paishun products are particularly suitable for the following areas of applications:
* Heavy equipment and earth-moving machinery in construction sites
* Mining and drilling
* Agricultural machines and equipment
* Working platforms, cranes, and lifting
* Pressure washer
For Construction Machinery
With high impulse performance, PAISHUN hydraulic hose can be widely used on construction machinery such as excavators, bulldozers, earthmovers, etc.
For Mining and Drilling
For Agricultural Machinery
For Working platforms, Cranes, and Lifting
PAISHUN hose can be used in working platforms, cranes, and lifting.
Customized hoses are available.
For Pressure washer
With high flexibility, PAISHUN hydraulic hose can be also used on pressure washers, and jet washers for the washing sites.
Home use and industry use are both available.
