Always striving toward excellence, PASSIONHOSE has developed to be a market-driven and customer-oriented enterprise. We focus on strengthening the capabilities of scientific research and completing service businesses. We have set up a customer service department to better provide customers with prompt services including order tracking notice. flexible oil hydraulic hose Having devoted a lot to product development and service quality improvement, we have established a high reputation in the markets. We promise to provide every customer throughout the world with prompt and professional service covering the pre-sales, sales, and after-sales services. No matter where you are or what business you are engaged in, we'd love to help you deal with any issue. If you want to know more details about our new product flexible oil hydraulic hose or our company, feel free to contact us. produces flexible oil hydraulic hose in strict accordance with national standards, and the produced flexible oil hydraulic hose is non-toxic, harmless, environmentally safe, and of high quality, so you can buy and use it with confidence.
◪ Strict quality control. Test the products before shipment with the complete line of test machines.
◪ OEM accepted, and we can print your LOGO and brand name.
◪ Various colors. Hoses can be black, gray, red, etc.
◪ Customized hose accepted.
◪ Free hose sample available.
◪ Solid construction and long service lifetime.
◪ Very flexible and light.
Detail
| Inner Tube | Oil-resistant synthetic rubber. |
| Reinforcement | Two braids of high tensile steel wire. |
| Outer Cover | Abrasion and ozone resistant synthetic rubber. |
| Temperature | -40°C to +100°C / -40°F to +212°F (max 120°C/248°F intermittent) |
| Certification | MSHA, CE, ISO 9001 |
| Packing | Poly stripes, reels, pallets, etc. |
| Delivery | About 28 days for a 20' container. |
| Part No. | I.D. (inch) | I.D. (mm) | O.D. (mm) | W.P. (bar) | W.P. (psi) | B.P. (bar) | B.P. (psi) | Min Bend Radius (mm) | Weight (g/m) |
|---|---|---|---|---|---|---|---|---|---|

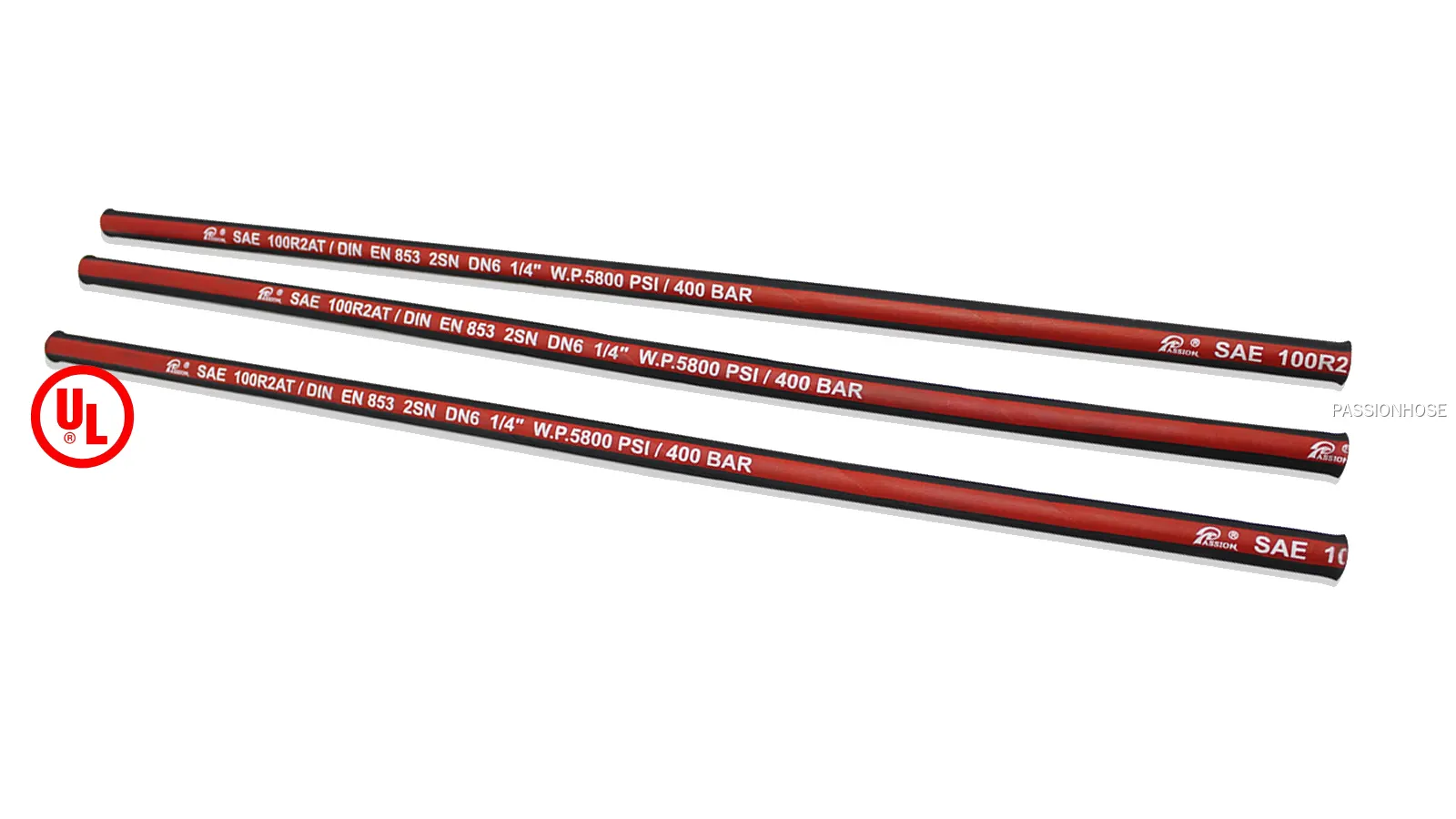

| P04-2SN | 1/4" | 6.4 | 14.5 | 400 | 5800 | 1600 | 23200 | 100 | 380 |
| P05-2SN | 5/16" | 8.0 | 16.7 | 350 | 5075 | 1400 | 20300 | 115 | 435 |
| P06-2SN | 3/8" | 9.5 | 19.2 | 330 | 4785 | 1320 | 19140 | 125 | 550 |
| P08-2SN | 1/2" | 12.7 | 21.8 | 275 | 3988 | 1100 | 15950 | 180 | 640 |
| P10-2SN | 5/8" | 16.0 | 25.4 | 250 | 3625 | 1000 | 14500 | 205 | 750 |
| P12-2SN | 3/4" | 19.0 | 29.9 | 215 | 3118 | 850 | 12325 | 240 | 925 |
| P16-2SN | 1" | 25.4 | 37.8 | 165 | 2393 | 650 | 9425 | 300 | 1290 |
| P20-2SN | 1-1/4" | 31.8 | 46.4 | 125 | 1813 | 500 | 7250 | 420 | 1895 |
| P24-2SN | 1-1/2" | 38.1 | 52.7 | 90 | 1305 | 360 | 5220 | 500 | 2120 |
| P32-2SN | 2" | 50.8 | 65.4 | 80 | 1160 | 320 | 4640 | 630 | 2765 |
Paishun hydraulic hoses have very high flexibility.
Printing colors can be red, blue, yellow, green, etc.
Smooth Surface Hose
Besides cloth surface, hydraulic hoses can also be in smooth surface.
With advanced winding and braiding machines, steel wire layer is very neat and even.
Straight JIC female hose ends in carbon steel with zinc plated
Gray hose with quick couplers for high pressure washing.
Paishun is one of the top hydraulic hose manufacturers in East China.
We specialize in the production and marketing of these products.
Paishun products are particularly suitable for the following areas of applications:
* Heavy equipment and earth-moving machinery in construction sites
* Mining and drilling
* Agricultural machines and equipment
* Working platforms, cranes, and lifting
* Pressure washer
For Construction Machinery
With high impulse performance, PAISHUN hydraulic hose can be widely used on construction machinery such as excavators, bulldozers, earthmovers, etc.
For Mining and Drilling
For Agricultural Machinery
For Working platforms, Cranes, and Lifting
PAISHUN hose can be used in working platforms, cranes, and lifting.
Customized hoses are available.
For Pressure washer
With high flexibility, PAISHUN hydraulic hose can be also used on pressure washers, and jet washers for the washing sites.
Home use and industry use are both available.
Passion Hose founded in 2007, a professional silicone hose manufacturer, a brand of pipeline hose and accessories R&D, production and sales. Main products: stainless steel shower hose,hydraulic hose, industrial hose, automotivehose, plumbing hose etc., which are widely used in home, hotel, industry and other fields.
