Set up years ago, PASSIONHOSE is a professional manufacturer and also a supplier with strong capabilities in production, design, and R&D. hydraulic braided rubber hose We have been investing a lot in the product R&D, which turns out to be effective that we have developed hydraulic braided rubber hose. Relying on our innovative and hard-working staff, we guarantee that we offer customers the best products, the most favorable prices, and the most comprehensive services as well. Welcome to contact us if you have any questions.hydraulic braided rubber hose Selecting high-quality materials, it is made by mixing, granulating, extruding and other processes. It has stable performance, high quality and long service life.



Product Features

---Why choose PTFE---



PTFE Features

• ◪ Resistant to strong acid and alkali, resistant to various corrosive chemicals.

• ◪ Anti-adhesive, anti-moisture and ultraviolet, non-toxic.

• ◪ Excellent weather resistance, long service life, no brittle fracture and no aging.

• ◪ With a very low friction coefficient. non-flammable.

• ◪ With a very low evaporate transpiration rate, cold liquid is not volatile.

• ◪ With excellent electrical characteristics.

• ◪ Excellent mechanical properties, shock resistance and flexibility.






Product Description

---struction and specification---

Description

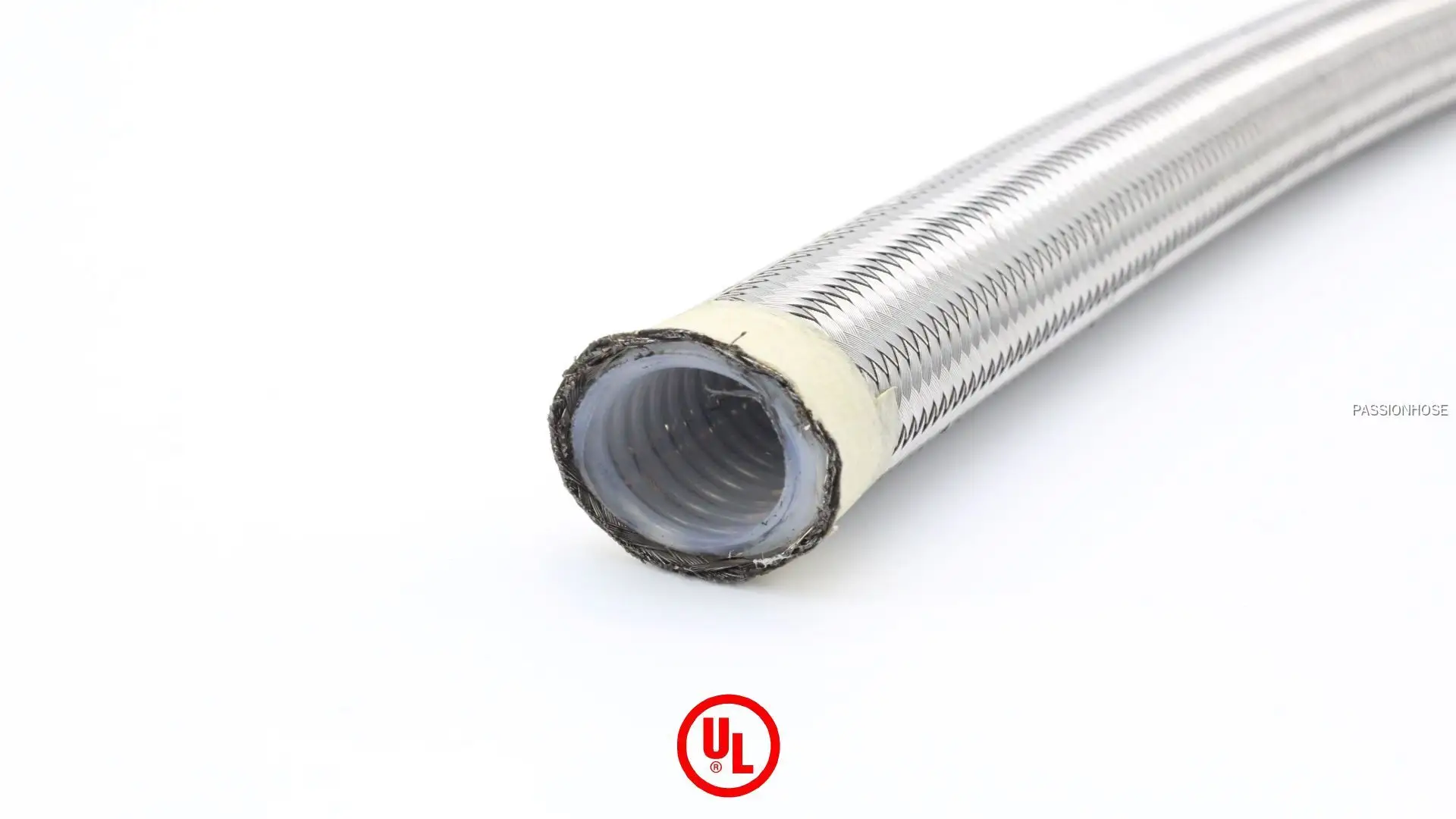

• Structure:

• Inner tube: smooth PTFE（The imported F-205 of Japan Daikin PTFE）

• Outer tube: stainless steel 304 wire braid （SS304 with diameter of 0.2mm and 0.25mm

• Temperature:

• Continuous temperature range: -65℃ to +260℃

• Temporary temperature range: -70℃ to +300℃



Specification

Part No.	I.D. (inch)	I.D.  (mm)	Tube Thickness (mm)	O.D. (mm)	W.P. (bar)	B.P. (bar)	Min.  Bend Radius (mm)
1	1/4"	6.5	0.8	13.1	150	400	20
2	5/16"	8.0	0.65	13.6	130	365	25
3	3/8"	10.0	0.65	15.5	125	350	33
4	1/2"	13.0	0.85	18.9	110	330	42
5	5/8"	16.0	0.90	23.4	80	245	50
6	3/4"	19.0	1.0	27.3	70	215	63
7	1"	25.0	1.0	33.0	50	150	79
8	1-14''	32.0	1.1	41.2	45	140	125
9	1-1/2''	38.0	1.45	47.9	43	120	145
10	2''	50.0	1.5	63.0	35	100	180



Product Details

---various PTFE hose assemblies---



PTFE Hose Assembly

45 deg. JIC female hose end in SS304



PTFE Hose Assembly

straight JIC female hose end in SS304



PTFE Hose Assembly

2 meters









PTFE Hose Assembly

brass fittings with o-rings



PTFE Hose Assembly

straight JIC female hose ends in carbon steel with zinc-nickel plated



PTFE Hose Assembly

90 deg. elbow JIC female hos ends in carbon steel with zinc-nickel plated





Application

---high temperature, resist chemical---


About PTFE Hose

High temperature hydraulic, pneumatic and chemical delivery hoses for rubber, automotive, machine tools, shipbuilding, electromechanical, diesel, pressure control, paper and printing industries. For liquids, gases and highly corrosive media with alternating hot and cold heat, it has better performance and longevity than other hoses.





For Air System

Convey high temperature and high-pressure air

For Fuel Pump

Covey high pressure and low pressure fuel





Hello, world!

simple hero unit, a simple jumbotron-style con



For Oil Line

Covey fuel for oil line in vehicle

For Brake System

Covey fuel for brake system in vehicle
