Guided by scientific and technological innovation, PASSIONHOSE always keeps outward-oriented and sticks to the positive development on the basis of technological innovation. hydraulic connectors We promise that we provide every customer with high-quality products including hydraulic connectors and comprehensive services. If you want to know more details, we are glad to tell you. has been committed to the design, development and production of hydraulic connectors for many years. The hydraulic connectors produced not only has stable performance and reliable quality, but also has good wear resistance and compression resistance, and is durable.



Product Features

---Why Choose PAISHUN Hydraulic Hose Fittings---



PAISHUN Hydraulic Hose Fitting Features

• ◪ No complaint---standard process and excellent service

• ◪ Receive them in a very short time---enough stock

• ◪ Accurate dimensions---automatic CNC machines

• ◪ Receive them without damage---strong packing

• ◪ Free sample available

• ◪ OEM and ODM

• ◪ Supply hydraulic hose fittings, hydraulic hoses and hydraulic hose assemblies

•

•


•

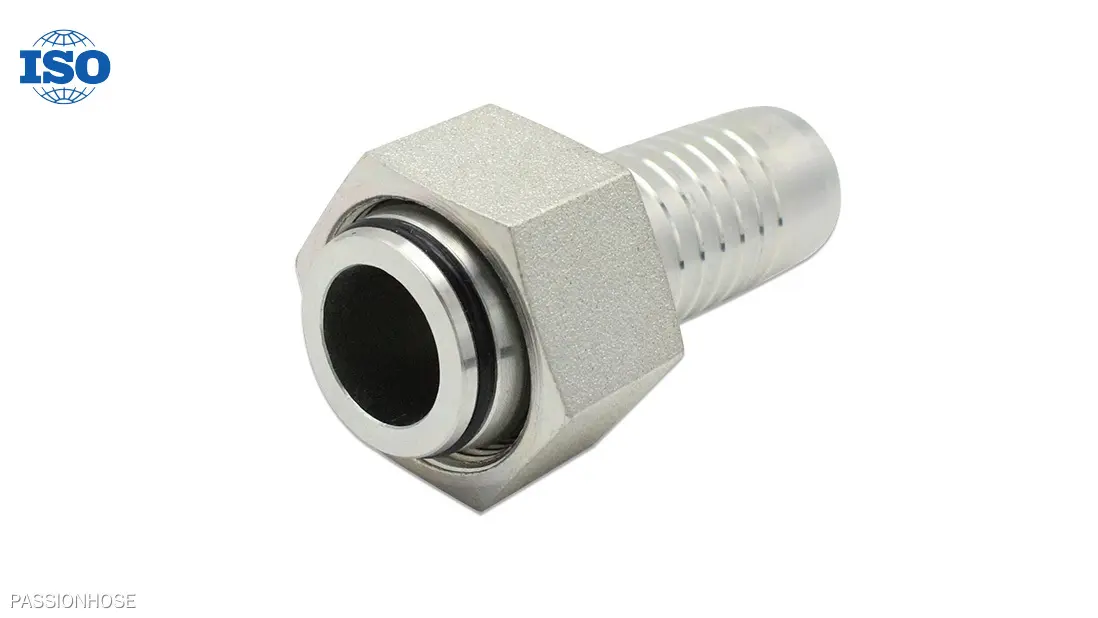

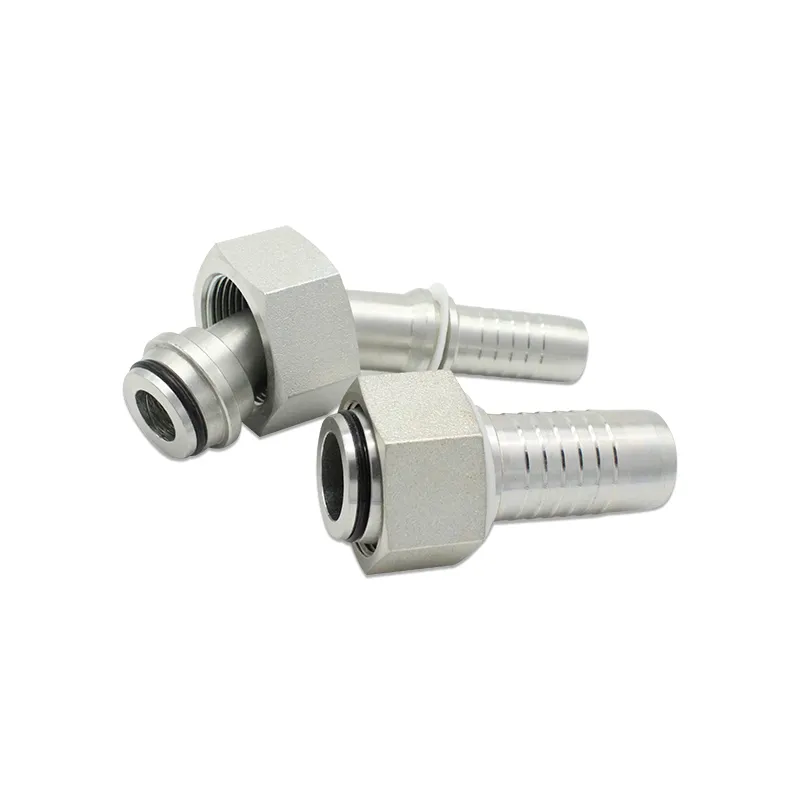

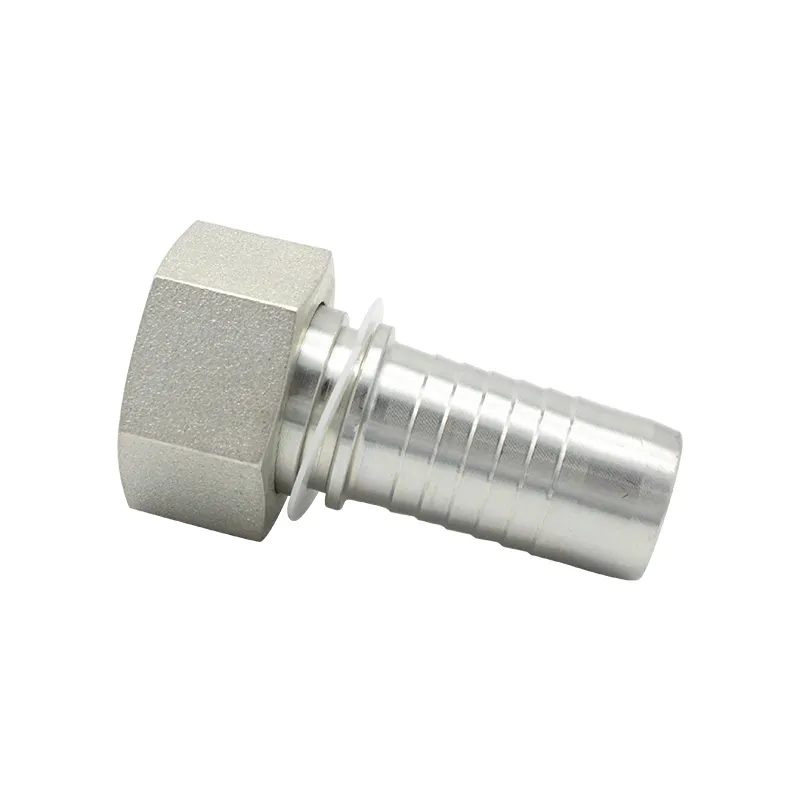

Product Description

---Struction and Specification---

Description

• Detail


• Standard	Yonghua
  Part Number	20411 for wire braided hoses; 20412 for wire spiral hoses
  Material	Carbon Steel 45#
  Surface	Zinc plated with Cr+3
  Testing	Pass at least 120 hours of salt spray test



Specification

Part No.	螺纹 THREAD E	HOSE BORE DN	HOS BORE DASH	O-ring	DIMENSION A	DIMENSION C	DIMENSION S2
20411-12-04	M12x1.5	6	04	O04.5X1.5	26	1	17
20411-14-04	M14x1.5	6	04	O06.5X1.5	27.5	2	19
20411-14-06	M14x1.5	10	06	O06.5X1.5	27.5	2	19
20411-16-04	M16x1.5	6	04	O08.0X1.5	28	2	22
20411-16-05	M16x1.5	8	05	O08.0X1.5	28	2	22
20411-16-06	M16x1.5	10	06	O08.0X1.5	28	2	22
20411-18-05T	M18x1.5	8	05	O10.0X1.5	24.5	1.5	22
20411-18-06	M18x1.5	10	06	O10.0X1.5	29	2.5	24
20411-18-08	M18x1.5	12	08	O10.0X1.5	29.5	2.5	24
20411-22-05T	M22x1.5	8	05	O12.0X2.0	26.5	3	27
20411-22-06T	M22x1.5	10	06	O12.0X2.0	26.5	3	27
20411-22-08	M22x1.5	12	08	O12.0X2.0	32	2.5	27
20411-26-10	M26x1.5	16	10	O15.0X2.0	34.5	2.5	32
20411-26-12	M26x1.5	20	12	O15.0X2.0	35	2.5	32
20411-30-10T	M30x2	16	10	O20.0X2.0	31	3.8	36
20411-30-12	M30x2	20	12	O20.0X2.0	39	4	36
20411-36-12T	M36x2	20	12	O26.0X2.0	33	4.5	46
20411-36-14T	M36x2	22	14	O26.0X2.0	33	4.5	46
20411-45-16T	M45x2	25	16	O32.0X2.5	37	4	55
20411-45-20T	M45x2	32	20	O32.0X2.5	37.5	4	55
20411-52-20T	M52x2	32	20	O38.0X2.5	38.5	4	60
20411-52-20T	M52x2	32	20	O38.0X2.5	38.5	4	60



Product Details

---More of PAISHUN Hydraulic Hose Fittings---

                00110

PASSIONCO Ferrule for one wire braided hydraulic hoe



03310

Ferrule for two wire braided hydraulic hose



20511-T

Metric Female 24 degree Cone with o-ring. H.T.



14211T

ORFS Flat Female



26711

JIC female 37 degree cone seat



15611W

One piece type NPT Male





Application

---Consttruction, Lifting, Pressure Washing---


About our hydraulic hose fittings

Paishun products are particularly suitable for the following areas of applications:
* Heavy equipment and earth-moving machinery in construction sites
* Mining and drilling
* Agricultural machines and equipment
* Working platforms, cranes, and lifting
* Pressure washer



For Construction Machinery

With high impulse performance, PAISHUN hydraulic hose can be widely used on construction machinery such as excavators, bulldozers, earthmovers, etc.

For Mining and Drilling

With the MSHA certificate and extraordinary anti-flame resistance performance, PAISHUN hydraulic hose can be used on mining industry.

t, a simple jumbotron-style con



For Agricultural Machinery

PAISHUN hydraulic hose can also be used in agricultural machinery.

For Working platforms, Cranes, and Lifting

PAISHUN hose can be used in working platforms, cranes, and lifting.

Customized hoses are available.





For Pressure washer

With high flexibility, PAISHUN hydraulic hose can be also used on pressure washers, and jet washers for the washing sites.

Home use and industry use are both available.
